Symptom Troubleshooting [Engine Control System 13B-MSP): Foreword

When the customer reports a vehicle malfunction, check the malfunction indicator lamp (MIL) indication and diagnostic trouble code (DTC), then diagnose the malfunction according to the following flowchart:
- If a DTC exists, diagnose the applicable DTC inspection. (See DTC TABLES .)
- If no DTC exists and the MIL does not illuminate or flash, diagnose the applicable symptom troubleshooting. (See QUICK DIAGNOSTIC CHART .)

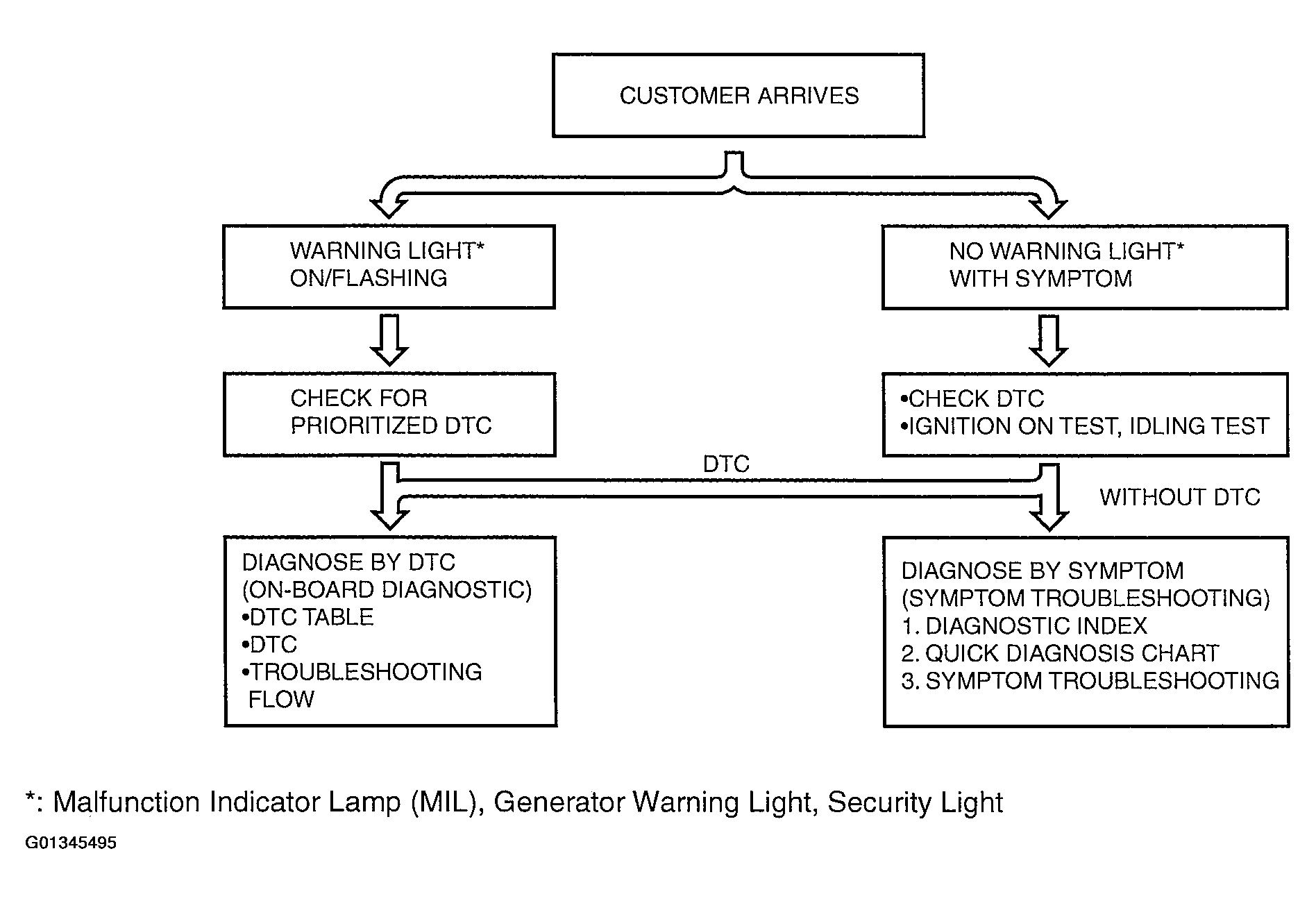

  Fig 1: Malfunction Indicator Lamp Indication Diagram
  Courtesy of MAZDA MOTORS CORP.
