No. 7 Slow Return To Idle

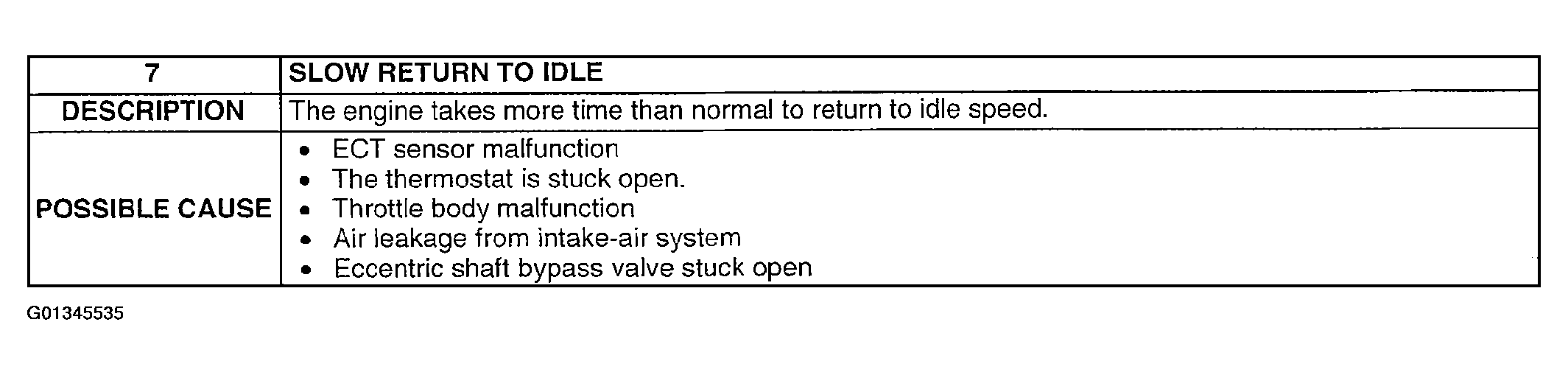

Fig 1: Possible Cause - No. 7 Slow Return To Idle
Courtesy of MAZDA MOTORS CORP.
Diagnostic Procedure

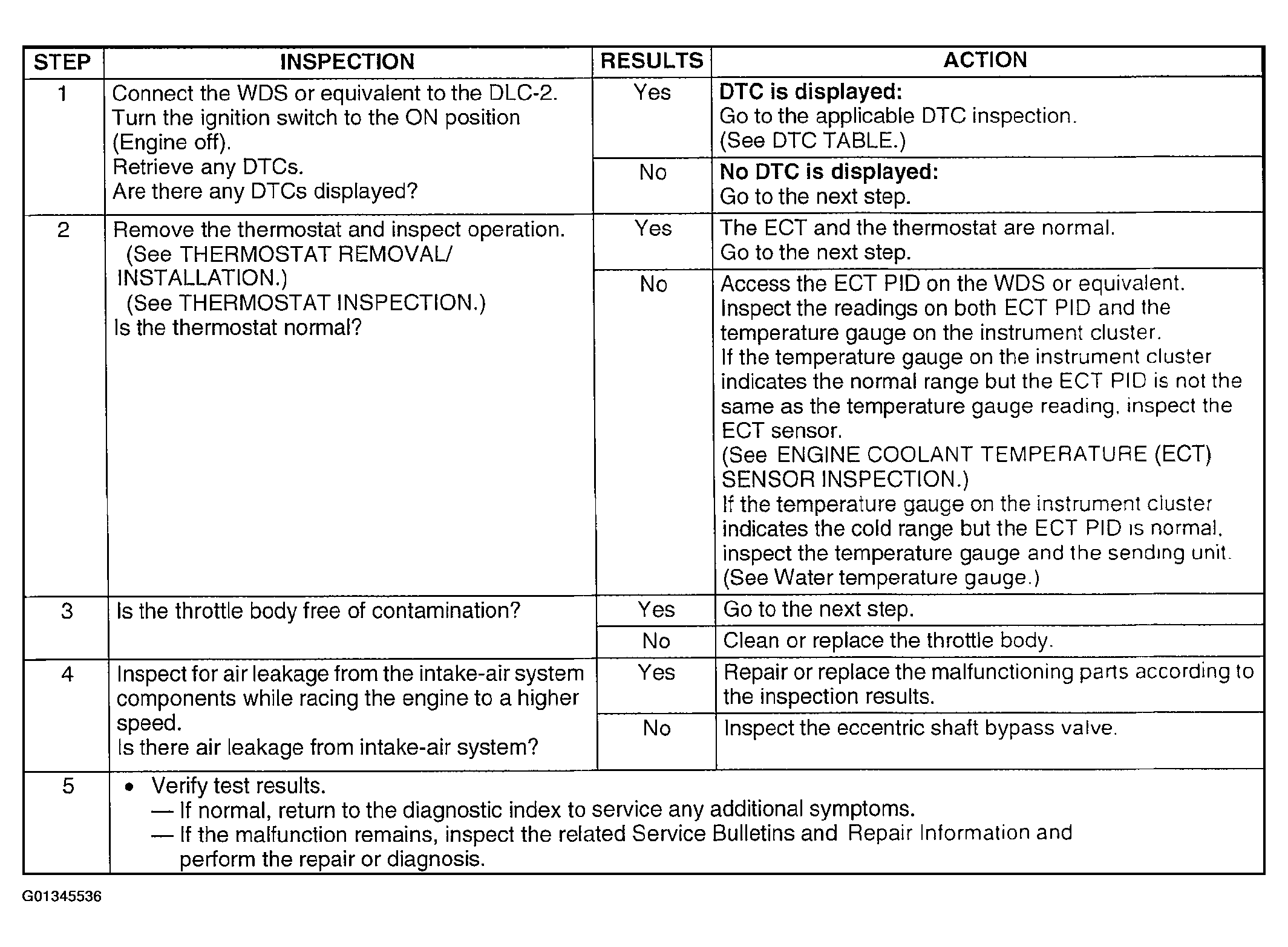

Fig 2: Diagnostic Procedure - No. 7 Slow Return To Idle
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
