No. 9 Fast Idle/Runs On

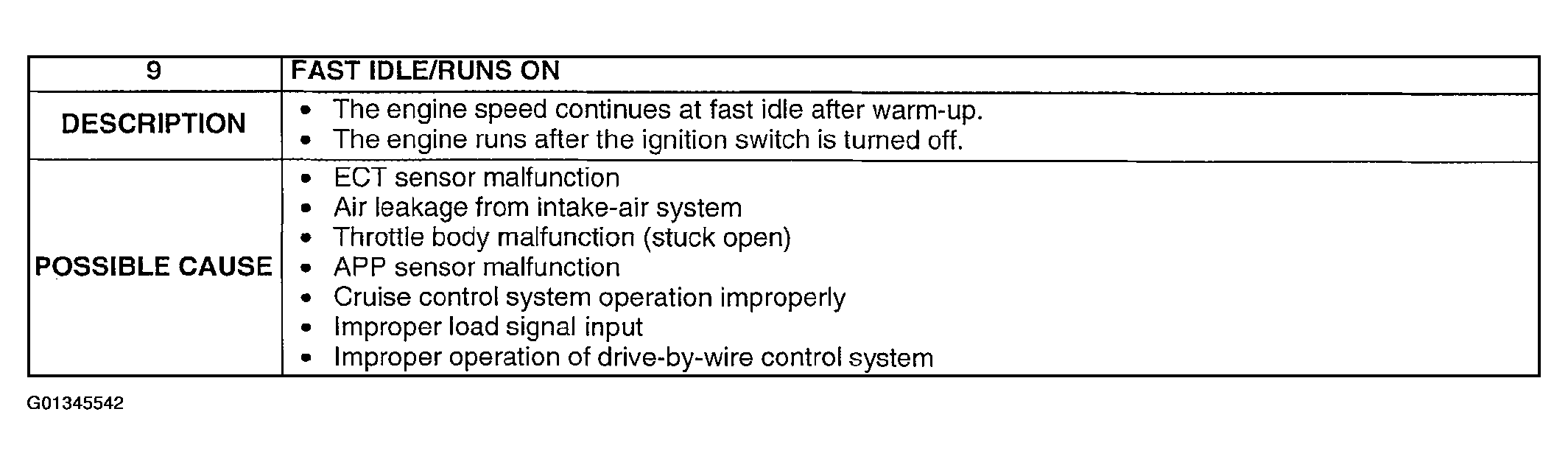

Fig 1: Possible Cause - No. 9 Fast Idle/Runs On
Courtesy of MAZDA MOTORS CORP.
Diagnostic Procedure

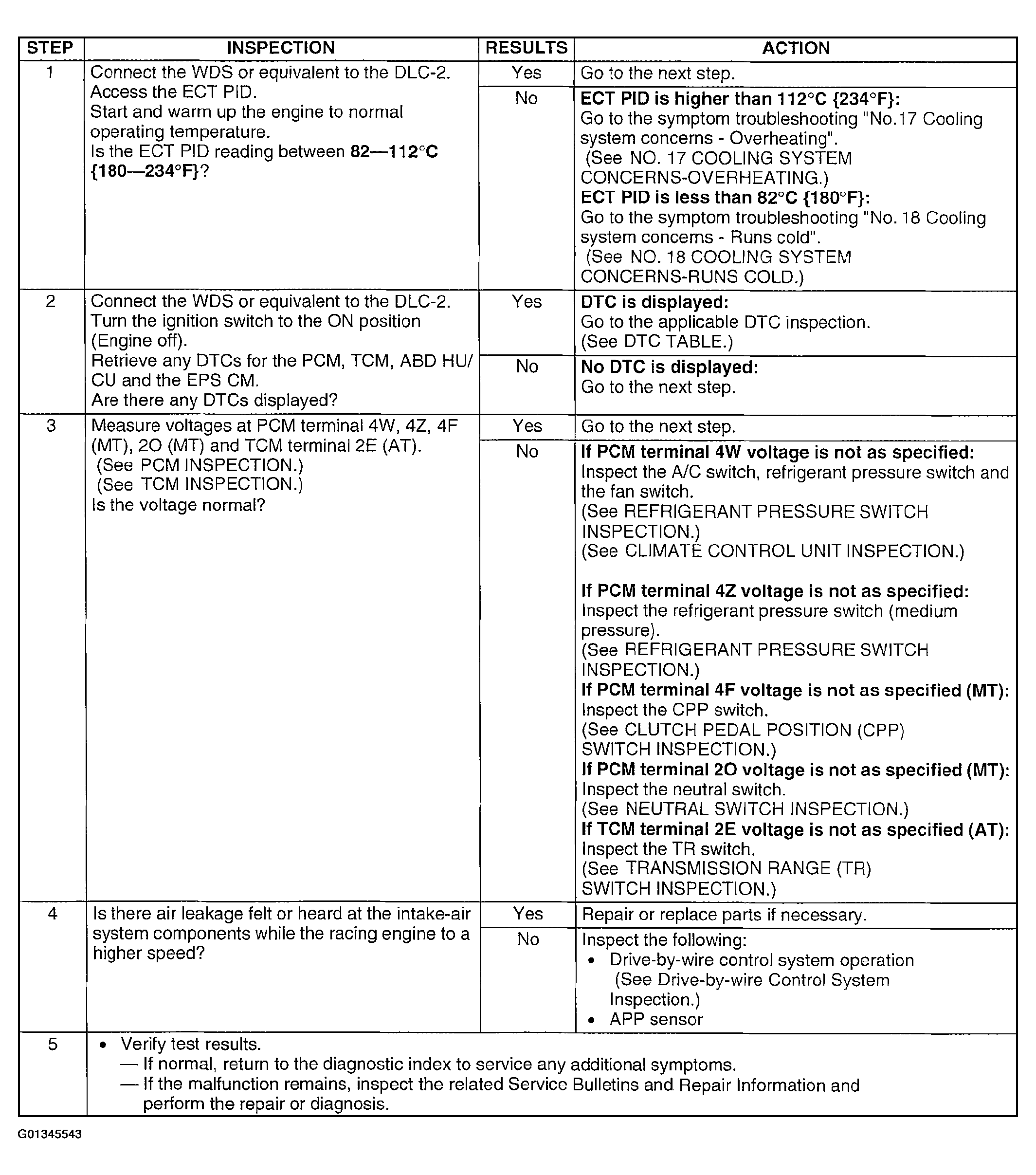

Fig 2: Diagnostic Procedure - No. 9 Fast Idle/Runs On
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
