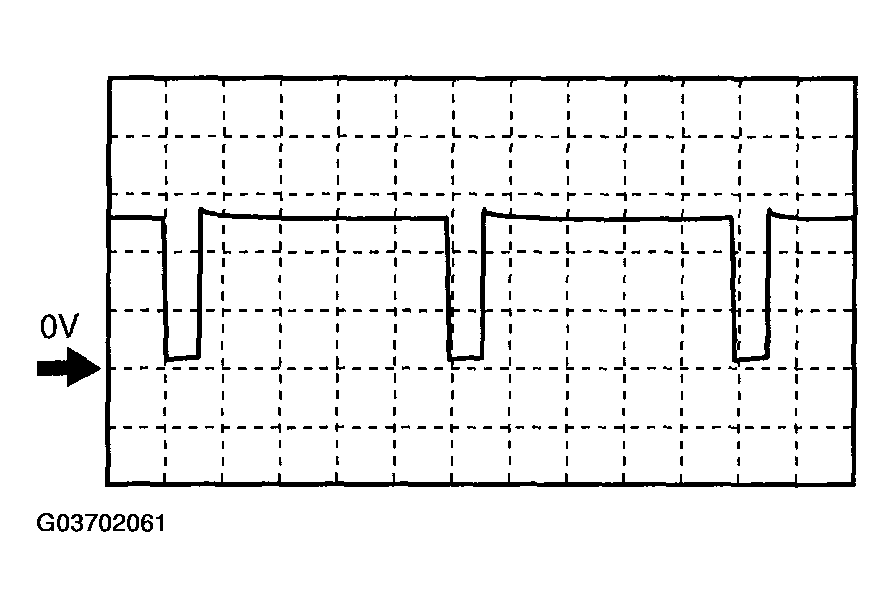

APV motor control (+)
- Terminal connected: 3G (+)-Negative battery terminal
- Oscilloscope setting: 5 V/DIV (Y): 20 ms/DIV (X), DC range
- Measurement condition: Engine speed 6,250 rpm or more after warm-up (approx. 2 s after the APV remains open)
Courtesy of MAZDA MOTORS CORP.
