Throttle control (+)

Terminal connected: 1B (+)-Negative battery terminal
Oscilloscope setting: 5 V/DIV (Y): 0.4 ms/DIV (X), DC range
Measurement condition: IG SW ON

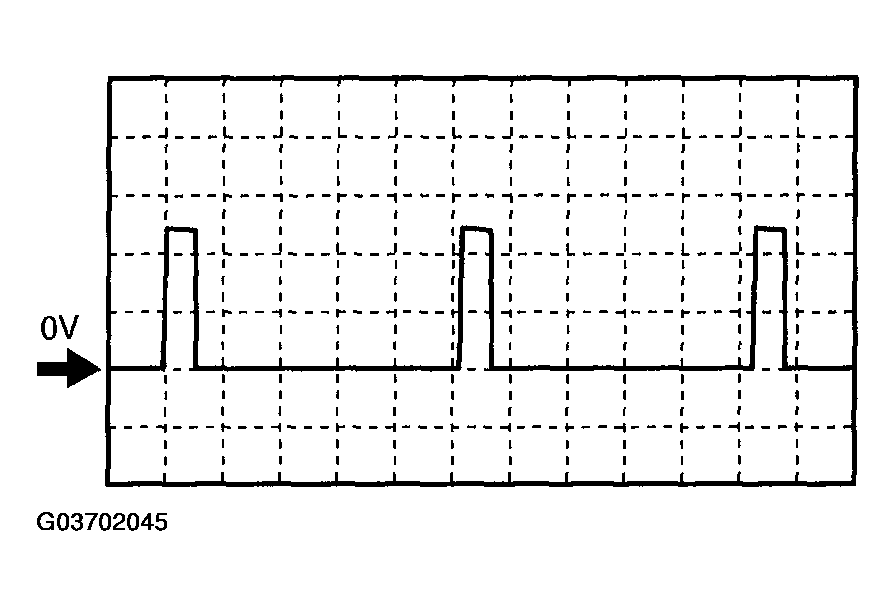

Fig 1: Identifying Throttle Control (+) Graph
Courtesy of MAZDA MOTORS CORP.
