Pulsation Damper Removal/Installation

Remove the fuel distributor. (See FUEL INJECTOR REMOVAL/INSTALLATION .)
Remove in the order indicated. See Fig 1.

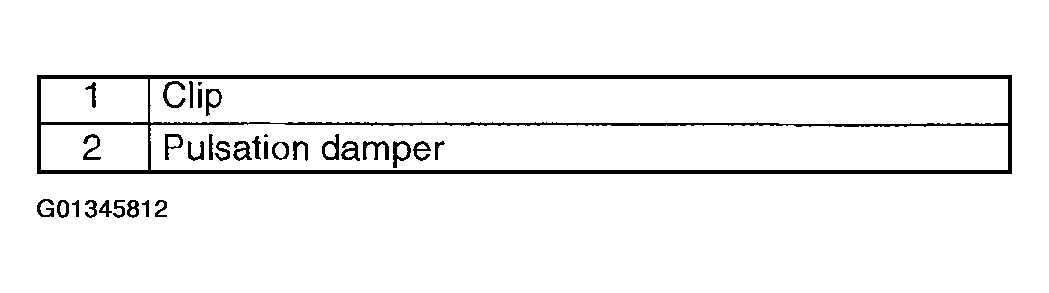

Fig 1: Removal Order Of Pulsation Damper
Courtesy of MAZDA MOTORS CORP.

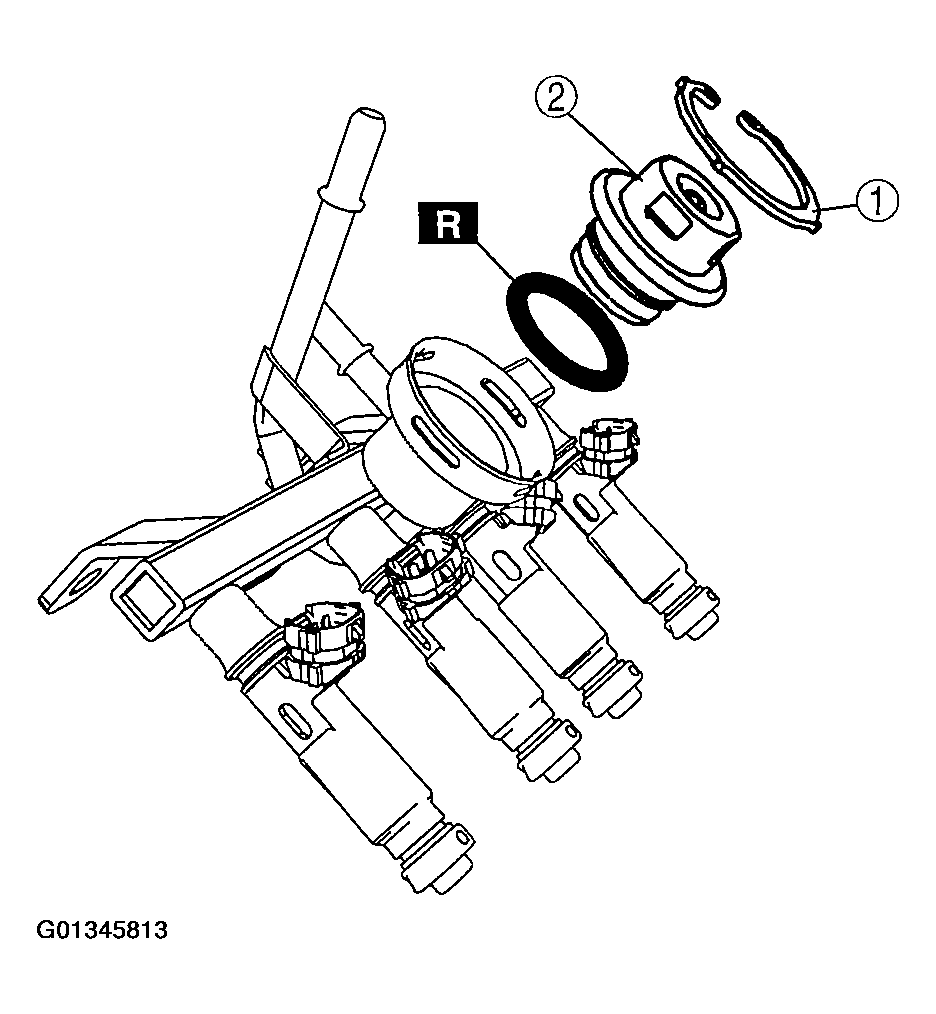

Fig 2: Removing/Installing Pulsation Damper
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Inspect all parts by performing the "AFTER REPAIR PROCEDURE". (See AFTER REPAIR PROCEDURE .)
