Symptom Troubleshooting [Engine Control System 13B-MSP)
>>
Quick Diagnostic Chart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Quick Diagnostic Chart

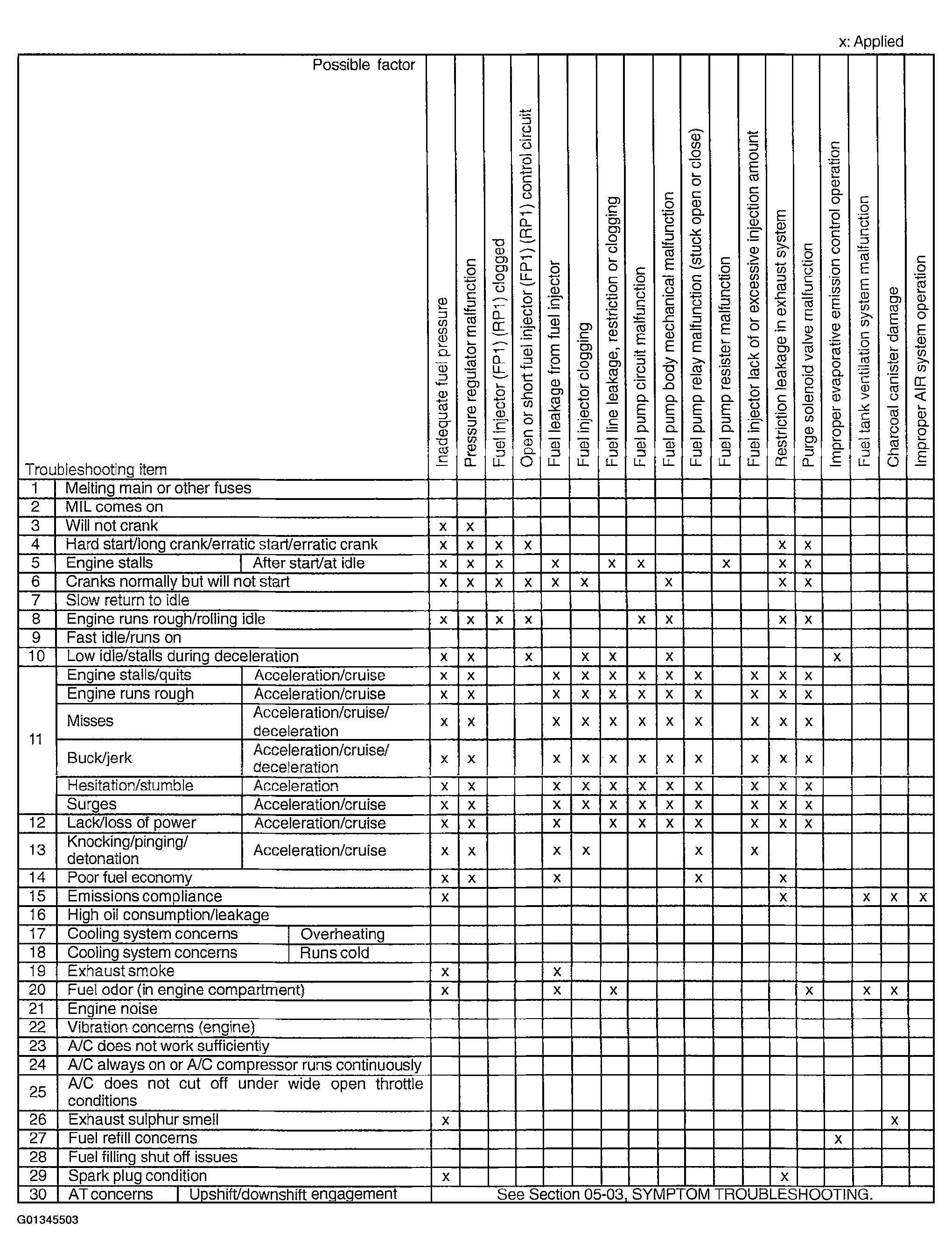

Fig 1: Quick Diagnostic Chart (1 Of 6)
Courtesy of MAZDA MOTORS CORP.

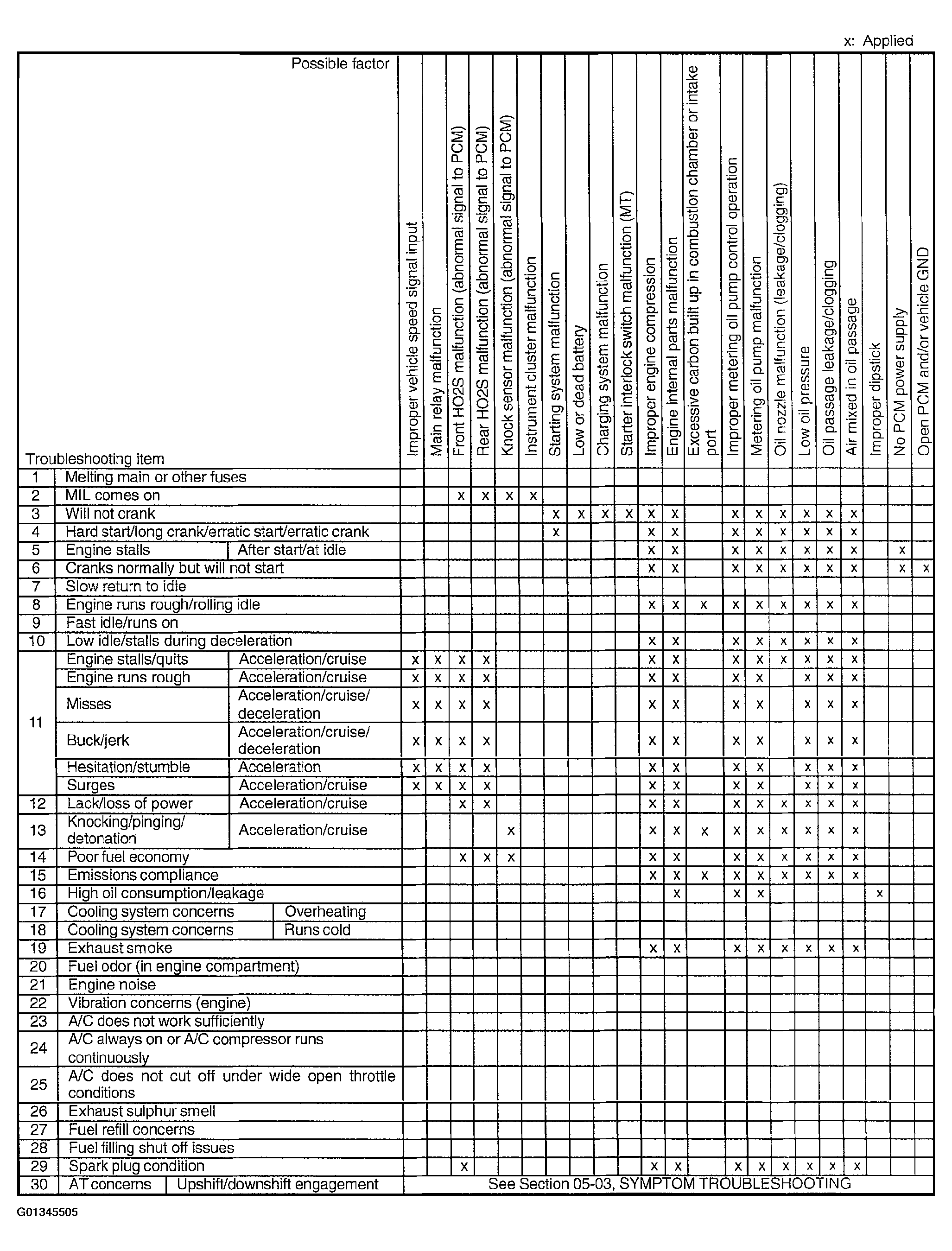

Fig 2: Quick Diagnostic Chart (2 Of 6)
Courtesy of MAZDA MOTORS CORP.

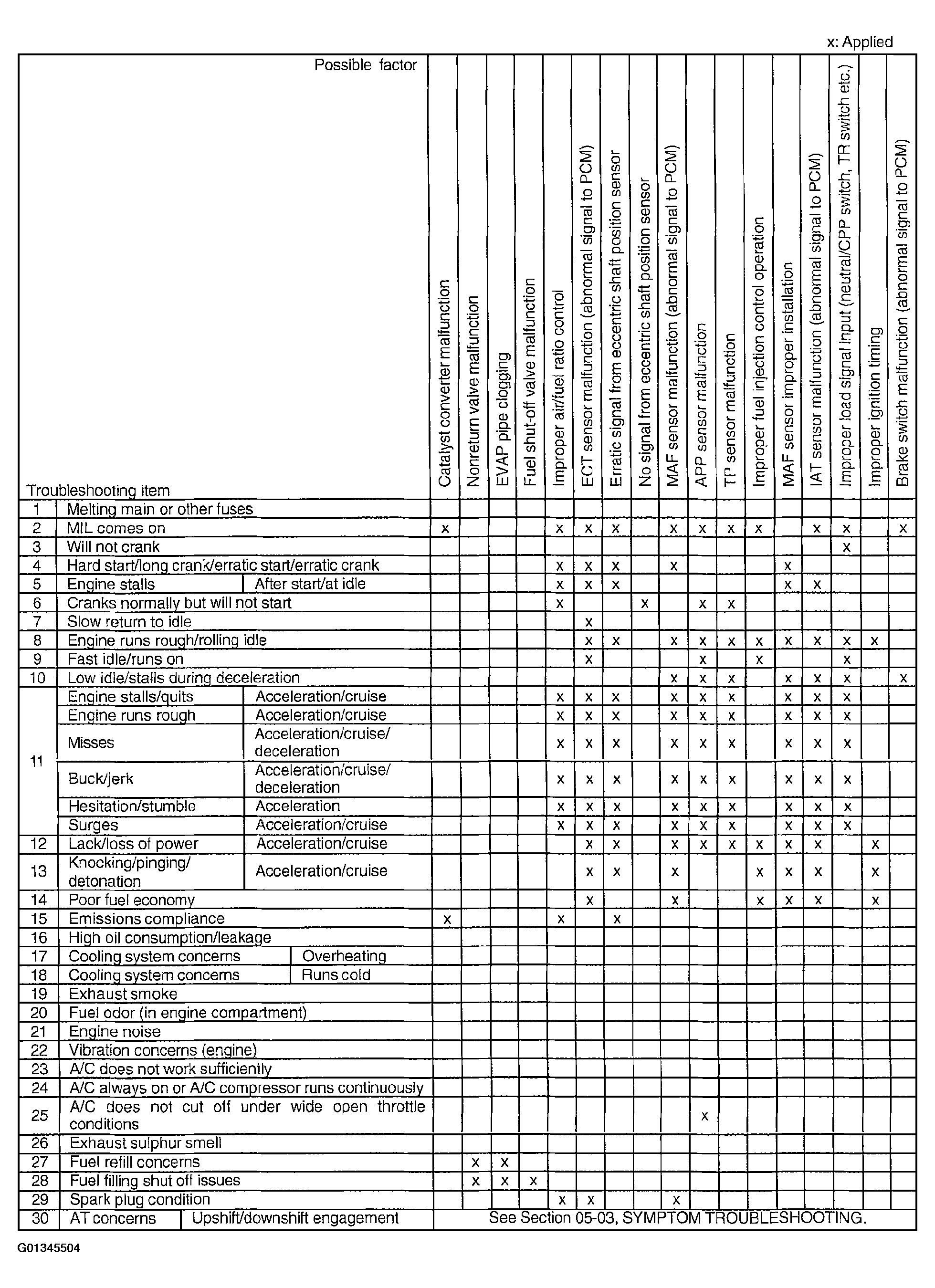

Fig 3: Quick Diagnostic Chart (3 Of 6)
Courtesy of MAZDA MOTORS CORP.

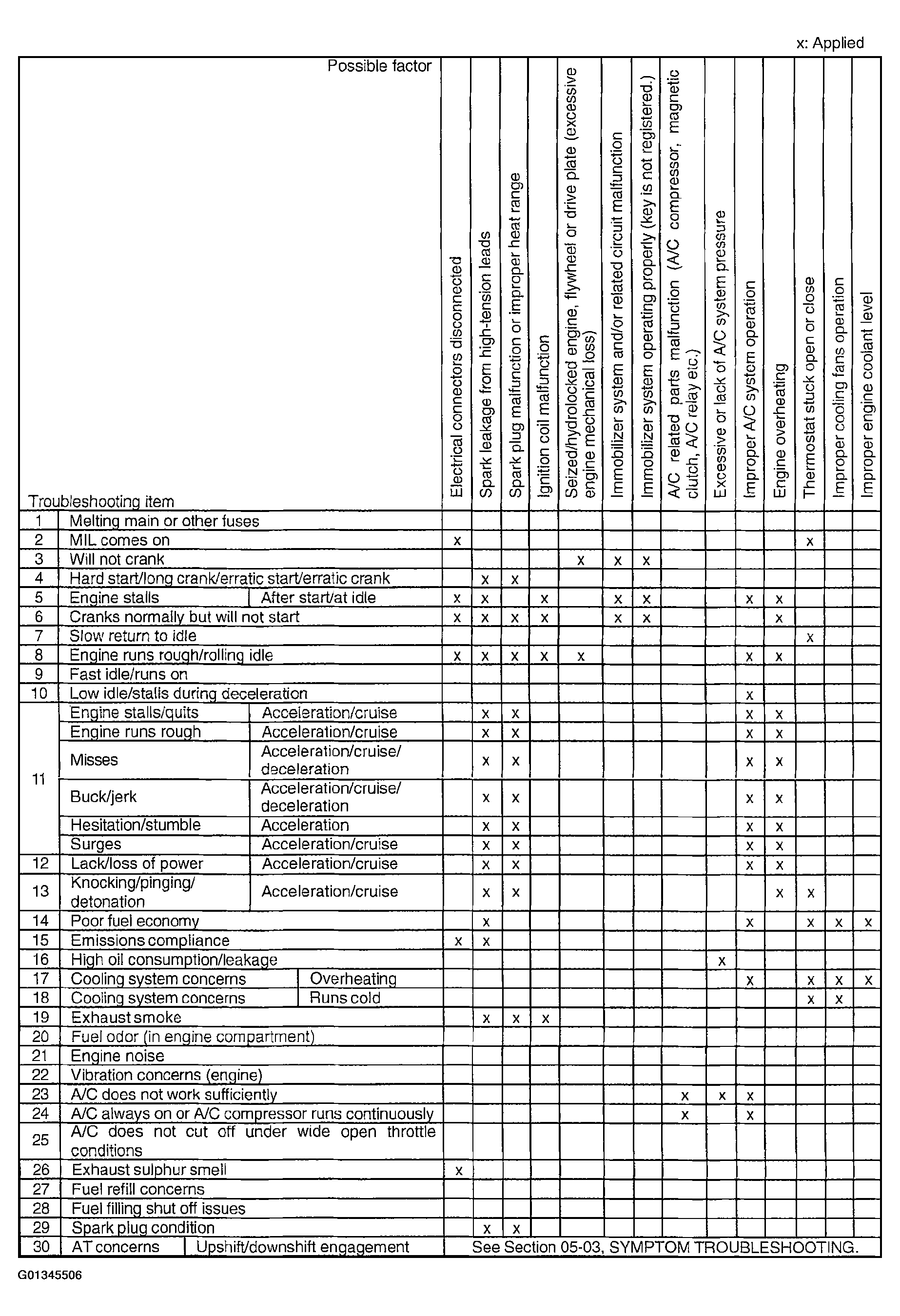

Fig 4: Quick Diagnostic Chart (4 Of 6)
Courtesy of MAZDA MOTORS CORP.

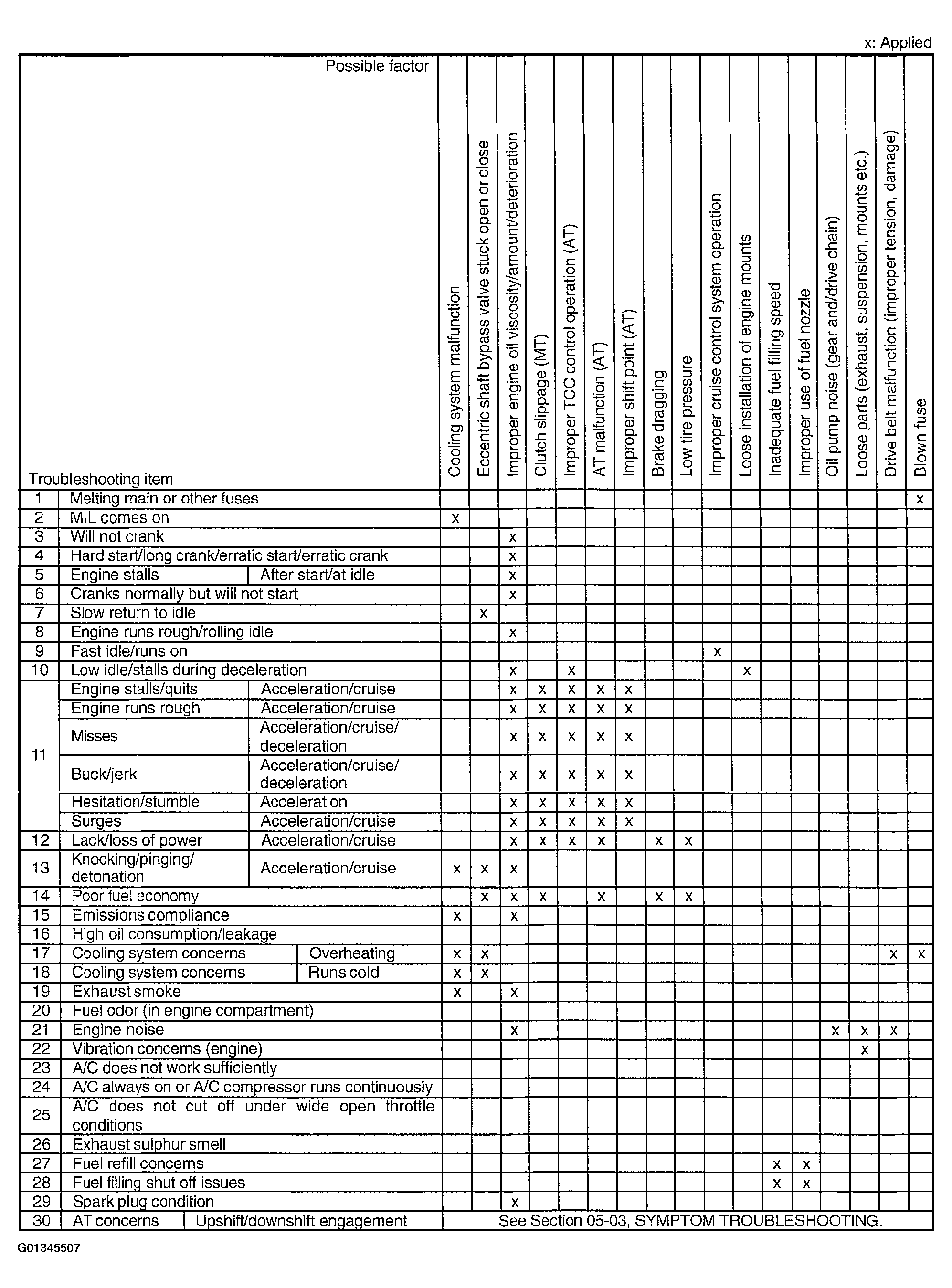

Fig 5: Quick Diagnostic Chart (5 Of 6)
Courtesy of MAZDA MOTORS CORP.

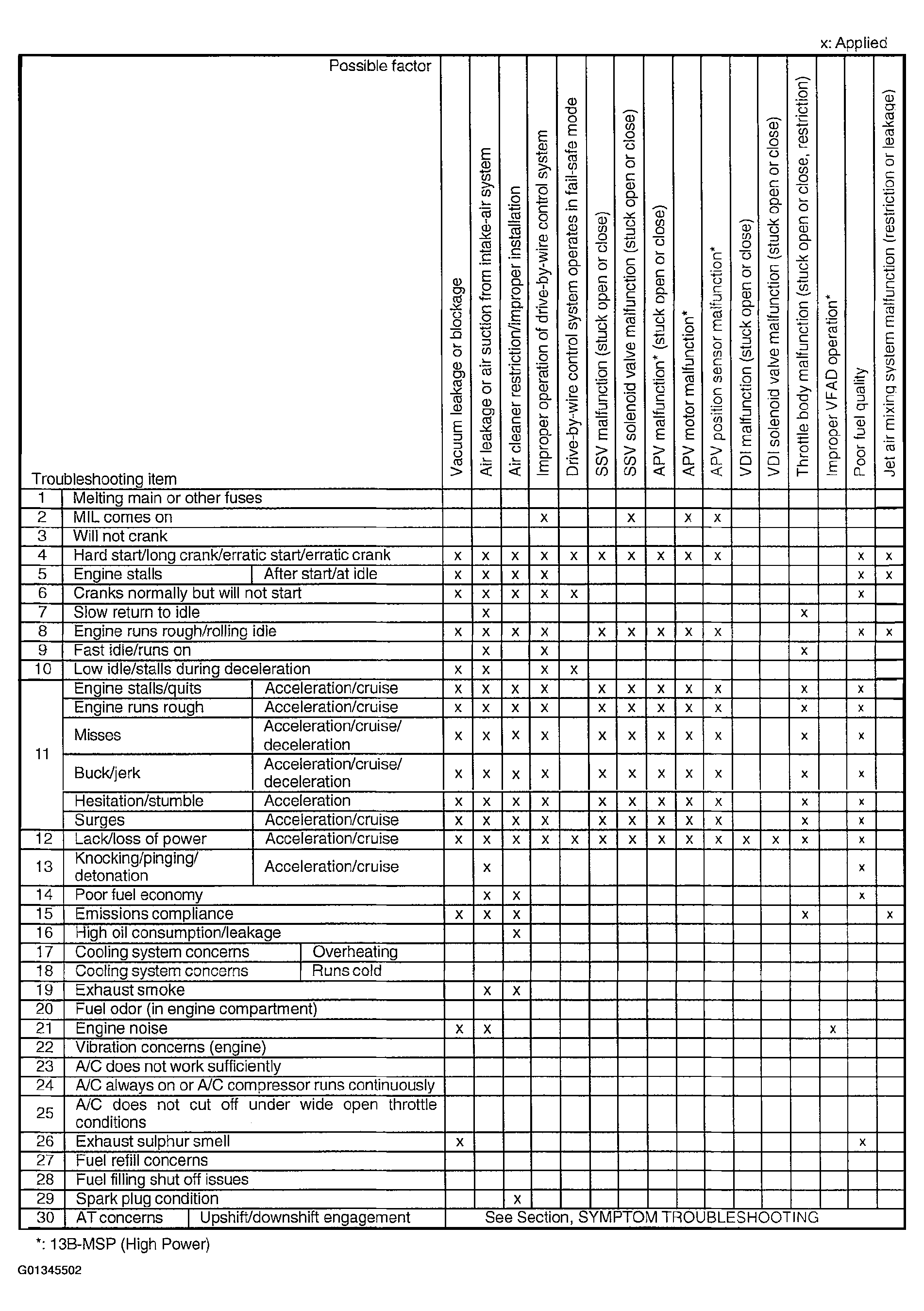

Fig 6: Quick Diagnostic Chart (6 Of 6)
Courtesy of MAZDA MOTORS CORP.
