Navigation Module: Service and Repair

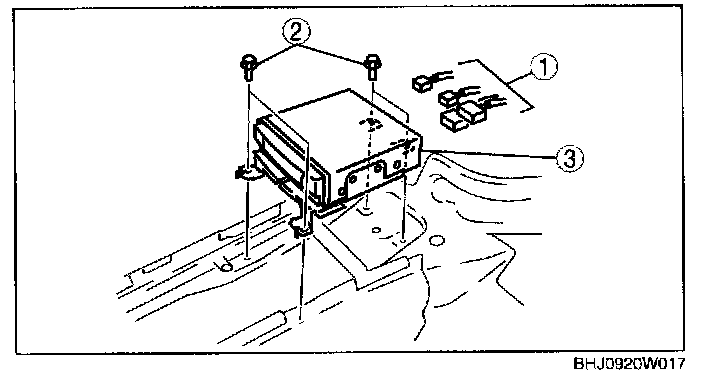

CAR-NAVIGATION UNIT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the console.

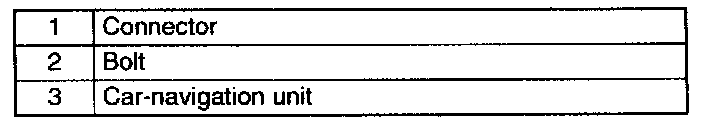

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
