Keyless Entry Receiver: Service and Repair

KEYLESS RECEIVER REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the glove compartment.

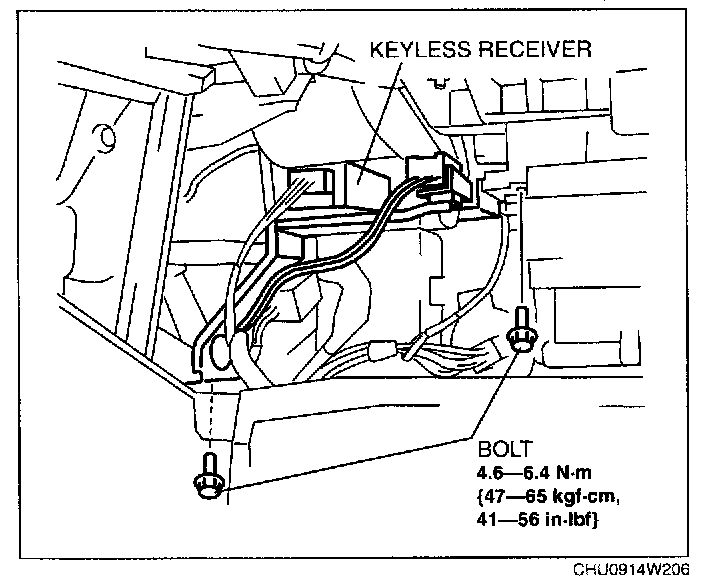

3. Remove me bolts.
4. Remove the connector clip installed to the bracket by shifting the keyless receiver downward.
5. Disconnect the keyless receiver connector.

NOTE: The screw which fixes the keyless receiver and bracket is for a body ground connection. Be sure to secure the screw when installing.

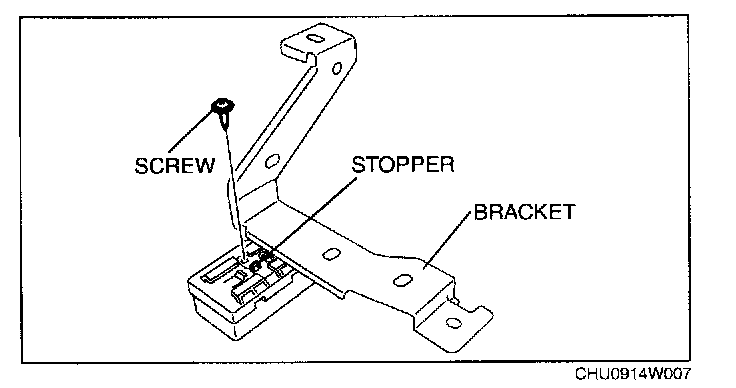

6. Push the stopper in with a small screwdriver and remove the bracket.
7. Install in the reverse order of removal.
