Cruise Control Switch: Testing and Inspection

CRUISE CONTROL SWITCH INSPECTION

1. Disconnect the negative battery cable.
2. Remove the driver-side air bag module.
3. Disconnect the audio control switch connector.

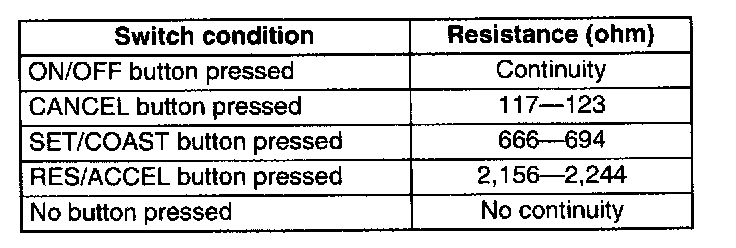

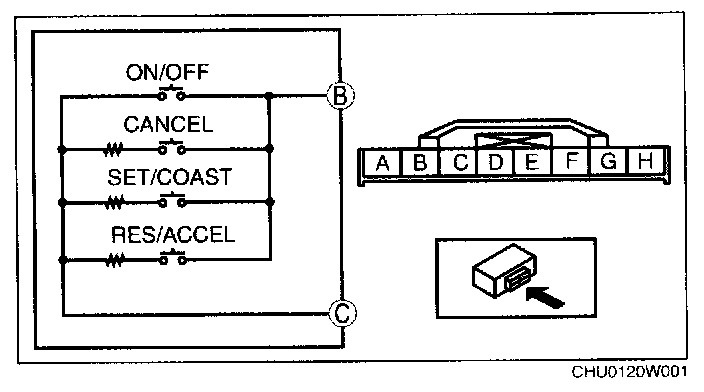

4. Inspect for resistance and continuity between cruise control switch terminals B-C using a tester.
- If not as specified, replace the cruise control switch.
