Headlamp Alignment Control Module

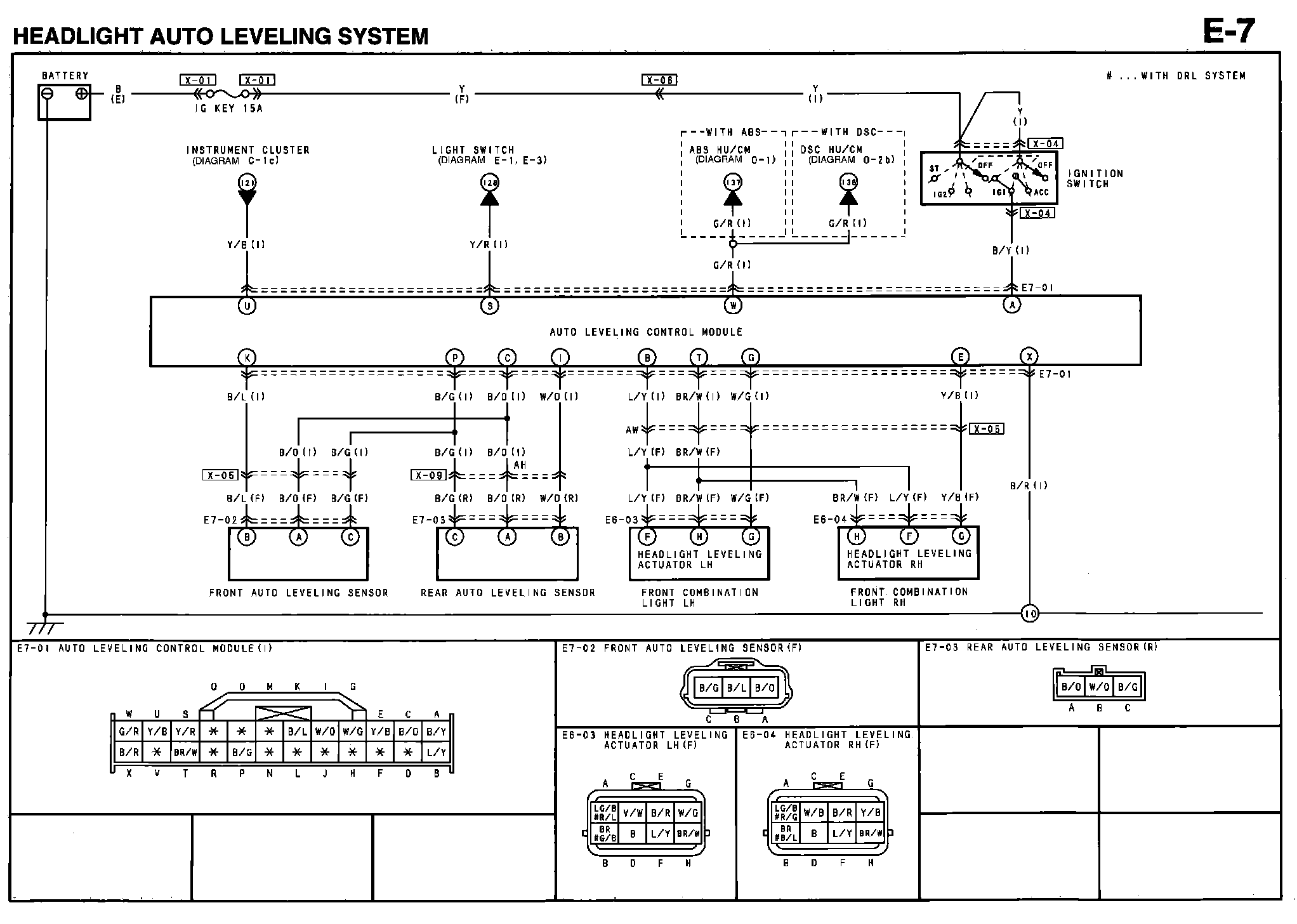

Diagram E-7:

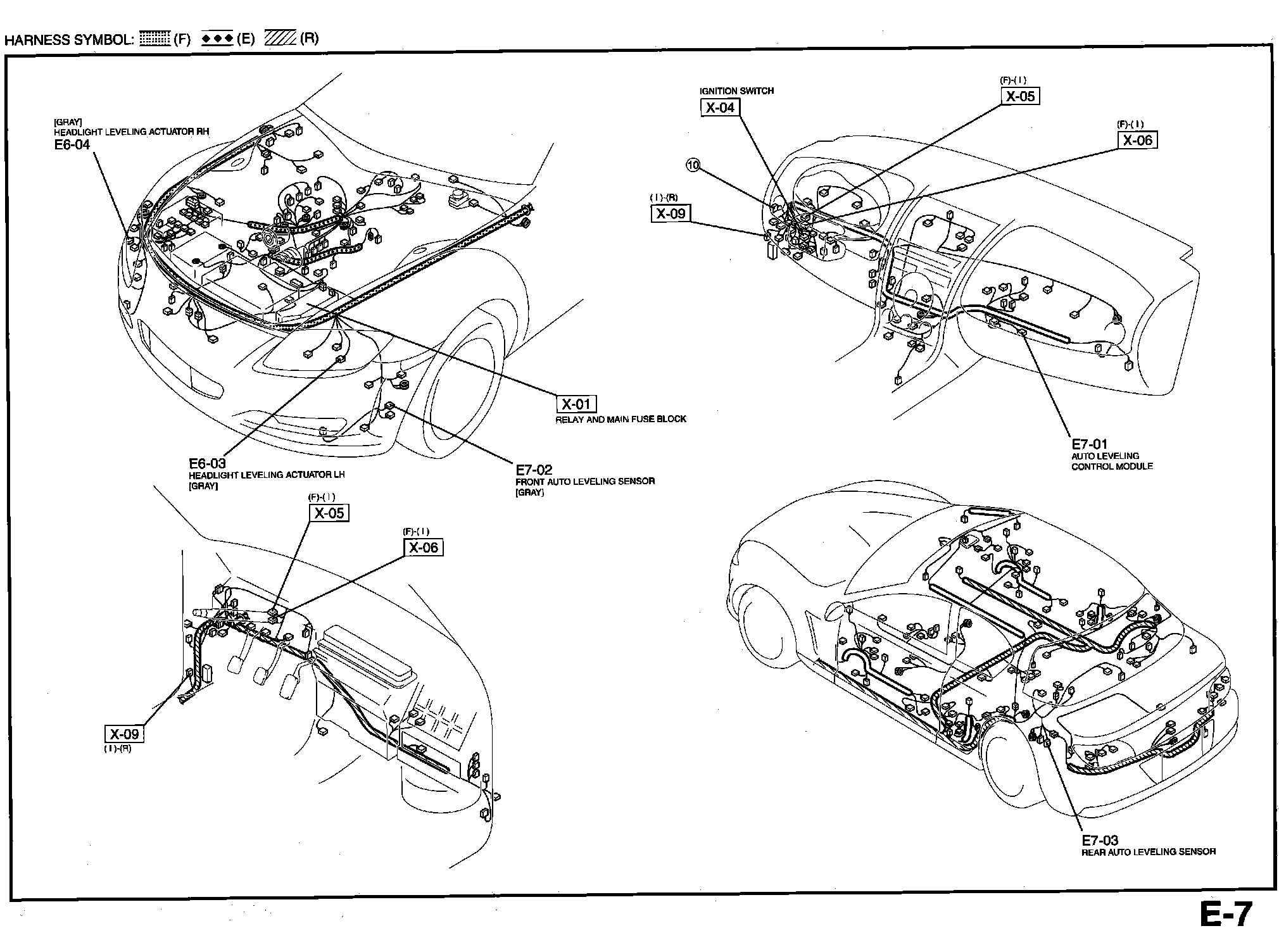

Routing View E-7:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
