Control Assembly: Service and Repair

CLIMATE CONTROL UNIT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the lower panel.

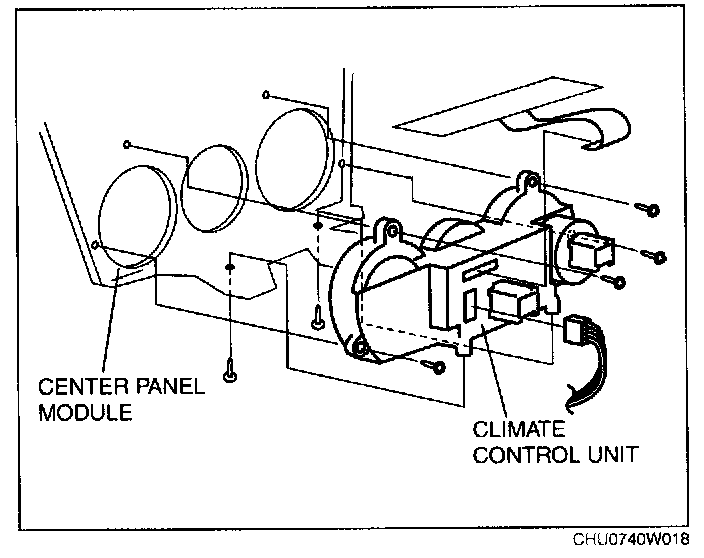

3. Remove the console.
4. Remove the center panel module.




5. Remove the climate control unit from the center panel module.
6. Install in the reverse order of removal.
