Headlamp Alignment Control Module: Service and Repair

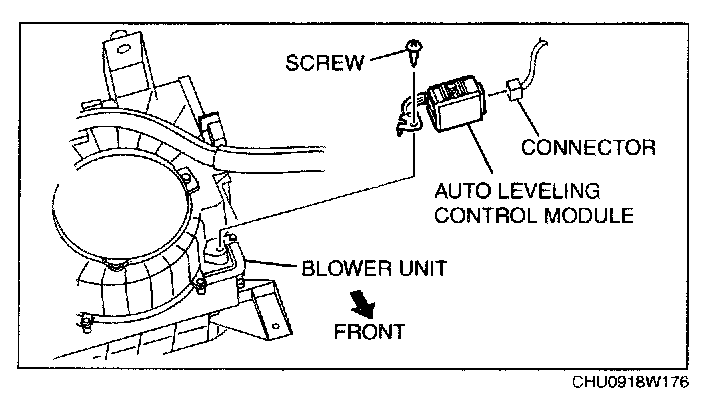

AUTO LEVELING CONTROL MODULE REMOVAL/INSTALLATION




1. Disconnect the negative battery cable.
2. Disconnect the connector.
3. Remove the screw and then remove the auto leveling control module.
4. Install in the reverse order of removal.
