Barometric Pressure Sensor: Service and Repair

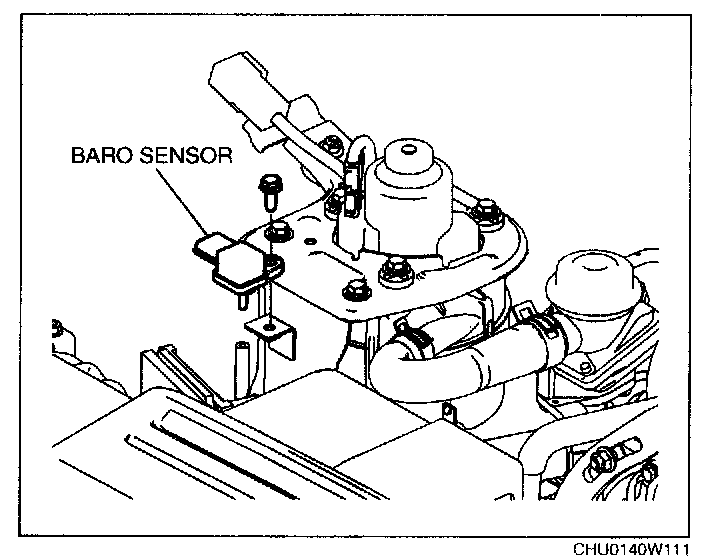

BAROMETRIC PRESSURE (BARO) SENSOR REMOVAL/INSTALLATION

1. Disconnect the BARO sensor connector.




2. Remove the BARO sensor installation bolt and remove the BARO sensor.
3. Install in the reverse order of removal.

BARO sensor tightening torque: 7.8 - 10.8 N.m {80 - 110 kgf.cm, 69 - 95 in.lbf}
