Power Window Control Module: Service and Repair

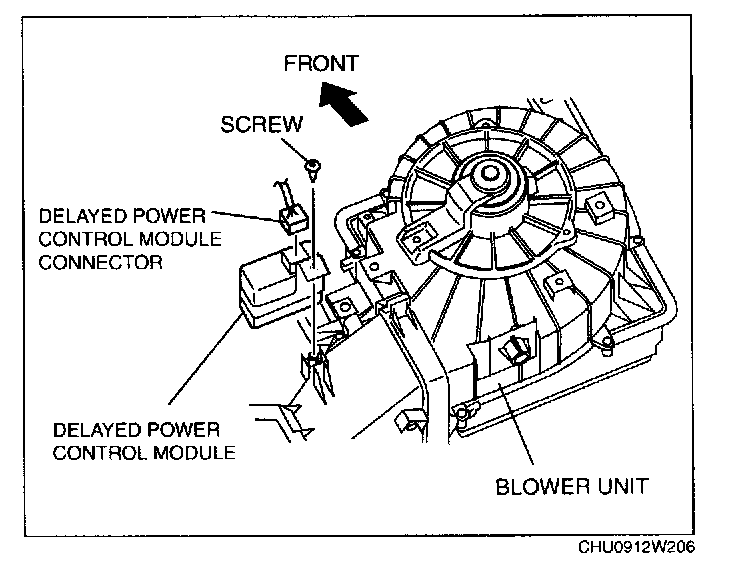

DELAYED POWER CONTROL MODULE REMOVAL/INSTALLATION




1. Disconnect the negative battery cable.
2. Disconnect the delayed power control module connector.
3. Remove the bolt and then remove the delayed power control module.
4. Install in the reverse order of removal.
