Power Window Control Module: Testing and Inspection

DELAYED POWER CONTROL MODULE INSPECTION

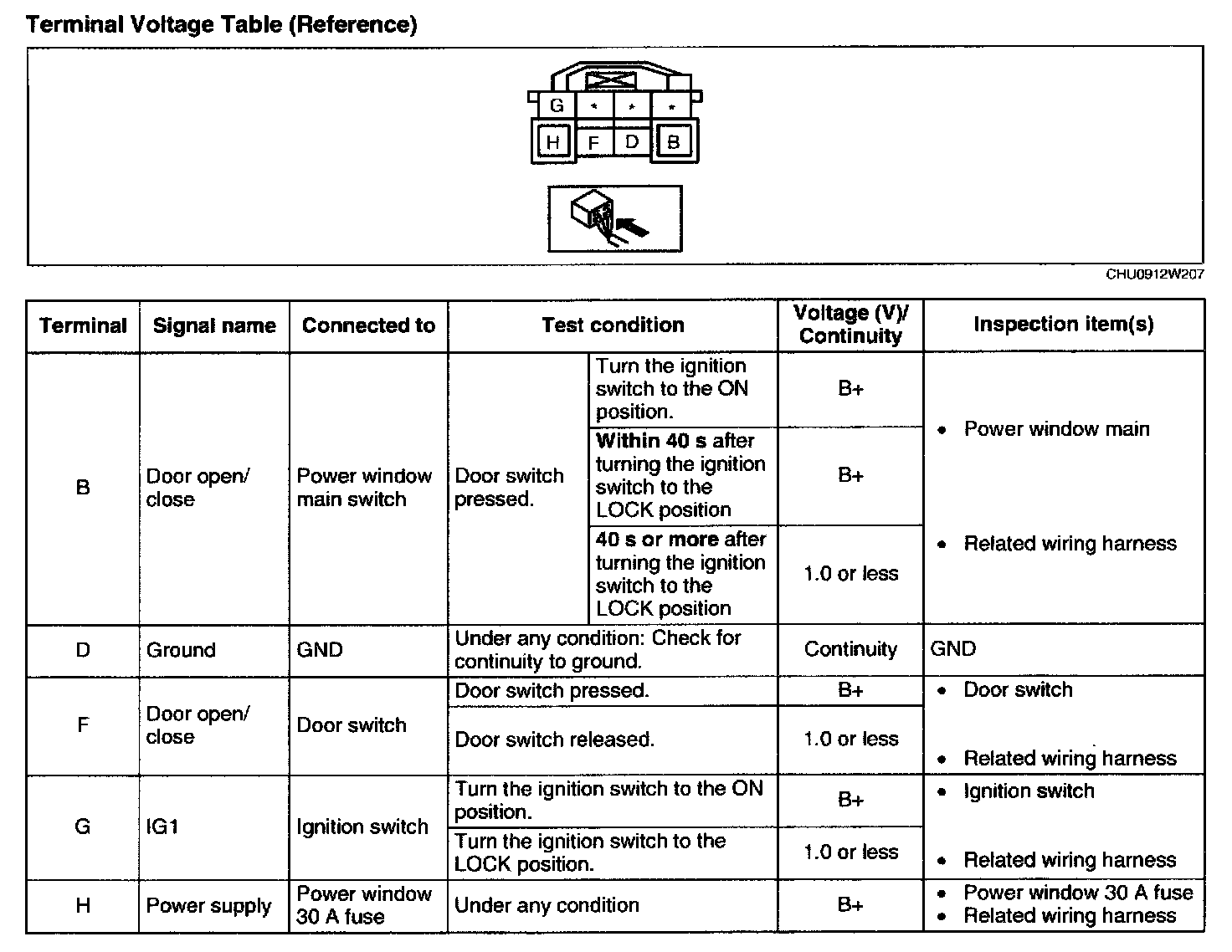

Terminal Voltage Table (Reference):

1. Measure voltage or inspect for continuity according to the Terminal Voltage Table (Reference).
- If the voltage is not as specified in the Terminal Voltage Table (Reference), inspect the parts under "Inspection item(s)".
