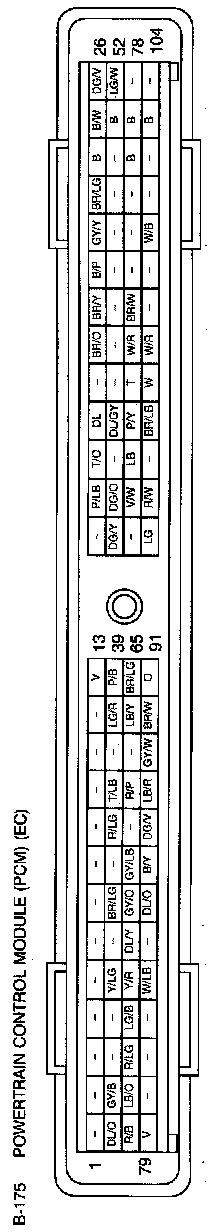

Engine Control Module
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Engine Control Module

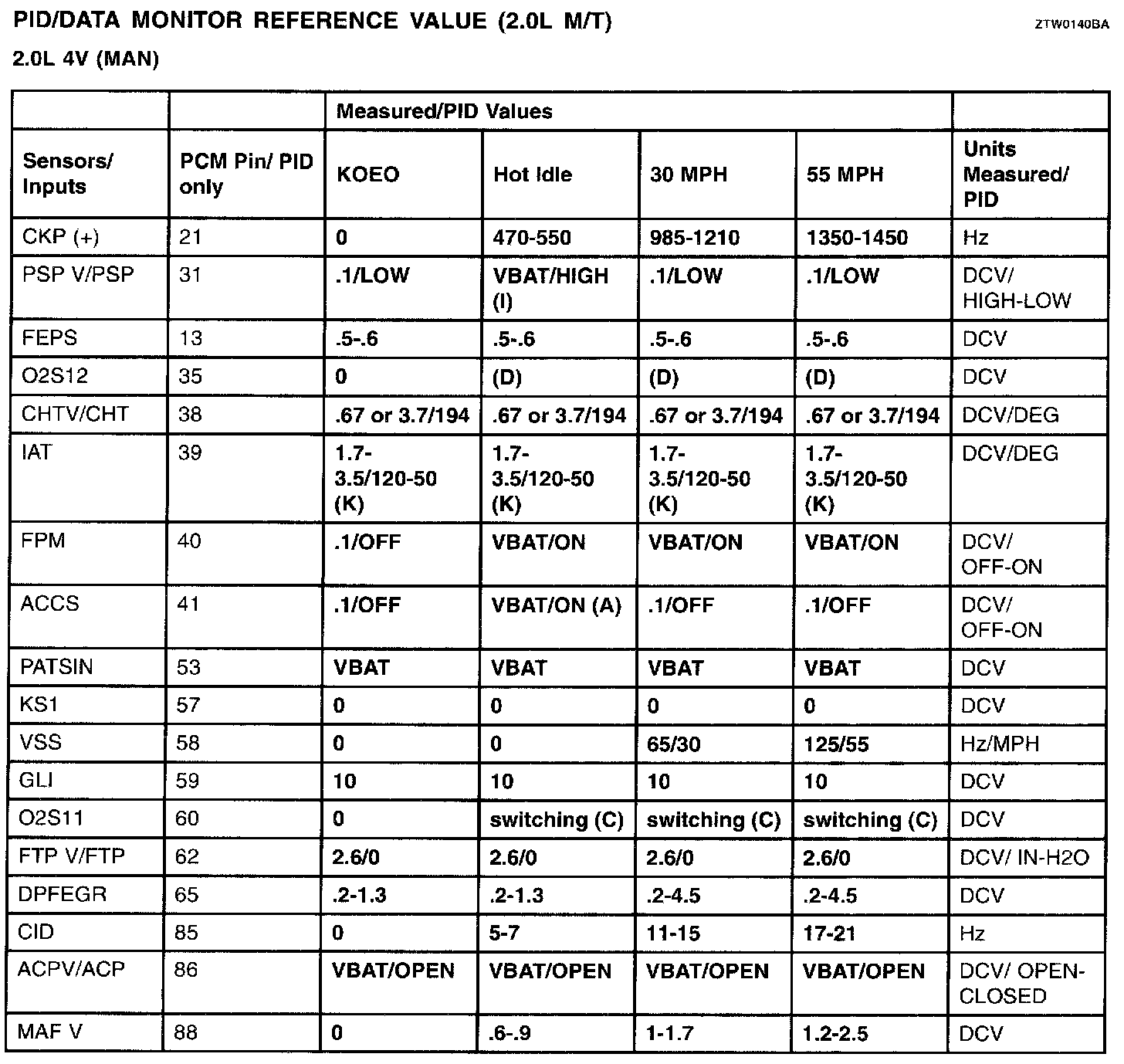

PID/Data Monitor Reference Value (2.0L M/T) Part 1:

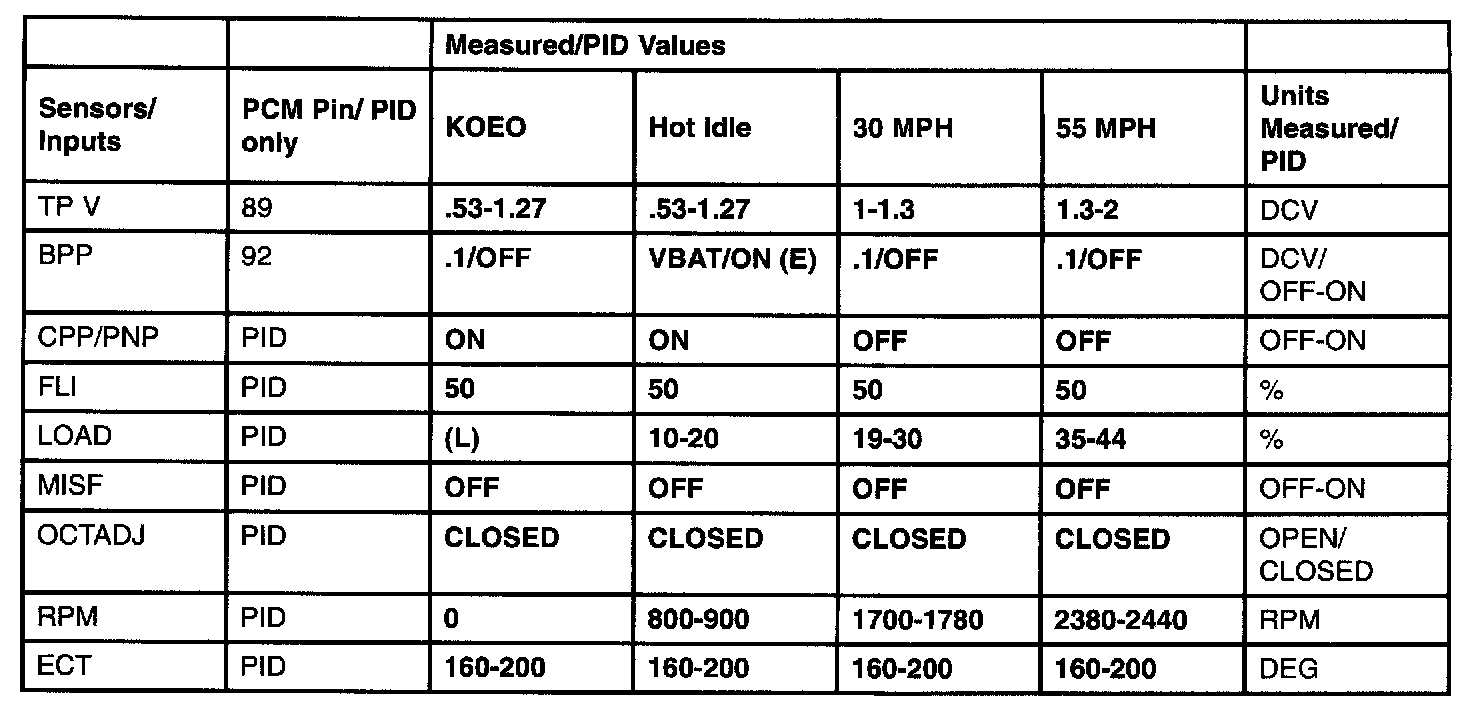

PID/Data Monitor Reference Value (2.0L M/T) Part 2:

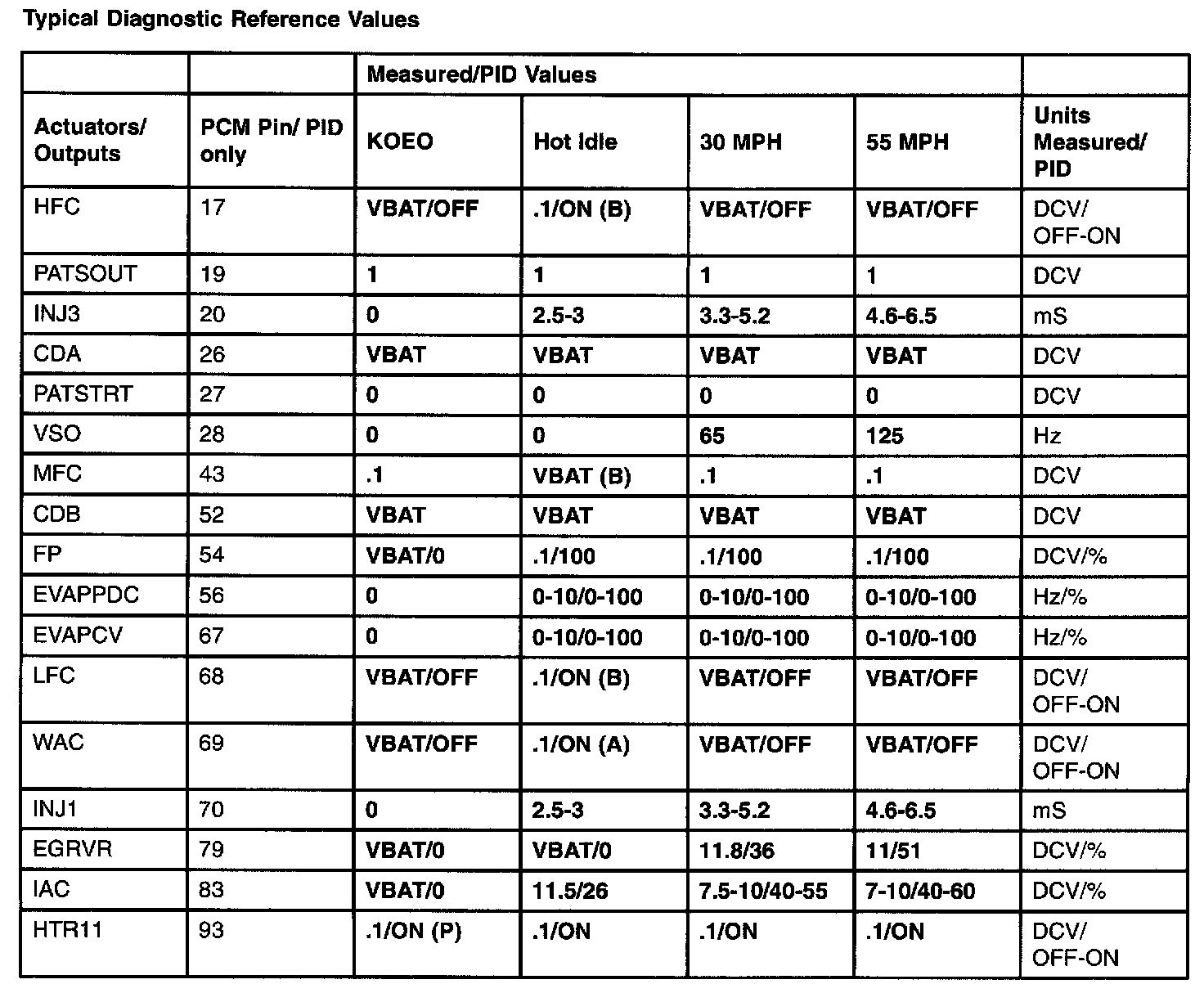

Typical Diagnostic Reference Values Part 1:

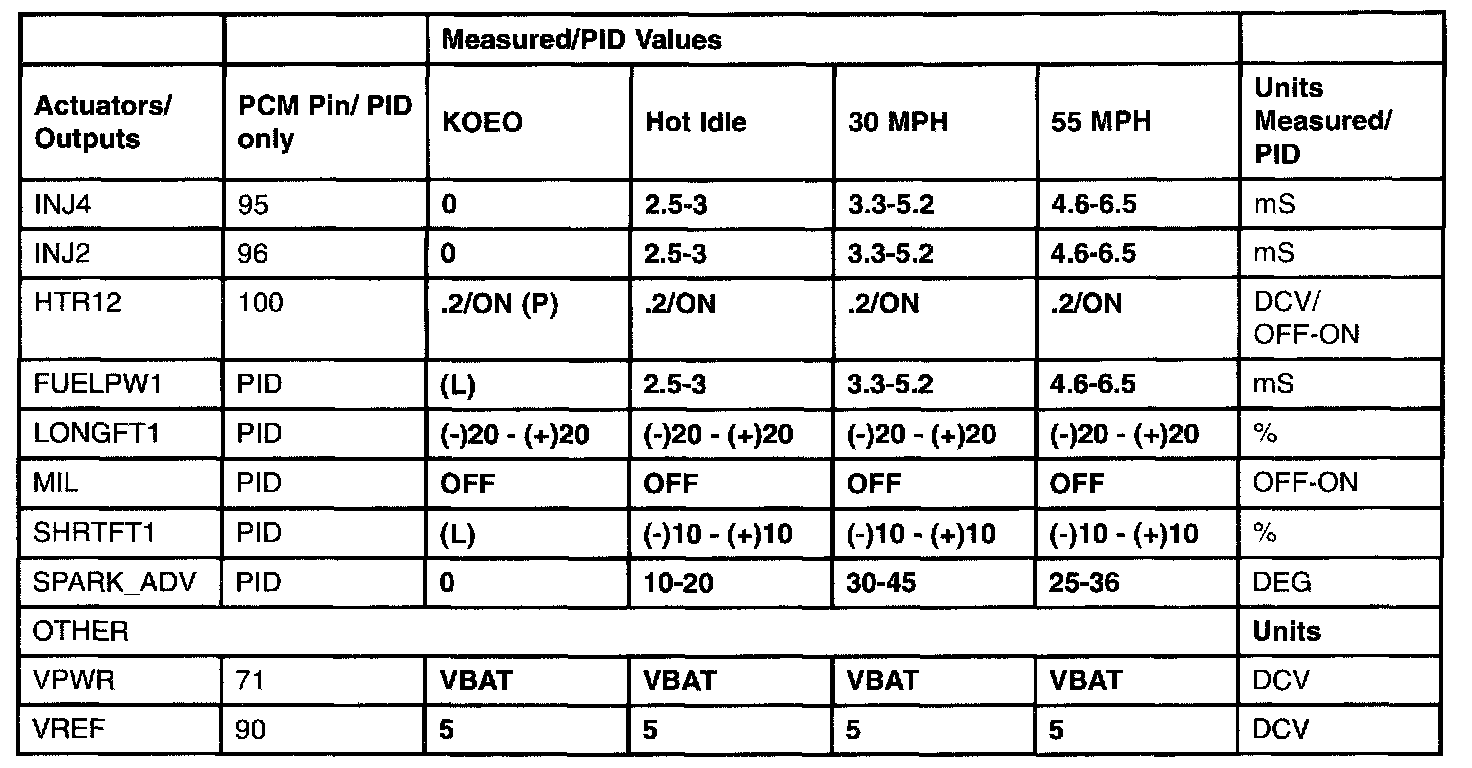

Typical Diagnostic Reference Values Part 2:
