Air Flow Meter/Sensor: Service and Repair

MASS AIR FLOW (MAF) SENSOR

Removal and Installation

1. Remove the air cleaner outlet tube. Refer to AIR CLEANER OUTLET PIPE - 2.0L ZETEC or AIR CLEANER OUTLET PIPE - 3.0L DURATEC (4V).

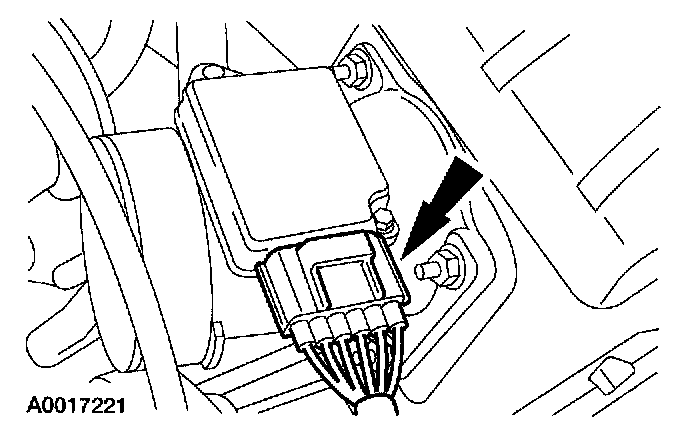

2. Disconnect the mass air flow (MAF/IAT) sensor electrical connector.

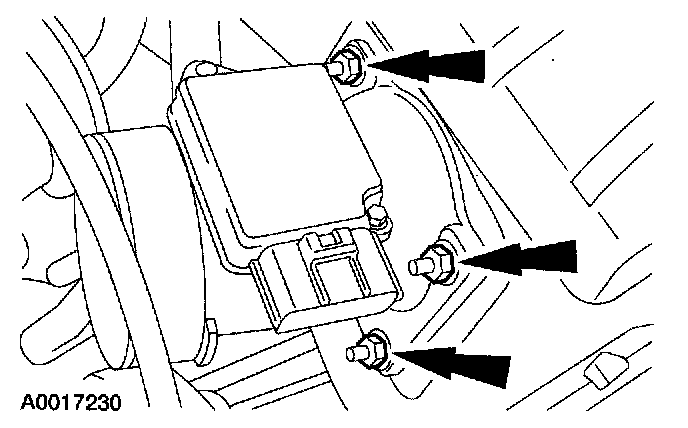

3. Remove the four nuts and the MAF/IAT sensor.
4. To install, reverse the removal procedure.
