Catalyst Monitor Sensor

CATALYST MONITOR SENSOR - 2.0L ZETEC

Removal and Installation

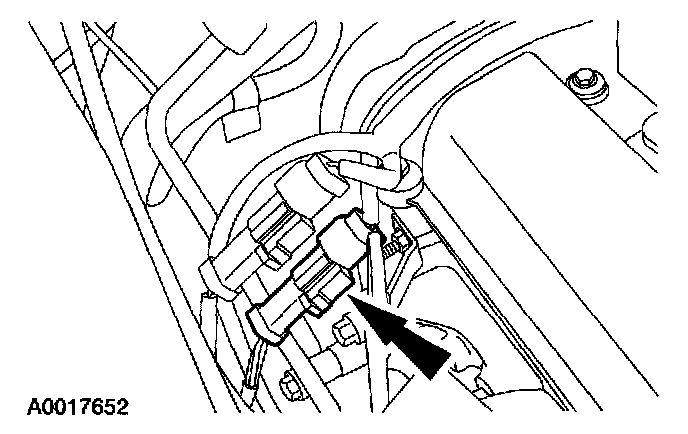

1. Disconnect the catalyst monitor sensor electrical connector.
2. Raise and support the vehicle. Refer to LIFTING.

NOTE: If necessary, lubricate the catalyst monitor sensor with Penetrating and Lock Lubricant to aid in removal.

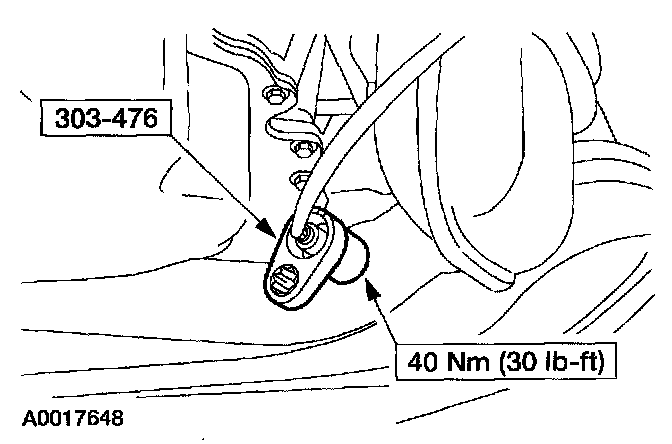

3. Using the special tool, remove the catalyst monitor sensor.

NOTE: Apply a light coat of High Temperature Nickel Anti-Seize Lubricant to the threads of the catalyst monitor sensor to aid in installation.

4. To install, reverse the removal procedure.
