Test 15: Ignition Scope Test

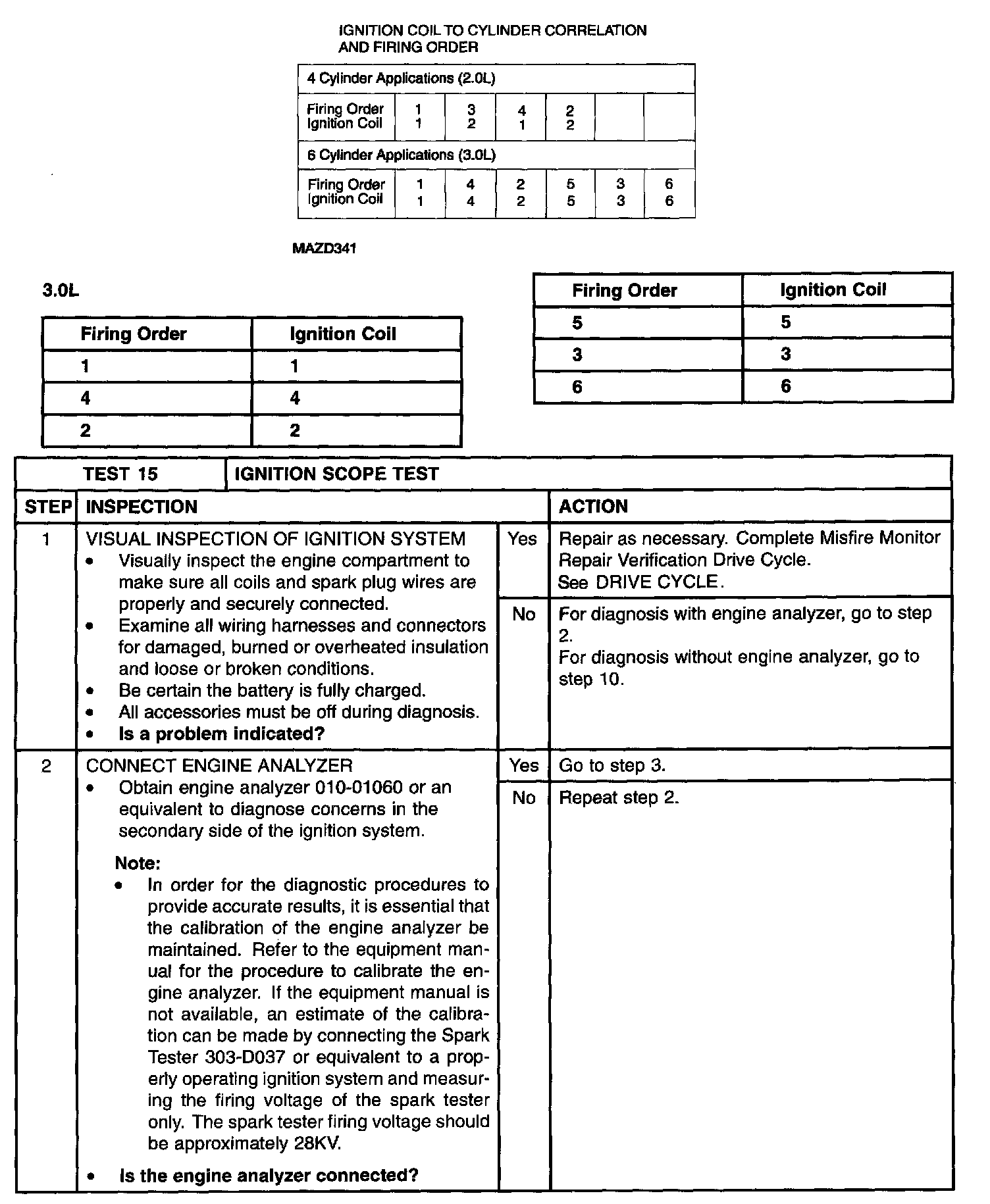

Step 1 - 2:

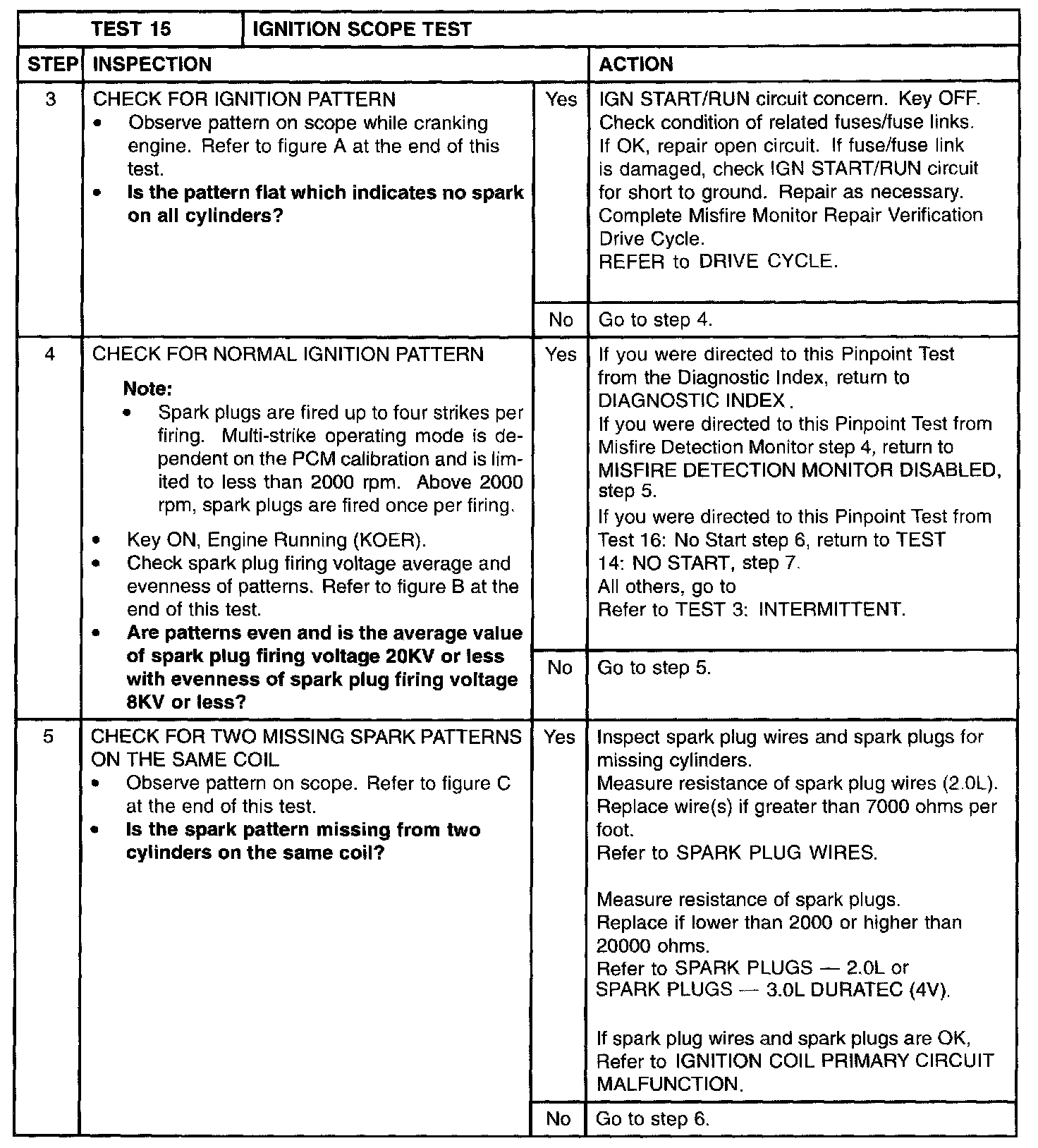

Step 3 - 5:

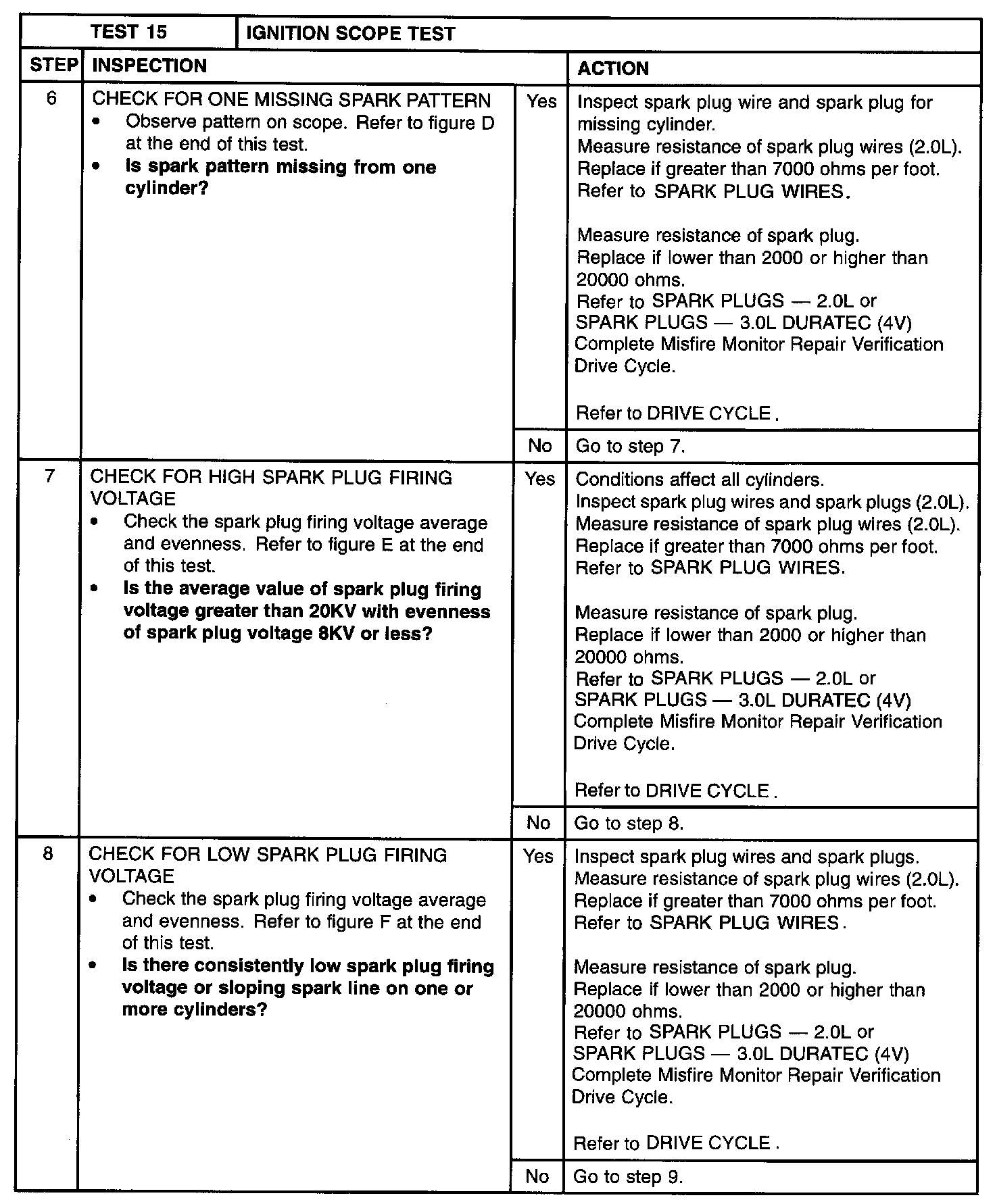

Step 6 - 8:

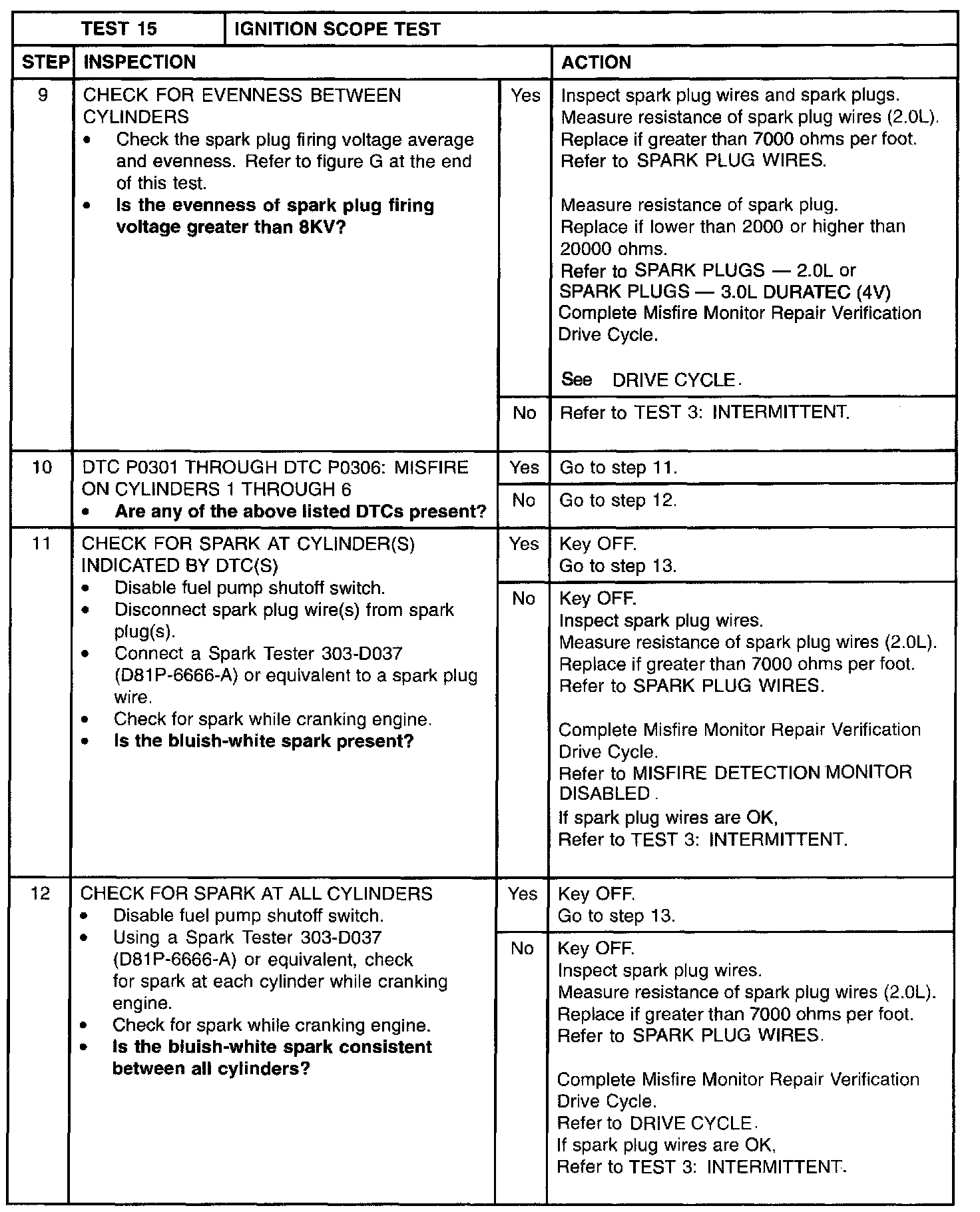

Step 9 - 12:

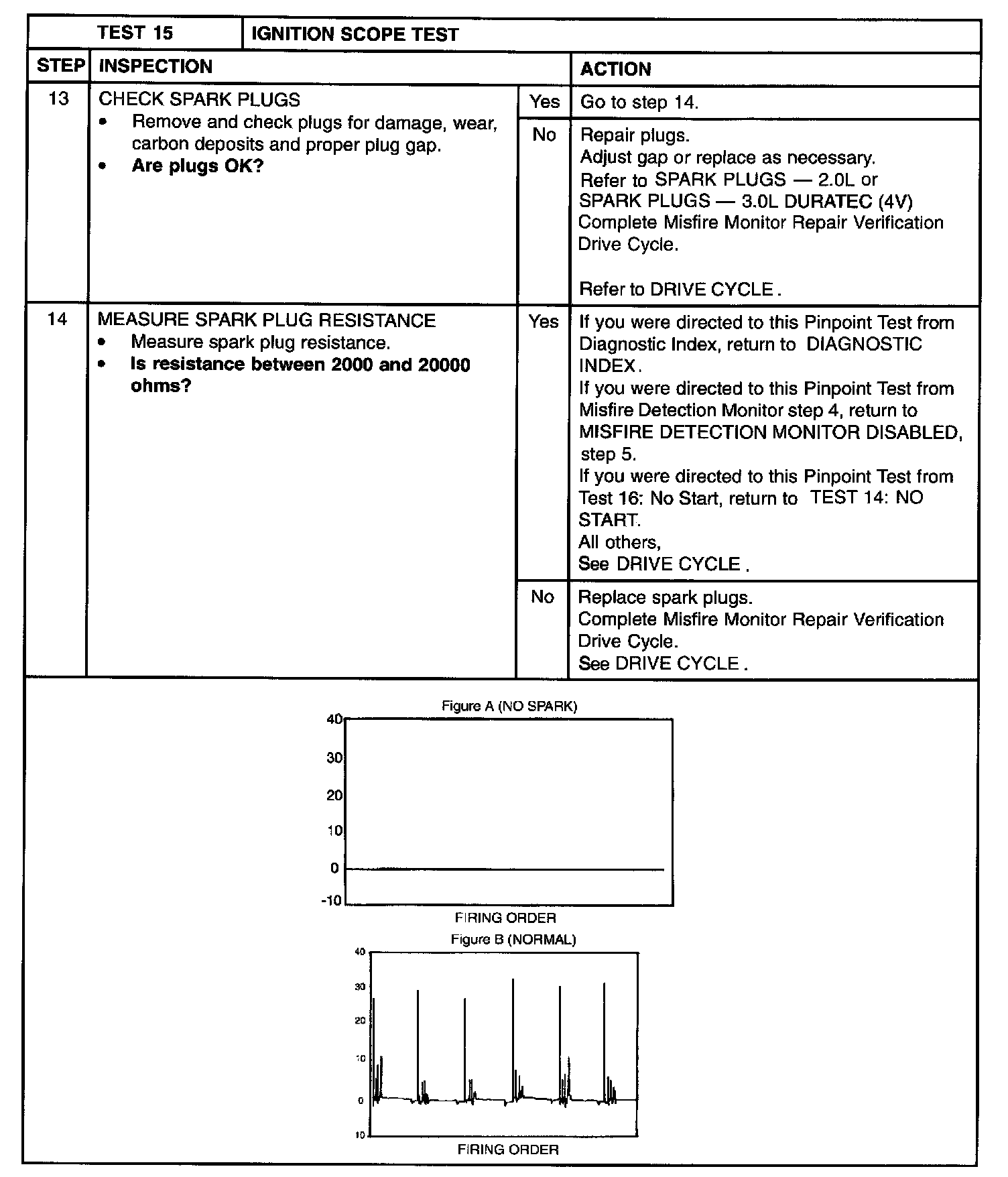

Step 13 - 14:

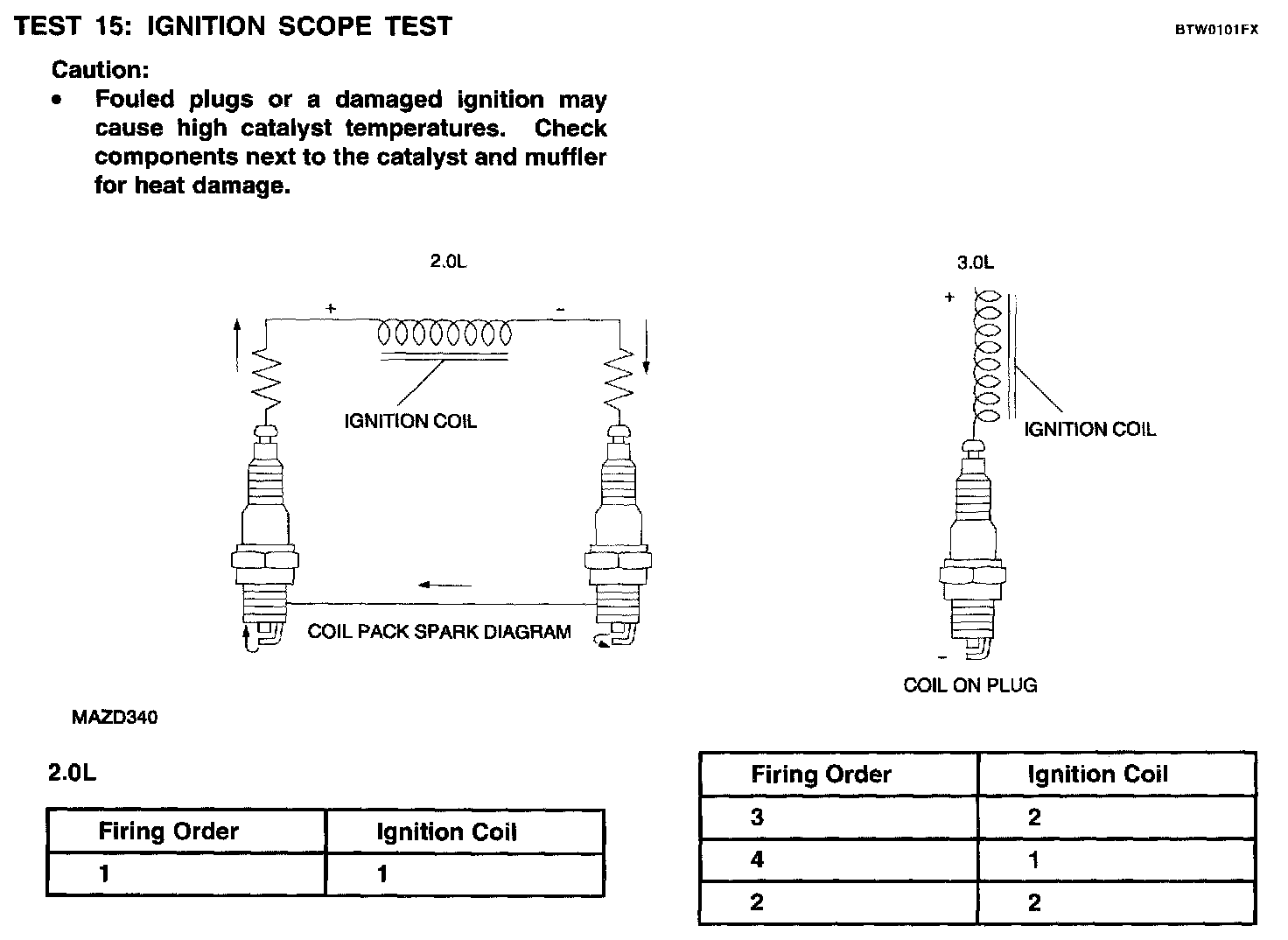

Test 15:
