Freeze Frame Data Table

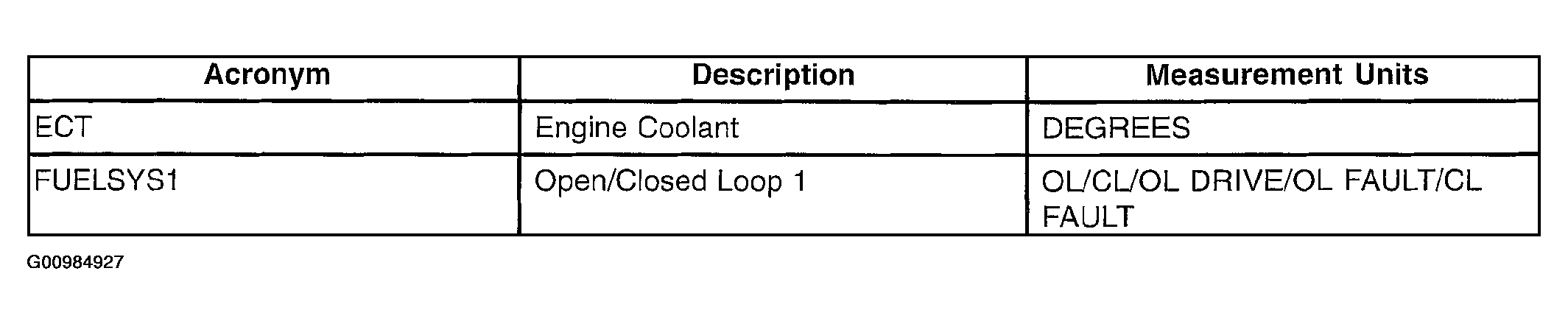

Fig 1: Identifying Freeze Frame Data (1 Of 2)
G00984927Courtesy of MAZDA MOTORS CORP.

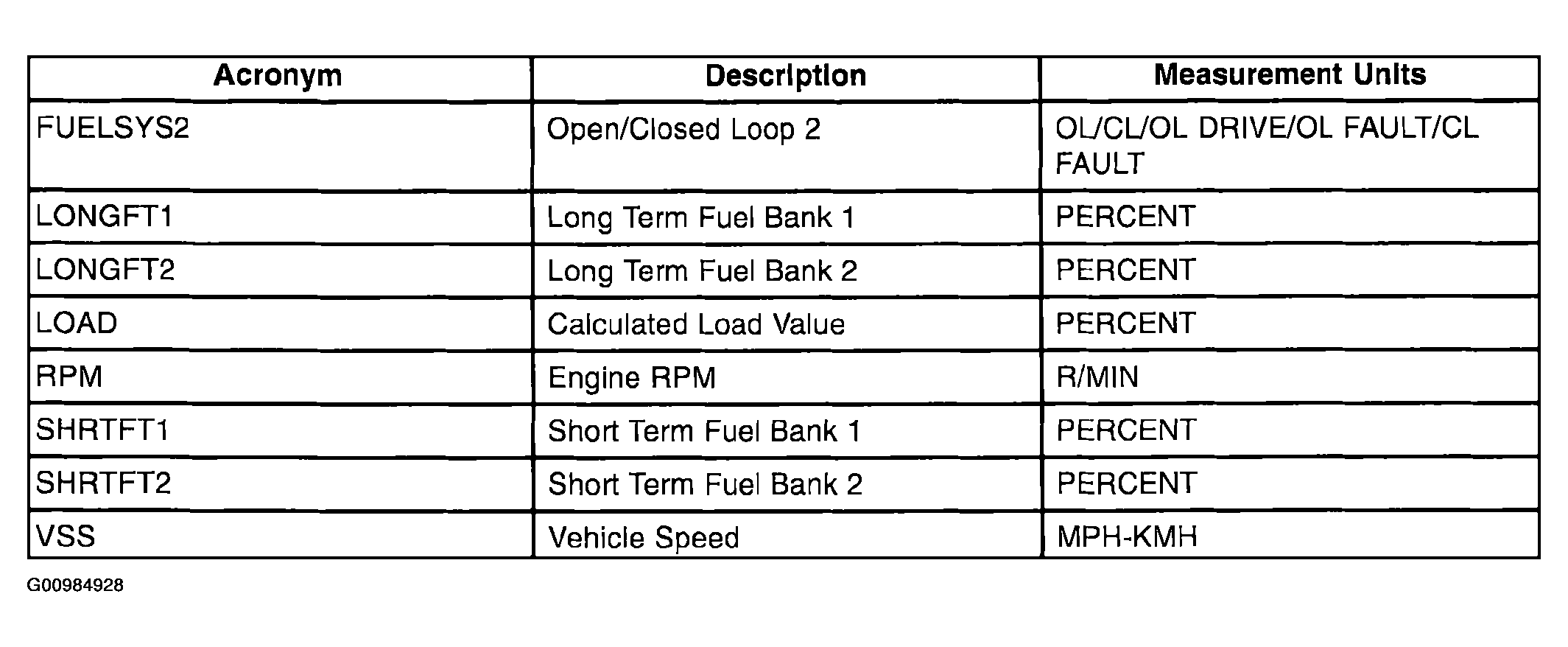

Fig 2: Identifying Freeze Frame Data (2 Of 2)
G00984928Courtesy of MAZDA MOTORS CORP.
