Tribute DX, 4WD
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Symptom Troubleshooting (Engine/Fuel Control)
>>
Symptom Troubleshooting Chart - Charging System
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Symptom Troubleshooting Chart - Charging System: Notes

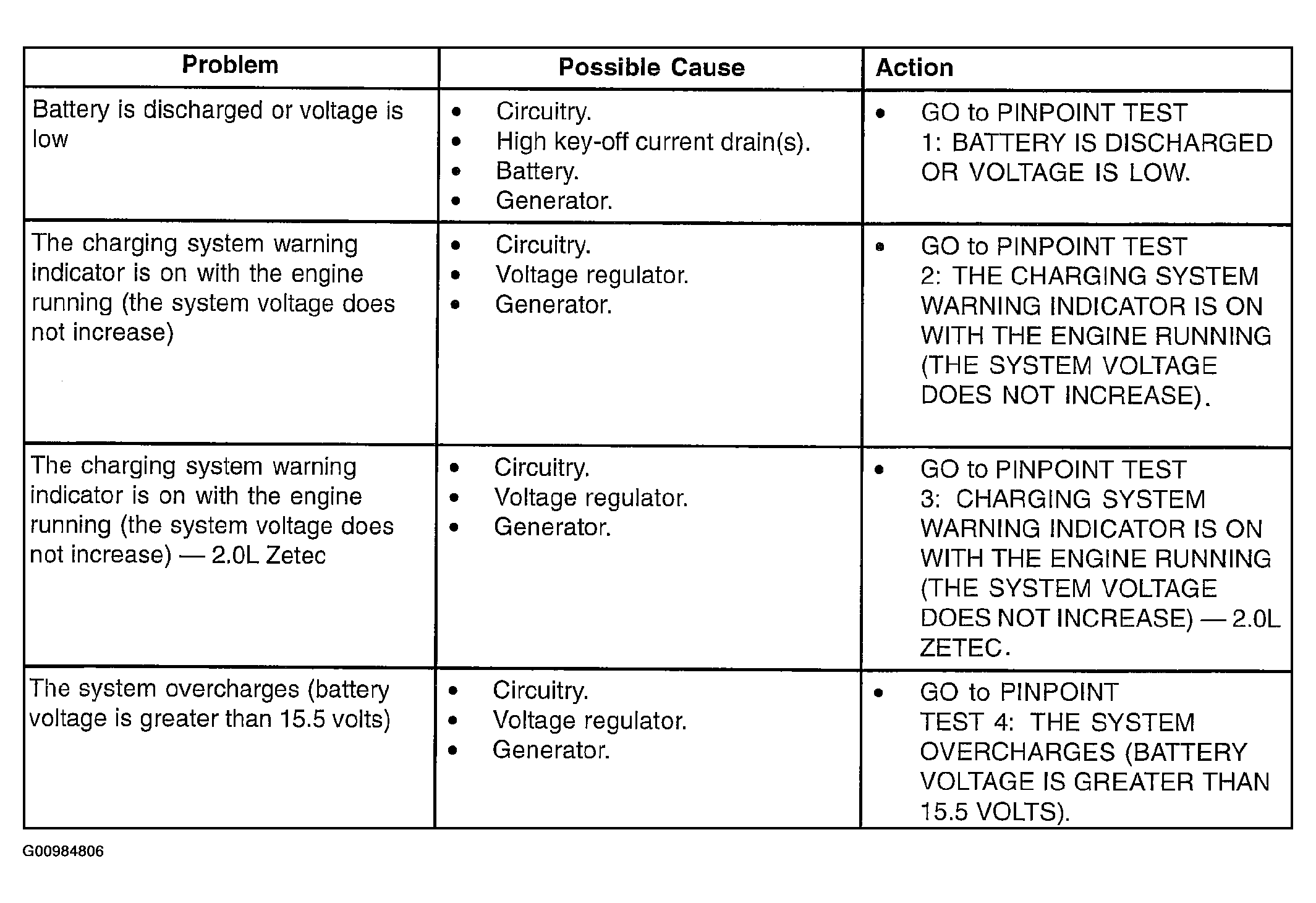

Fig 1: Symptom Troubleshooting Chart - Charging System (1 Of 3)
Courtesy of MAZDA MOTORS CORP.

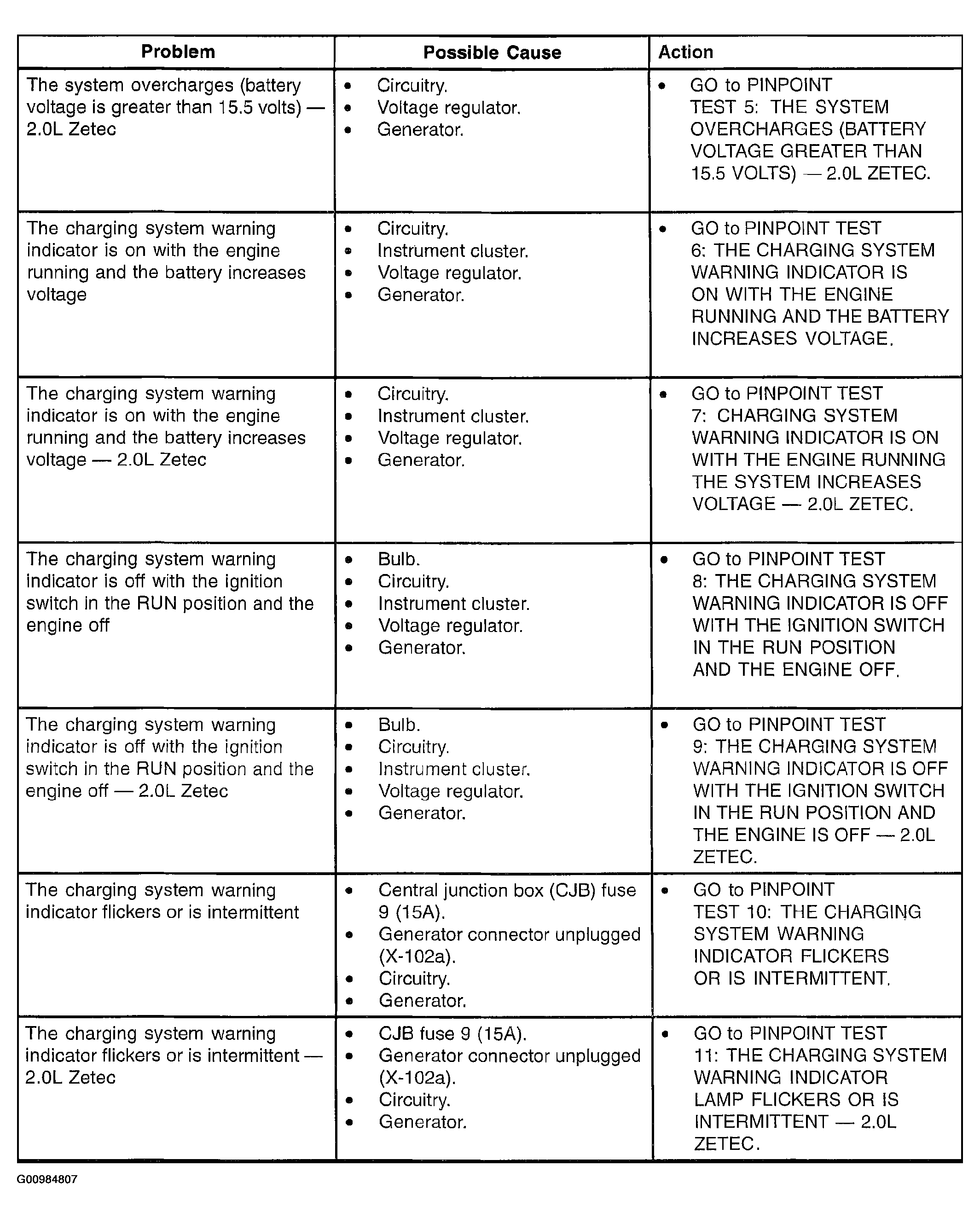

Fig 2: Symptom Troubleshooting Chart - Charging System (2 Of 3)
Courtesy of MAZDA MOTORS CORP.

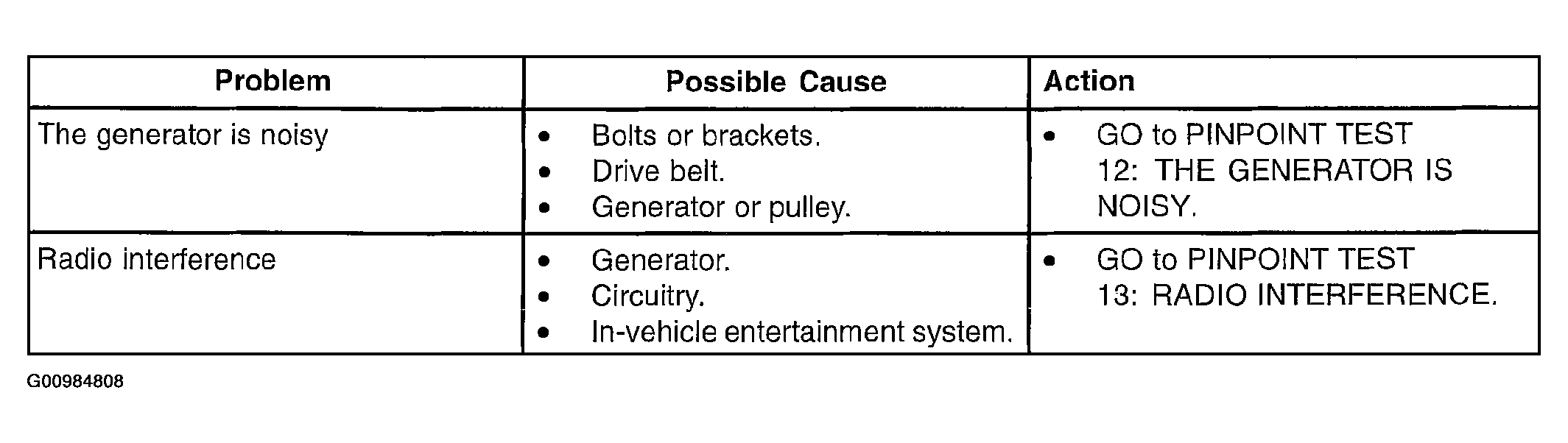

Fig 3: Symptom Troubleshooting Chart - Charging System (3 Of 3)
Courtesy of MAZDA MOTORS CORP.
