Symptom Troubleshooting Chart - Cruise Control: Notes

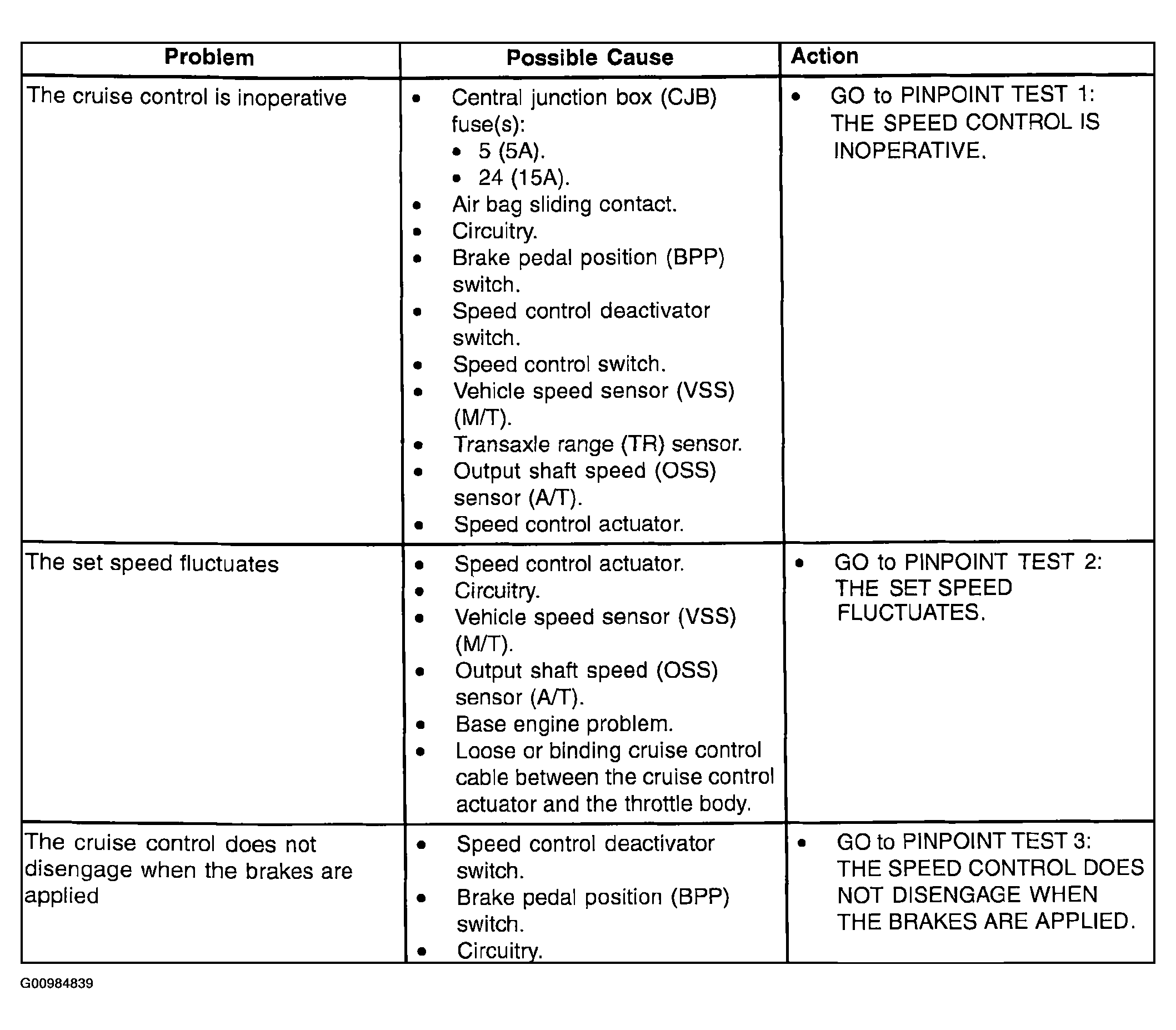

Fig 1: Symptom Troubleshooting Chart - Cruise Control (1 Of 2)
G00984839Courtesy of MAZDA MOTORS CORP.

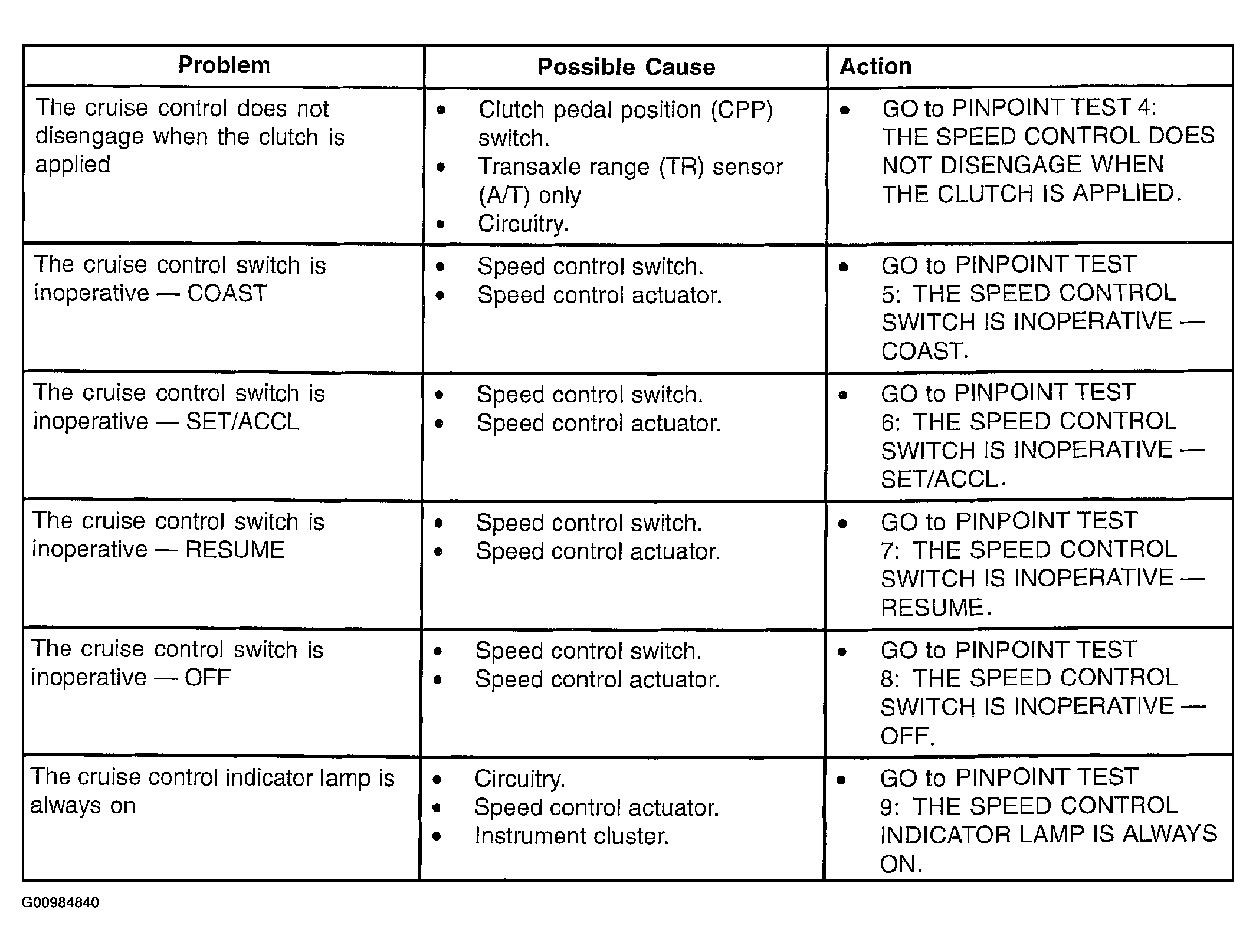

Fig 2: Symptom Troubleshooting Chart - Cruise Control (2 Of 2)
G00984840Courtesy of MAZDA MOTORS CORP.
