Windshield Glass: Removal

WARNING:
  • To prevent glass splinters from entering the eyes or cutting hands, wear safety glasses and heavy gloves when cutting the glass from the vehicle. Failure to follow these instructions may result in personal injury.

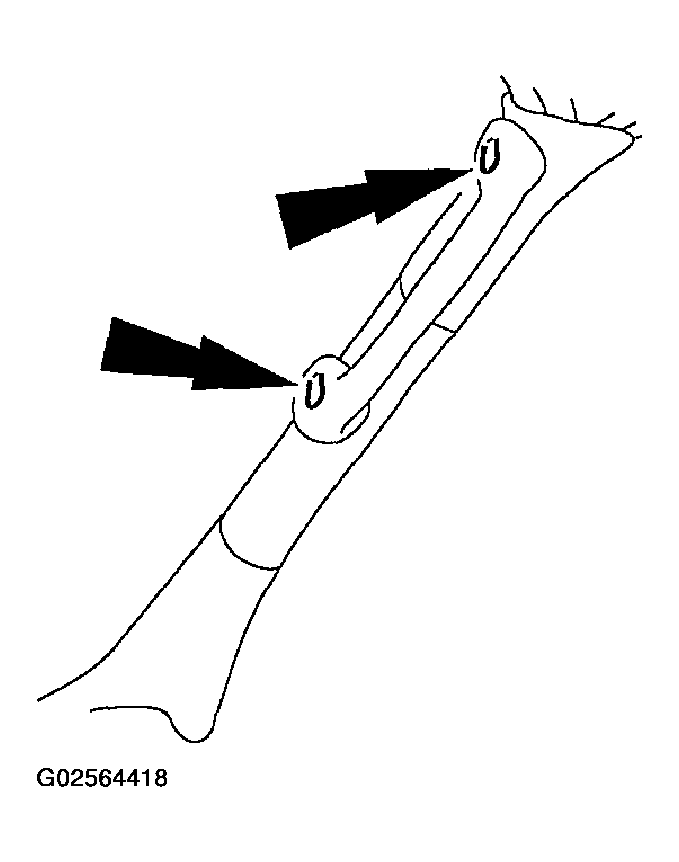

Fig 1: Opening RH And LH Side A-Pillar Assist Handle Covers
G02564418Courtesy of MAZDA MOTORS CORP.
  1. Open the RH and LH side A-pillar assist handle covers.

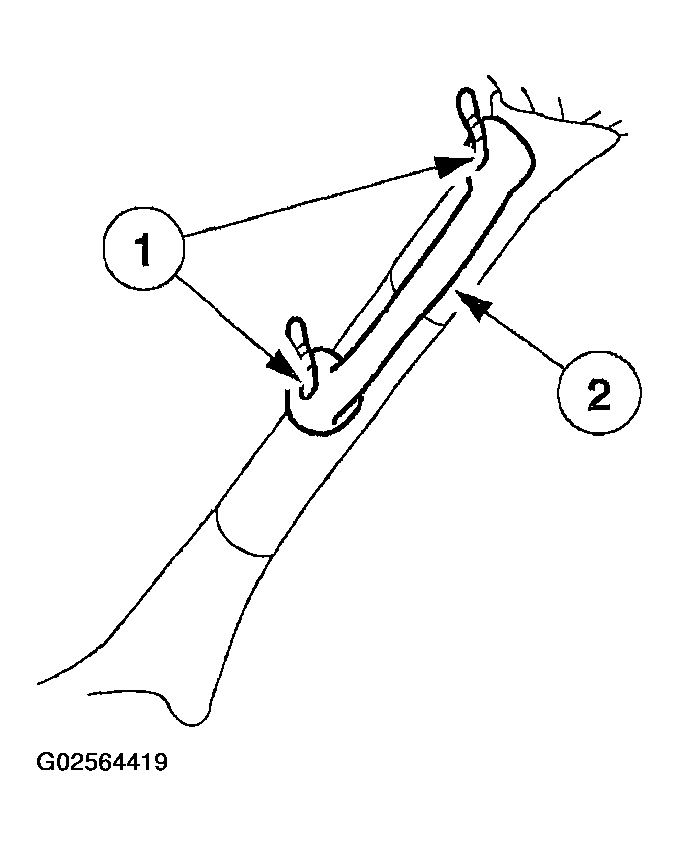

    Fig 2: Opening The A-Pillar Assist Handle Covers
    G02564419Courtesy of MAZDA MOTORS CORP.
  2. Remove The RH And LH Side A-Pillar Assist Handles.
    1. Remove the bolts.
    2. Remove the RH and LH A-pillar assist handles.

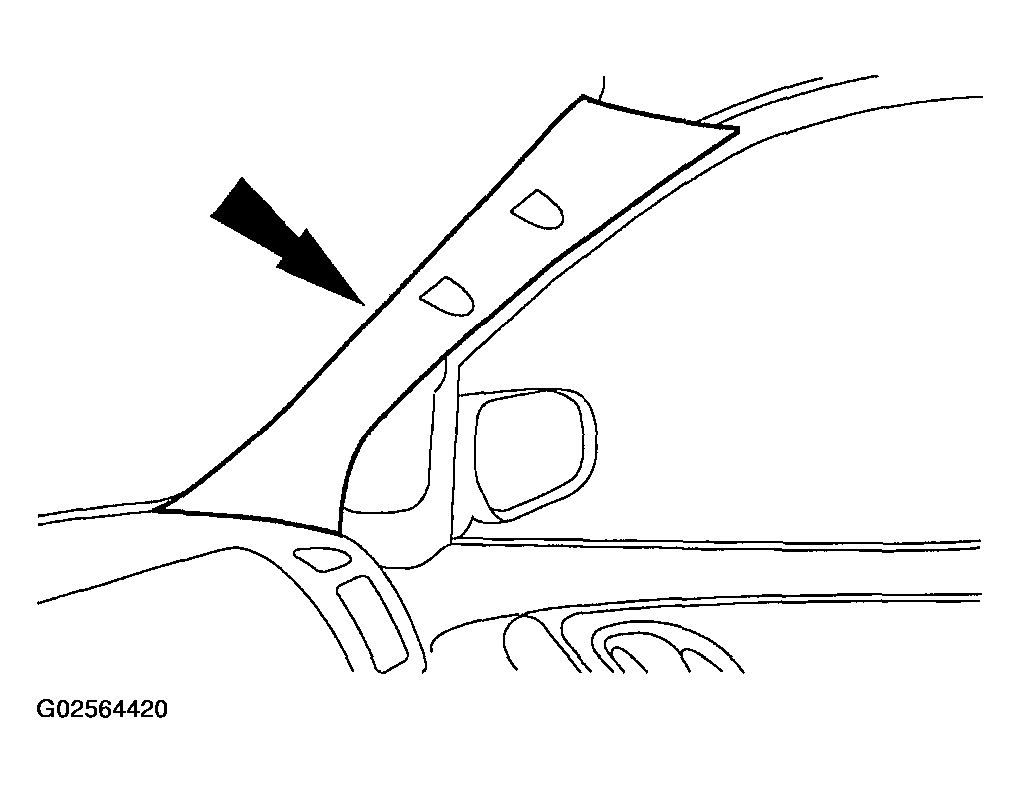

    Fig 3: Removing The A-Pillar Assist Handles
    G02564420Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • RH side shown, LH side similar.
  3. Remove the RH and LH side windshield side garnish moldings.

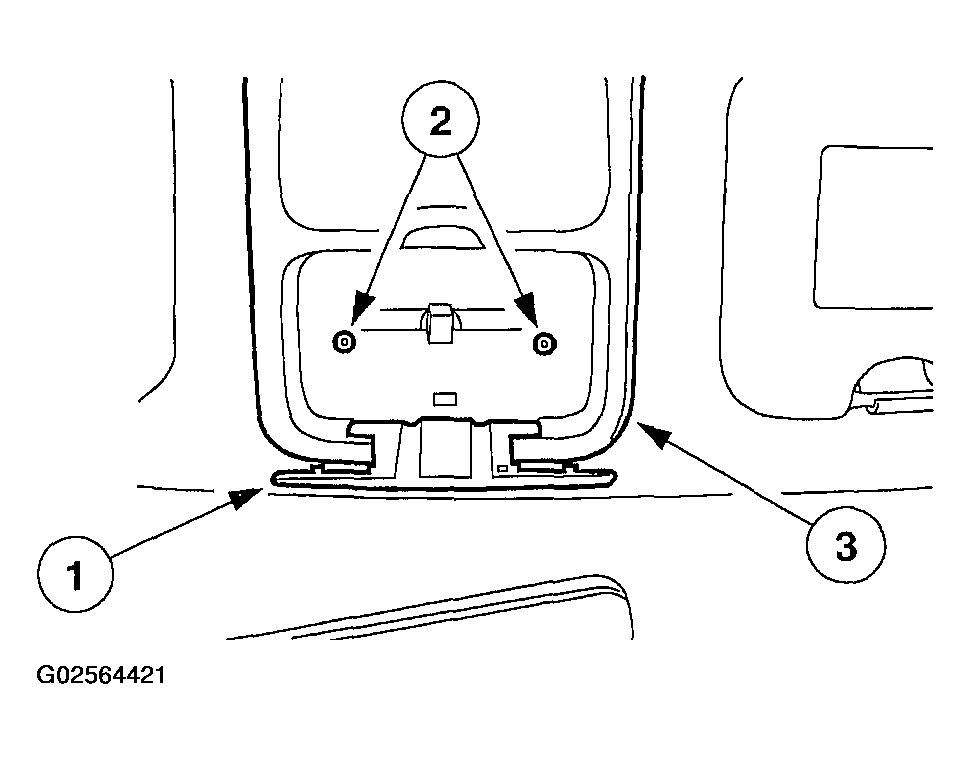

    Fig 4: Removing Overhead Console
    G02564421Courtesy of MAZDA MOTORS CORP.
  4. Remove the overhead console.
    1. Open the front console door.
    2. Remove the screws.
    3. Remove the overhead console.
      • If equipped, disconnect the electrical connector.

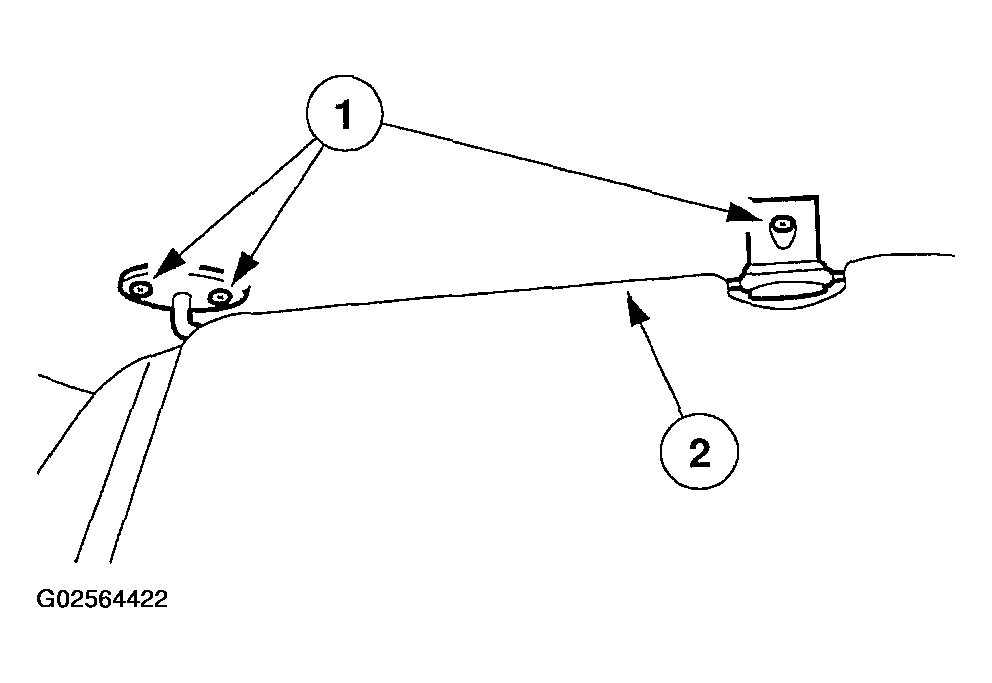

    Fig 5: Removing Sun Visors And Clips
    G02564422Courtesy of MAZDA MOTORS CORP.
  5. Remove the two sun visors and two clips.
    1. Remove the six screws.
    2. Remove the sun visors and clips.
  6. Remove the overhead driver and passenger assist handles.
  7. Remove the interior rear view mirror.
  8. Lower the front portion of the headliner.
  9. Remove the cowl grille. Refer to COWL PANEL GRILLE .
  10. Using a soft brush or vacuum, remove any dirt or foreign material from the pinch weld.

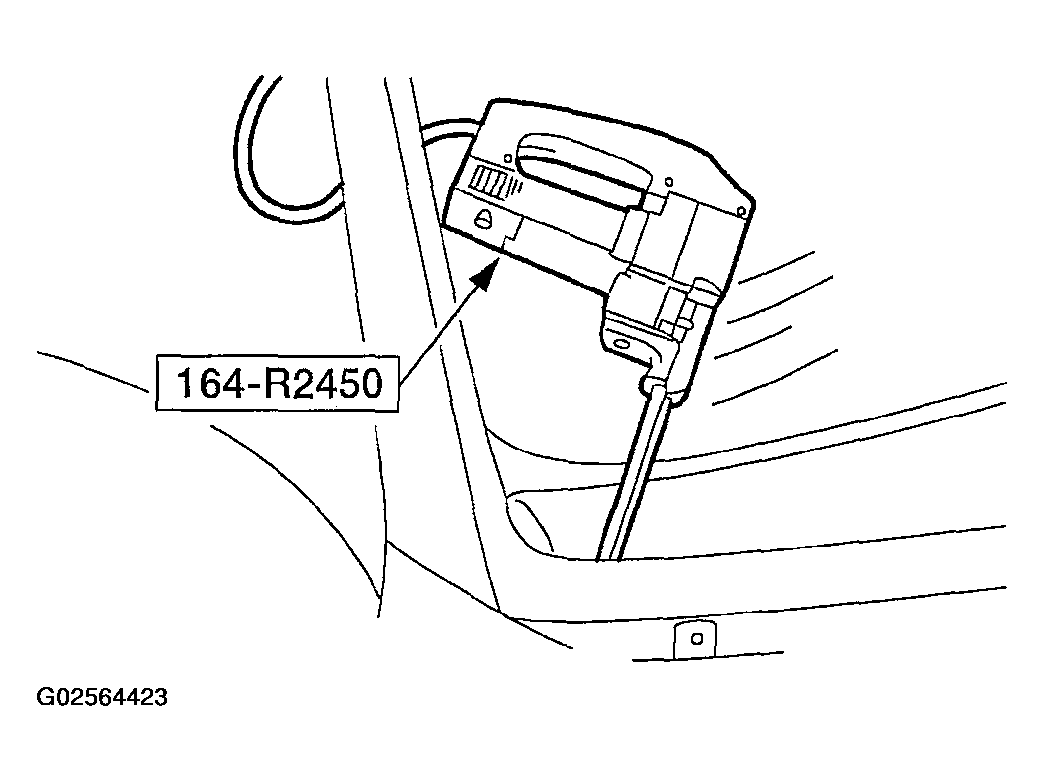

    Fig 6: Cutting Urethane Adhesive From Windshield Glass
    G02564423Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • Lubricate the urethane adhesive with water to aid the special tool when cutting.
  11. Using the special tool, cut the urethane adhesive from the windshield glass starting at the top center and work toward the bottom corners.

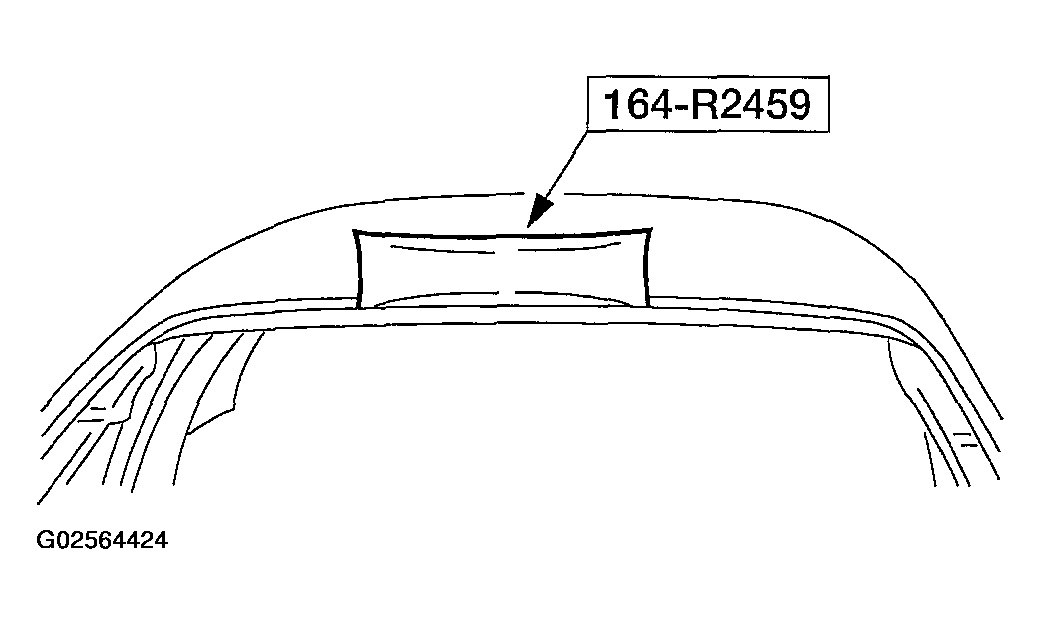

    Fig 7: Spacing Windshield Glass From Body
    G02564424Courtesy of MAZDA MOTORS CORP.
  12. Using the special tool, distance the windshield glass from the body.

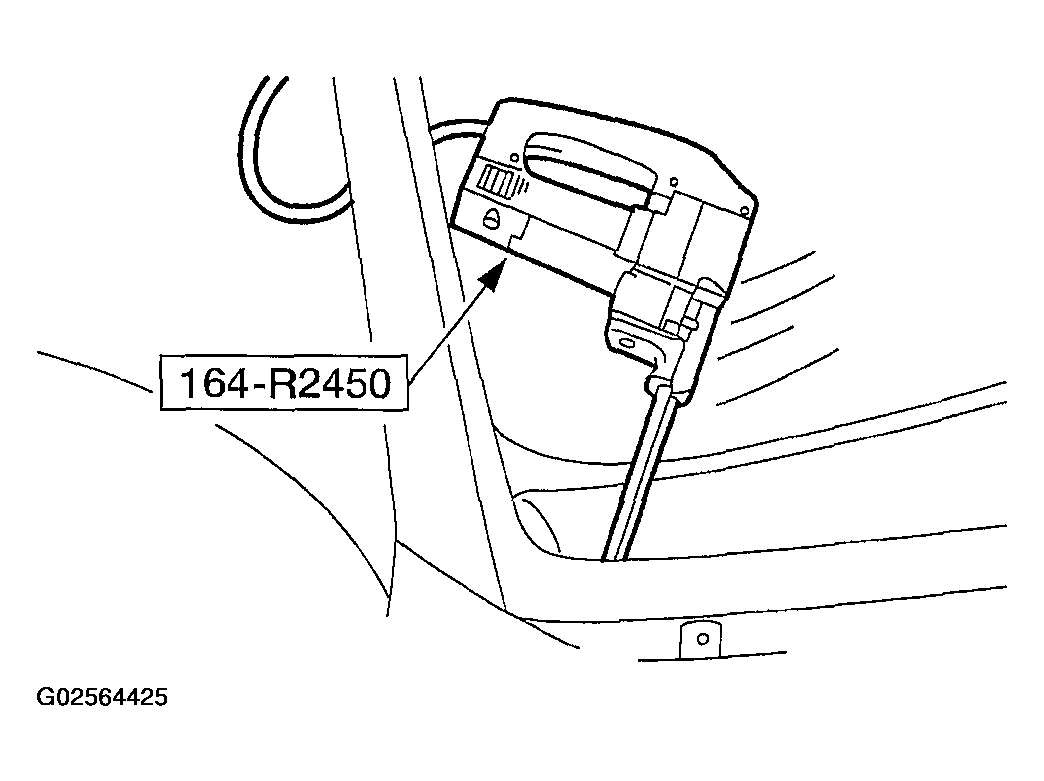

    Fig 8: Cutting Remaining Urethane Adhesive
    G02564425Courtesy of MAZDA MOTORS CORP.
  13. Using the special tool, cut the remaining urethane adhesive and remove the windshield glass.
  14. Using a soft brush or vacuum, remove any foreign material or dirt from the pinch weld.
