Spring Lock Couplings: Connect

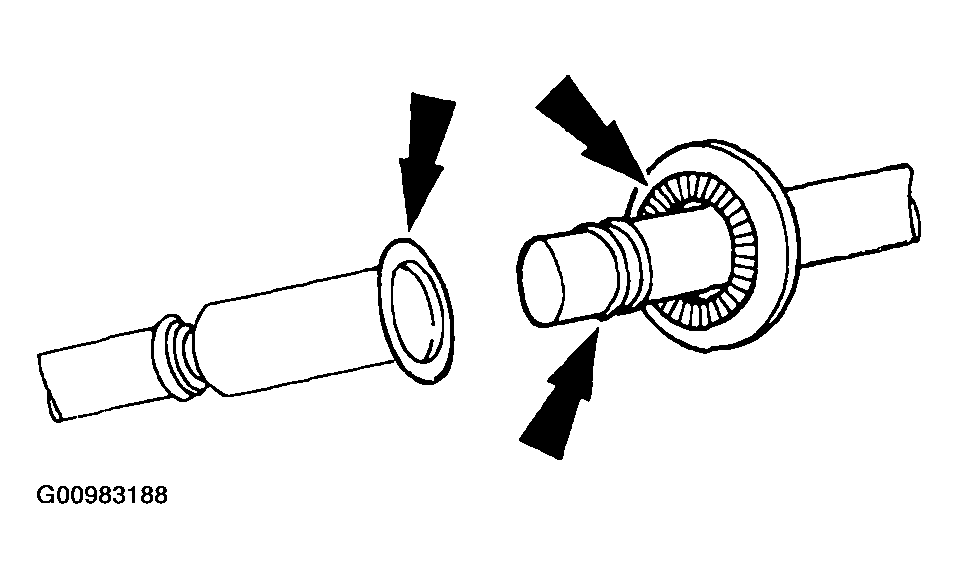

Fig 1: Inspecting Both Coupling Ends

Courtesy of MAZDA MOTORS CORP.

Clean and inspect both coupling ends. Install new O-ring seals and garter springs if necessary.

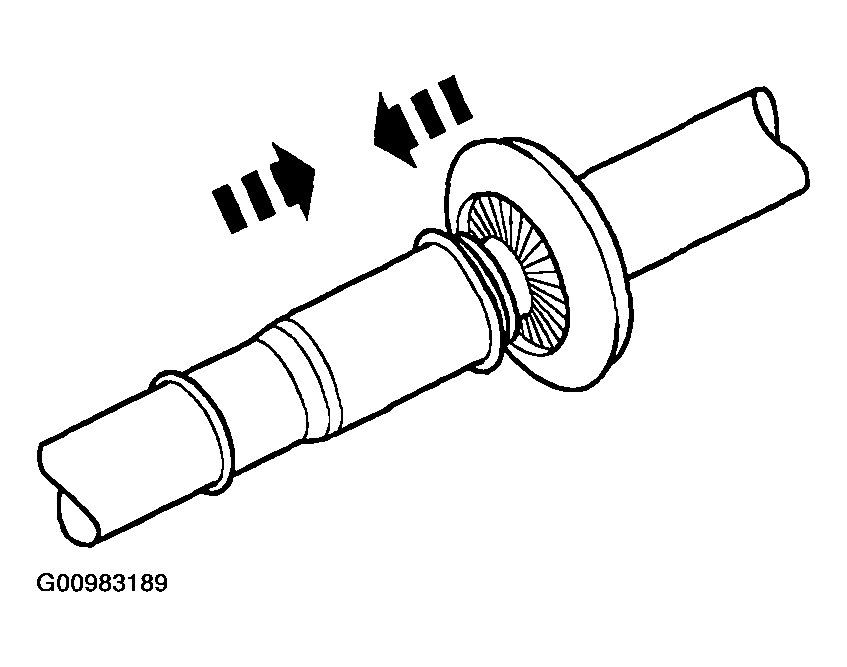

Fig 2: Fitting Male Coupling Into Female End
Courtesy of MAZDA MOTORS CORP.
Fit the male coupling into the female end and push until the garter spring snaps over the flared end of the female coupling.

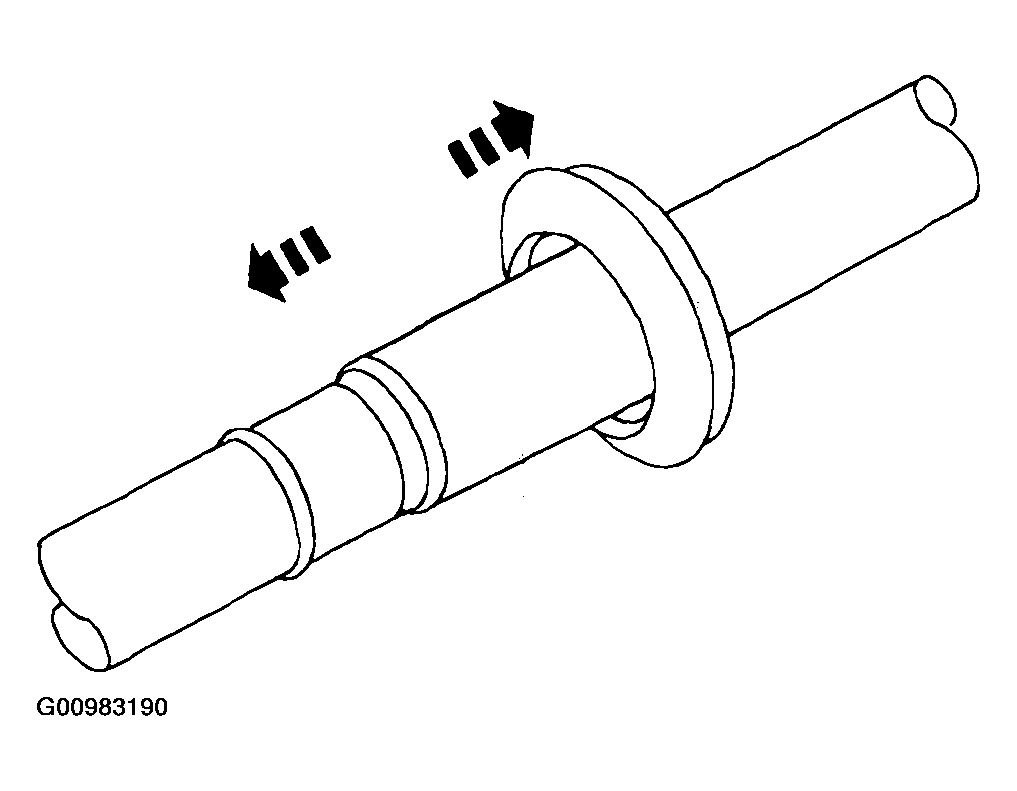

Fig 3: Verifying Coupling Engagement By Pulling On Lines
Courtesy of MAZDA MOTORS CORP.
Verify coupling engagement by pulling on the lines.

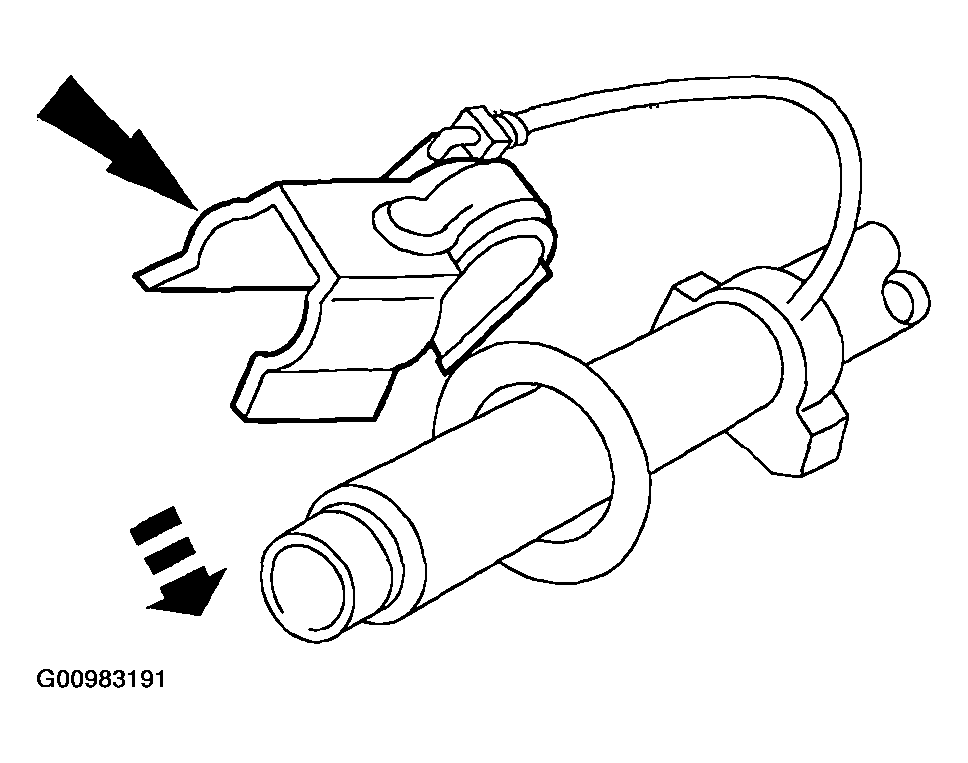

Fig 4: Installing Fuel Line Clip
Courtesy of MAZDA MOTORS CORP.
Install the fuel line clip.
Connect the battery ground cable. For additional information, Refer to BATTERY DISCONNECT .
