Removal & Installation

Remove the air cleaner outlet pipe. Refer to AIR CLEANER OUTLET PIPE -- 2.0L ZETEC .
Remove the exhaust gas recirculation (EGR) tube bracket bolts

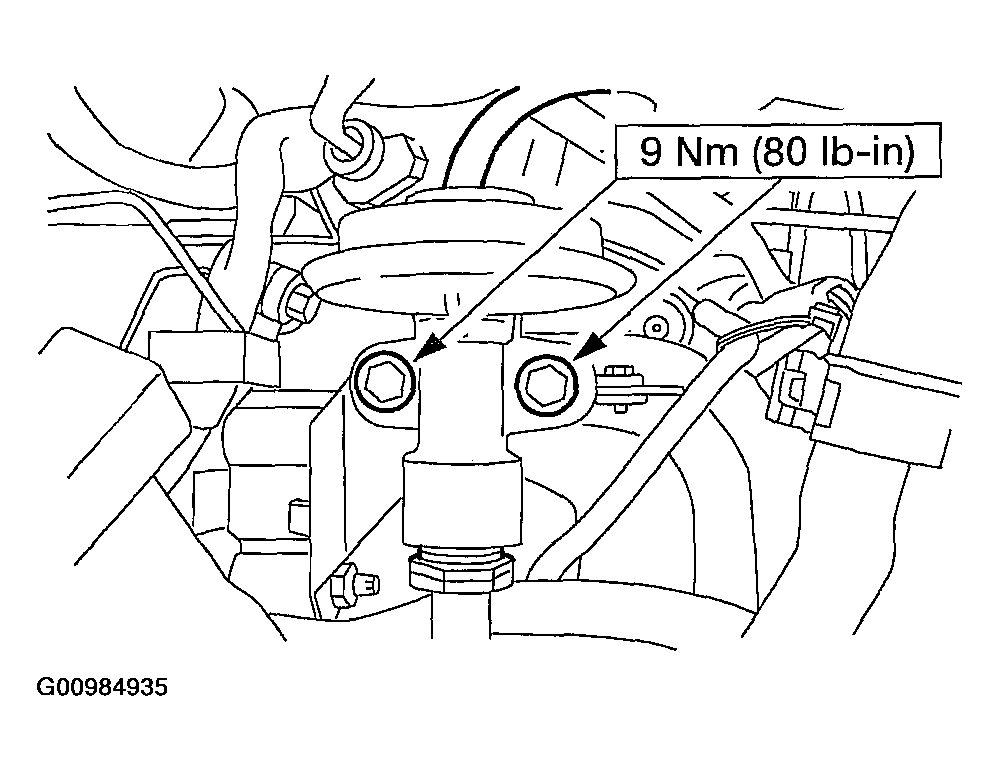

Fig 1: Identifying Exhaust Gas Recirculation (EGR) Tube Bracket Bolts
Courtesy of MAZDA MOTORS CORP.
Remove the bolts and position the EGR aside.

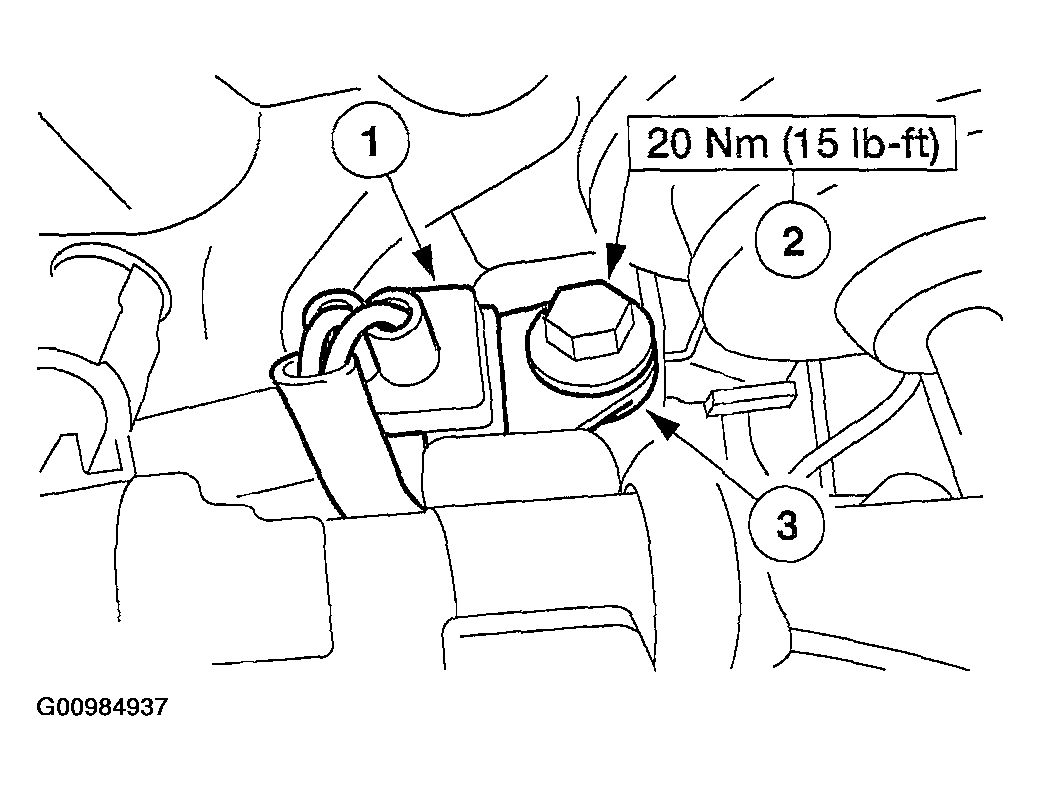

Fig 2: Identifying EGR Bolts
Courtesy of MAZDA MOTORS CORP.
Remove bracket bolts.

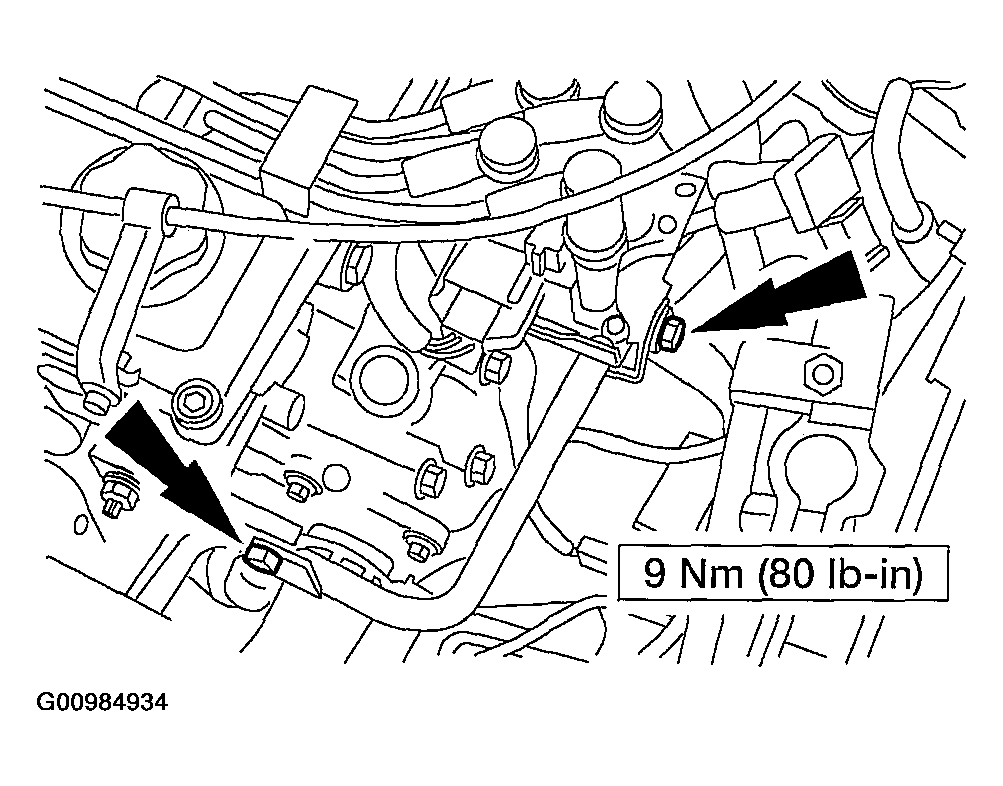

Fig 3: Identifying Bracket Bolts
Courtesy of MAZDA MOTORS CORP.
Remove the camshaft position (CMP) sensor.
1. Disconnect the electrical connector.
2. Remove the bolt.
3. Remove the sensor.

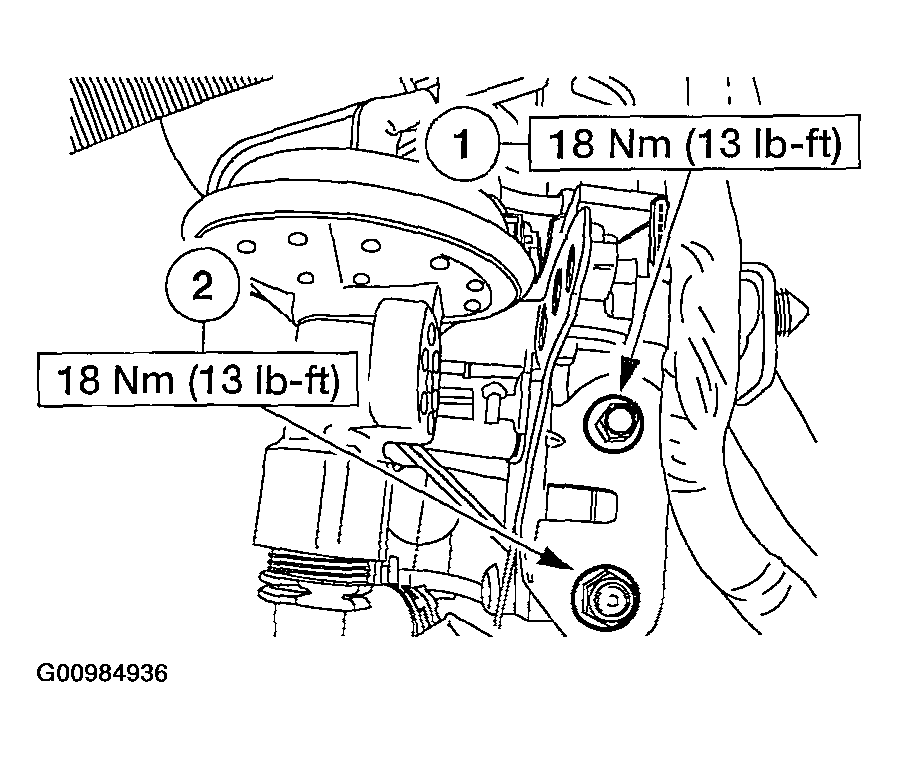

Fig 4: Identifying CMP Sensor Electrical Connector, Bolt & Sensor (2.0L)

Courtesy of MAZDA MOTORS CORP.
