Removal & Installation

  1. Disconnect the clutch pedal position (CPP) electrical connector.

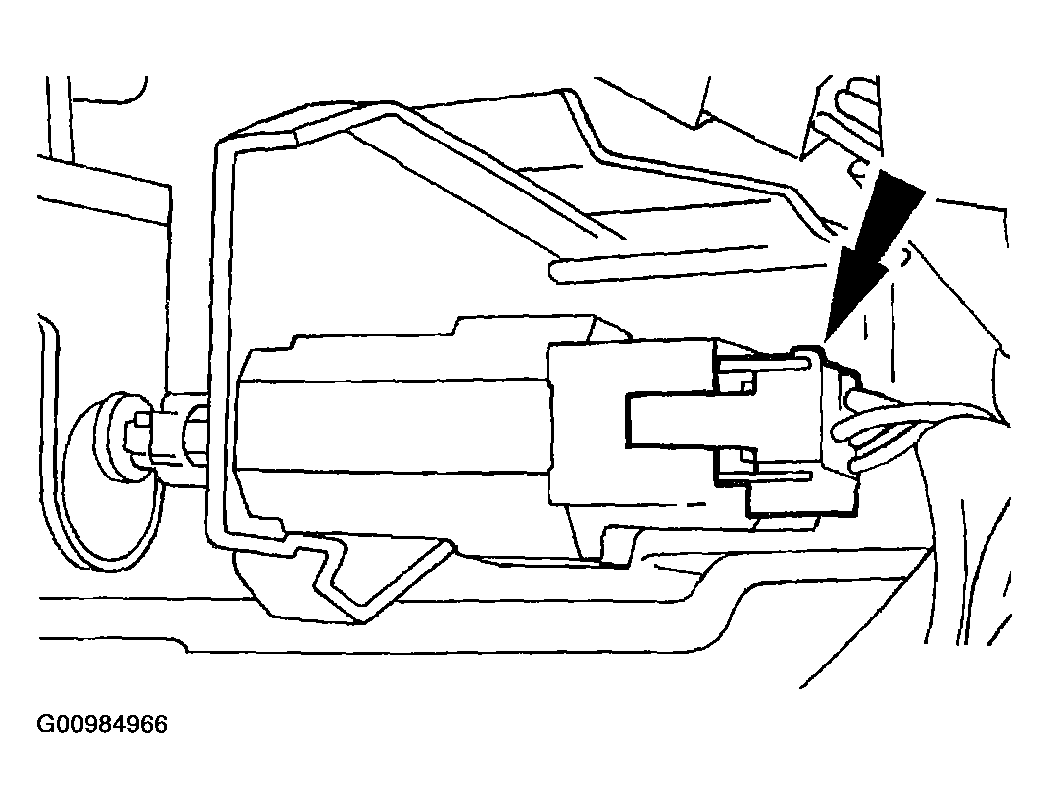

    Fig 1: Identifying CPP Electrical Connector
    G00984966Courtesy of MAZDA MOTORS CORP.
  2. Remove the CPP locknut and the switch.

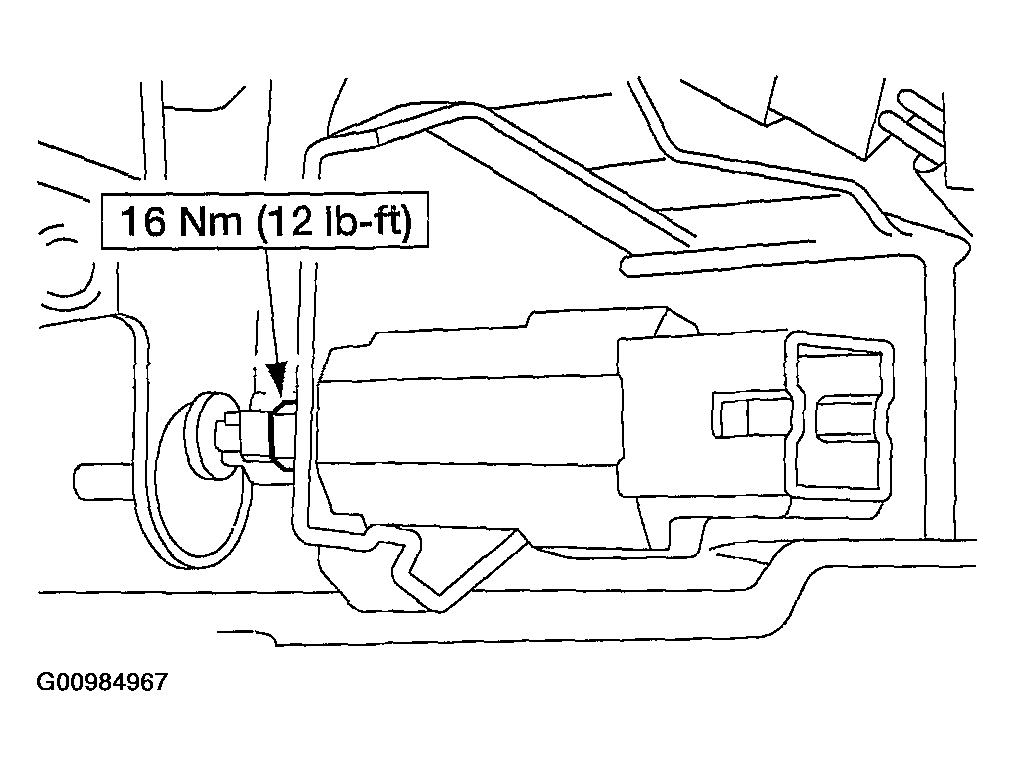

    Fig 2: Identifying CPP Locknut
    G00984967Courtesy of MAZDA MOTORS CORP.
  3. To install, reverse the removal procedure.
