Typical Diagnostic Reference Values

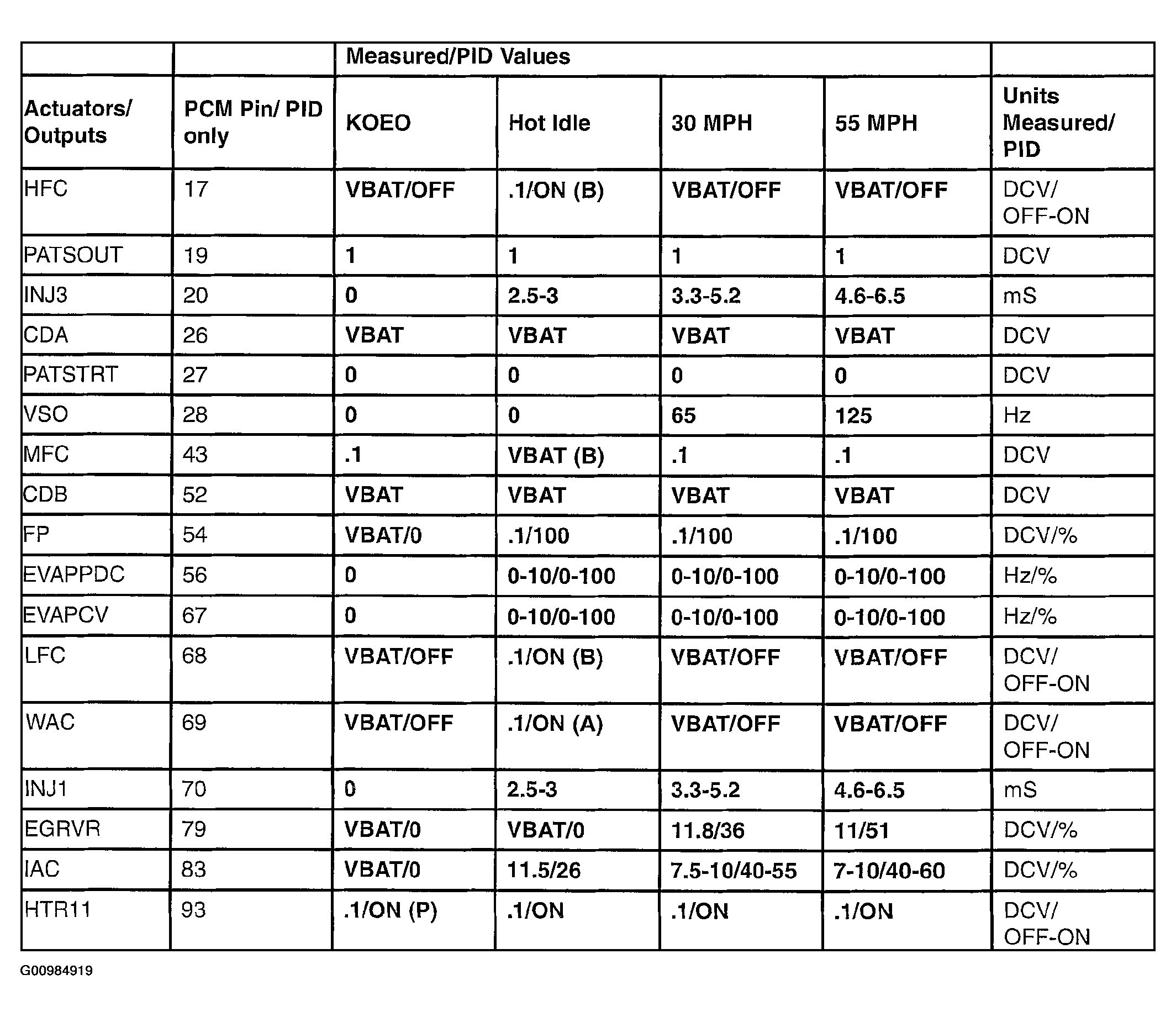

Fig 1: Identifying Typical Diagnostic Reference Values (2.0l 4V M/T) (1 Of 2)
G00984919Courtesy of MAZDA MOTORS CORP.

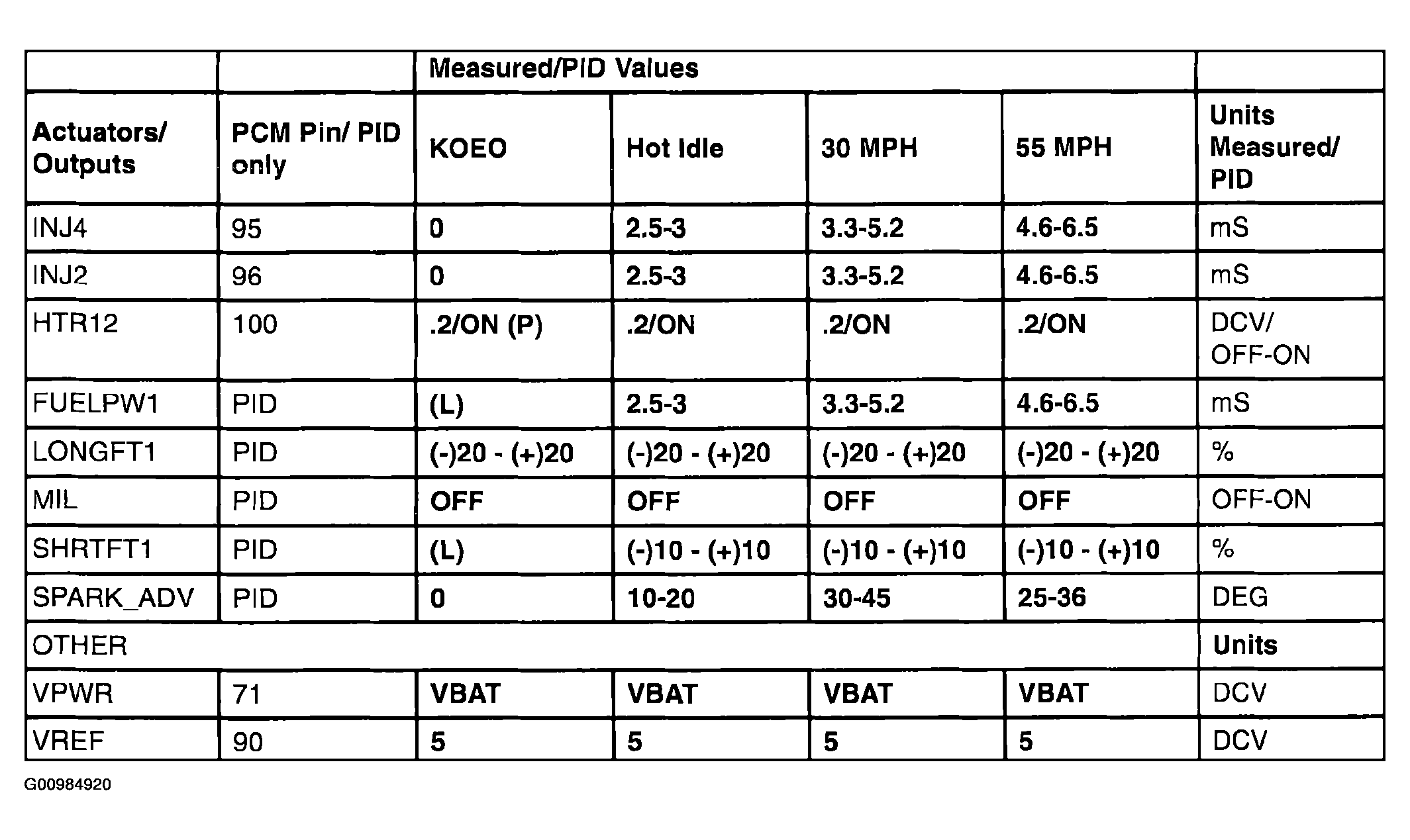

Fig 2: Identifying Typical Diagnostic Reference Values (2.0l 4V M/T) (2 Of 2)
G00984920Courtesy of MAZDA MOTORS CORP.
