Engine Poor DRIVEABILITY

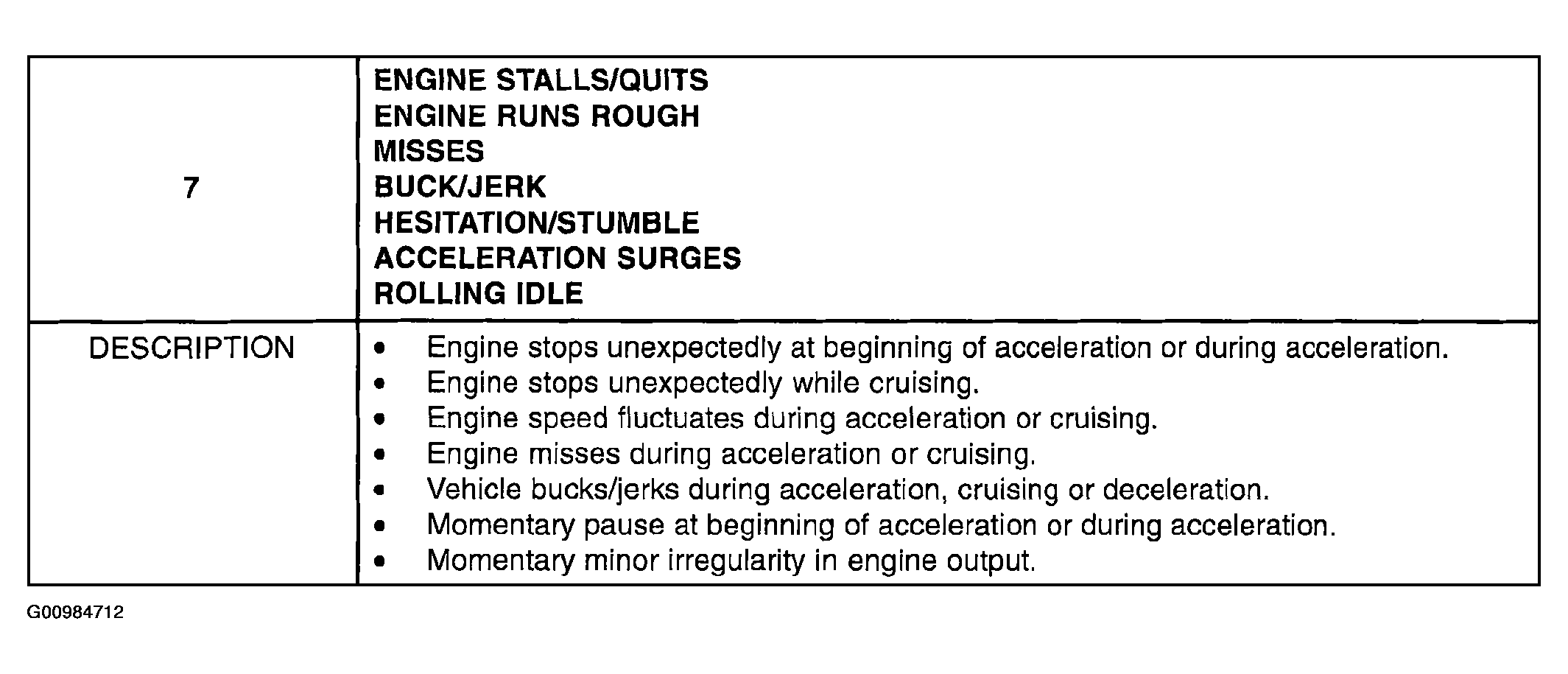

Fig 1: Chart 7 Engine Poor Driveability: Description

Courtesy of MAZDA MOTORS CORP.

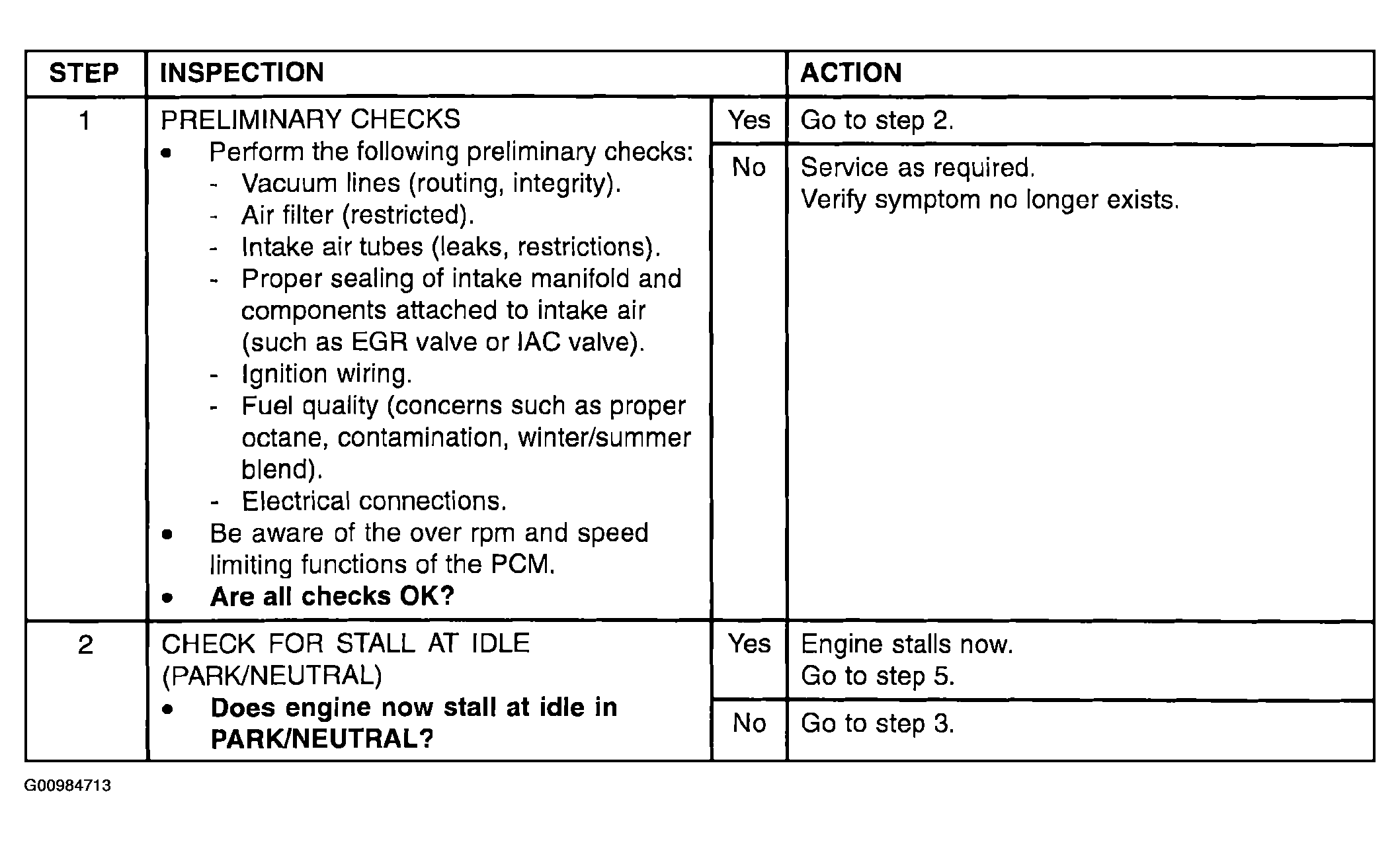

Fig 2: Chart 7 Engine Poor Driveability: Inspection (Steps 1-2)

Courtesy of MAZDA MOTORS CORP.

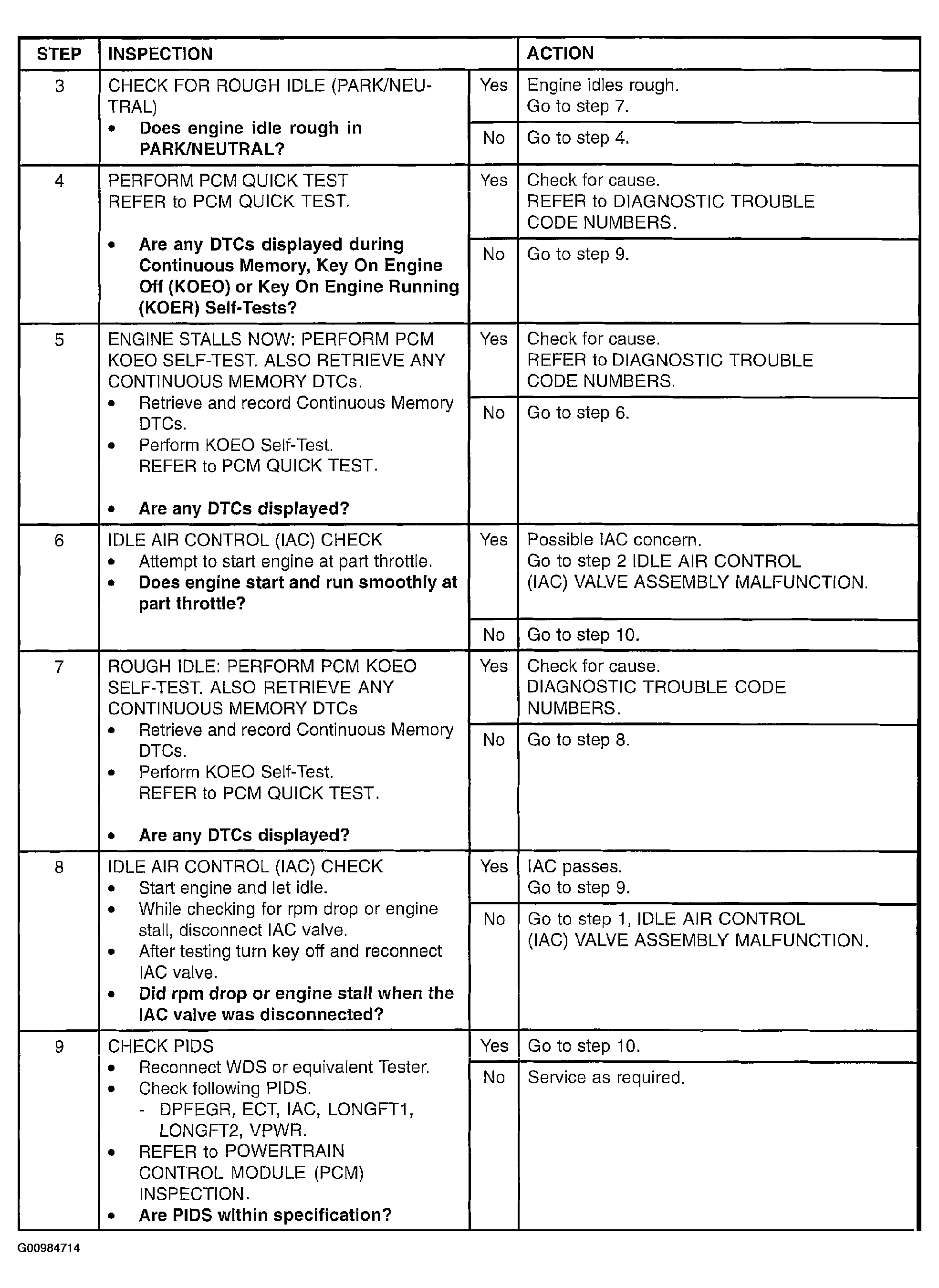

Fig 3: Chart 7 Engine Poor Driveability: Inspection (Steps 3-9)

Courtesy of MAZDA MOTORS CORP.

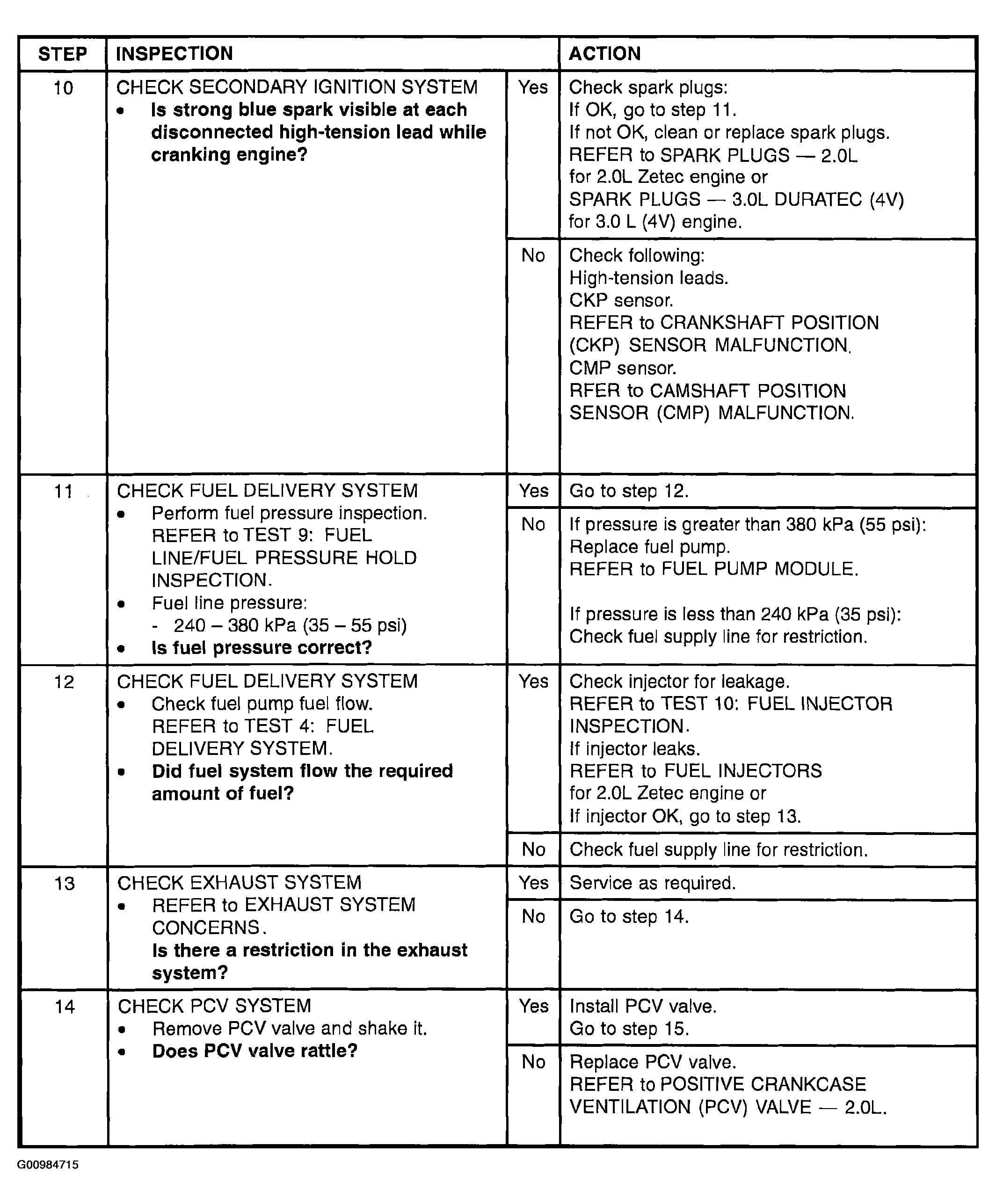

Fig 4: Chart 7 Engine Poor Driveability: Inspection (Steps 10-14)

Courtesy of MAZDA MOTORS CORP.

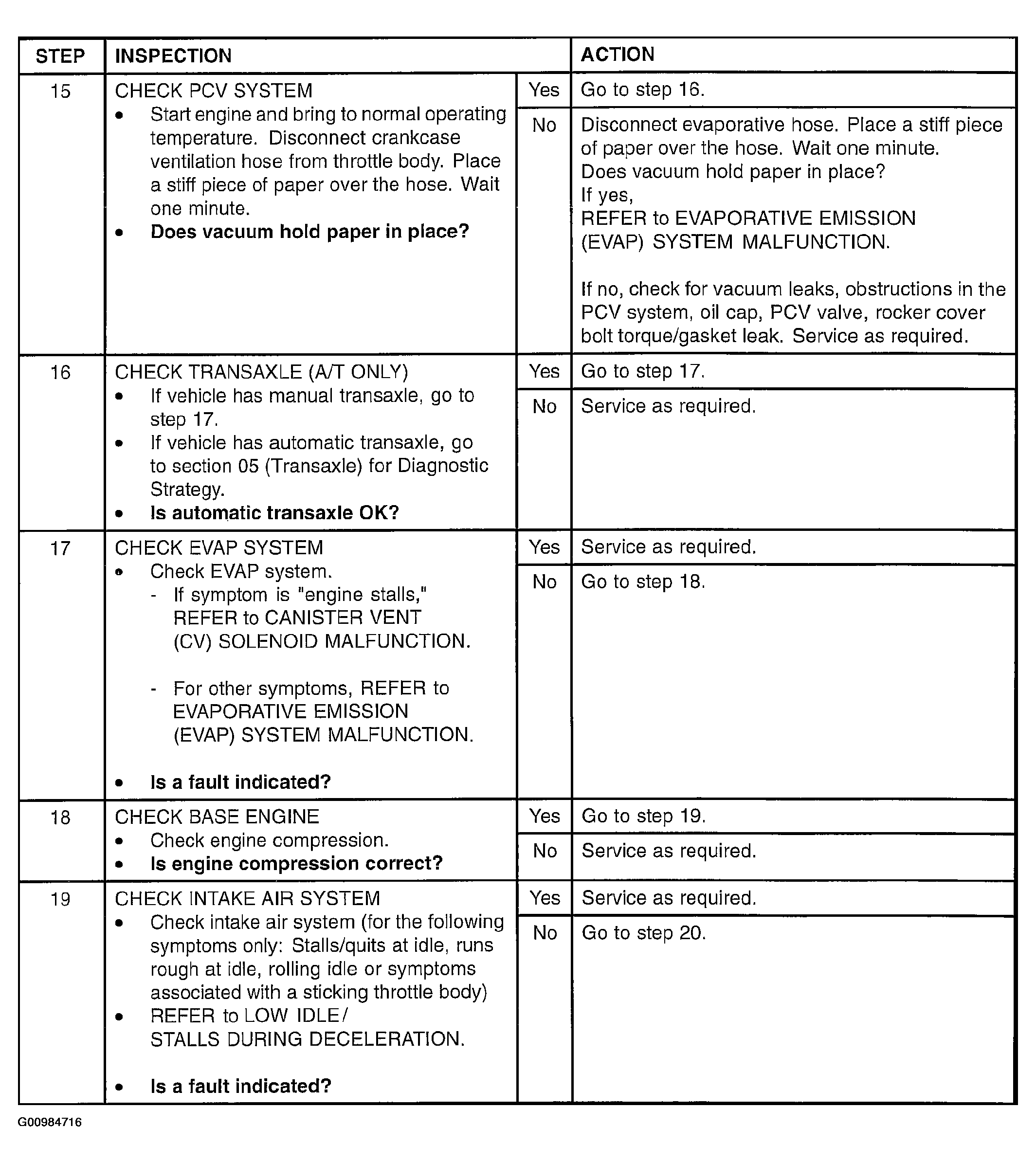

Fig 5: Chart 7 Engine Poor Driveability: Inspection (Steps 15-19)

Courtesy of MAZDA MOTORS CORP.

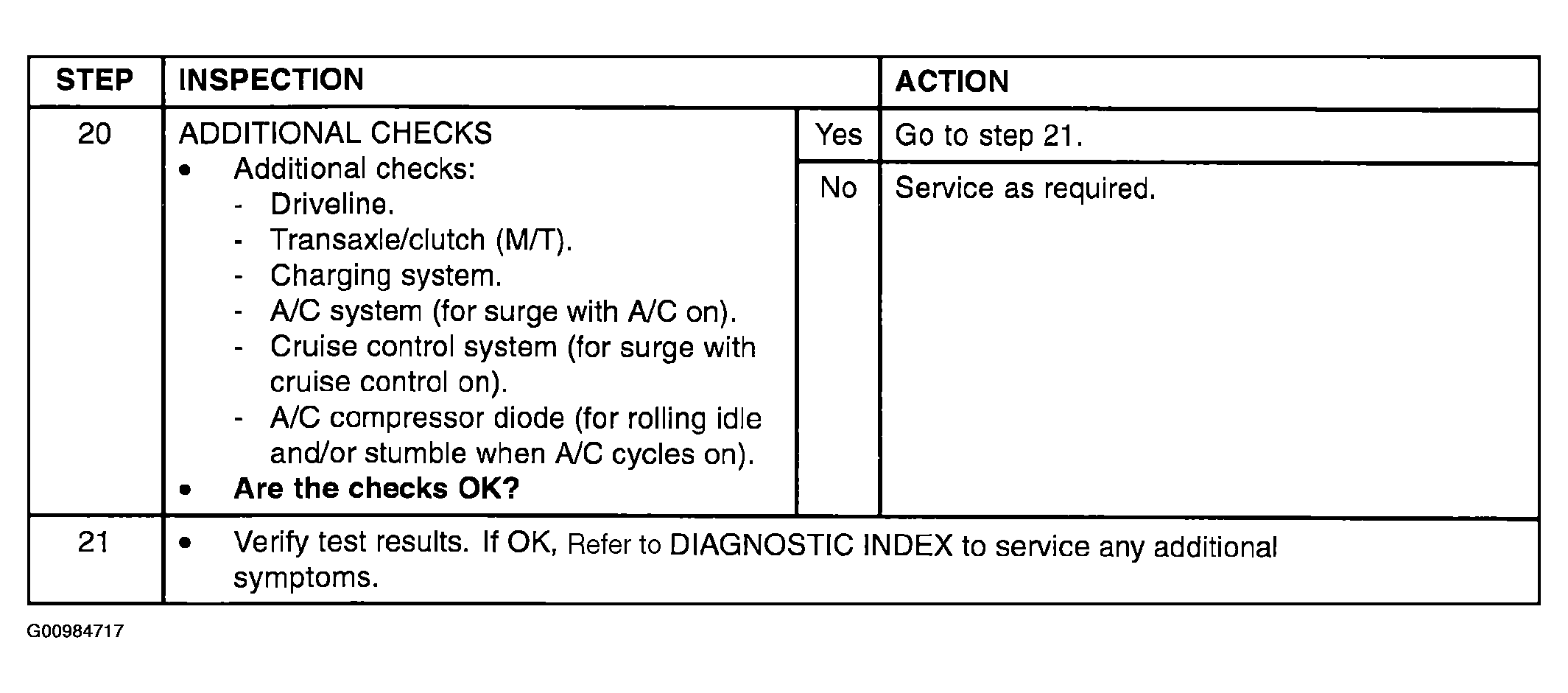

Fig 6: Chart 7 Engine Poor Driveability: Inspection (Steps 20-21)

Courtesy of MAZDA MOTORS CORP.
