Generic Electronic Module (Gem) Symptom Troubleshooting Chart: Notes

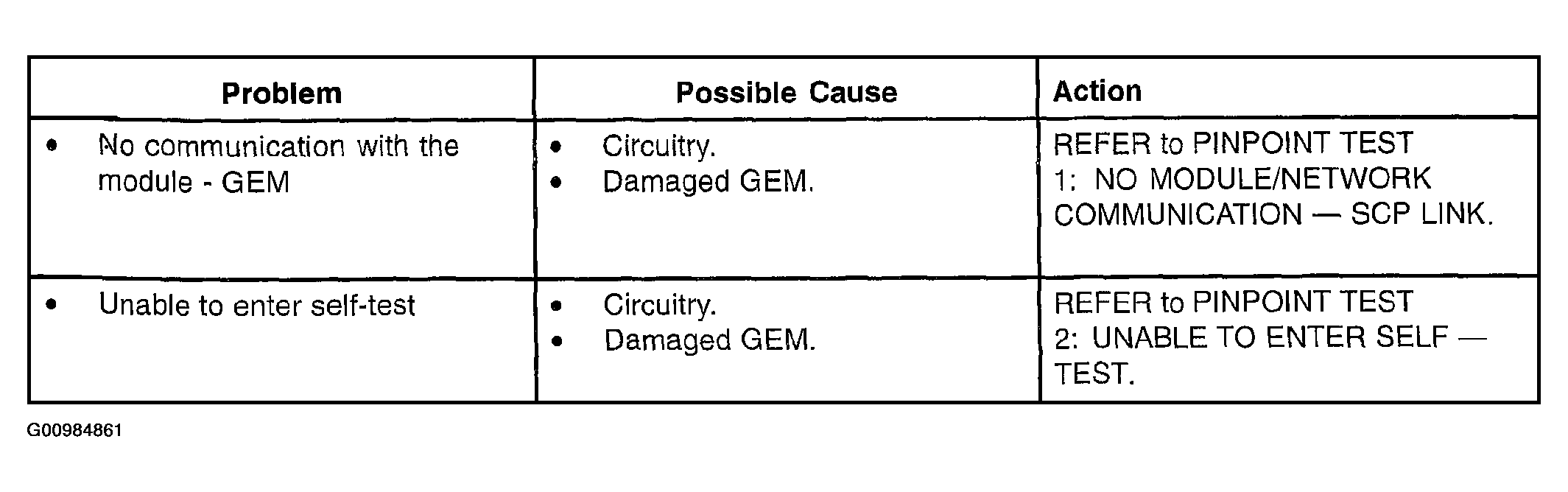

Fig 1: Generic Electronic Module (GEM) Symptom Troubleshooting Chart
G00984861Courtesy of MAZDA MOTORS CORP.
