Symptom Troubleshooting (Engine/Fuel Control): Knocking/Pinging

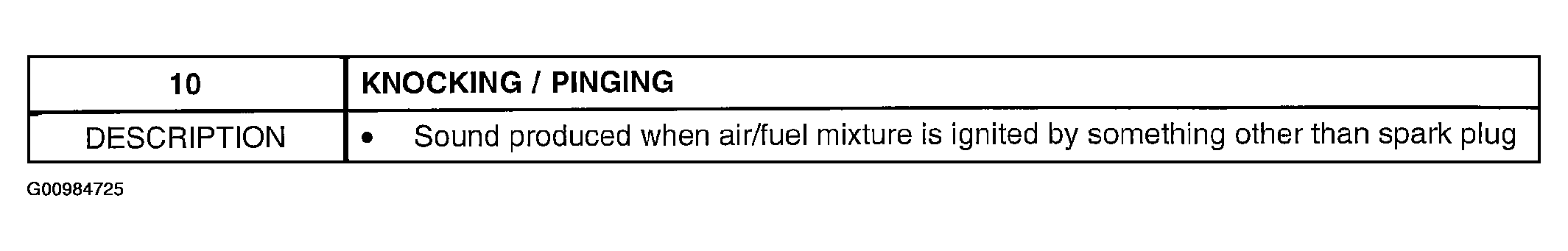

Fig 1: Chart 10 Knocking/Pinging: Description

Courtesy of MAZDA MOTORS CORP.

Fig 2: Chart 10 Knocking/Pinging: Inspection (Step 1)

Courtesy of MAZDA MOTORS CORP.

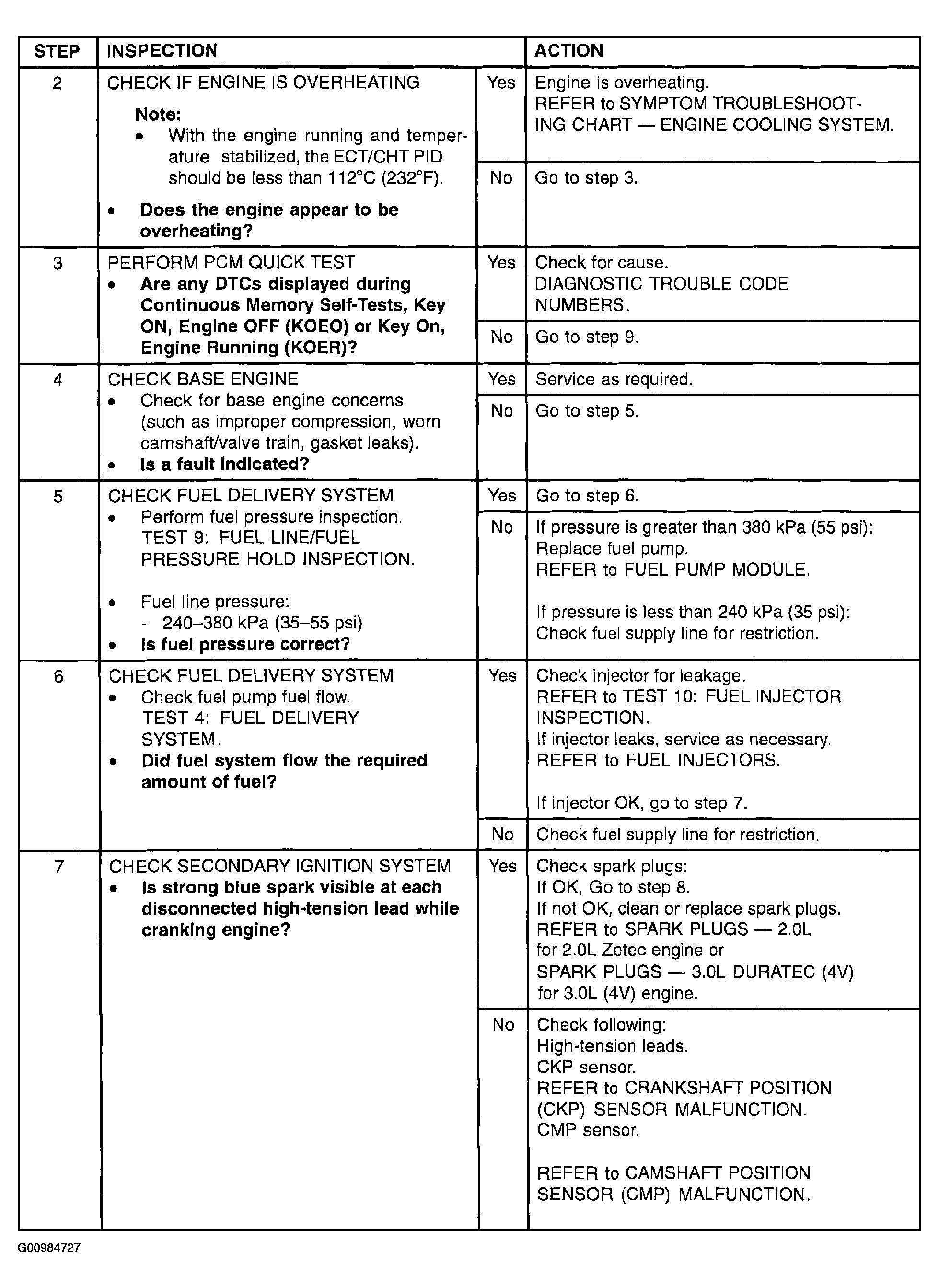

Fig 3: Chart 10 Knocking/Pinging: Inspection (Steps 2-7)

Courtesy of MAZDA MOTORS CORP.

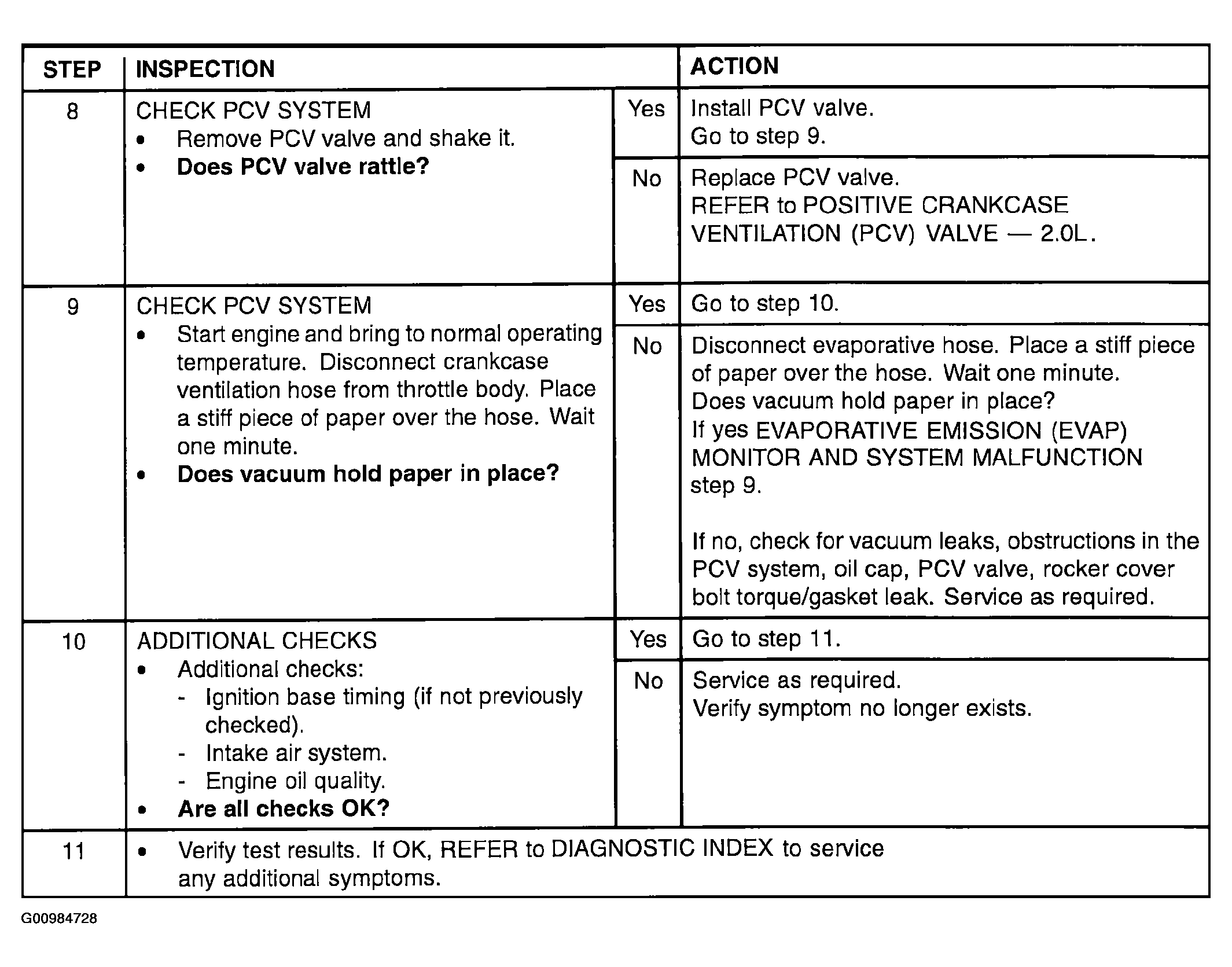

Fig 4: Chart 10 Knocking/Pinging: Inspection (Steps 8-11)

Courtesy of MAZDA MOTORS CORP.
