Test 13: Differential Pressure Feedback EGR (DPFE) Sensor

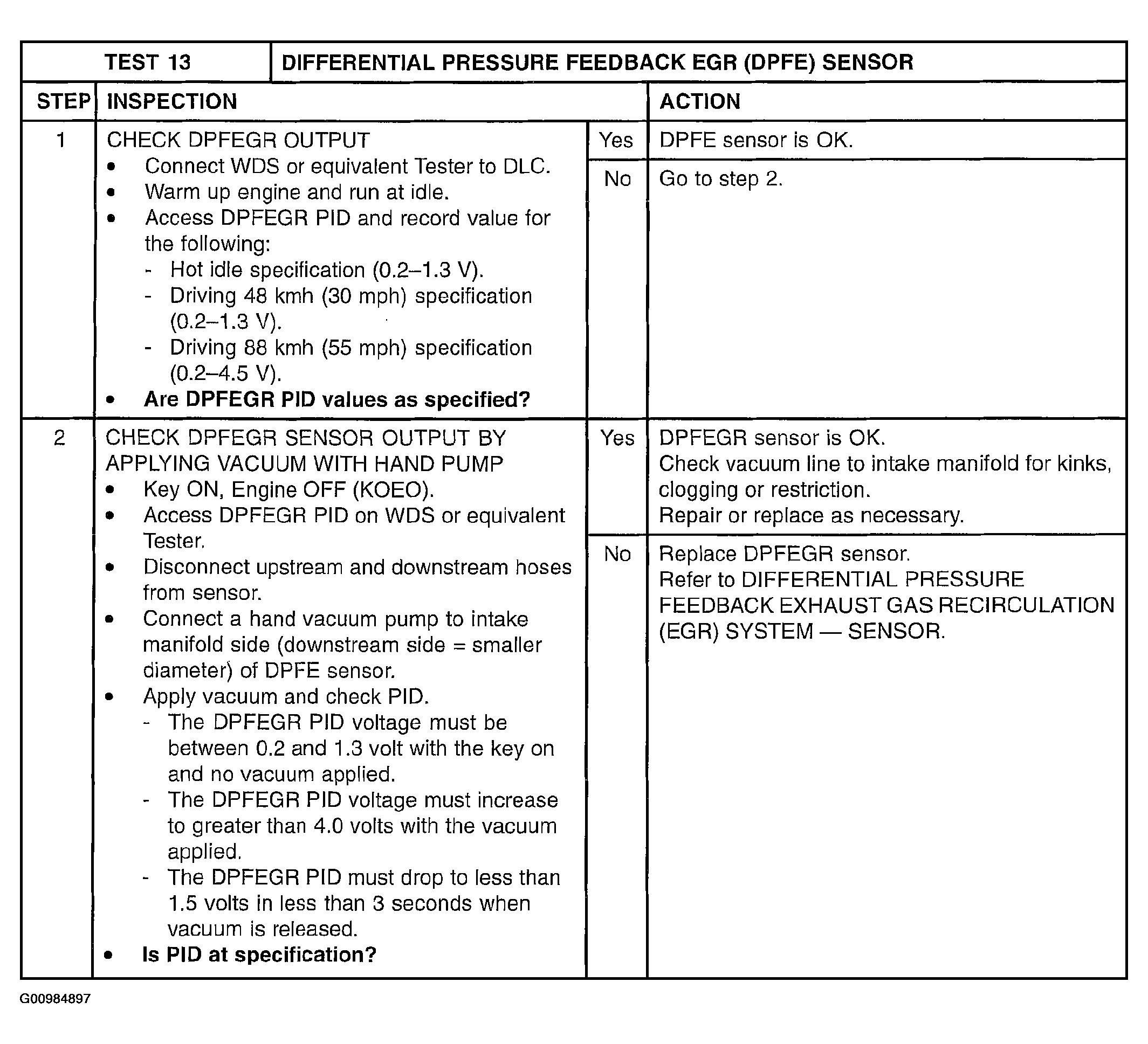

Fig 1: Test 13: Differential Pressure Feedback EGR (DPFE) Sensor: Inspection
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
