Test 14: No Start

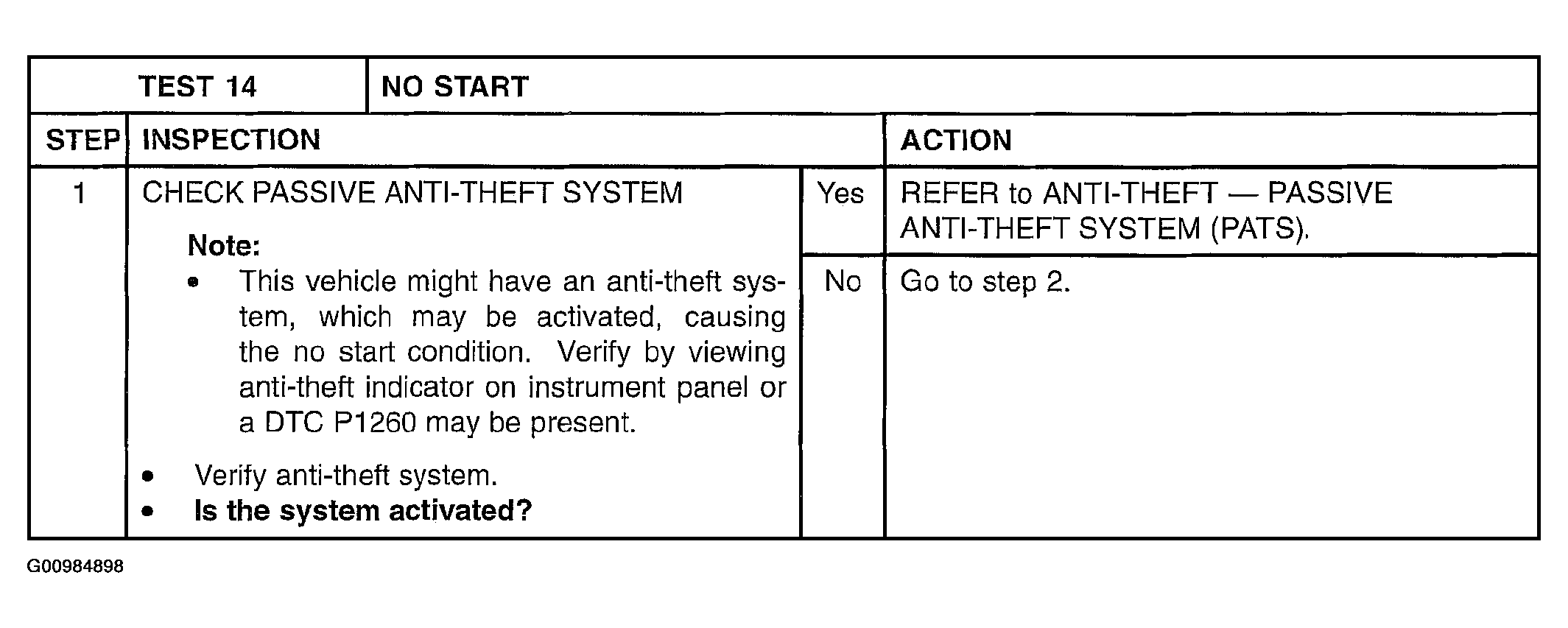

Fig 1: Test 14: No Start: Inspection (Step 1)

Courtesy of MAZDA MOTORS CORP.

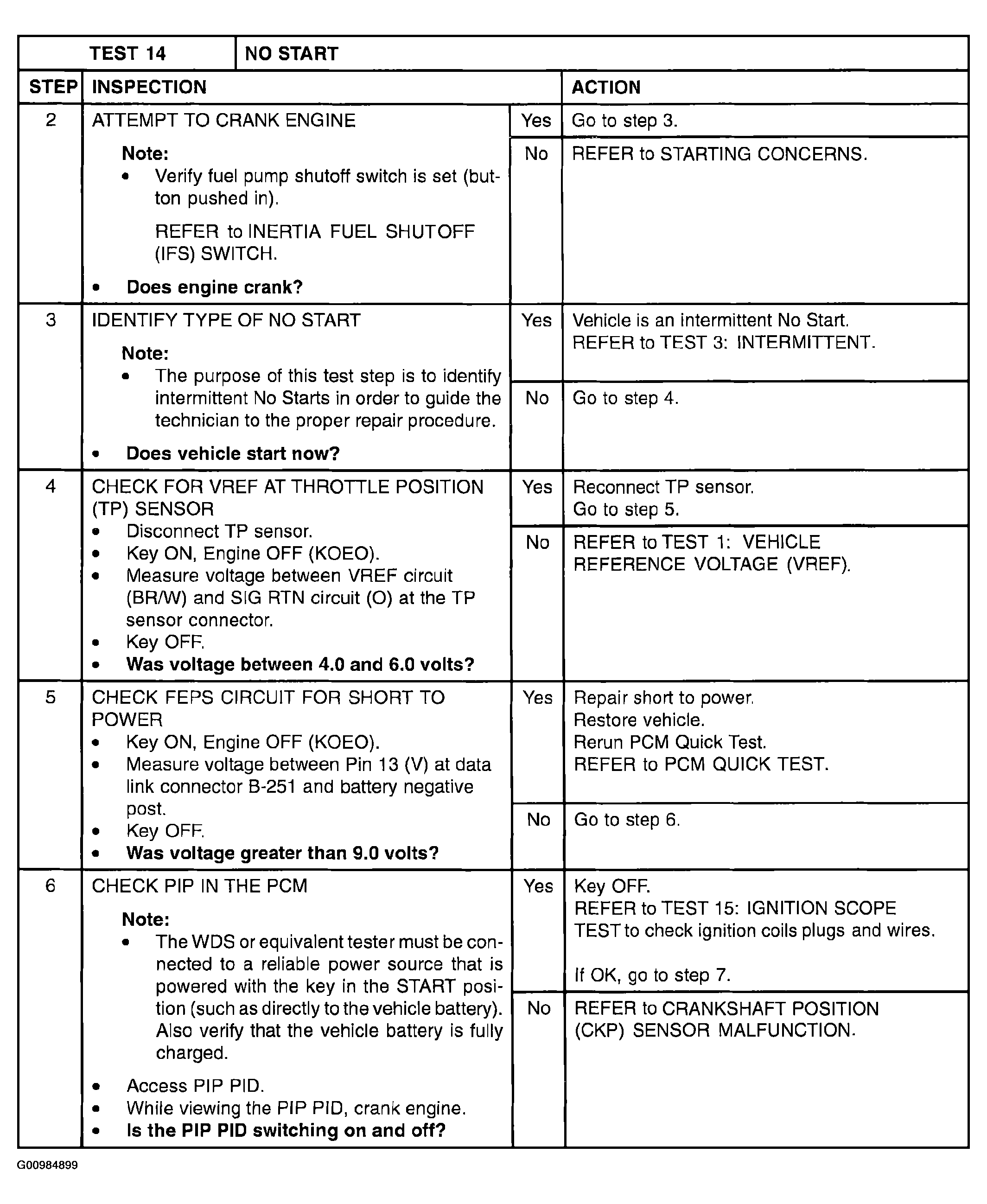

Fig 2: Test 14: No Start: Inspection (Steps 2-6)

Courtesy of MAZDA MOTORS CORP.

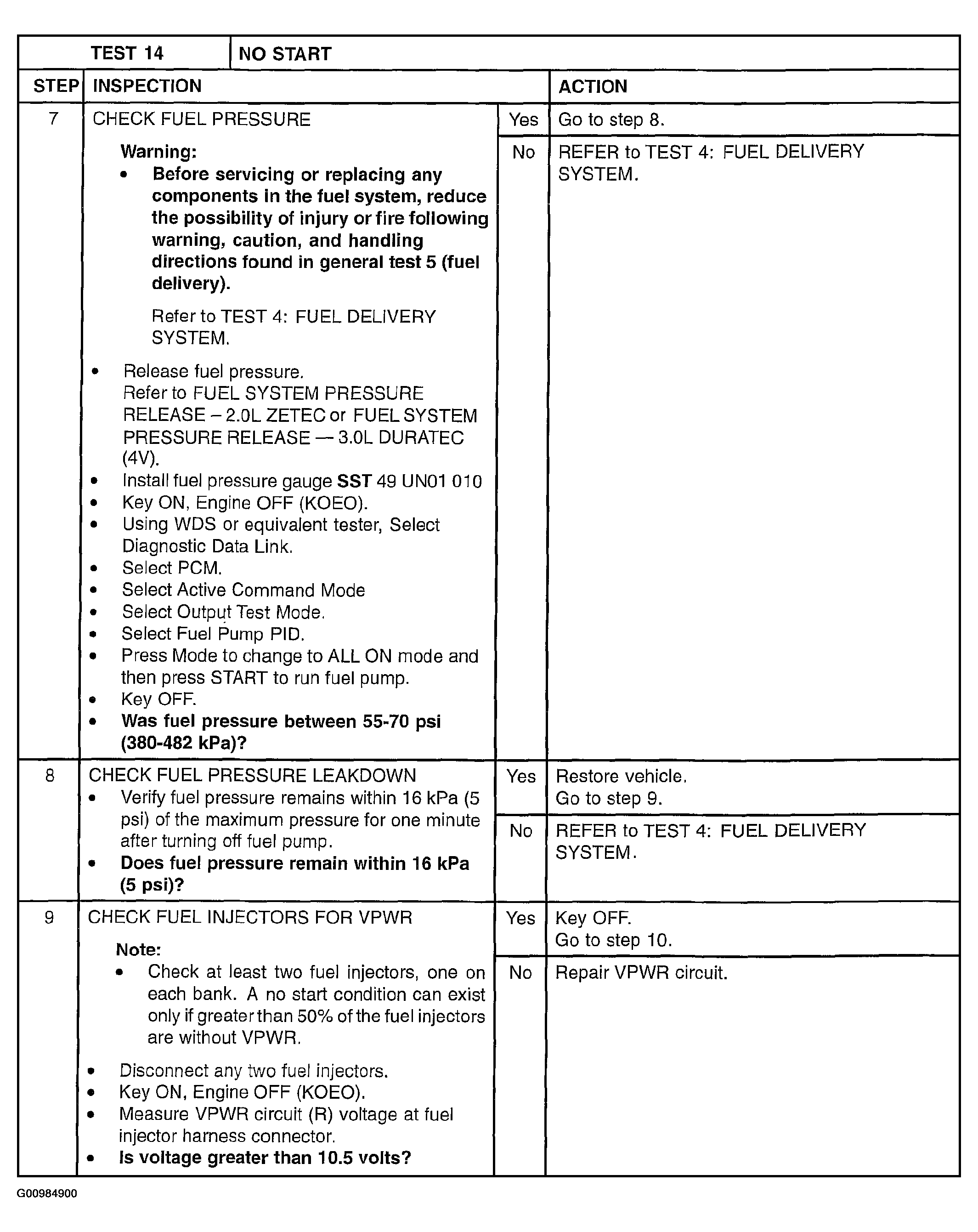

Fig 3: Test 14: No Start: Inspection (Steps 7-9)

Courtesy of MAZDA MOTORS CORP.

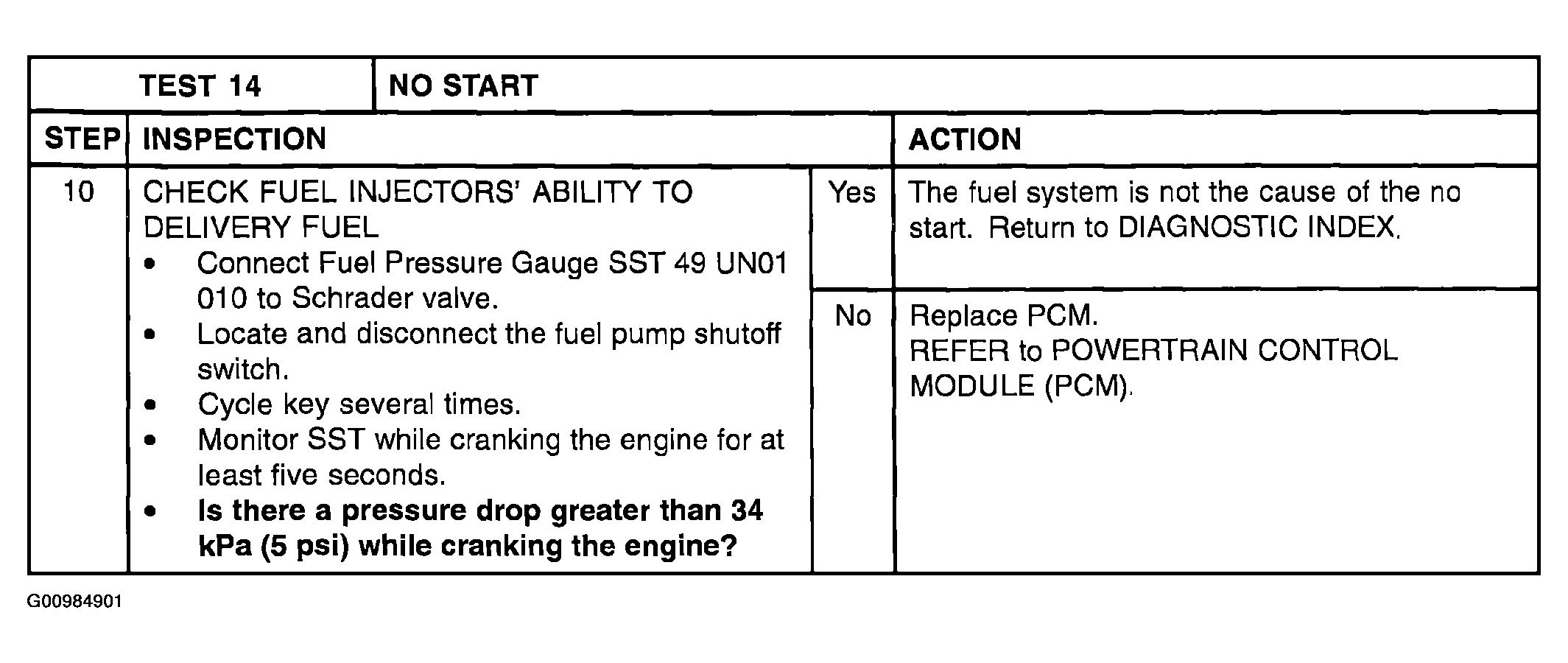

Fig 4: Test 14: No Start: Inspection (Step 10)

Courtesy of MAZDA MOTORS CORP.
