Test 15: Ignition Scope Test: 2.0L

IGNITION SCOPE TEST 2.0L

Firing Order  Ignition Coil
1  2
3  2
4  1
2  2

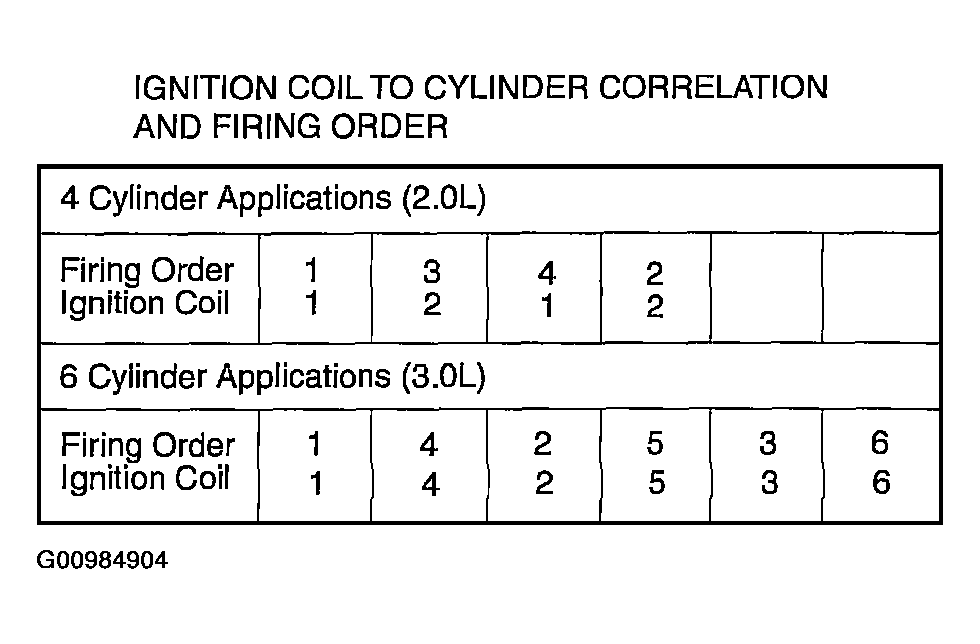

Fig 1: Ignition Coil To Cylinder Correlation & Firing Order
G00984904Courtesy of MAZDA MOTORS CORP.
