Test 7: Fuel Pressure Regulator

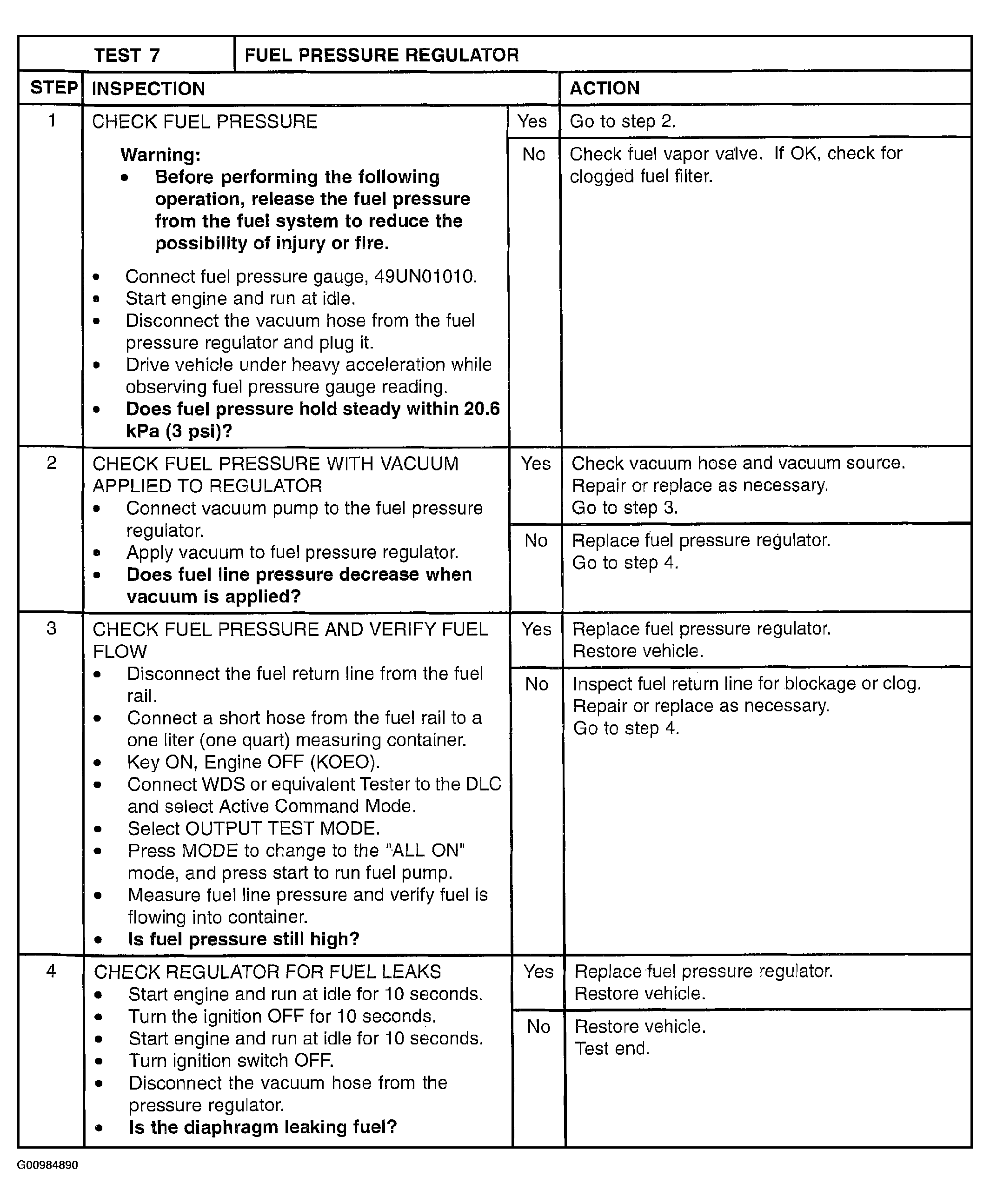

Fig 1: Test 7: Fuel Pressure Regulator: Inspection
Courtesy of MAZDA MOTORS CORP.
