Engine Noise

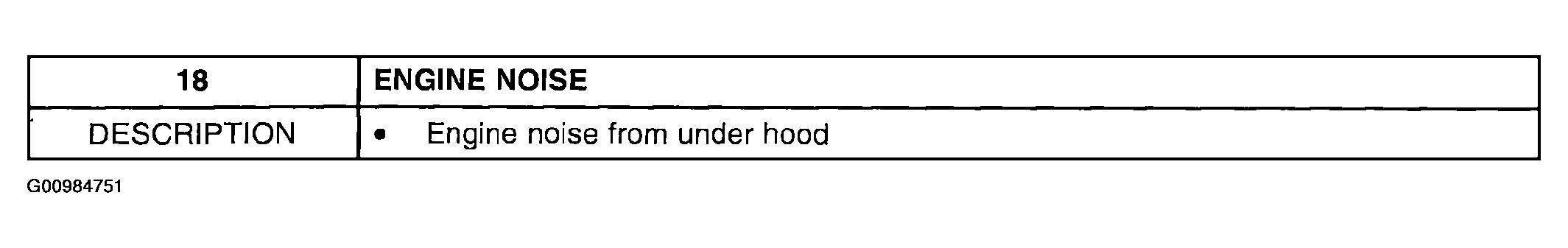

Fig 1: Chart 18 Engine Noise: Description
G00984751Courtesy of MAZDA MOTORS CORP.

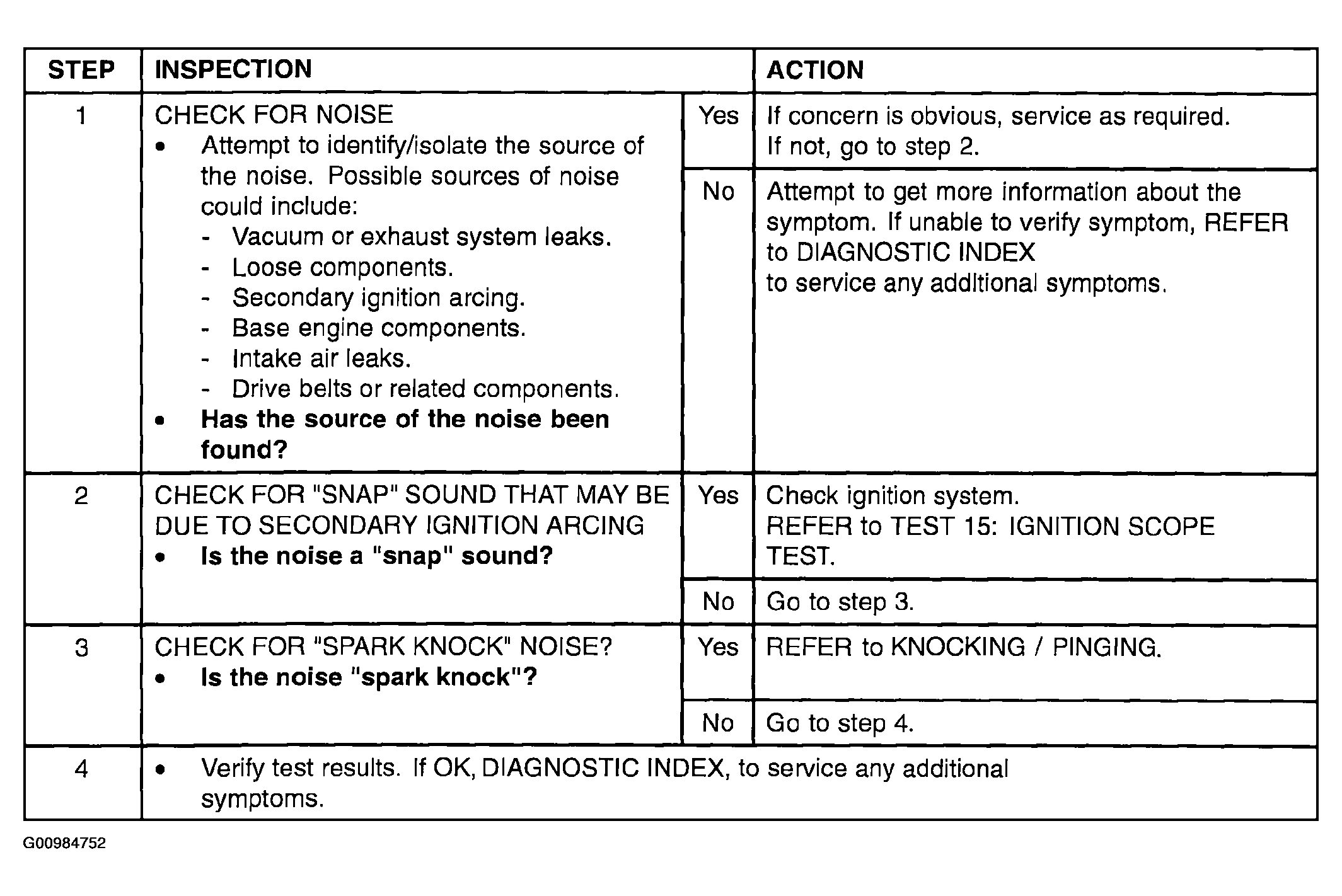

Fig 2: Chart 18 Engine Noise: Inspection
G00984752Courtesy of MAZDA MOTORS CORP.
