Fuel Odor In Engine Compartment

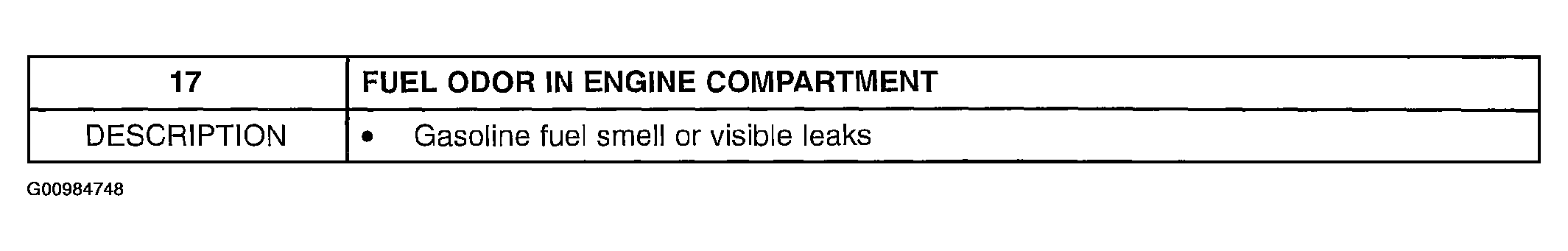

Fig 1: Chart 17 Fuel Odor In Engine Compartment: Description
Courtesy of MAZDA MOTORS CORP.

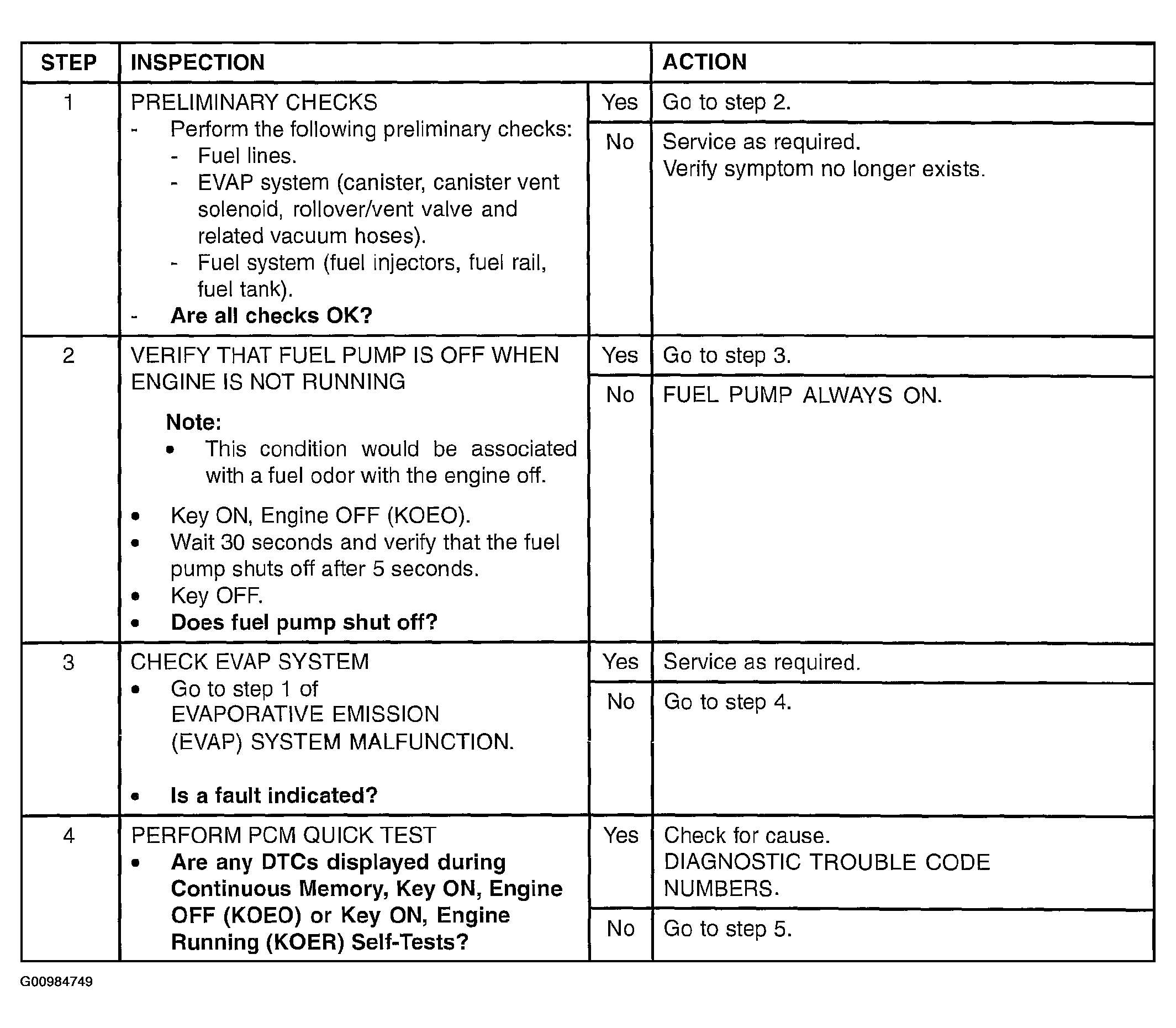

Fig 2: Chart 17 Fuel Odor In Engine Compartment: Inspection (Steps 1-4)
Courtesy of MAZDA MOTORS CORP.

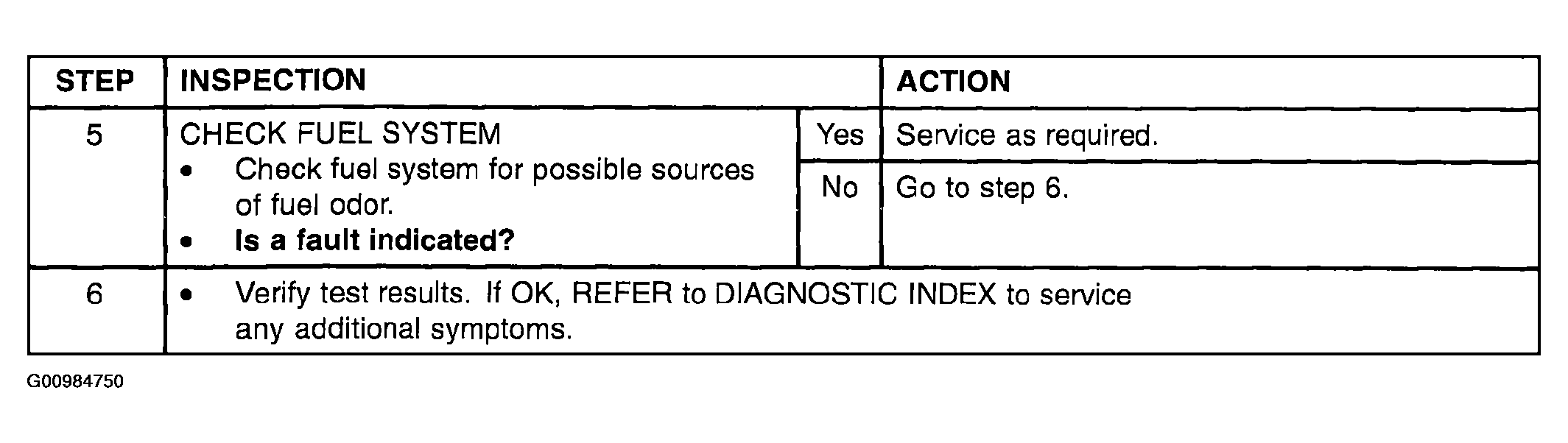

Fig 3: Chart 17 Fuel Odor In Engine Compartment: Inspection (Steps 5-6)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
