Quick Release Coupling - R-Clip: Connect

Clean and inspect the fitting and the tube for damage. Remove any foreign material or obstructions.

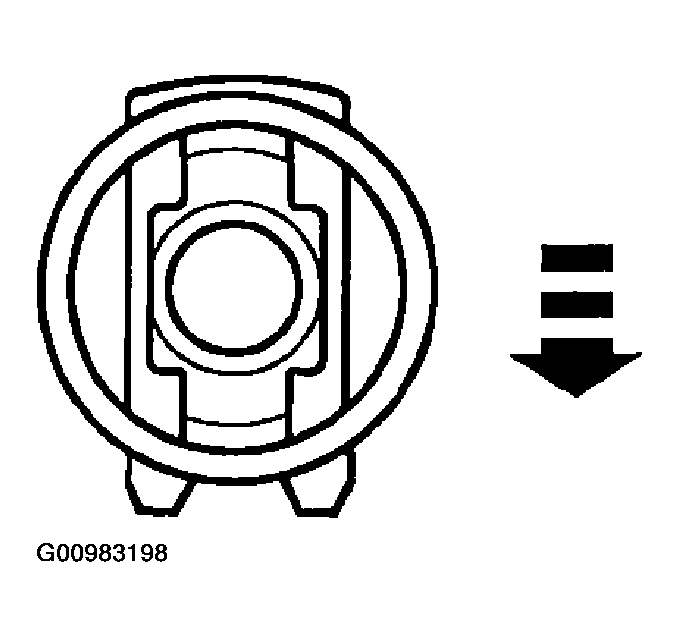

Fig 1: Inserting A New R-Clip Into The Fitting
Courtesy of MAZDA MOTORS CORP.
Insert a new R-clip into the fitting.

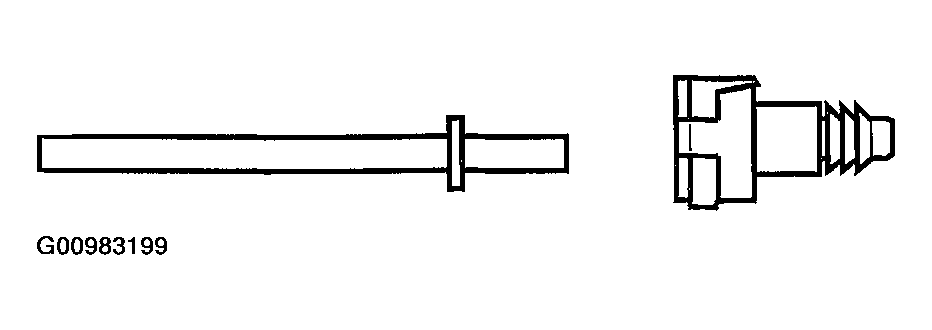

Fig 2: Aligning Tube & Fitting
Courtesy of MAZDA MOTORS CORP.
Align the tube and the fitting.

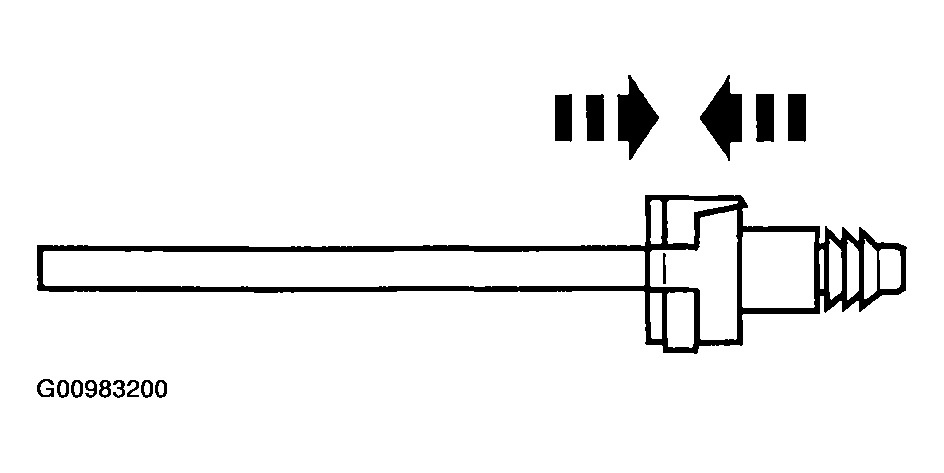

Fig 3: Inserting Tube In Fitting
Courtesy of MAZDA MOTORS CORP.
Insert the tube in the fitting and push together until a click is heard.

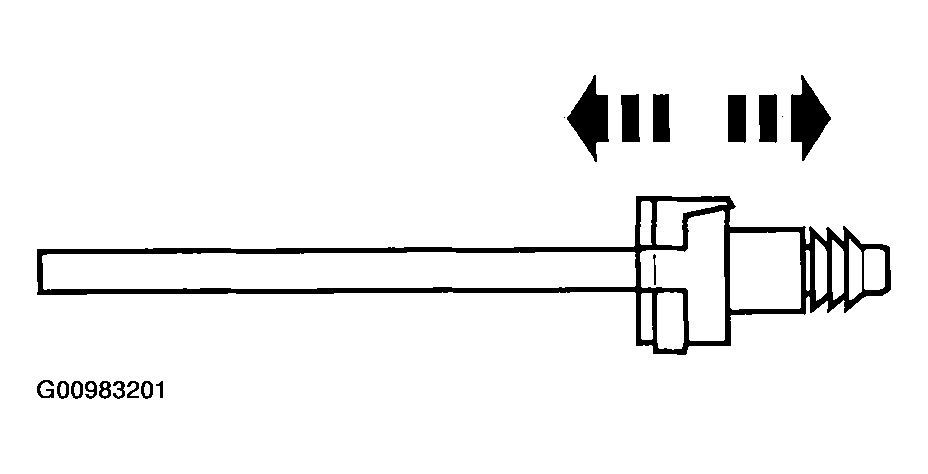

Fig 4: Checking Engagement Of Connection
Courtesy of MAZDA MOTORS CORP.
Pull on the connection to make sure it is fully engaged.
Connect the battery ground cable. For additional information Refer to BATTERY DISCONNECT .
