Using SST (104 Pin Breakout Box)

  1. Disconnect the negative battery cable.
  2. Disconnect the PCM connector.
  3. Connect the SST (104 Pin Breakout Box) to the PCM as shown in illustration.

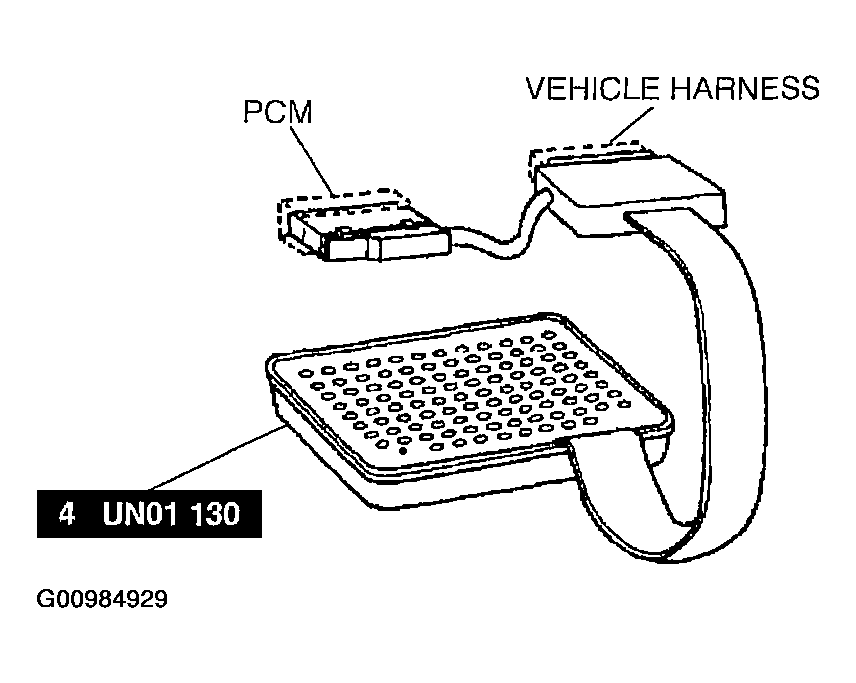

    Fig 1: Connecting SST (104 Pin Breakout Box) To PCM
    G00984929Courtesy of MAZDA MOTORS CORP.
  4. Tighten the connector bolt.
    1. Tightening torque 7.9 - 10.7 N.m (80 - 110 kgf.m, 69.5 - 95.4 ln.lbf)
  5. Connect the negative battery cable.
  6. Measure the voltage at each terminal.
  7. If any incorrect voltage is detected, check related systems, wiring harnesses and connectors.
