Cranks Normal But Will Not Start
Fig 1: Chart 3 Cranks Normal But Will Not Start: Description
Courtesy of MAZDA MOTORS CORP.

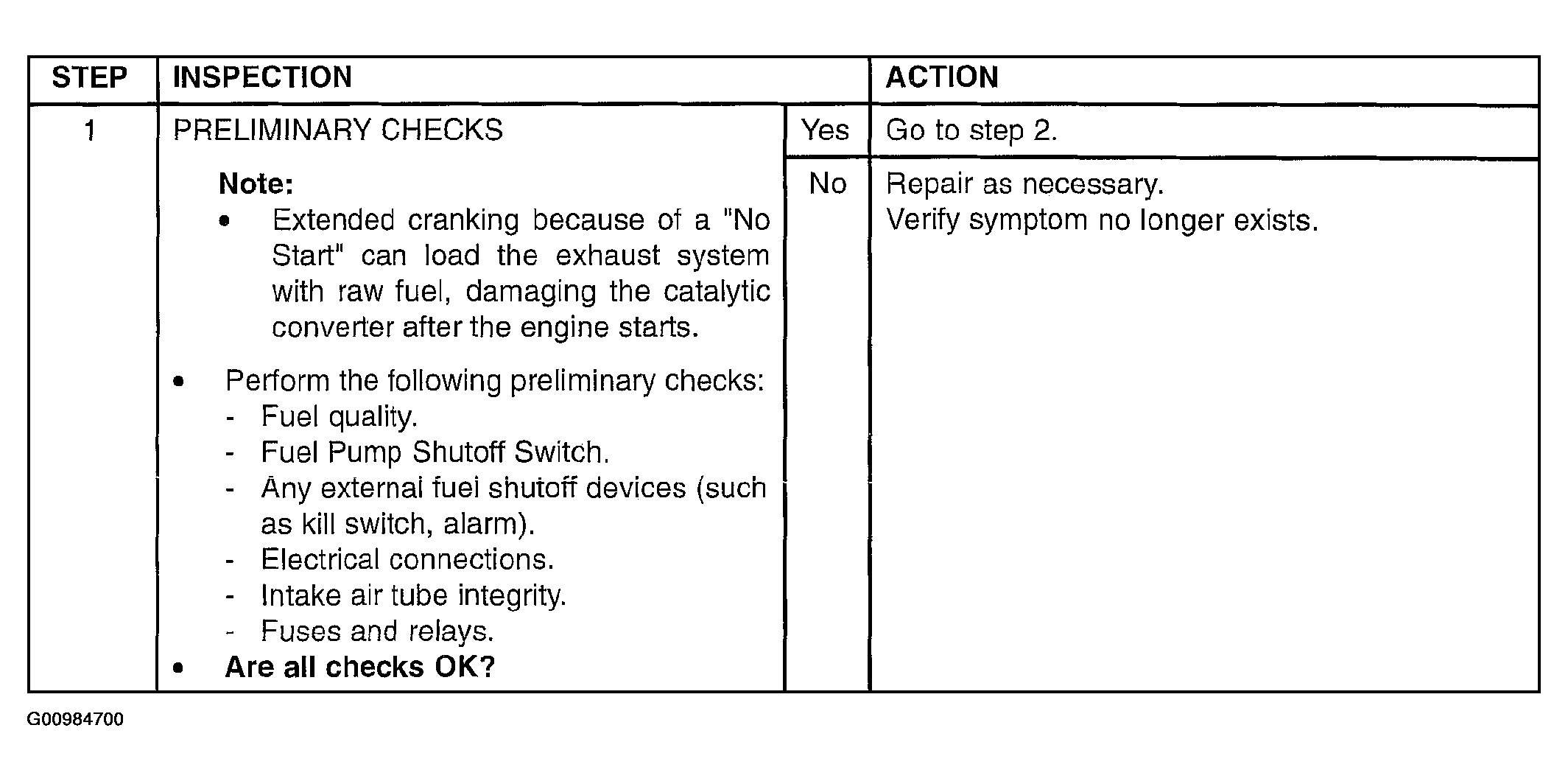

Fig 2: Chart 3 Cranks Normal But Will Not Start: Inspection (Step 1)
Courtesy of MAZDA MOTORS CORP.

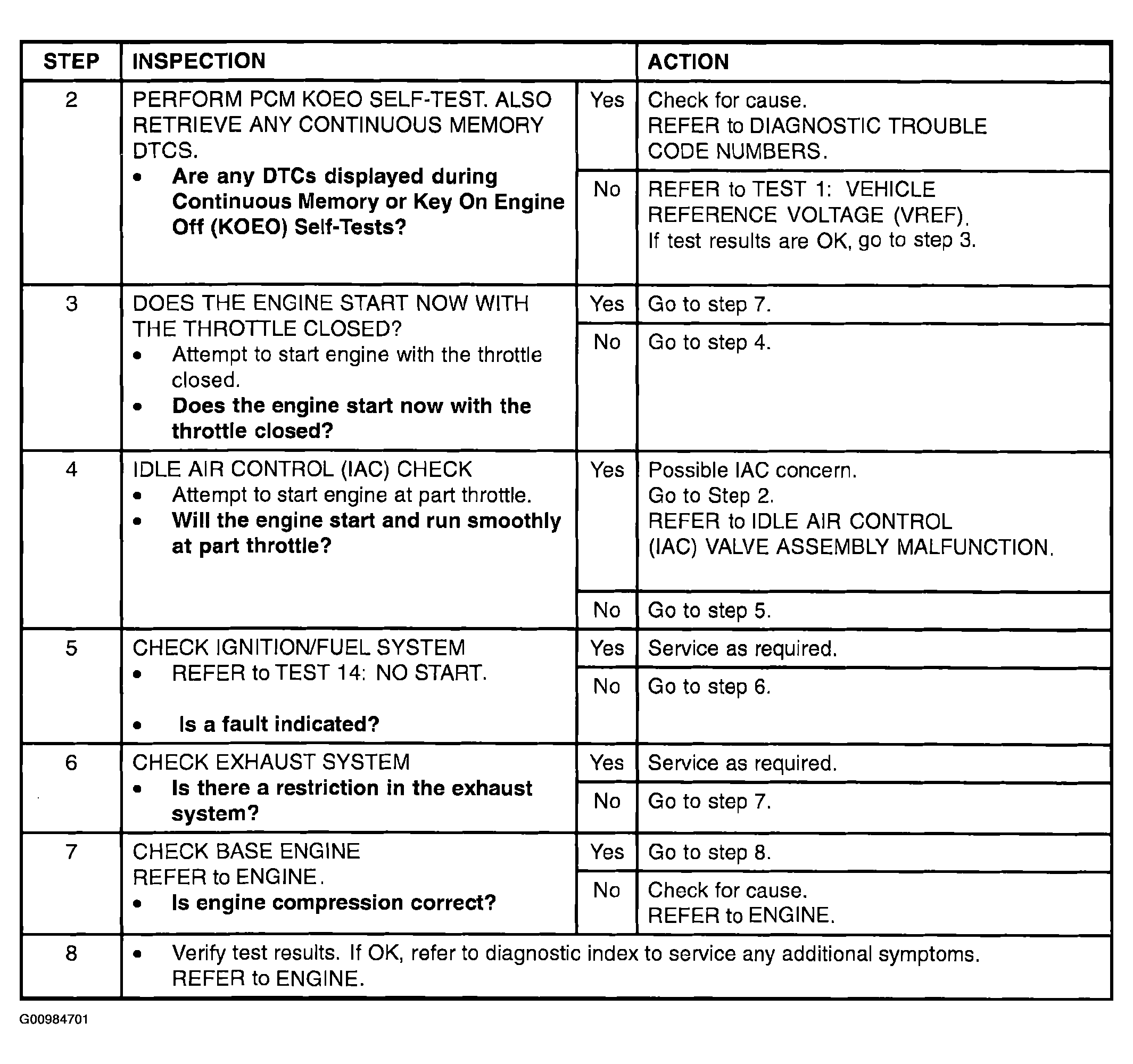

Fig 3: Chart 3 Cranks Normal But Will Not Start: Inspection (Steps 2-8)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
