DTC P0451, P0461: EVAP System Malfunction

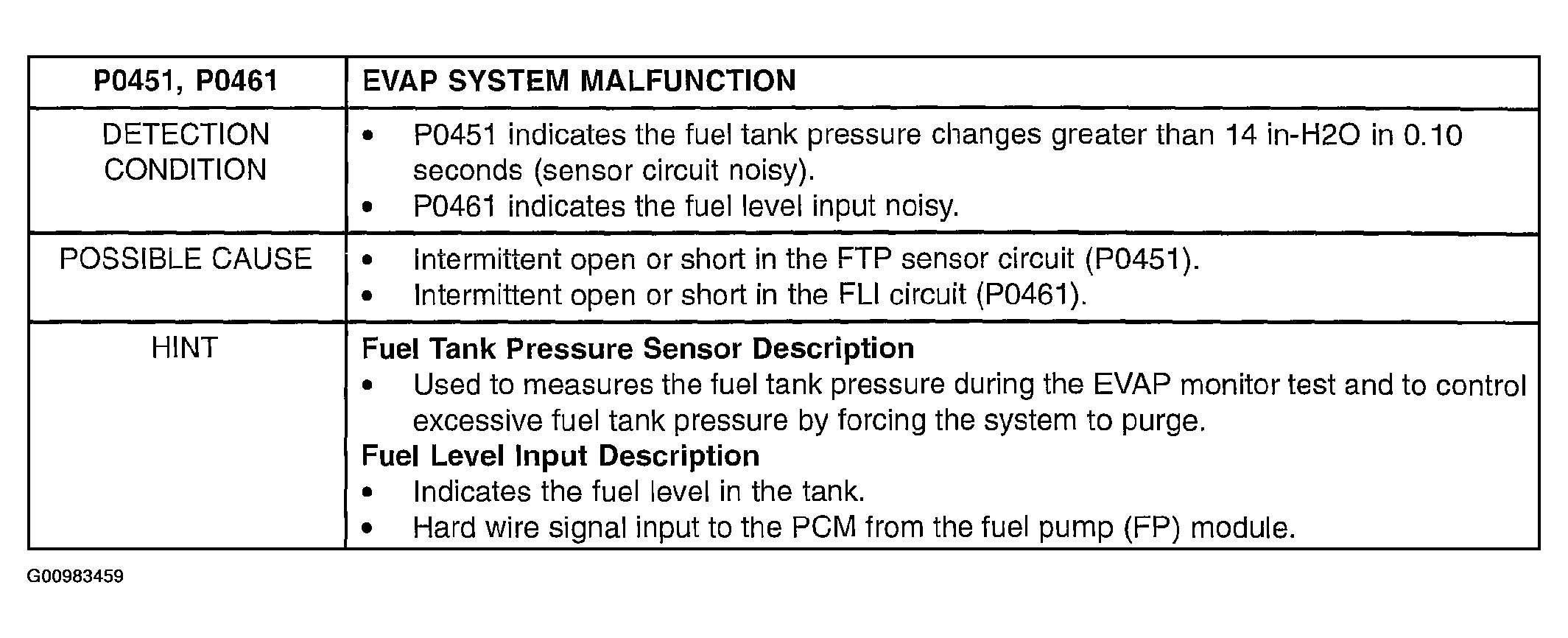

Fig 1: DTC P0451, P0461 EVAP System Malfunction: Detection Condition, Possible Cause & Hint
Courtesy of MAZDA MOTORS CORP.

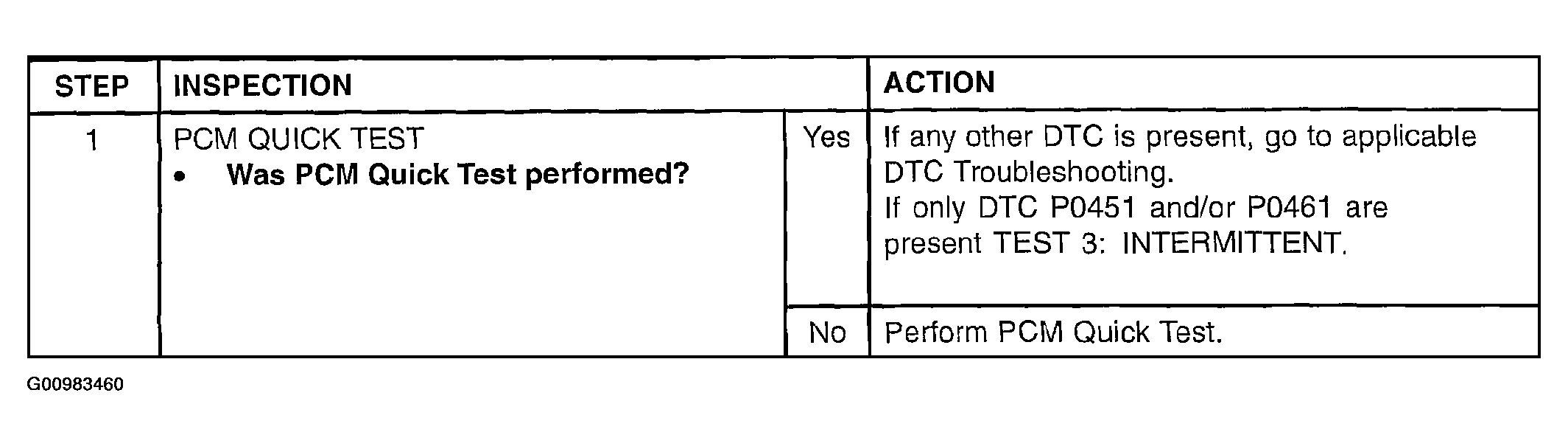

Fig 2: DTC P0451, P0461 EVAP System Malfunction: Inspection
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
