Diagnostic Trouble Code Numbers

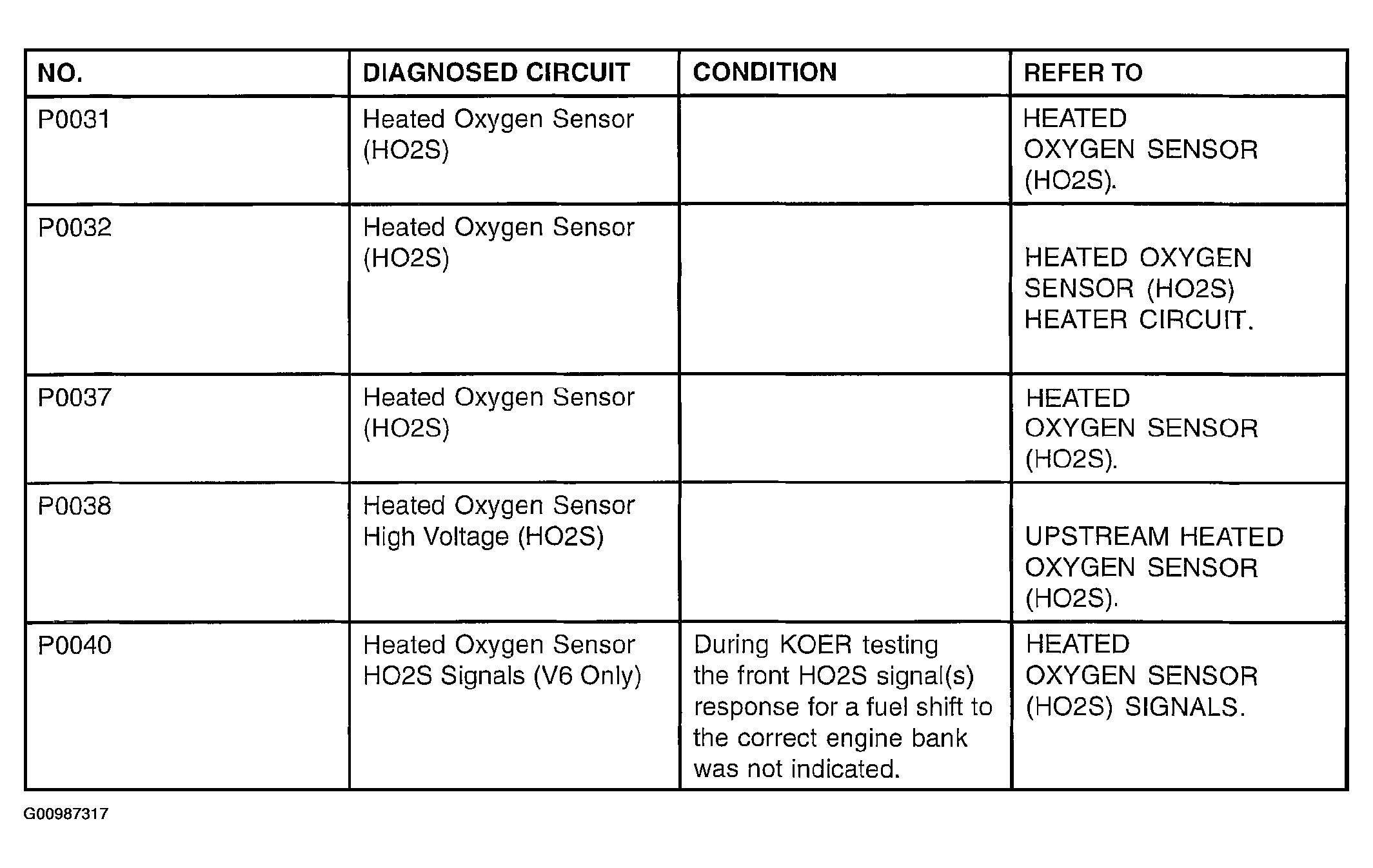

Fig 1: Diagnostic Trouble Code Numbers Table (P0031-P0040)

G00987317

Courtesy of MAZDA MOTORS CORP.

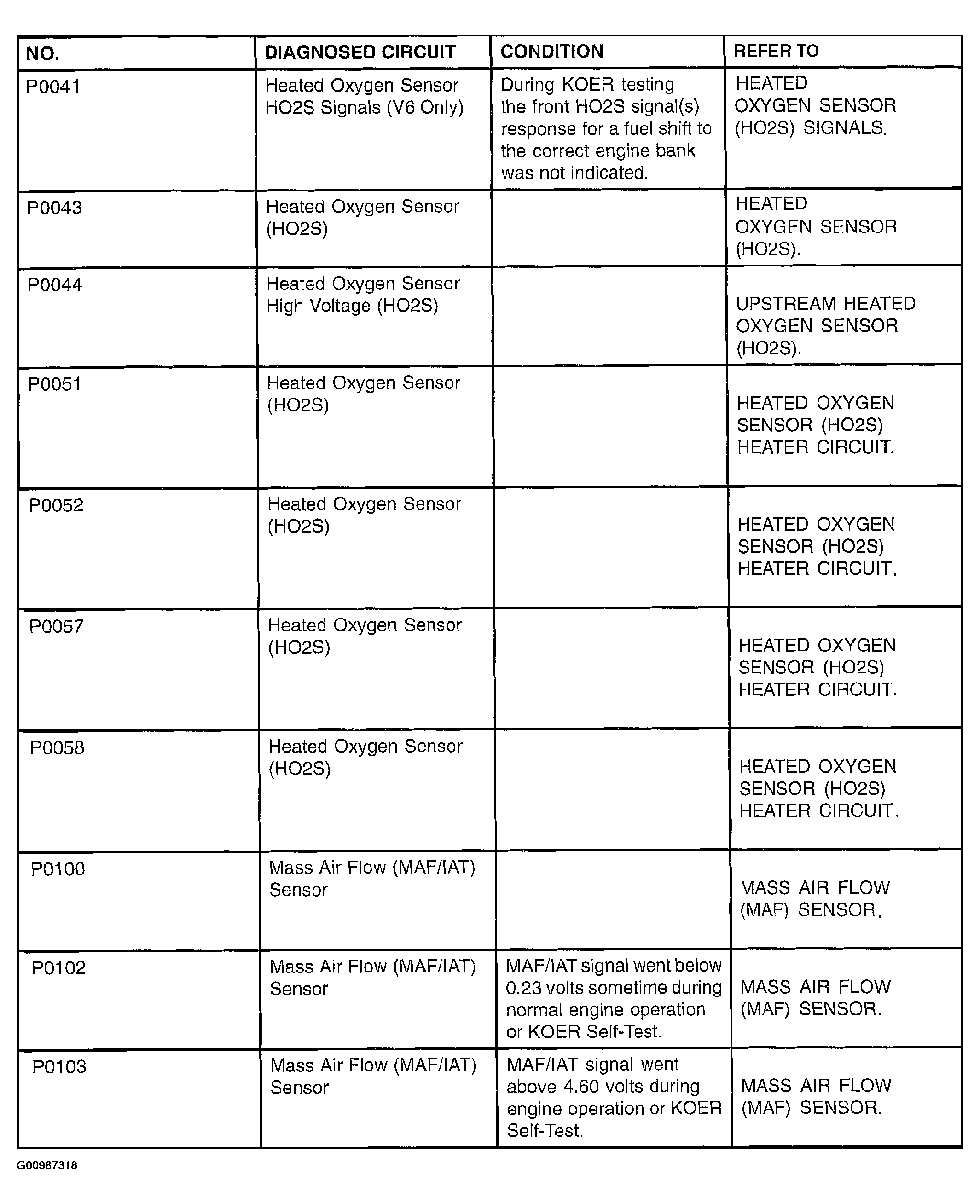

Fig 2: Diagnostic Trouble Code Numbers Table (P0041-P103)

G00987318

Courtesy of MAZDA MOTORS CORP.

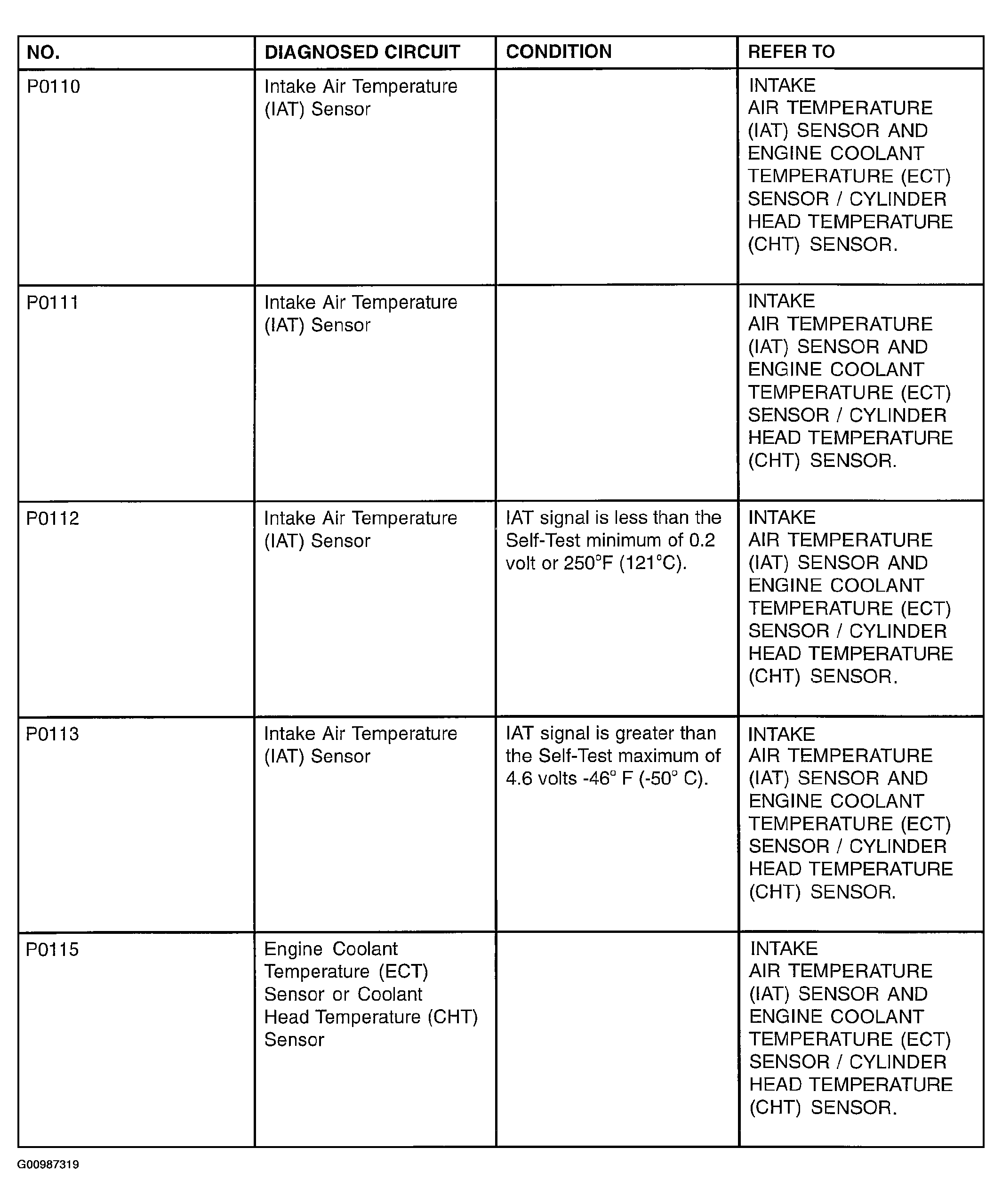

Fig 3: Diagnostic Trouble Code Numbers Table (P0110-P0115)

G00987319

Courtesy of MAZDA MOTORS CORP.

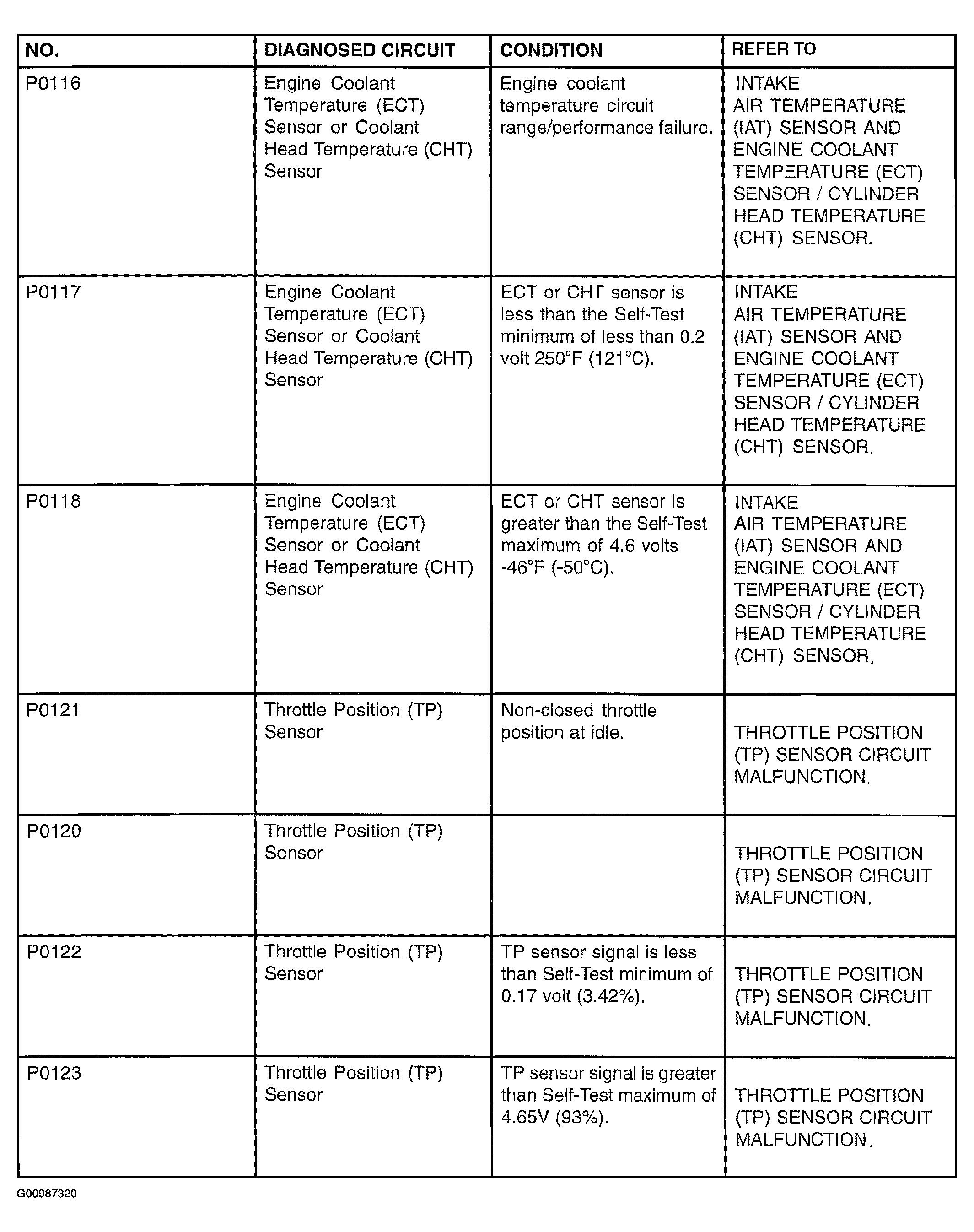

Fig 4: Diagnostic Trouble Code Numbers Table (P0116-P0123)

G00987320

Courtesy of MAZDA MOTORS CORP.

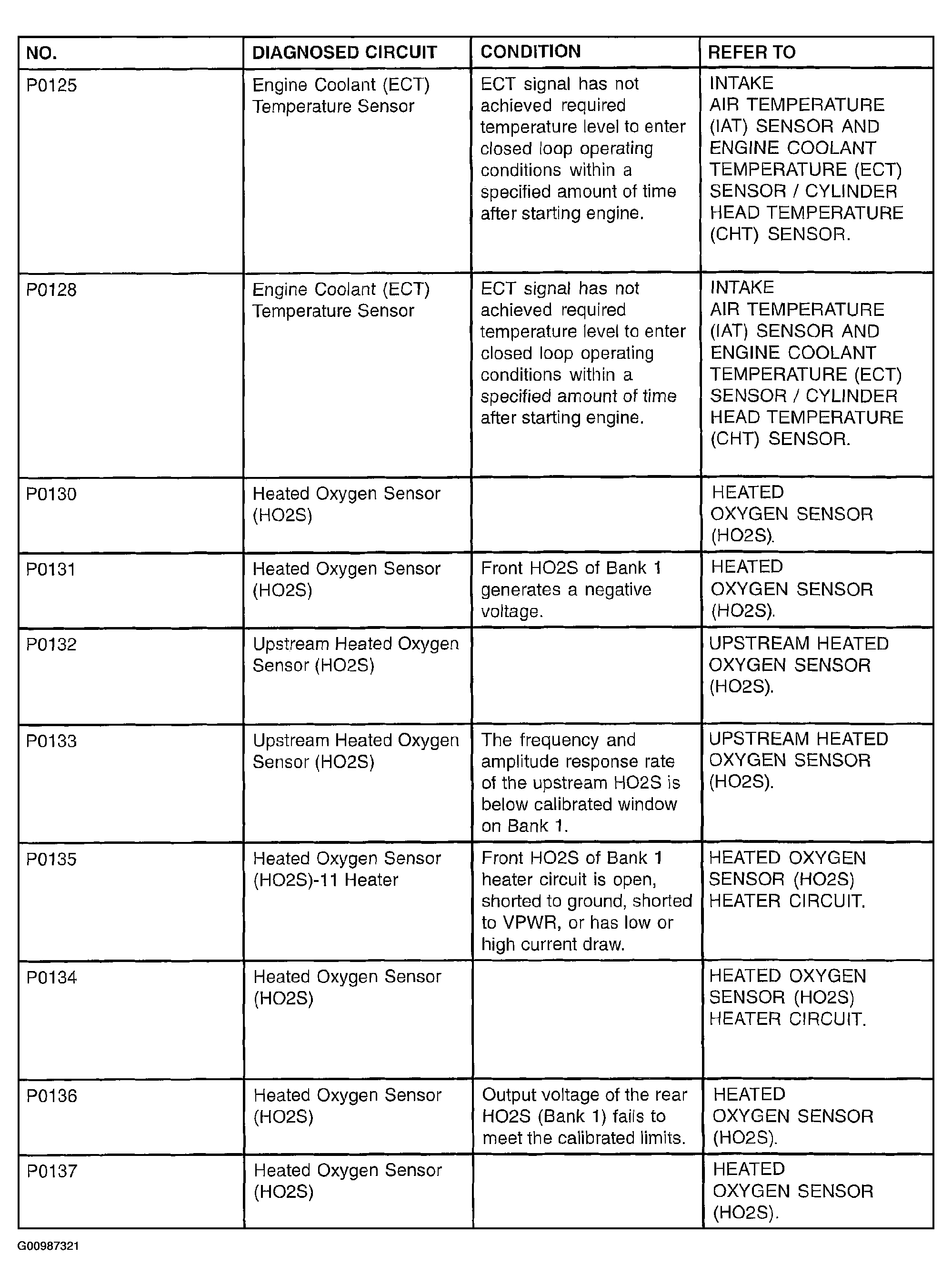

Fig 5: Diagnostic Trouble Code Numbers Table (P0125-P0137)

G00987321

Courtesy of MAZDA MOTORS CORP.

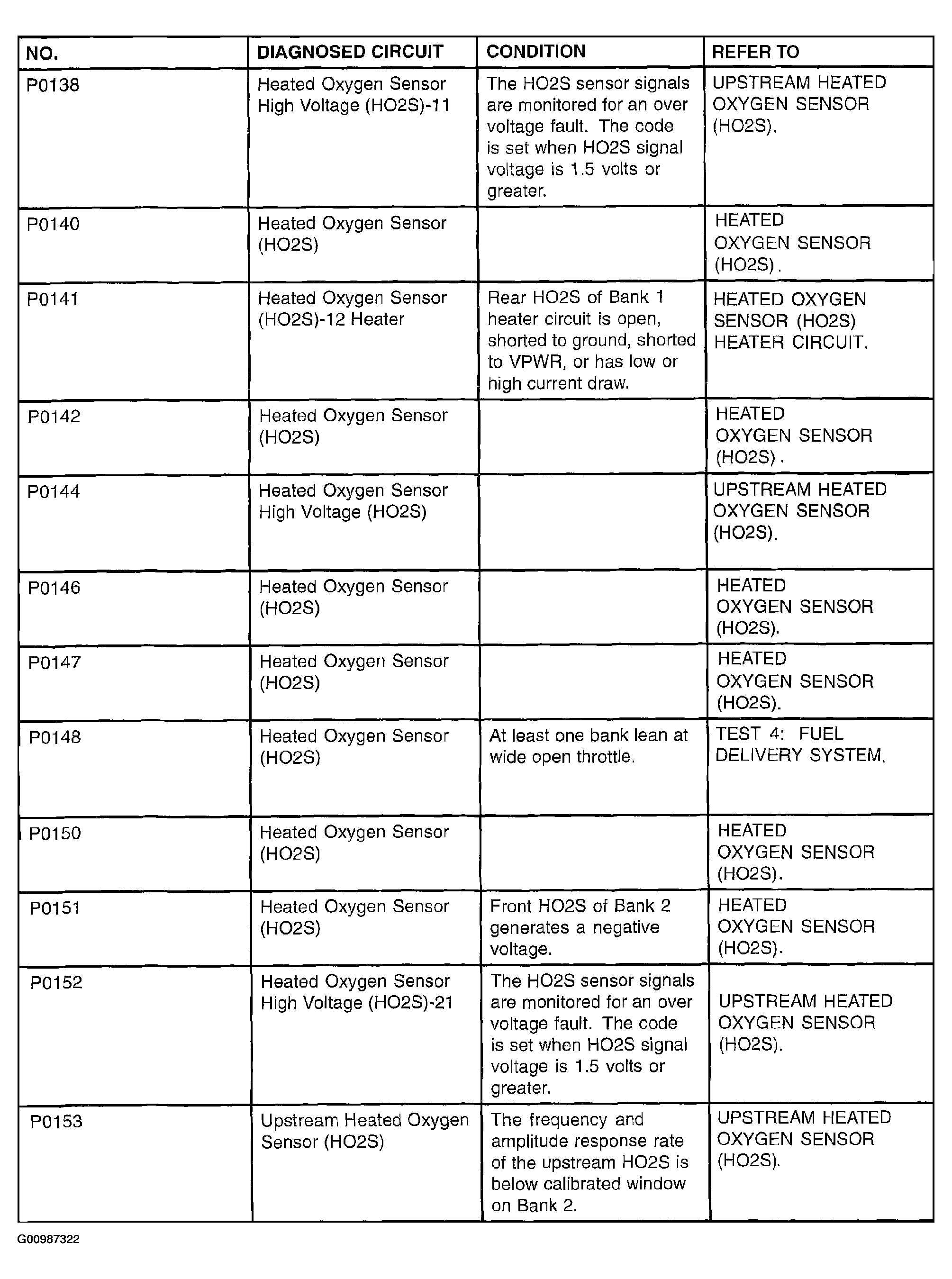

Fig 6: Diagnostic Trouble Code Numbers Table (P0138-P0153)

G00987322

Courtesy of MAZDA MOTORS CORP.

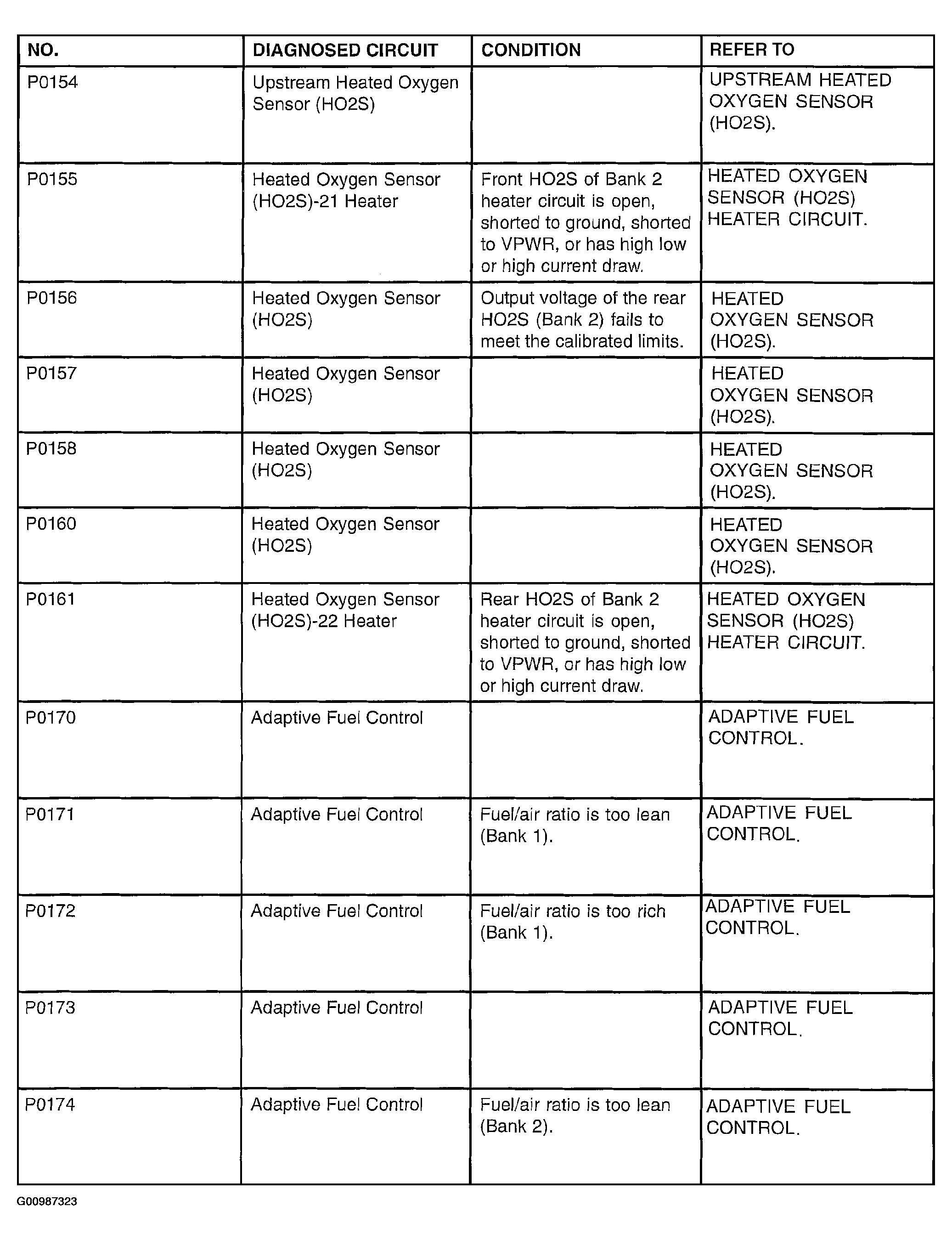

Fig 7: Diagnostic Trouble Code Numbers Table (P0154-P0174)

G00987323

Courtesy of MAZDA MOTORS CORP.

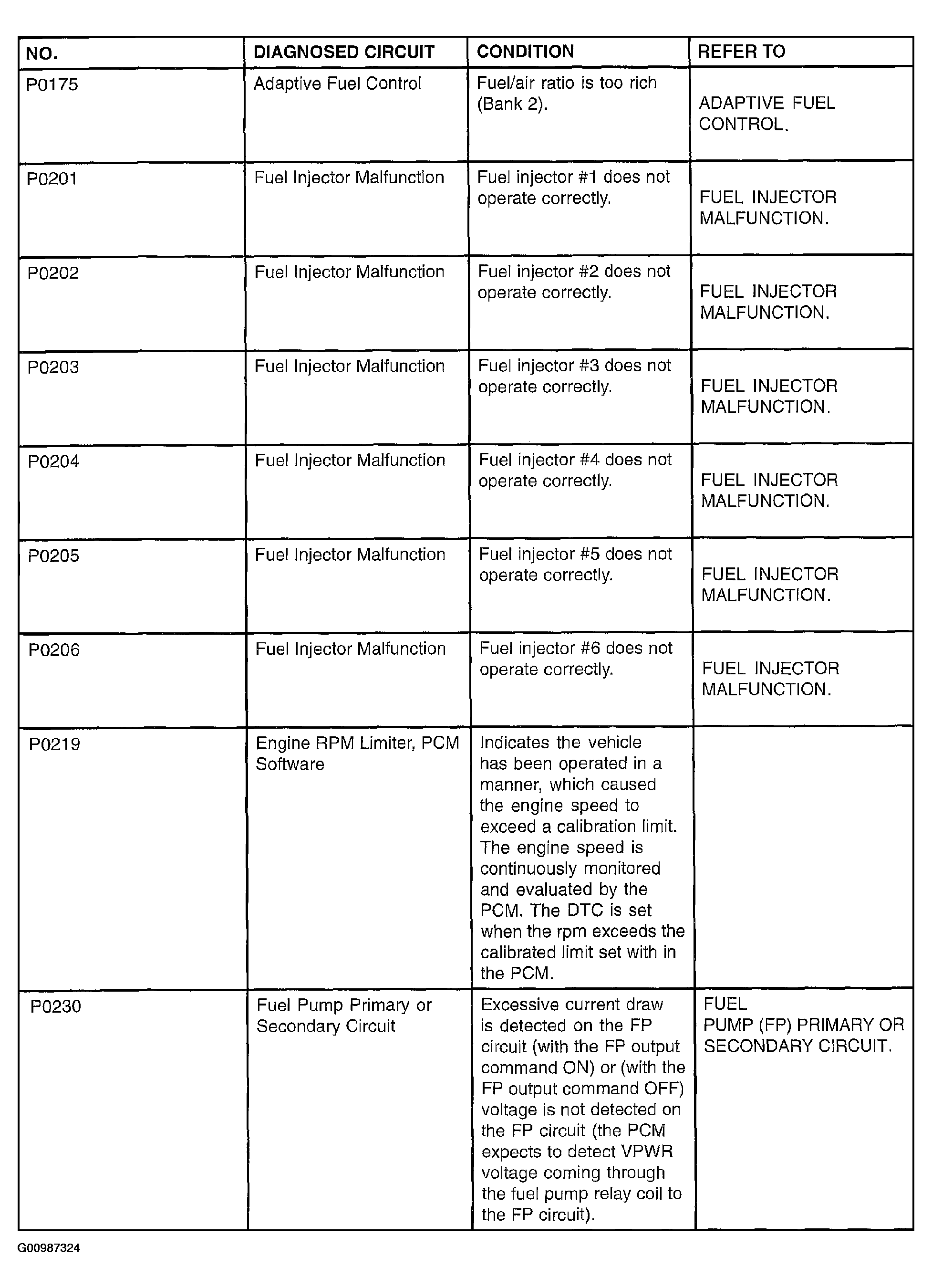

Fig 8: Diagnostic Trouble Code Numbers Table (P0175-P0230)

G00987324

Courtesy of MAZDA MOTORS CORP.

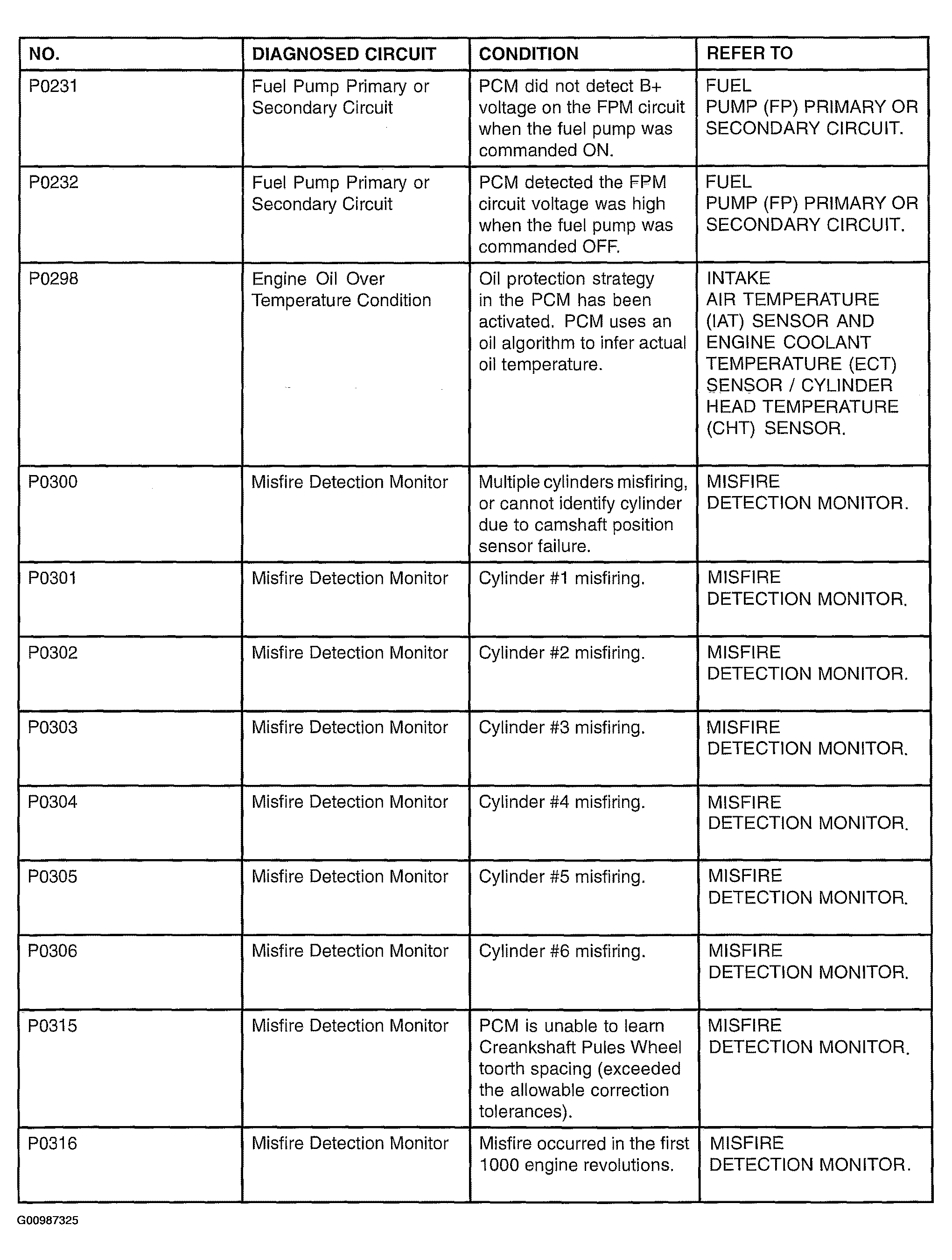

Fig 9: Diagnostic Trouble Code Numbers Table (P0231-P0316)

G00987325

Courtesy of MAZDA MOTORS CORP.

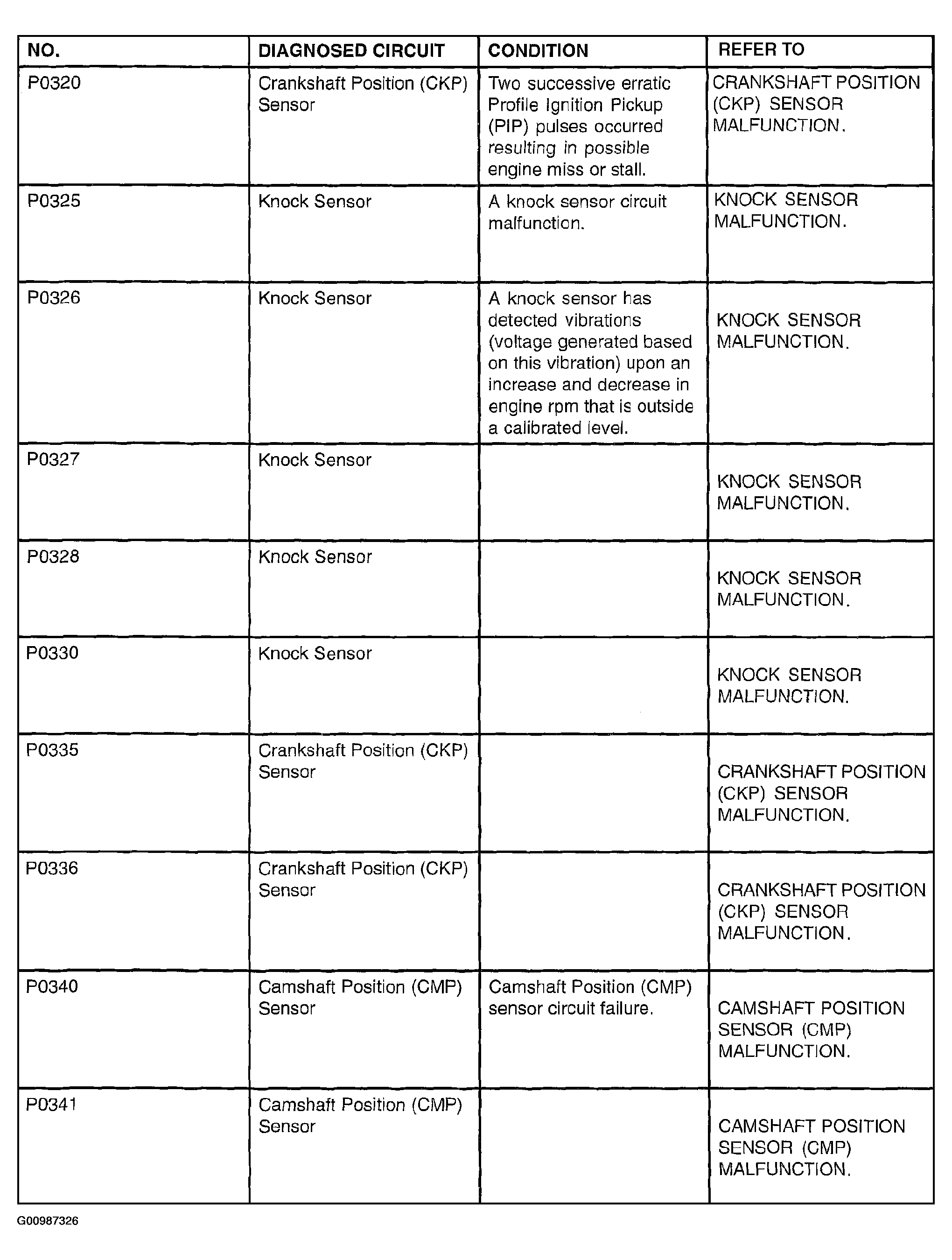

Fig 10: Diagnostic Trouble Code Numbers Table (P0320-P0341)

G00987326

Courtesy of MAZDA MOTORS CORP.

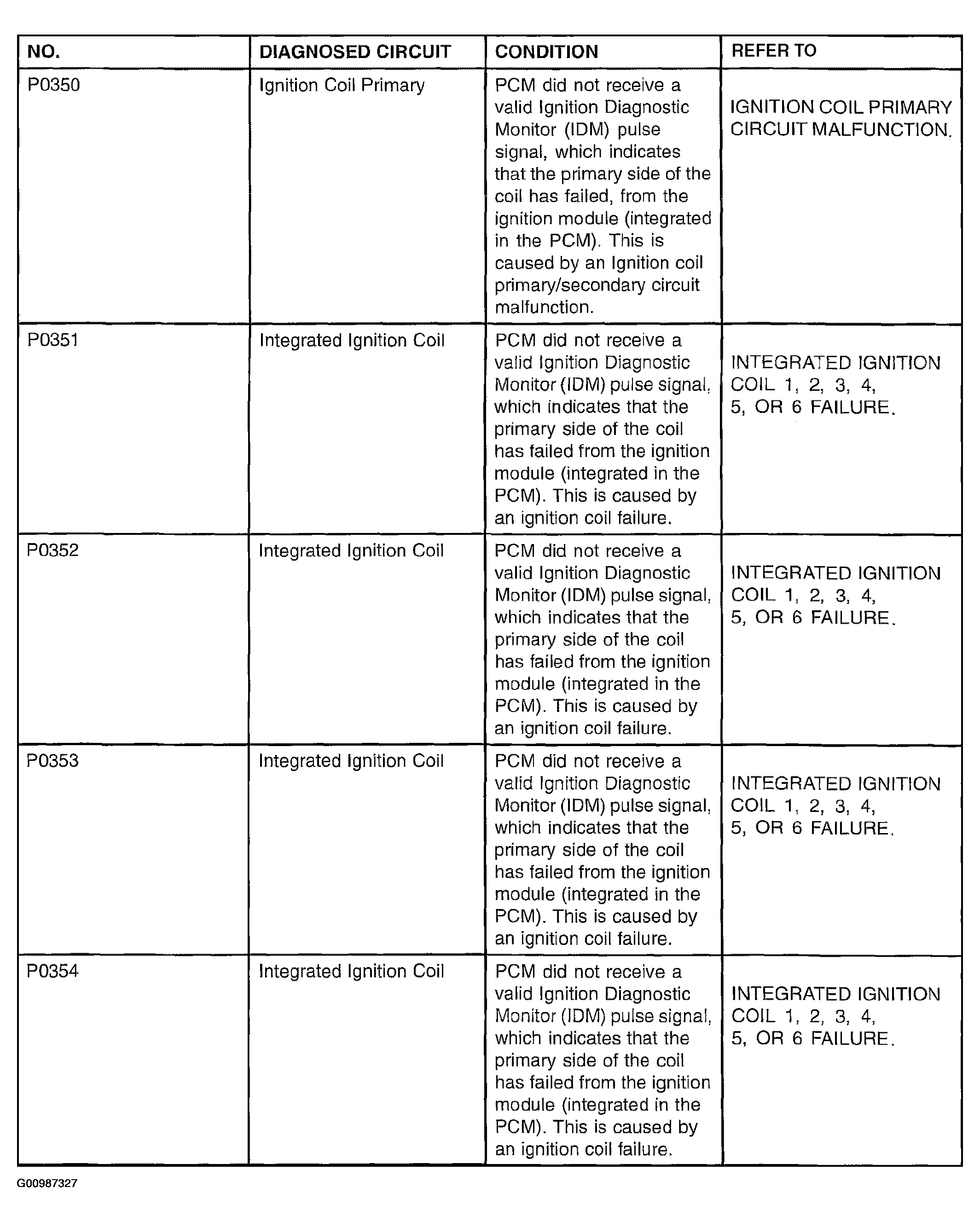

Fig 11: Diagnostic Trouble Code Numbers Table (P0350-P0354)

G00987327

Courtesy of MAZDA MOTORS CORP.

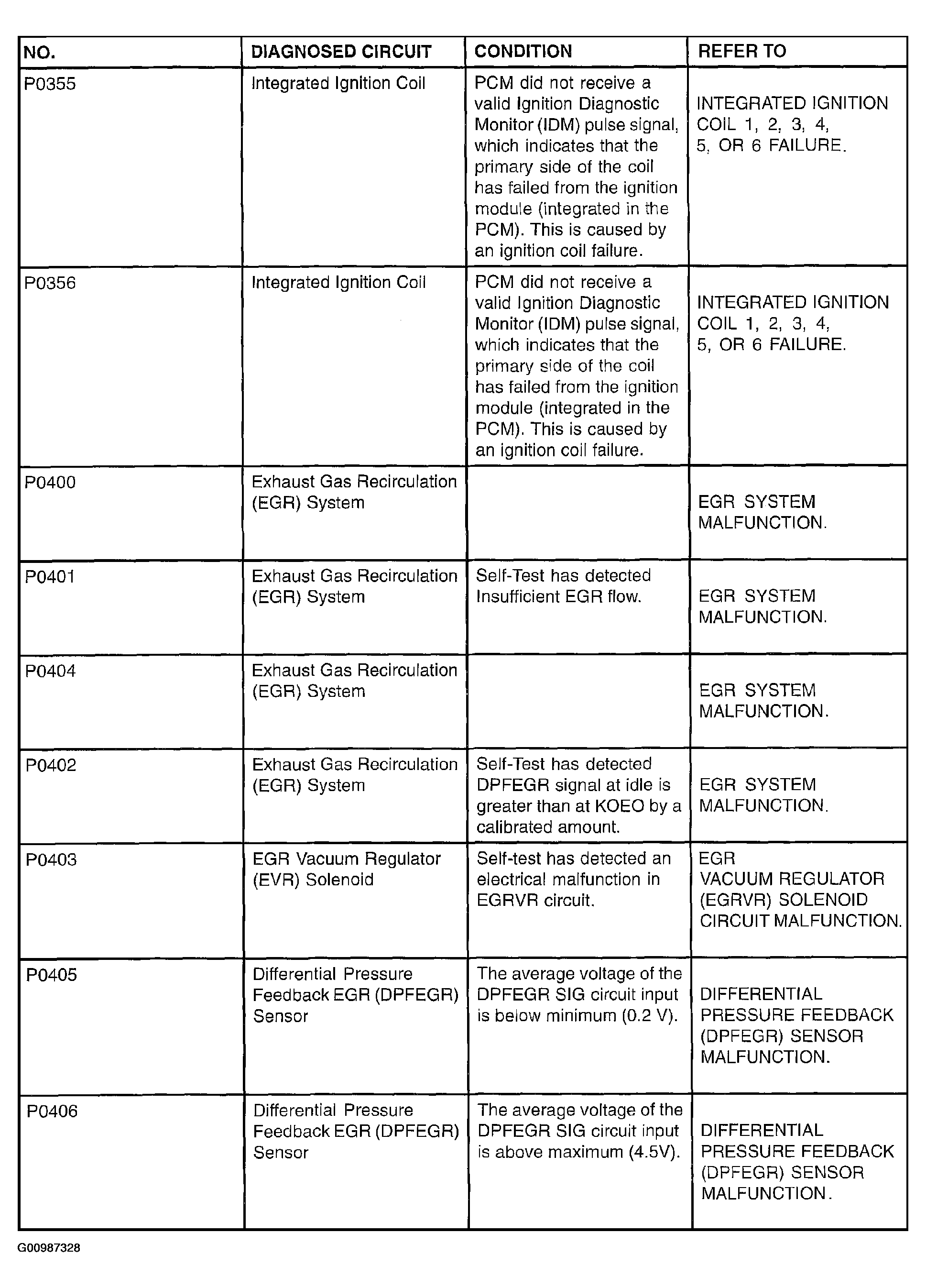

Fig 12: Diagnostic Trouble Code Numbers Table (P0355-P0406)

G00987328

Courtesy of MAZDA MOTORS CORP.

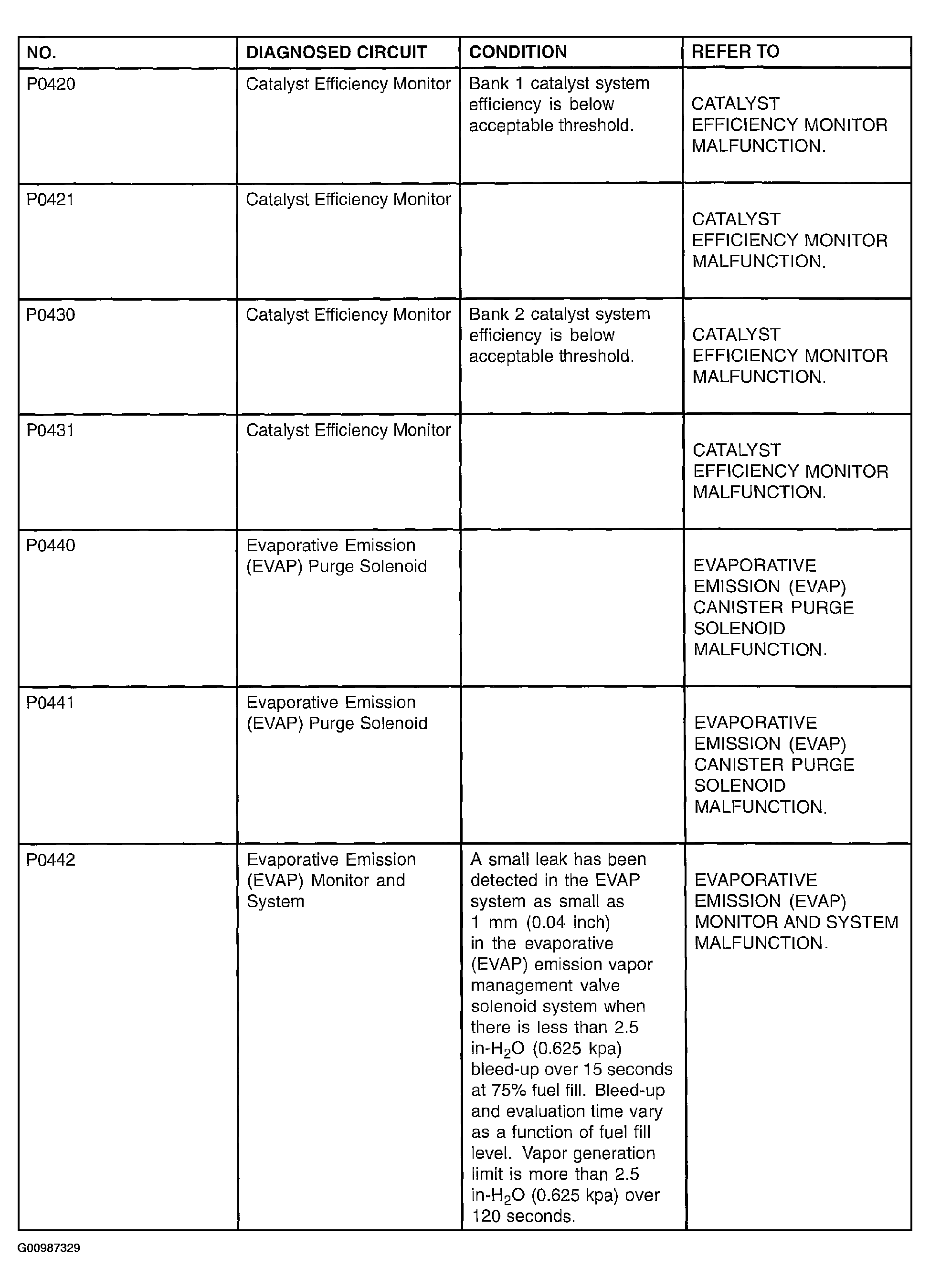

Fig 13: Diagnostic Trouble Code Numbers Table (P0420-P0442)

G00987329

Courtesy of MAZDA MOTORS CORP.

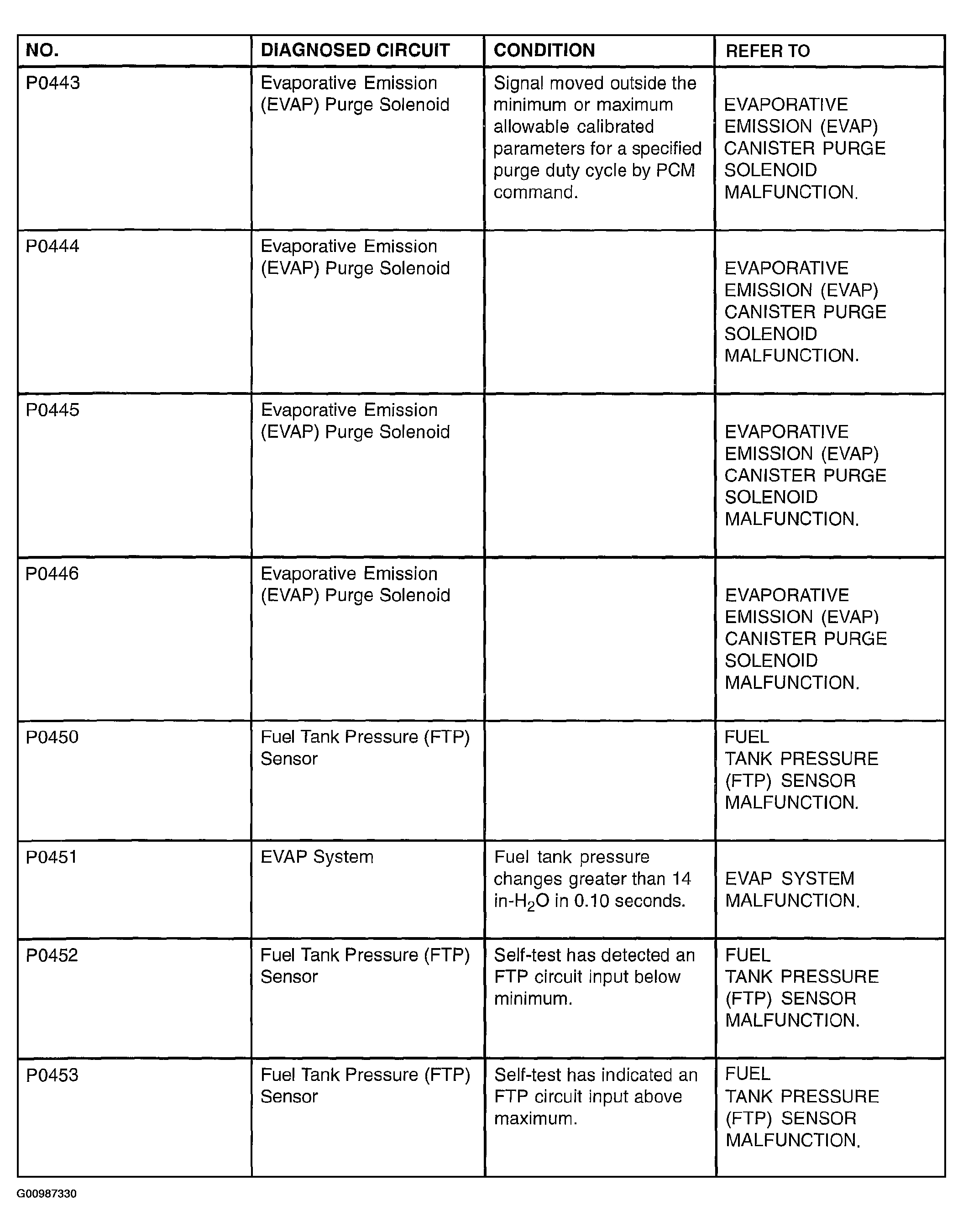

Fig 14: Diagnostic Trouble Code Numbers Table (P0443-P0453)

G00987330

Courtesy of MAZDA MOTORS CORP.

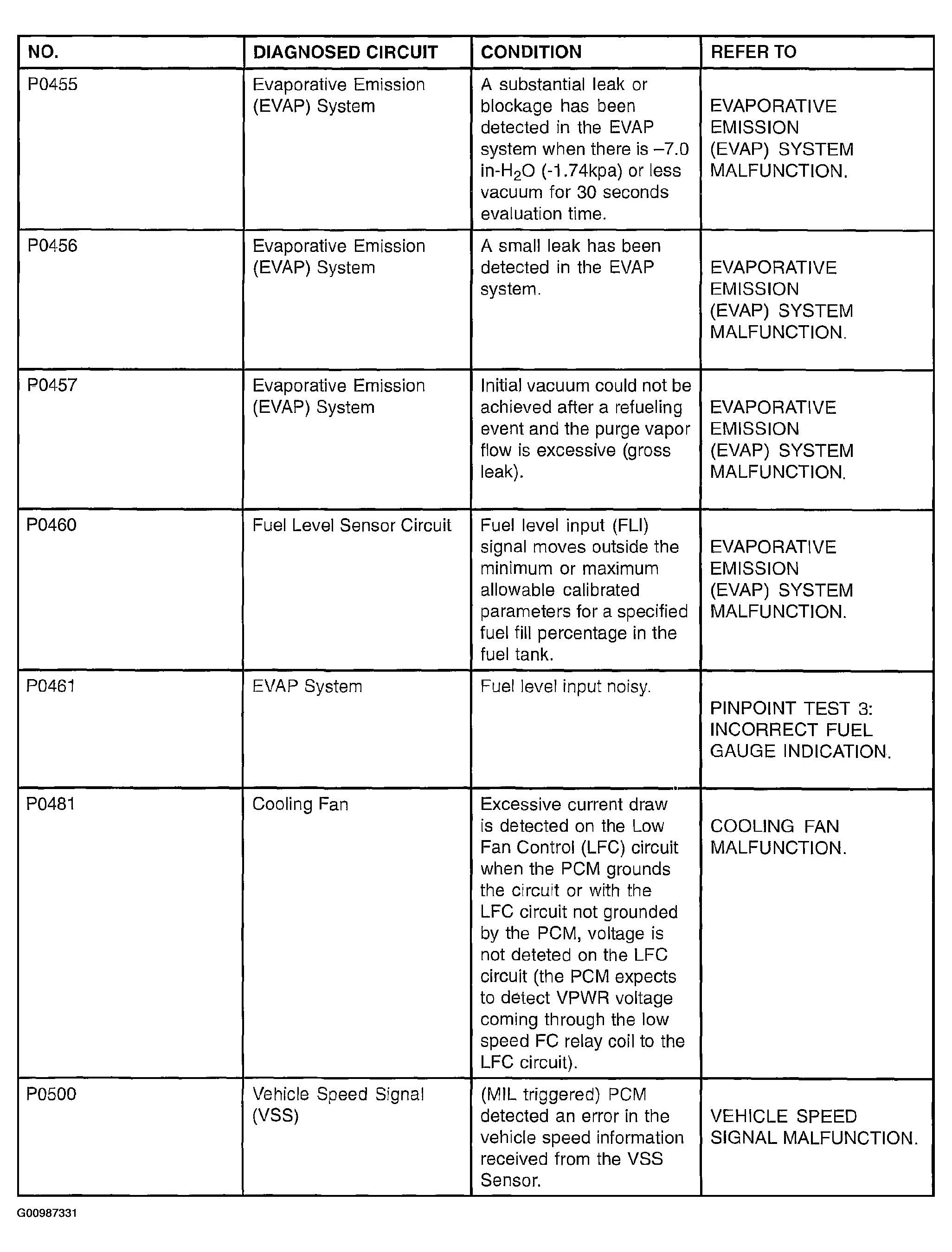

Fig 15: Diagnostic Trouble Code Numbers Table (P0455-P0500)

G00987331

Courtesy of MAZDA MOTORS CORP.

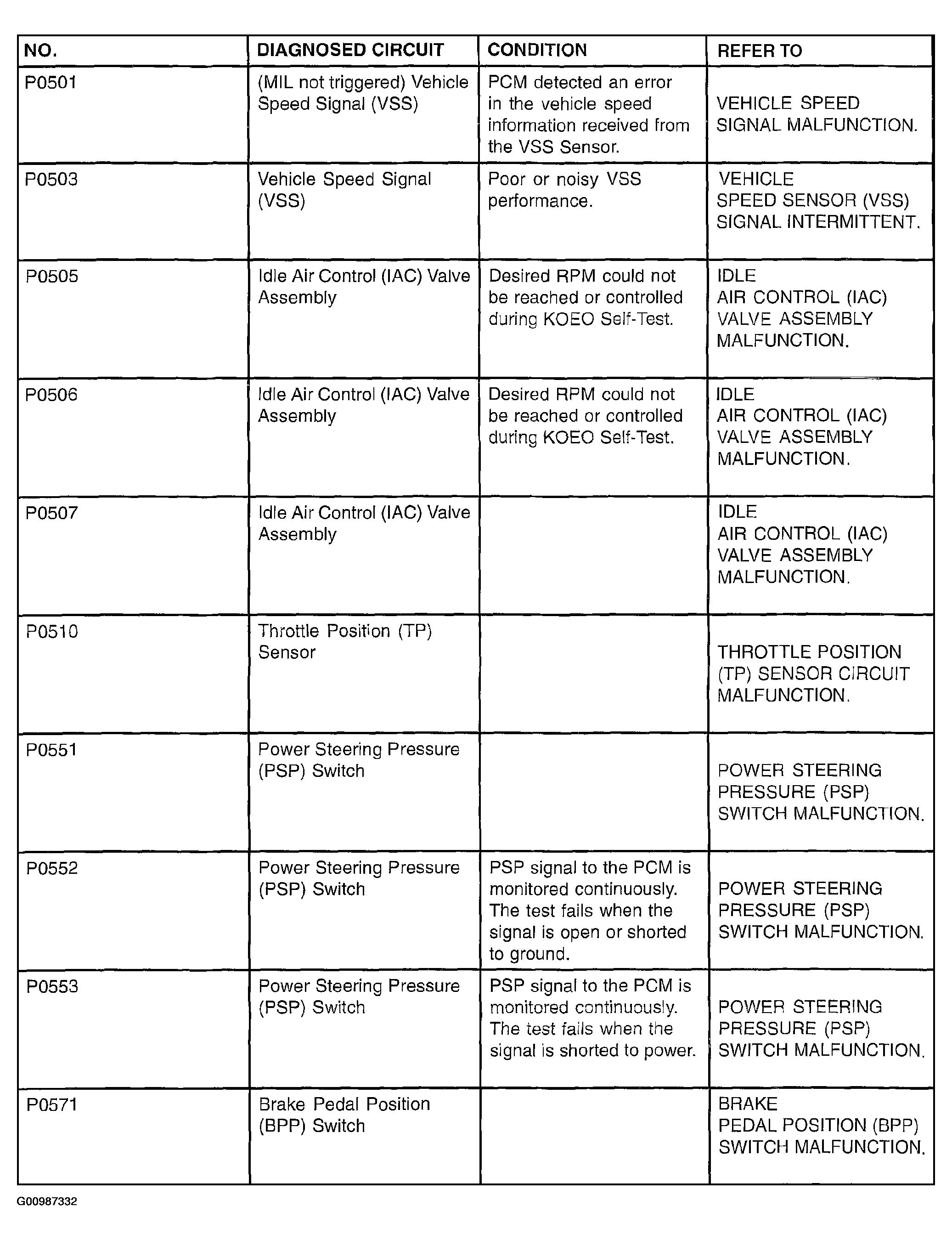

Fig 16: Diagnostic Trouble Code Numbers Table (P0501-P0571)

G00987332

Courtesy of MAZDA MOTORS CORP.

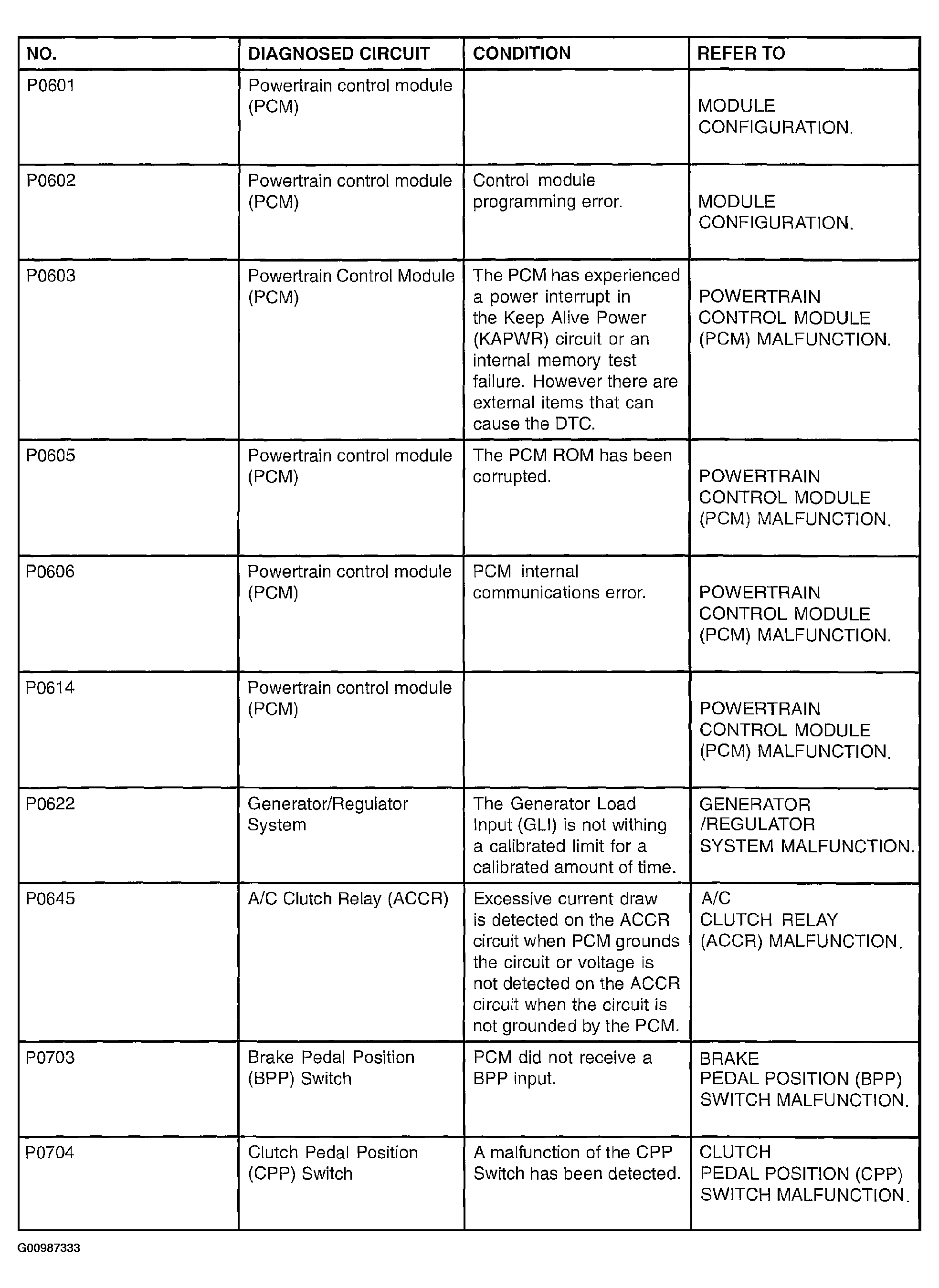

Fig 17: Diagnostic Trouble Code Numbers Table (P0601-P0704)

G00987333

Courtesy of MAZDA MOTORS CORP.

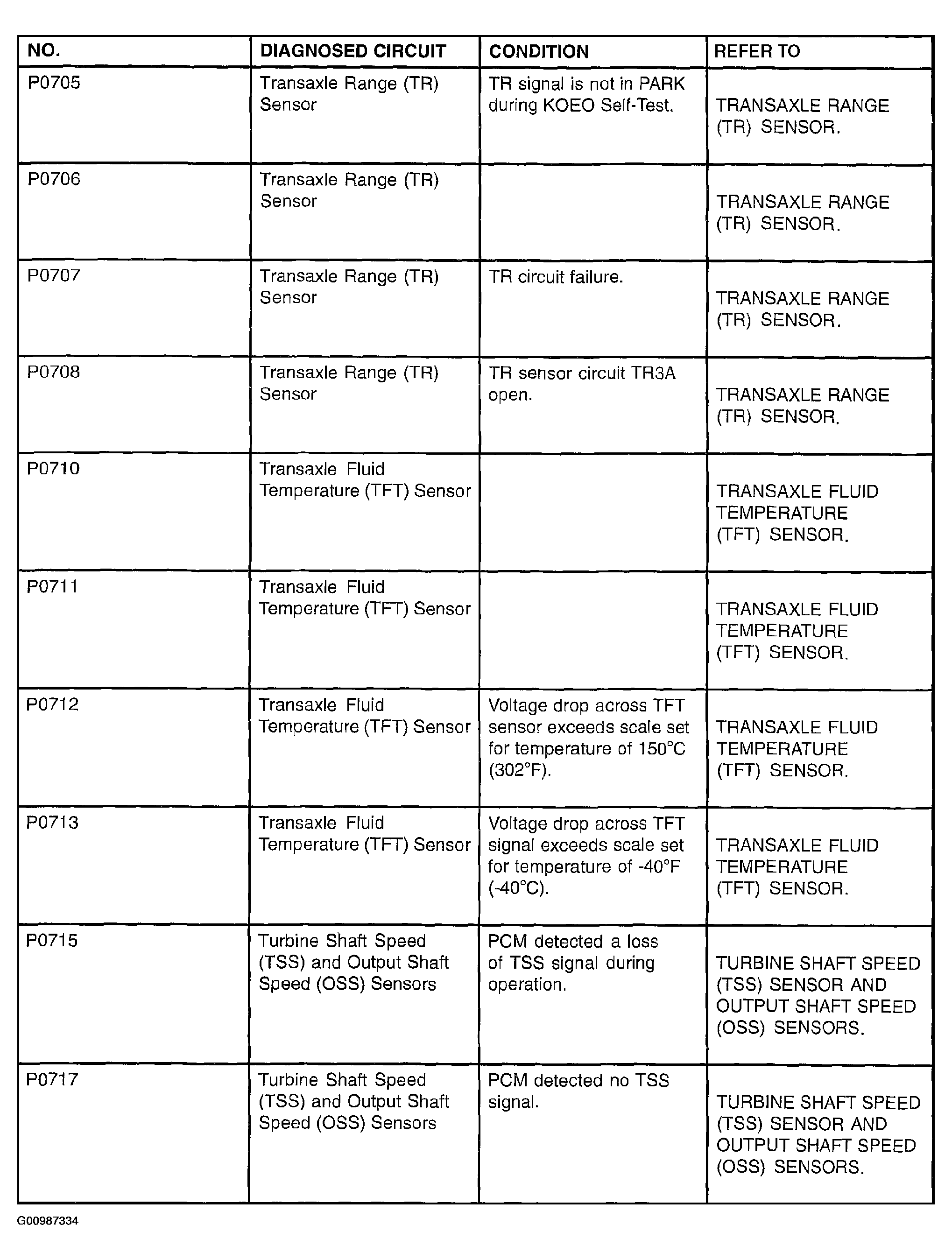

Fig 18: Diagnostic Trouble Code Numbers Table (P0705-P0717)

G00987334

Courtesy of MAZDA MOTORS CORP.

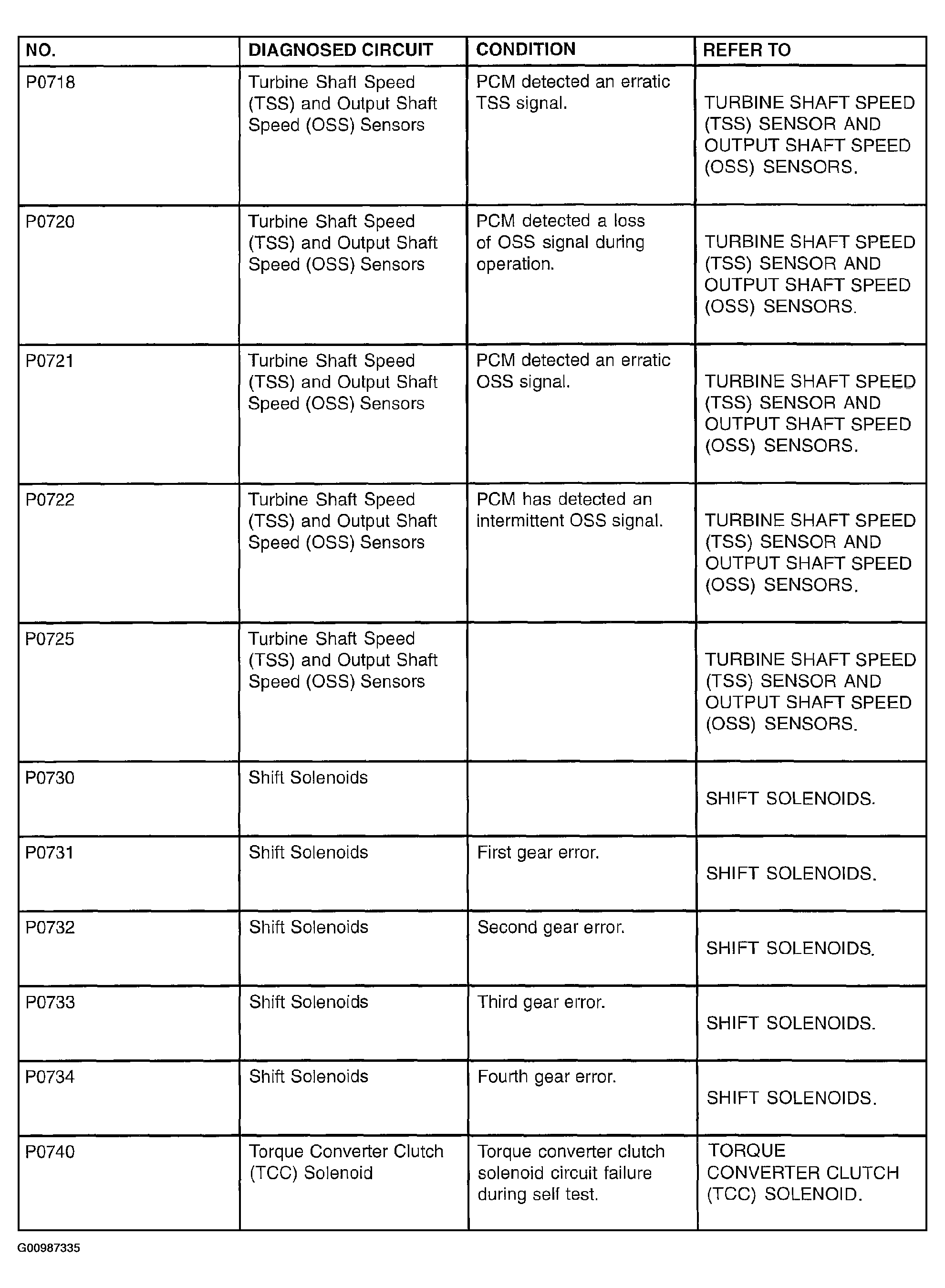

Fig 19: Diagnostic Trouble Code Numbers Table (P0718-P0740)

G00987335

Courtesy of MAZDA MOTORS CORP.

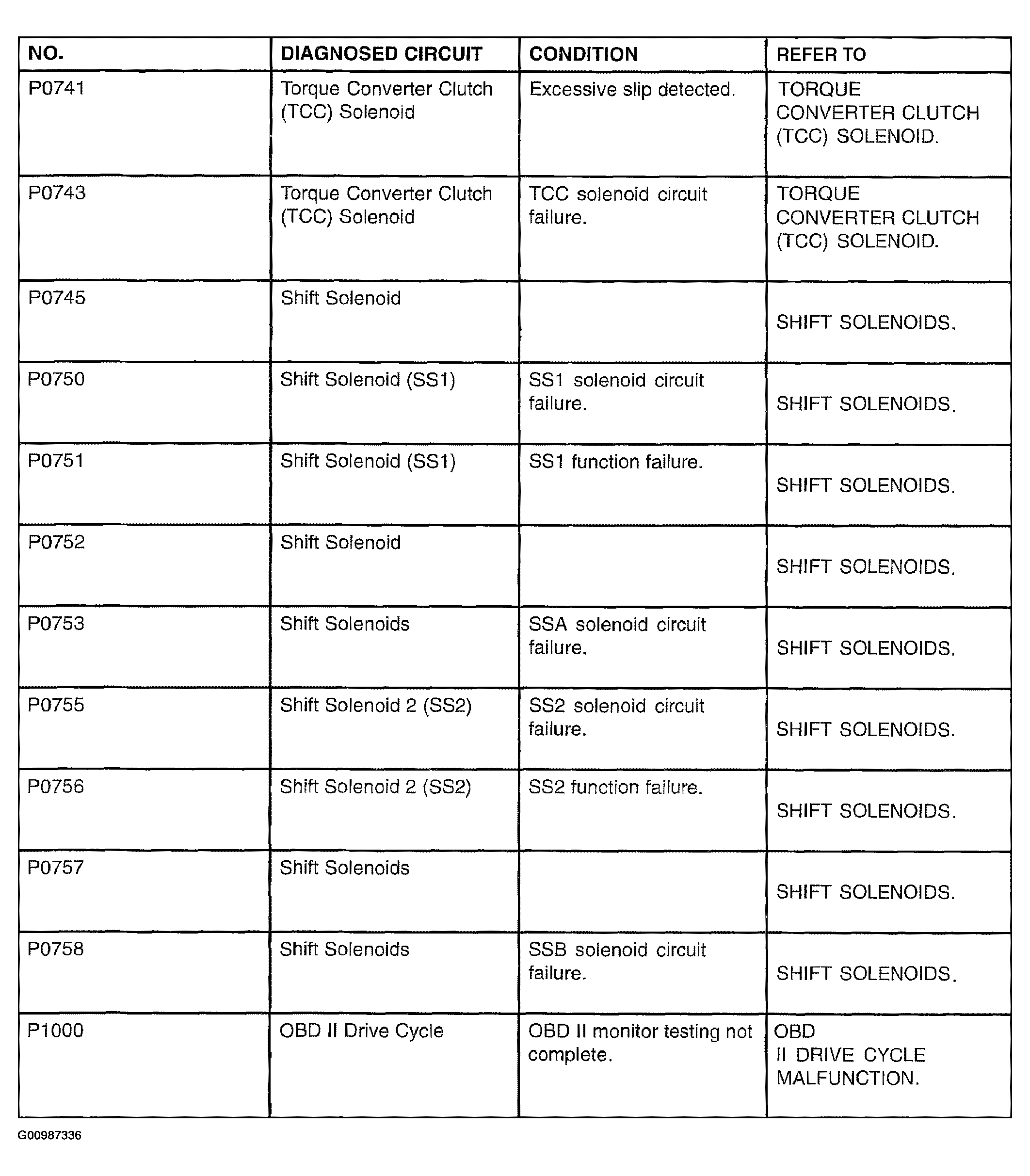

Fig 20: Diagnostic Trouble Code Numbers Table (P0741-P1000)

G00987336

Courtesy of MAZDA MOTORS CORP.

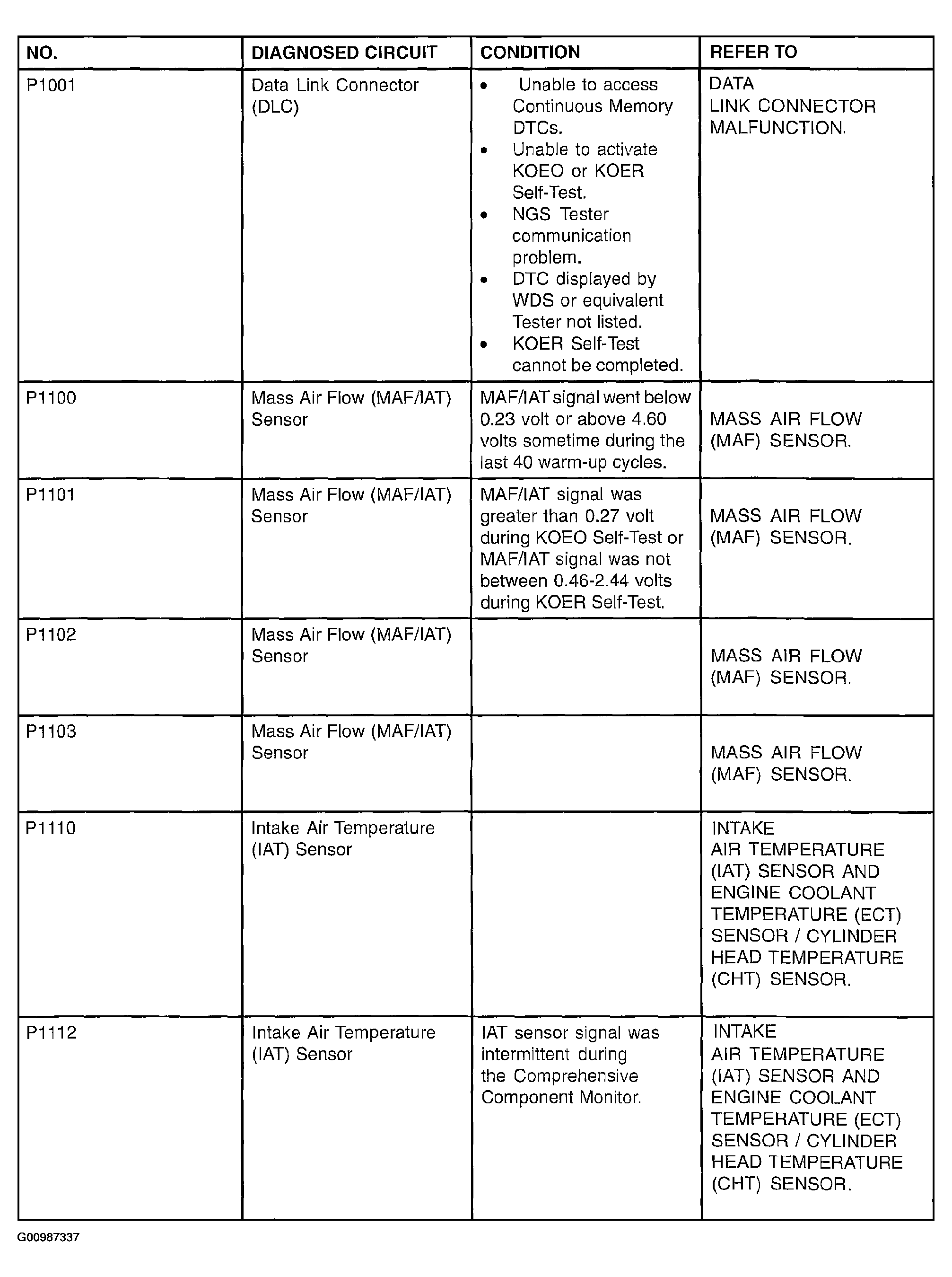

Fig 21: Diagnostic Trouble Code Numbers Table (P1001-P1112)

G00987337

Courtesy of MAZDA MOTORS CORP.

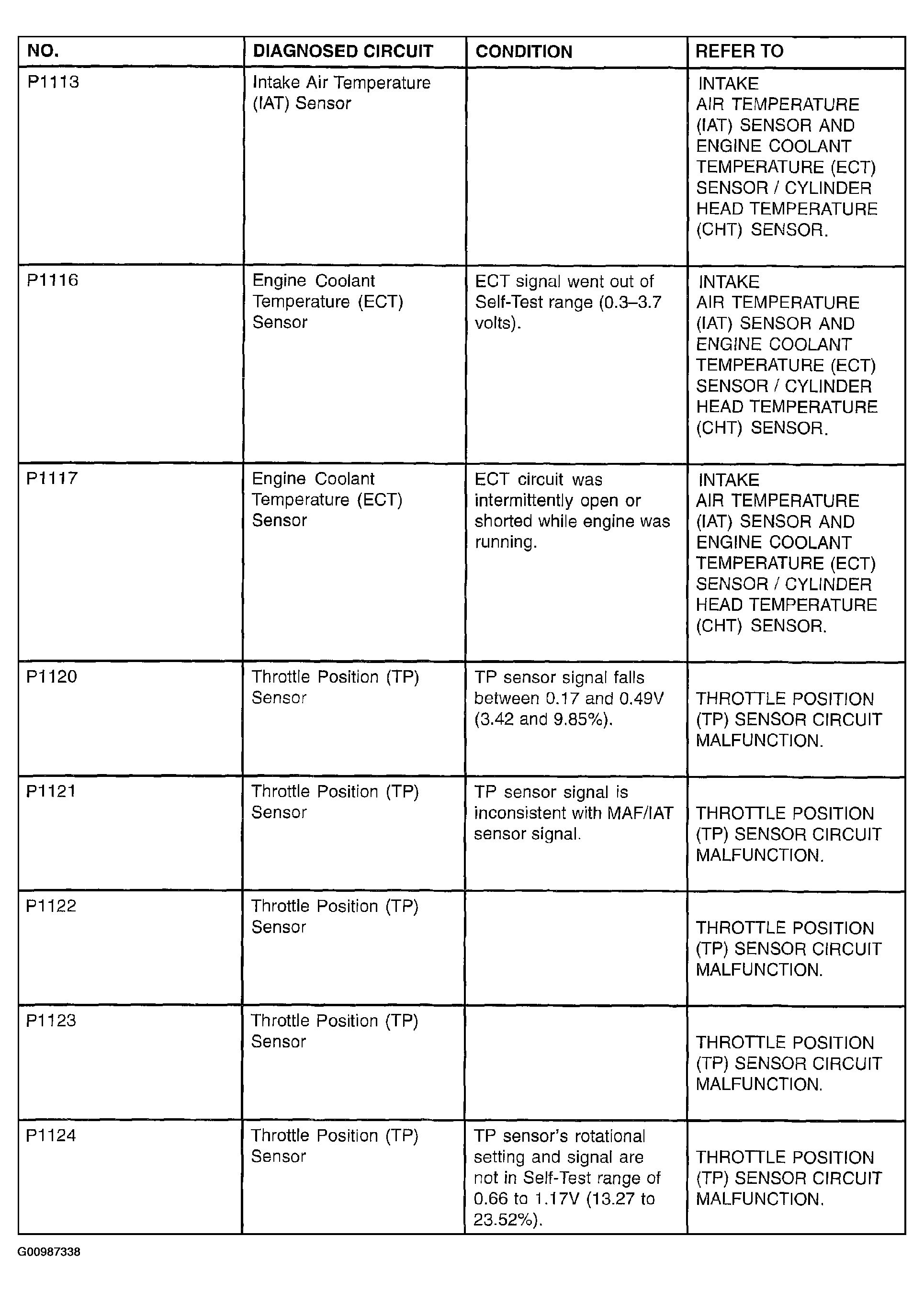

Fig 22: Diagnostic Trouble Code Numbers Table (P1113-P1124)

G00987338

Courtesy of MAZDA MOTORS CORP.

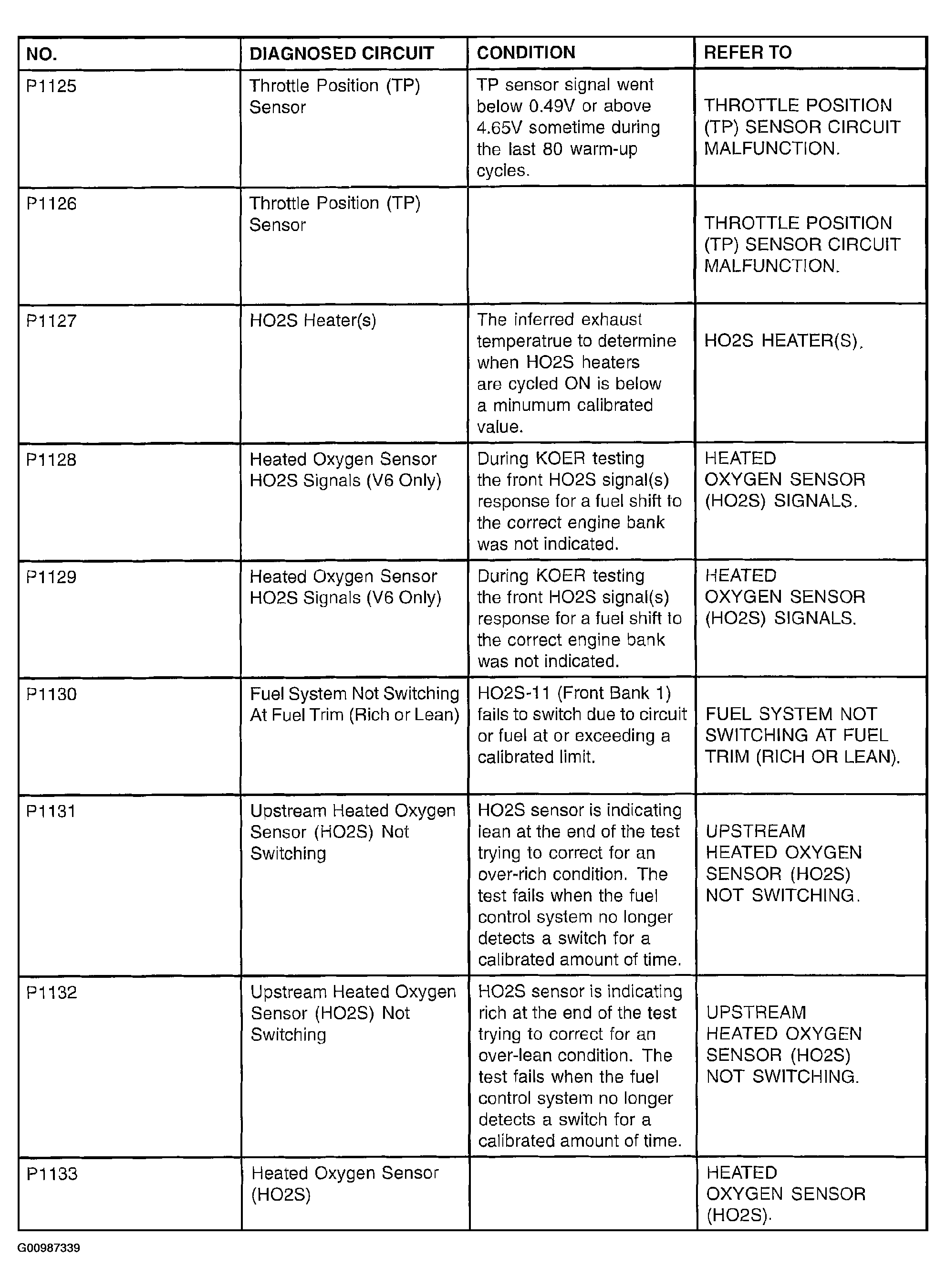

Fig 23: Diagnostic Trouble Code Numbers Table (P1125-P1133)

G00987339

Courtesy of MAZDA MOTORS CORP.

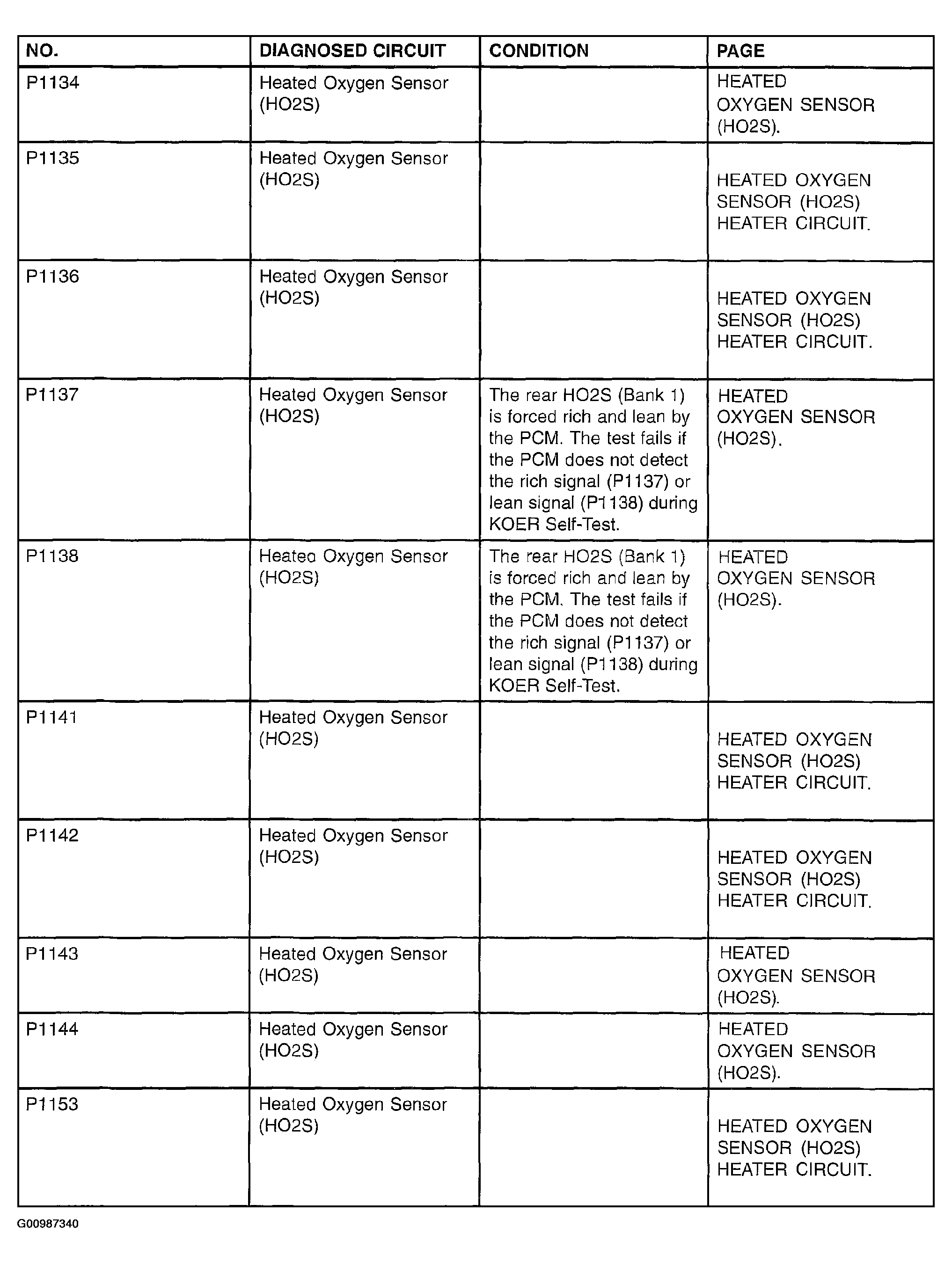

Fig 24: Diagnostic Trouble Code Numbers Table (P1134-P1153)

G00987340

Courtesy of MAZDA MOTORS CORP.

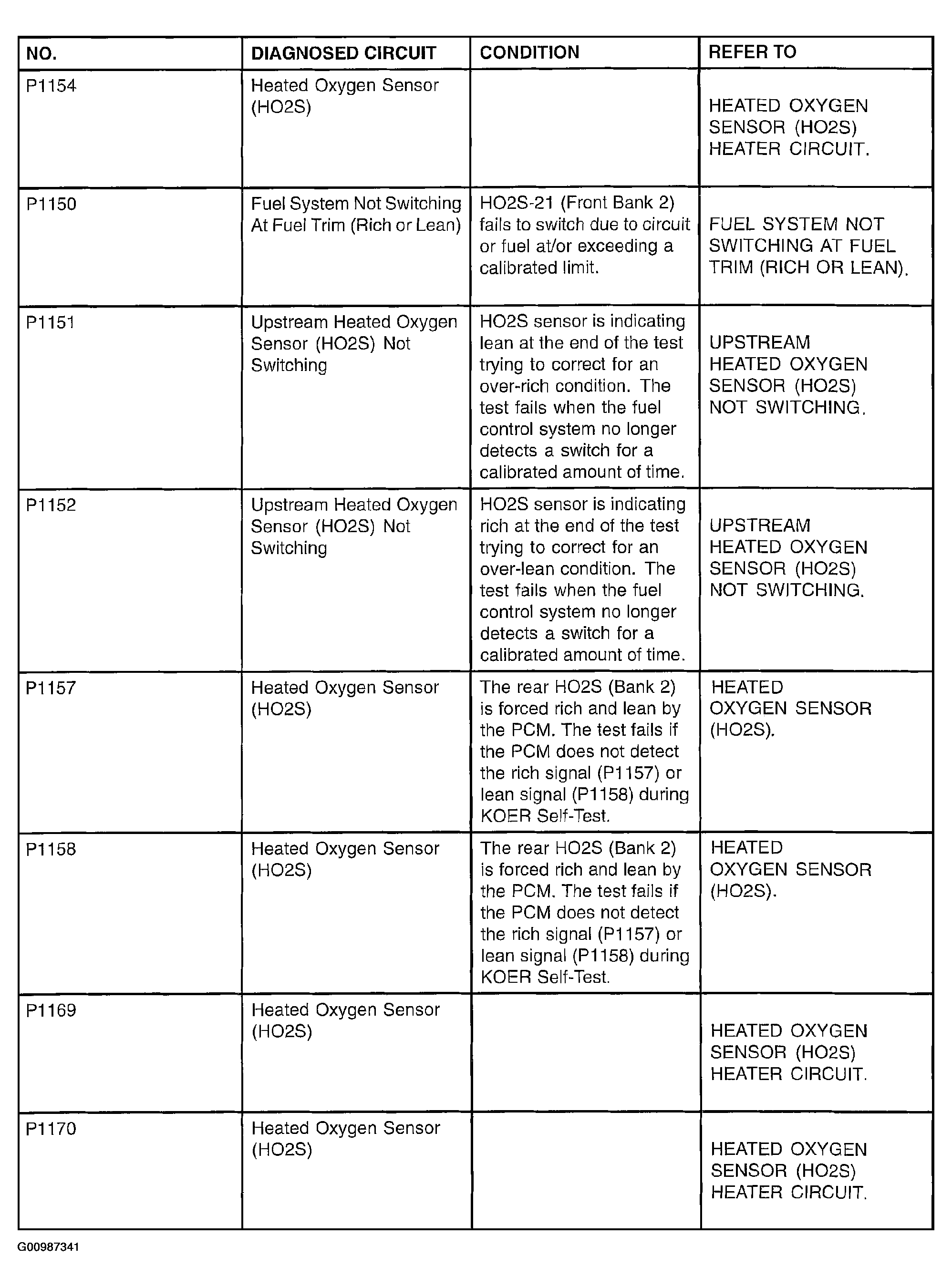

Fig 25: Diagnostic Trouble Code Numbers Table (P1154-P1170)

G00987341

Courtesy of MAZDA MOTORS CORP.

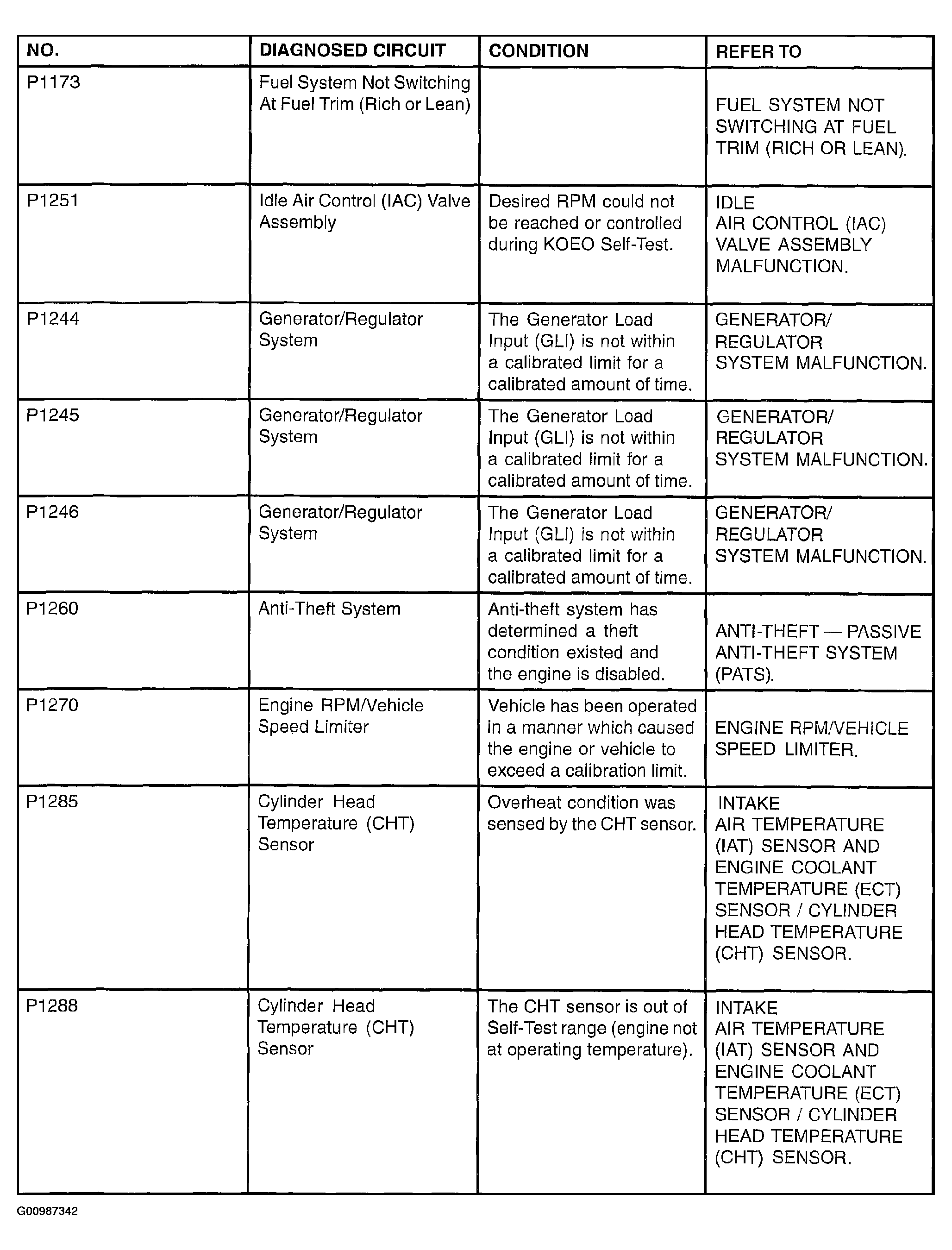

Fig 26: Diagnostic Trouble Code Numbers Table (P1173-P1288)

G00987342

Courtesy of MAZDA MOTORS CORP.

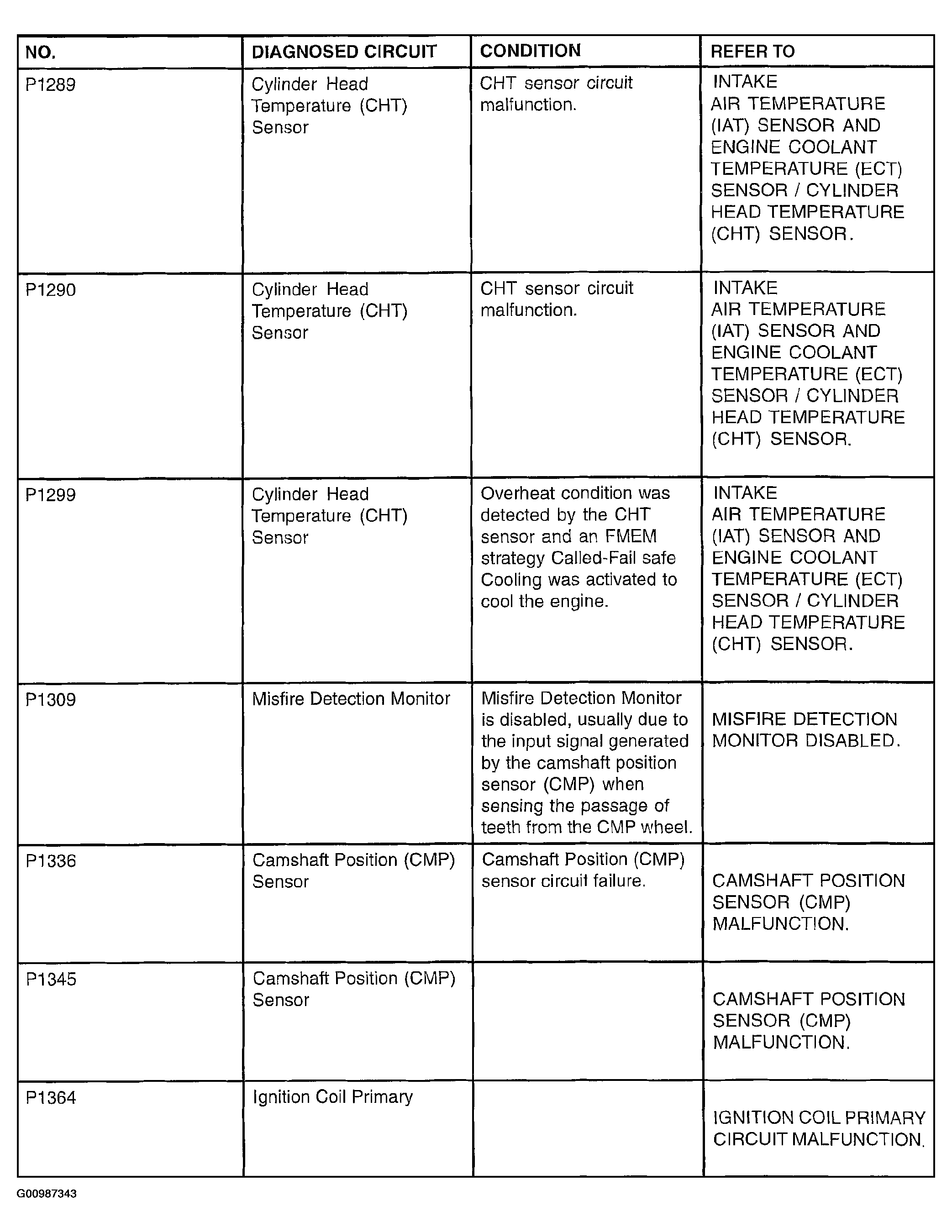

Fig 27: Diagnostic Trouble Code Numbers Table (P1289-P1364)

G00987343

Courtesy of MAZDA MOTORS CORP.

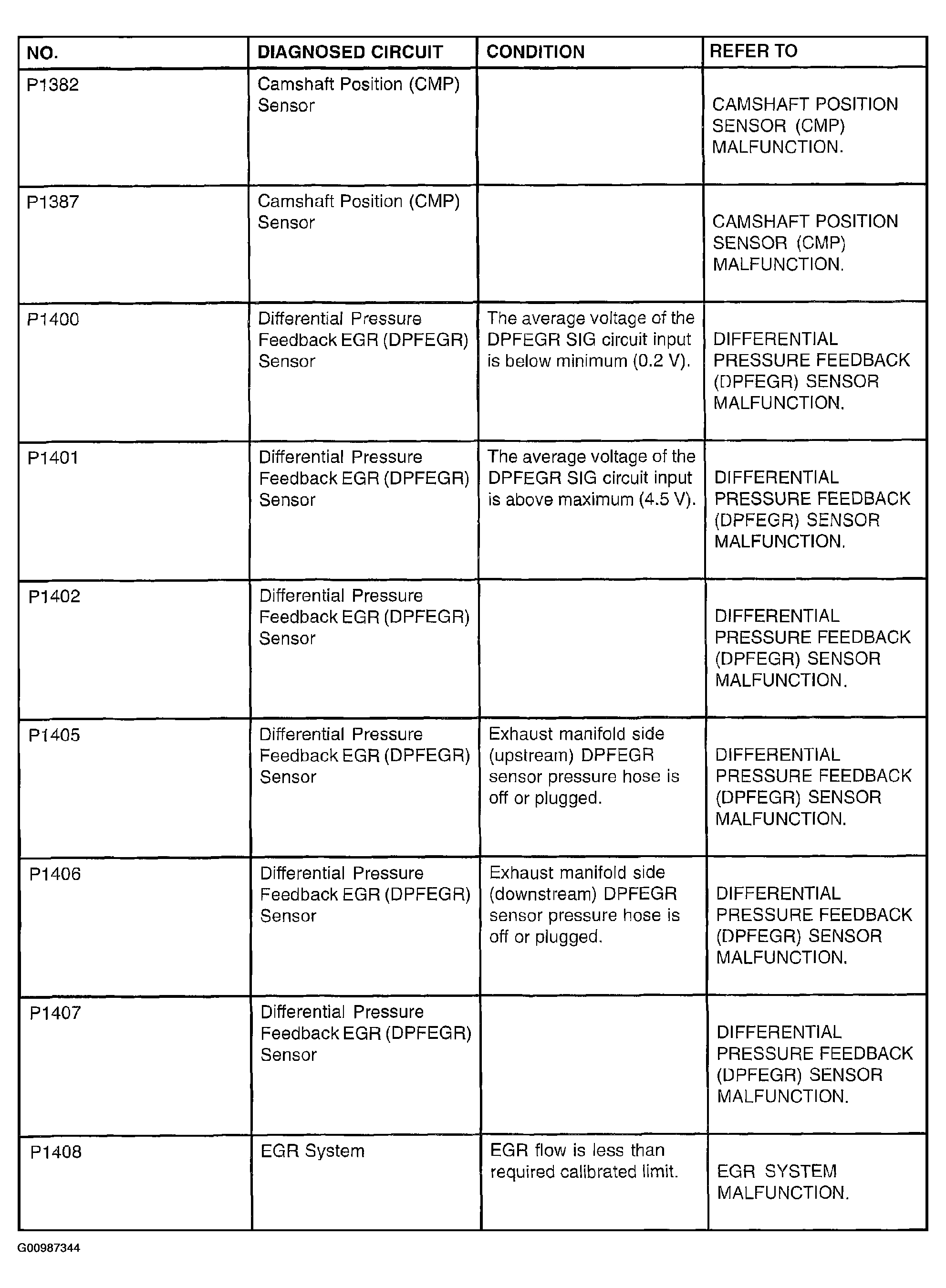

Fig 28: Diagnostic Trouble Code Numbers Table (P1382-P1408)

G00987344

Courtesy of MAZDA MOTORS CORP.

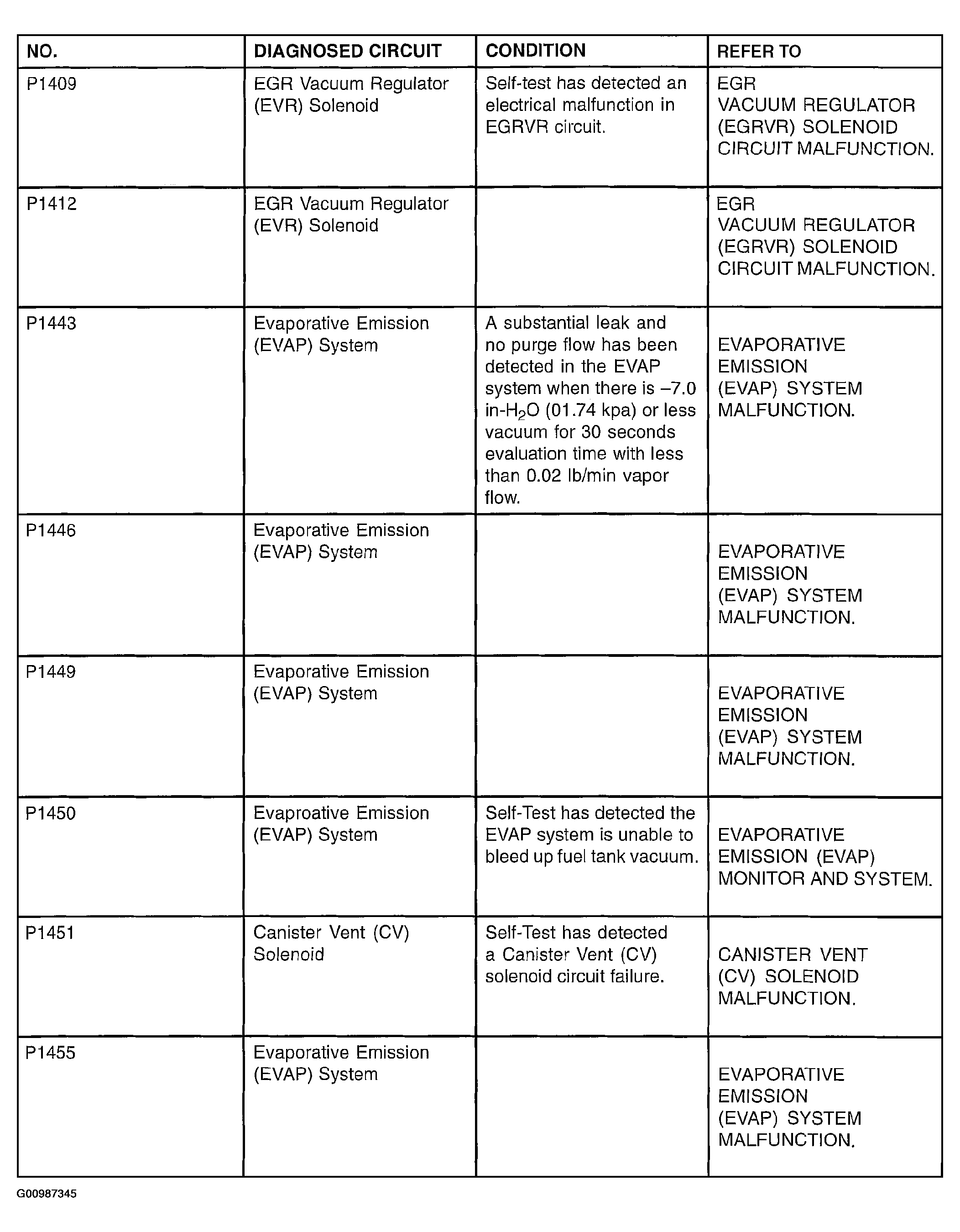

Fig 29: Diagnostic Trouble Code Numbers Table (P1409-P1455)

G00987345

Courtesy of MAZDA MOTORS CORP.

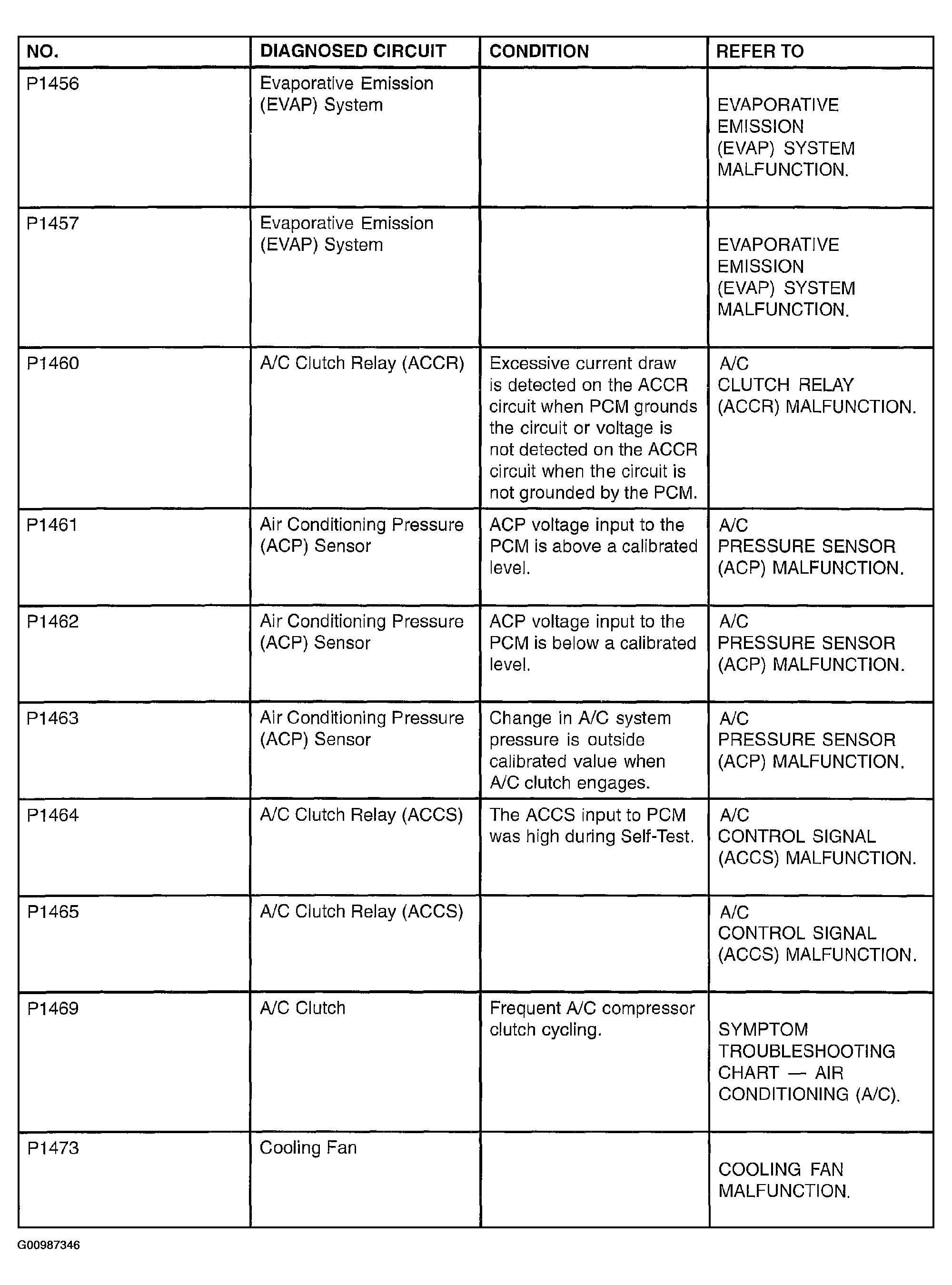

Fig 30: Diagnostic Trouble Code Numbers Table (P1456-P1473)

G00987346

Courtesy of MAZDA MOTORS CORP.

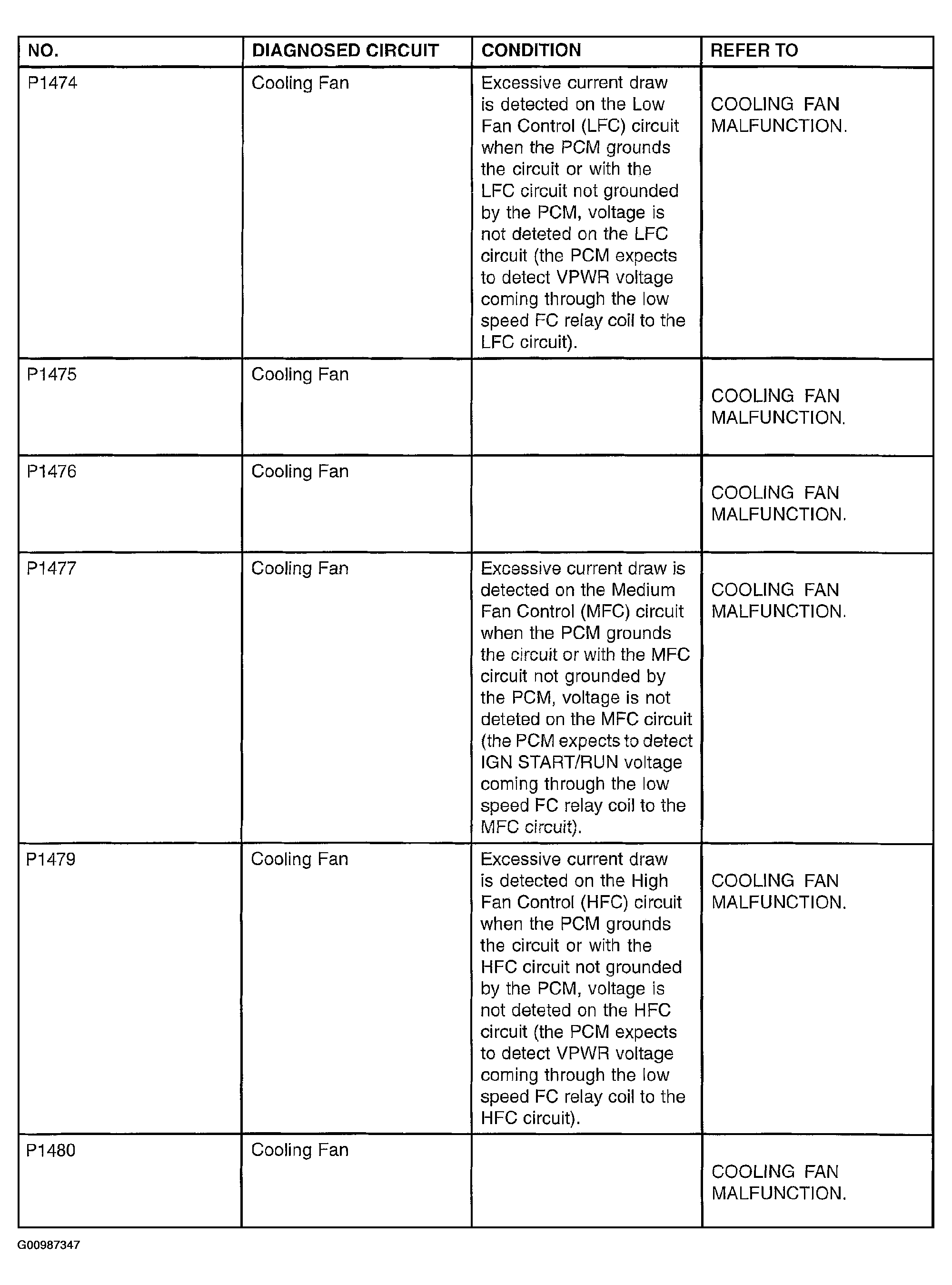

Fig 31: Diagnostic Trouble Code Numbers Table (P1474-P1480)

G00987347

Courtesy of MAZDA MOTORS CORP.

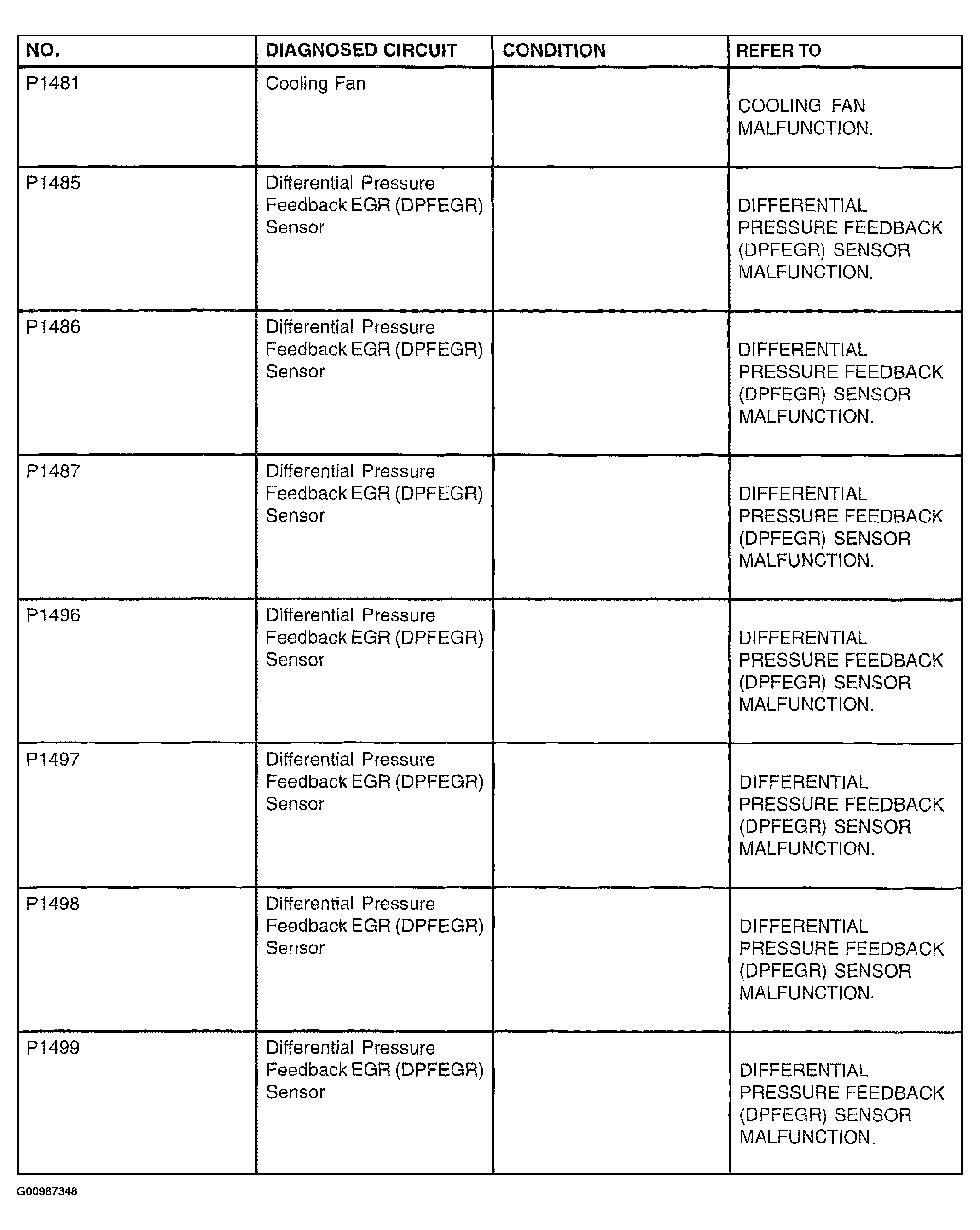

Fig 32: Diagnostic Trouble Code Numbers Table (P1481-P1499)

G00987348

Courtesy of MAZDA MOTORS CORP.

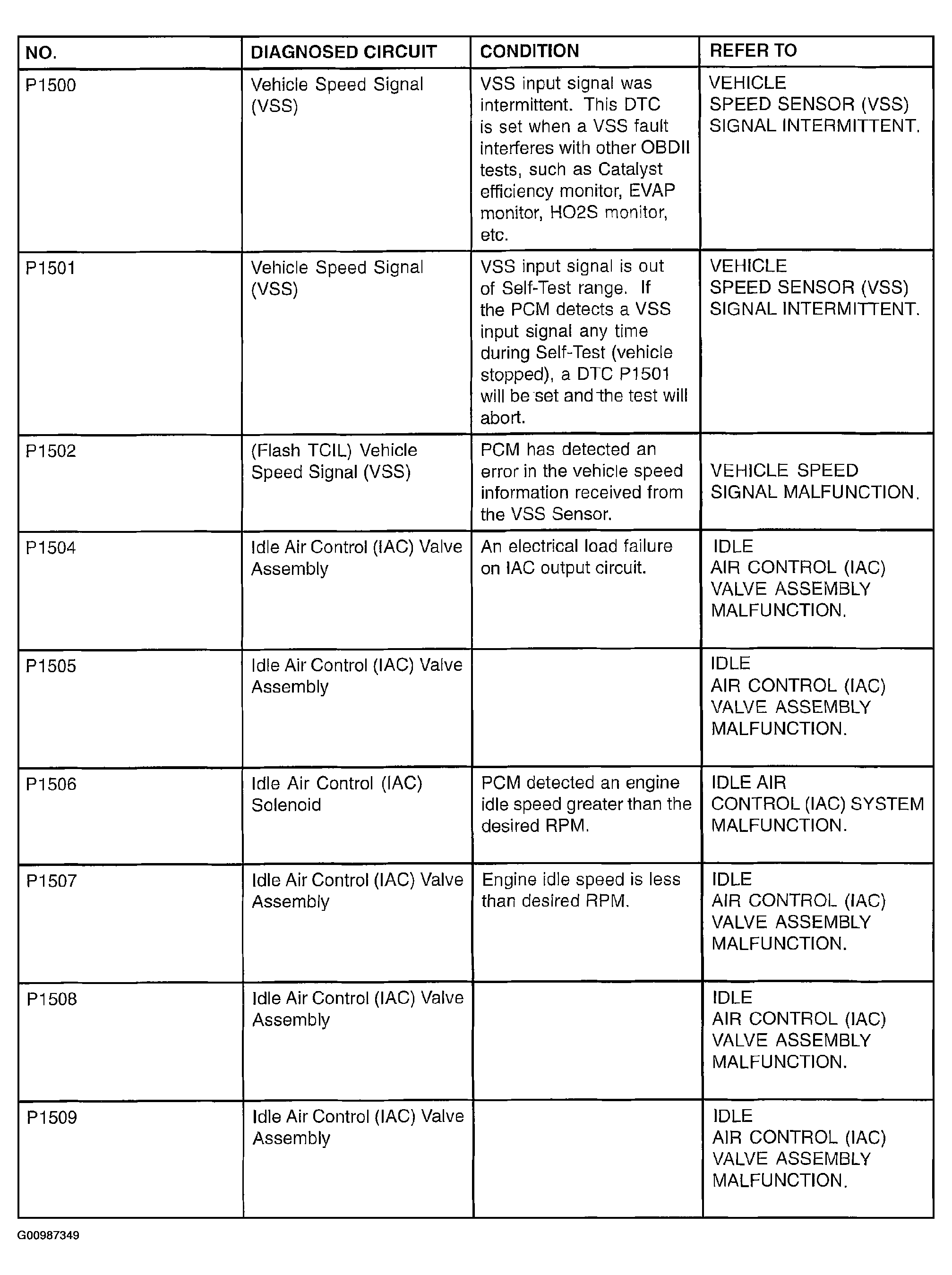

Fig 33: Diagnostic Trouble Code Numbers Table (P1500-P1509)

G00987349

Courtesy of MAZDA MOTORS CORP.

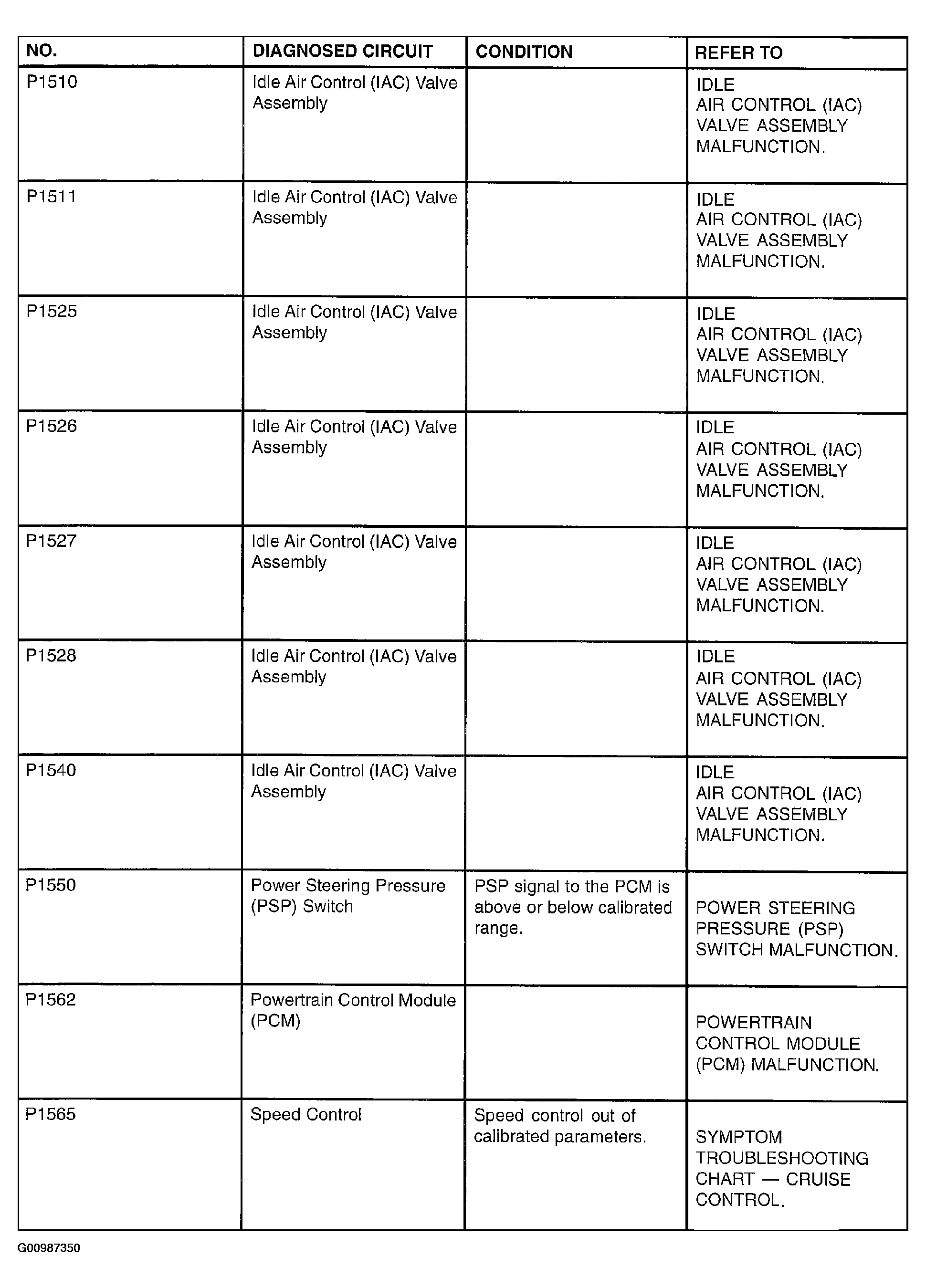

Fig 34: Diagnostic Trouble Code Numbers Table (P1510-P1565)

G00987350

Courtesy of MAZDA MOTORS CORP.

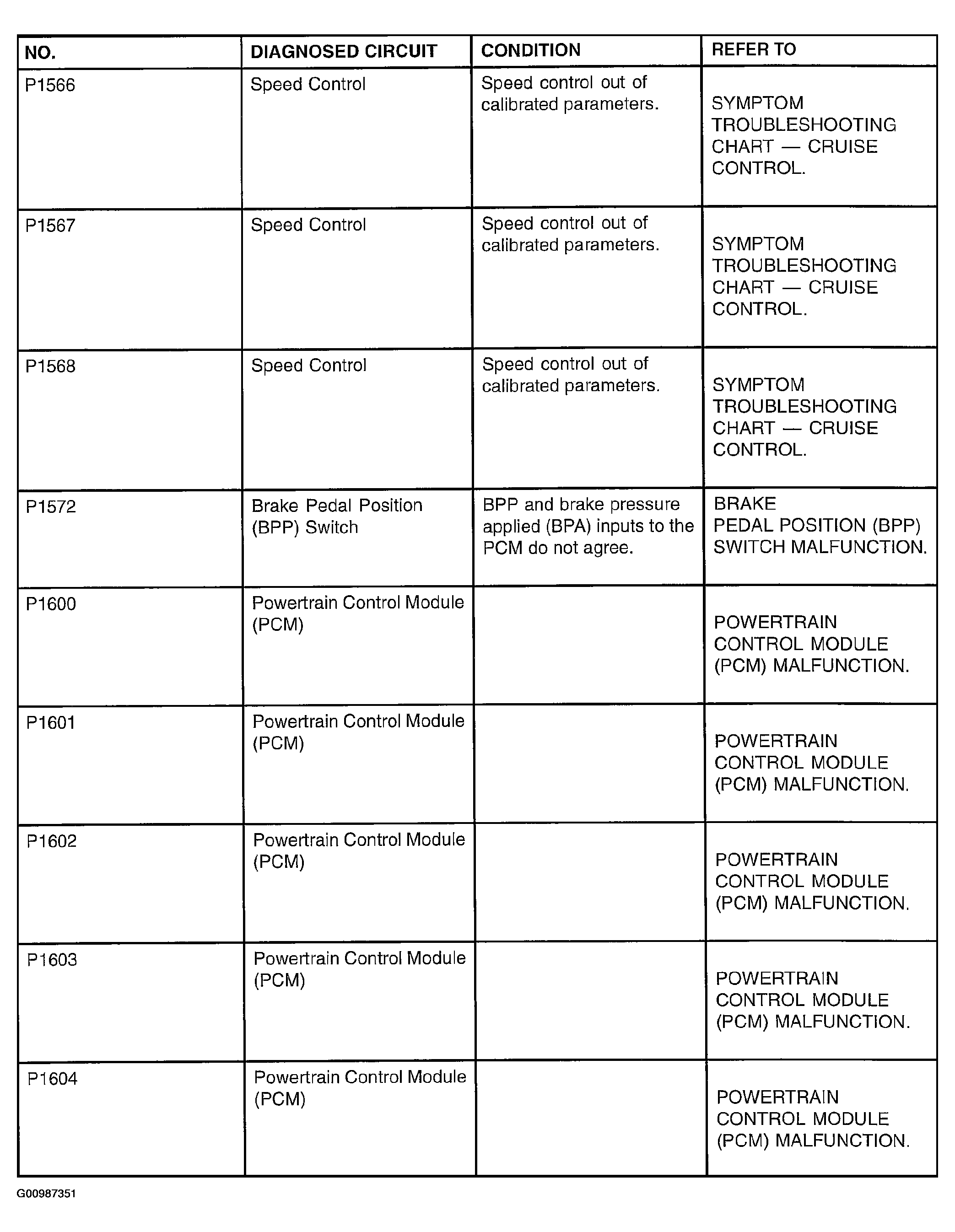

Fig 35: Diagnostic Trouble Code Numbers Table (P1566-P1604)

G00987351

Courtesy of MAZDA MOTORS CORP.

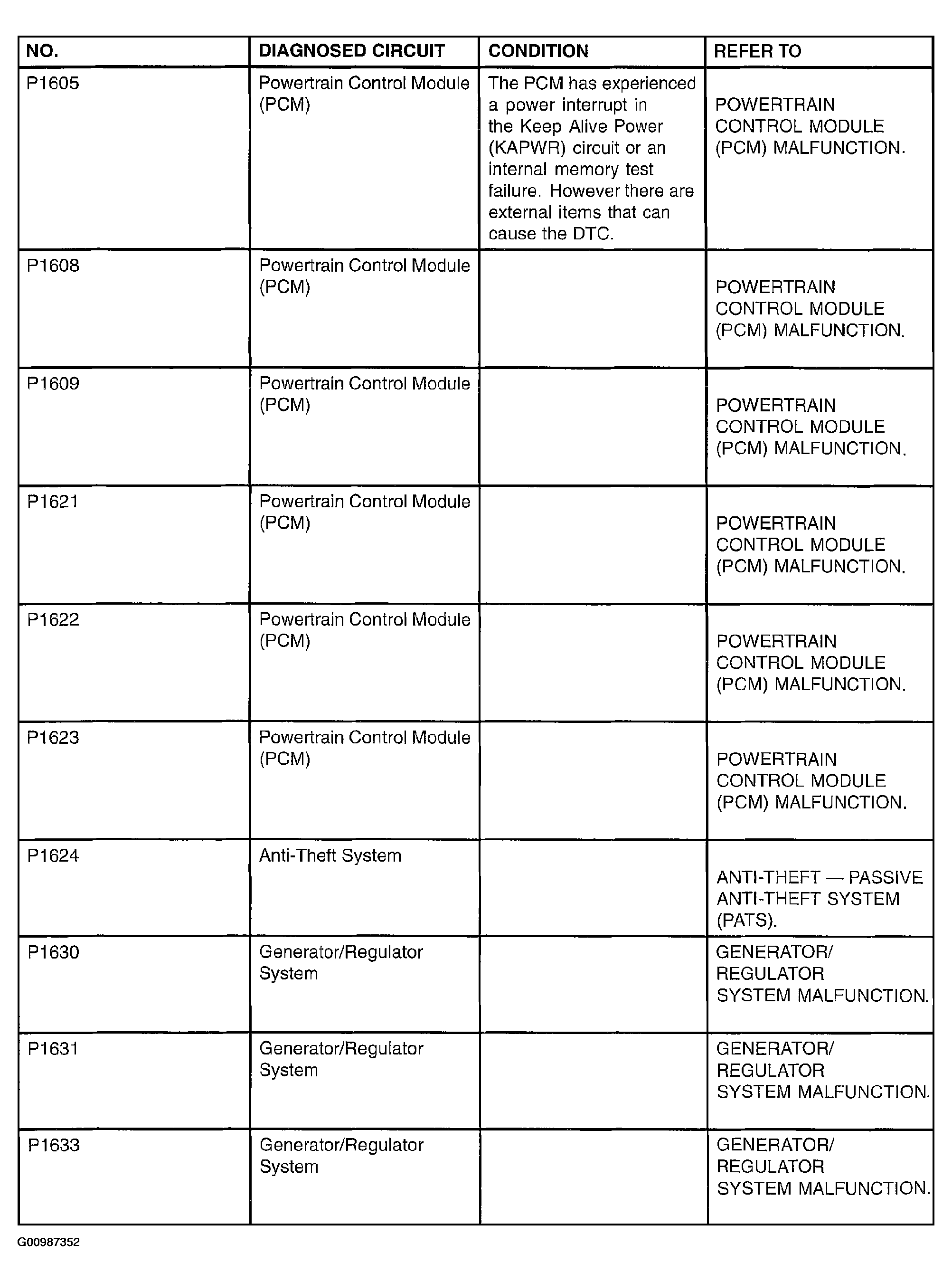

Fig 36: Diagnostic Trouble Code Numbers Table (P1605-P1633)

G00987352

Courtesy of MAZDA MOTORS CORP.

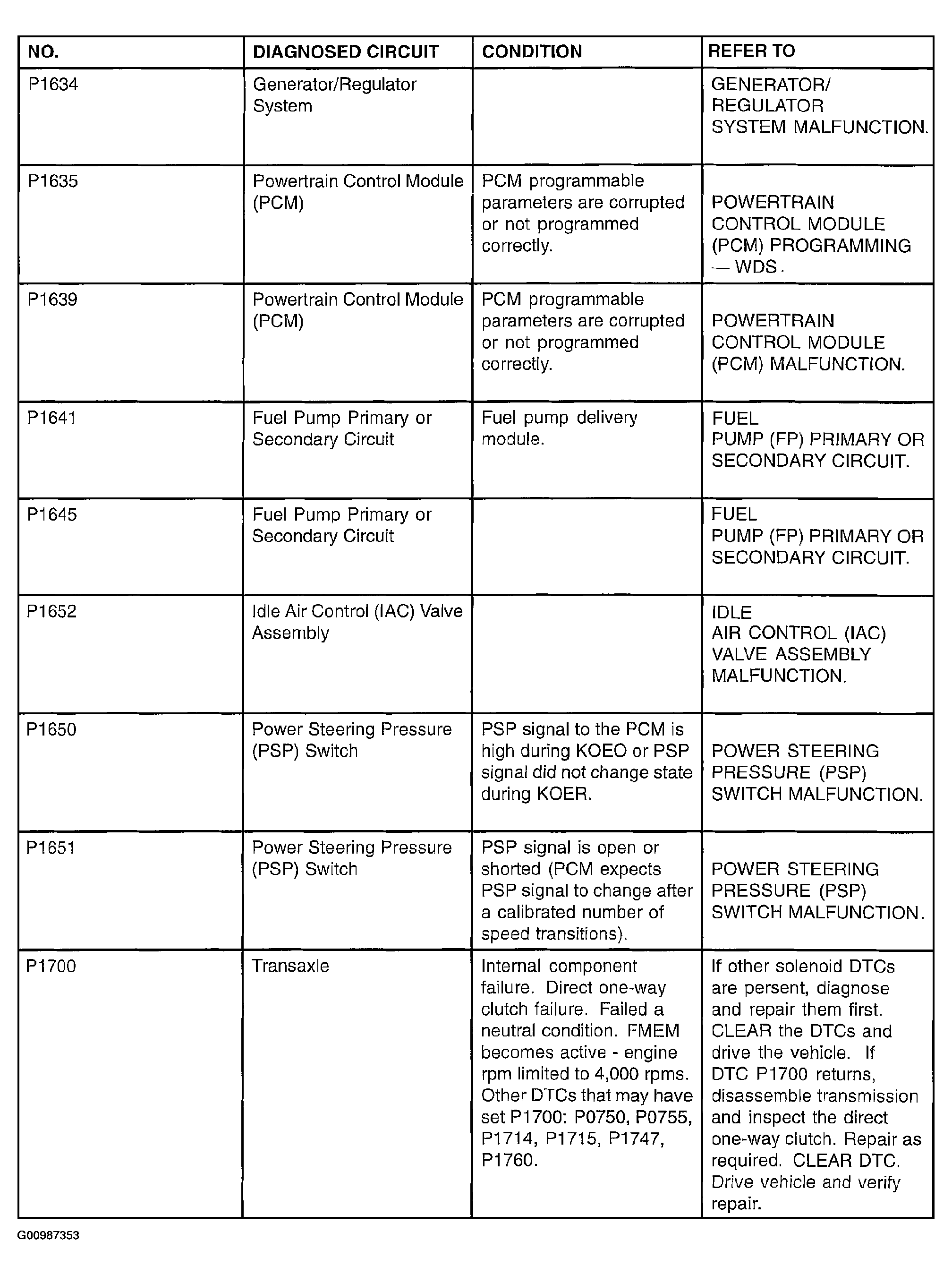

Fig 37: Diagnostic Trouble Code Numbers Table (P1634-P1700)

G00987353

Courtesy of MAZDA MOTORS CORP.

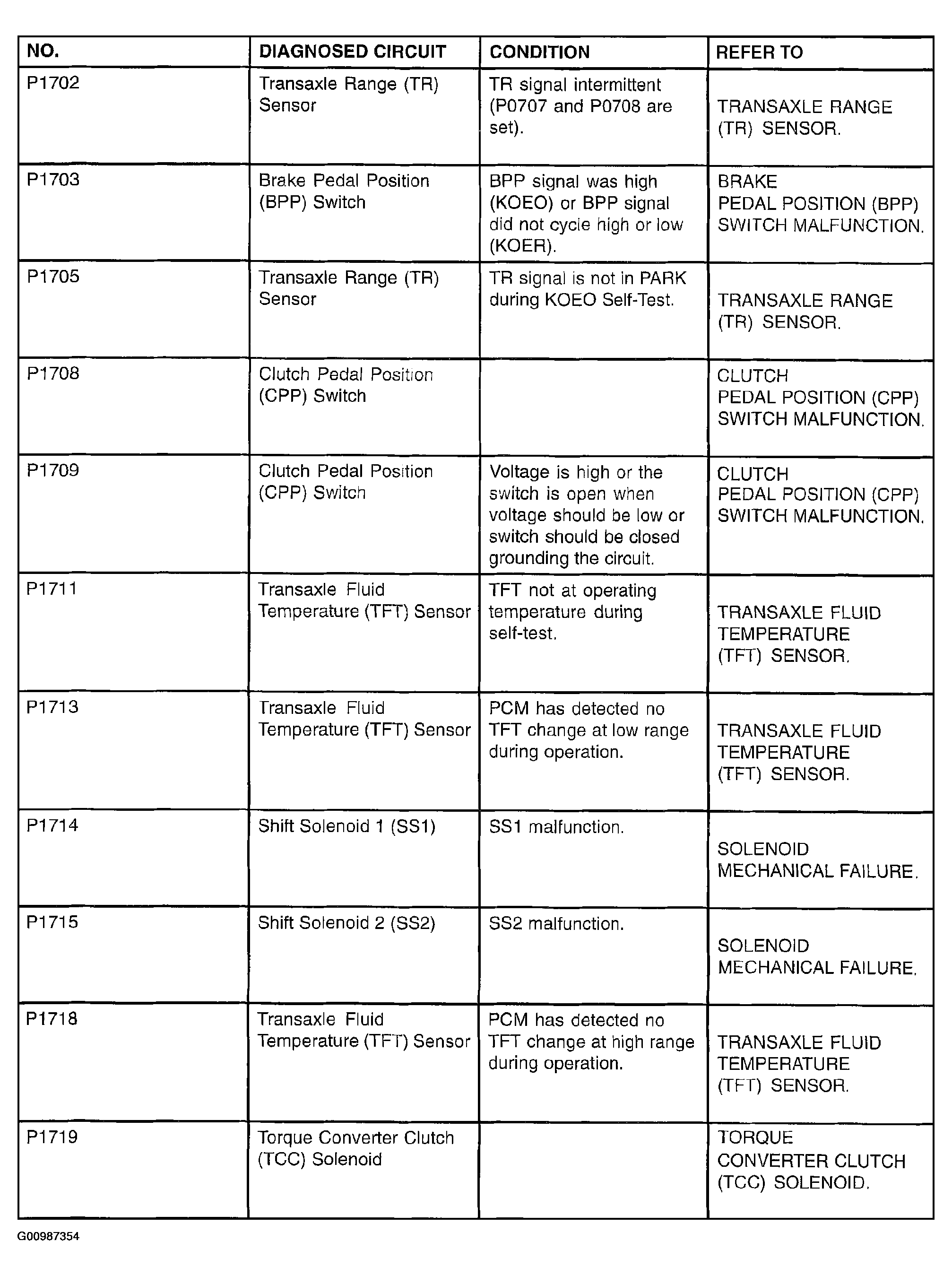

Fig 38: Diagnostic Trouble Code Numbers Table (P1702-P1719)

G00987354

Courtesy of MAZDA MOTORS CORP.

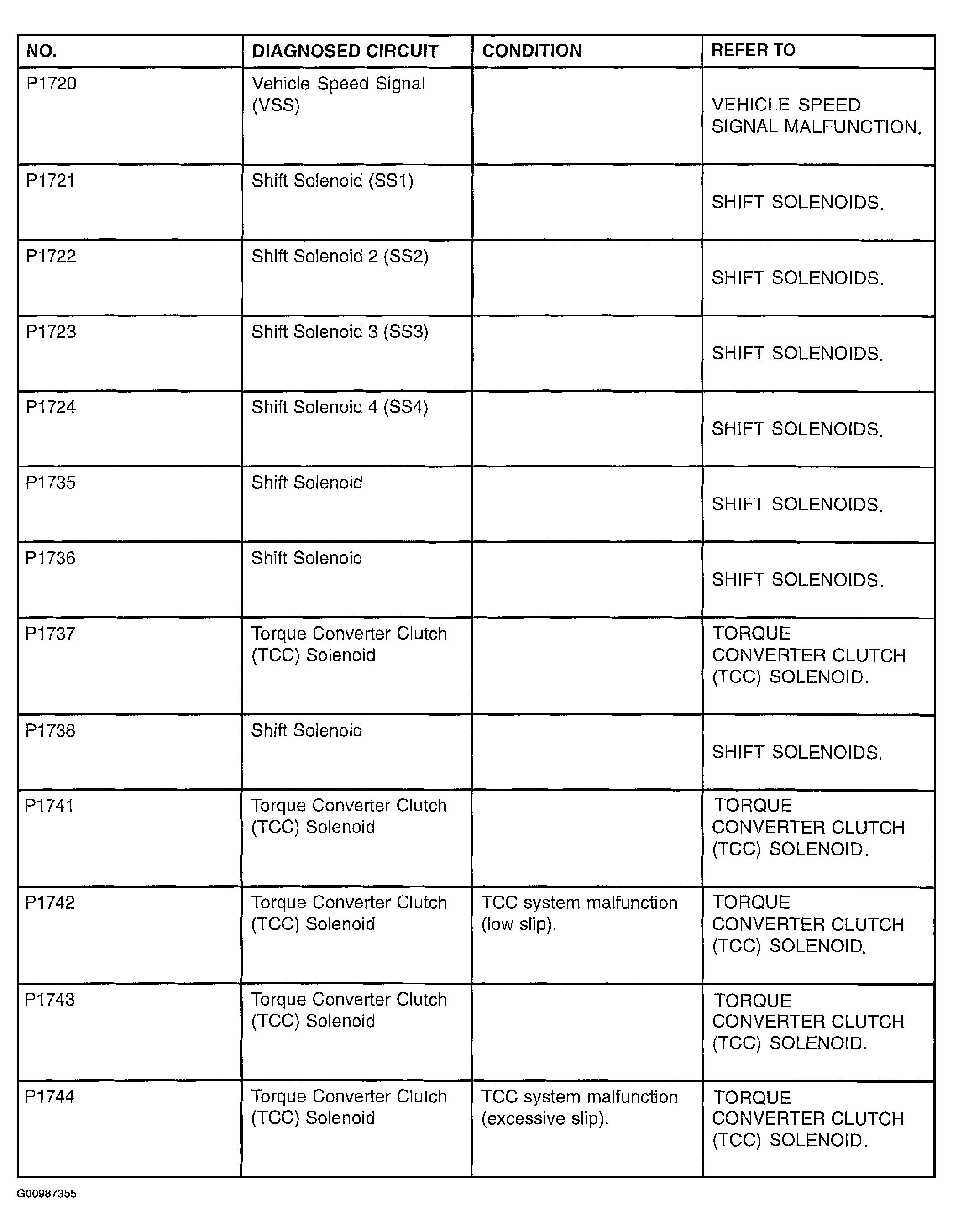

Fig 39: Diagnostic Trouble Code Numbers Table (P1720-P1744)

G00987355

Courtesy of MAZDA MOTORS CORP.

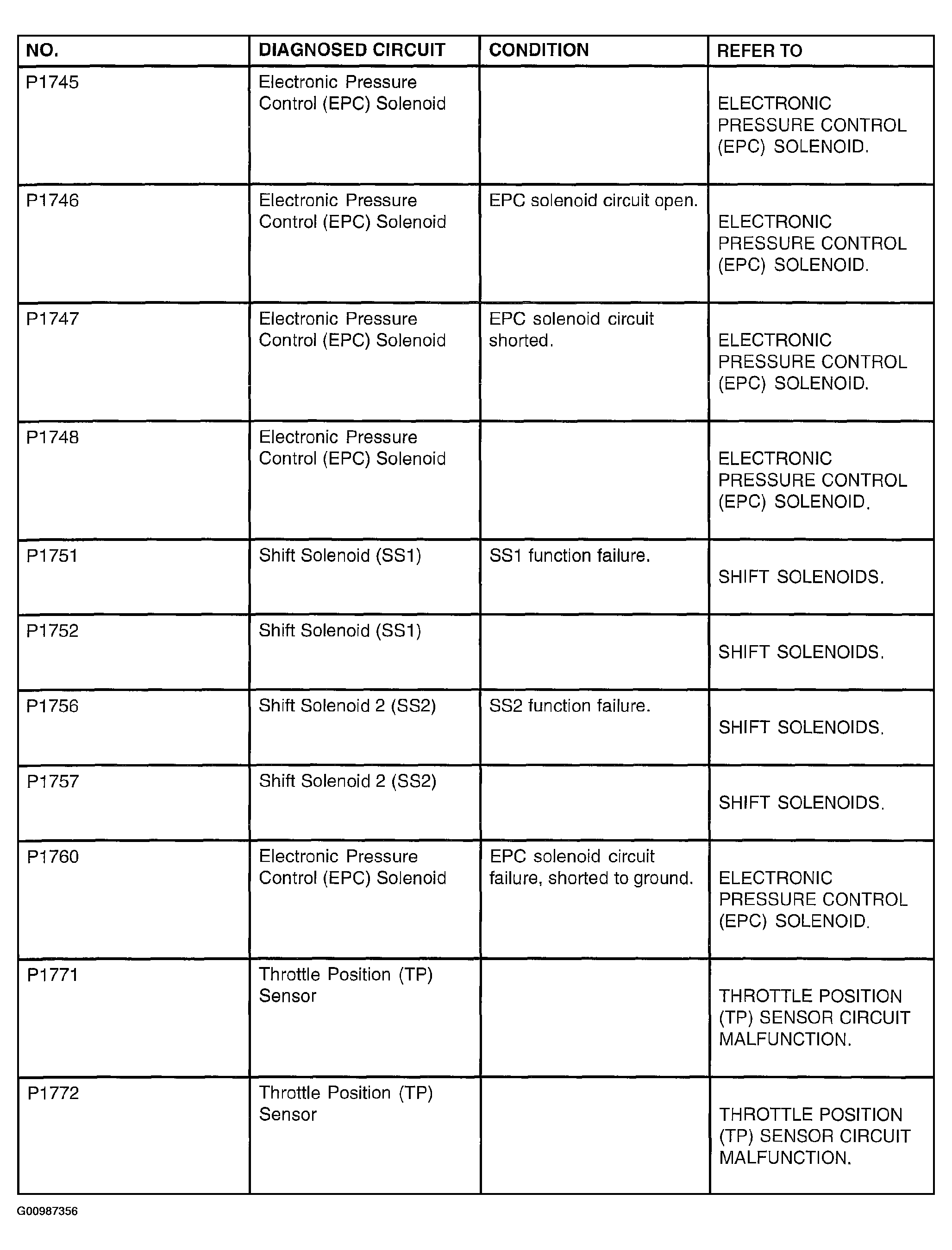

Fig 40: Diagnostic Trouble Code Numbers Table (P1749-P1772)

G00987356

Courtesy of MAZDA MOTORS CORP.

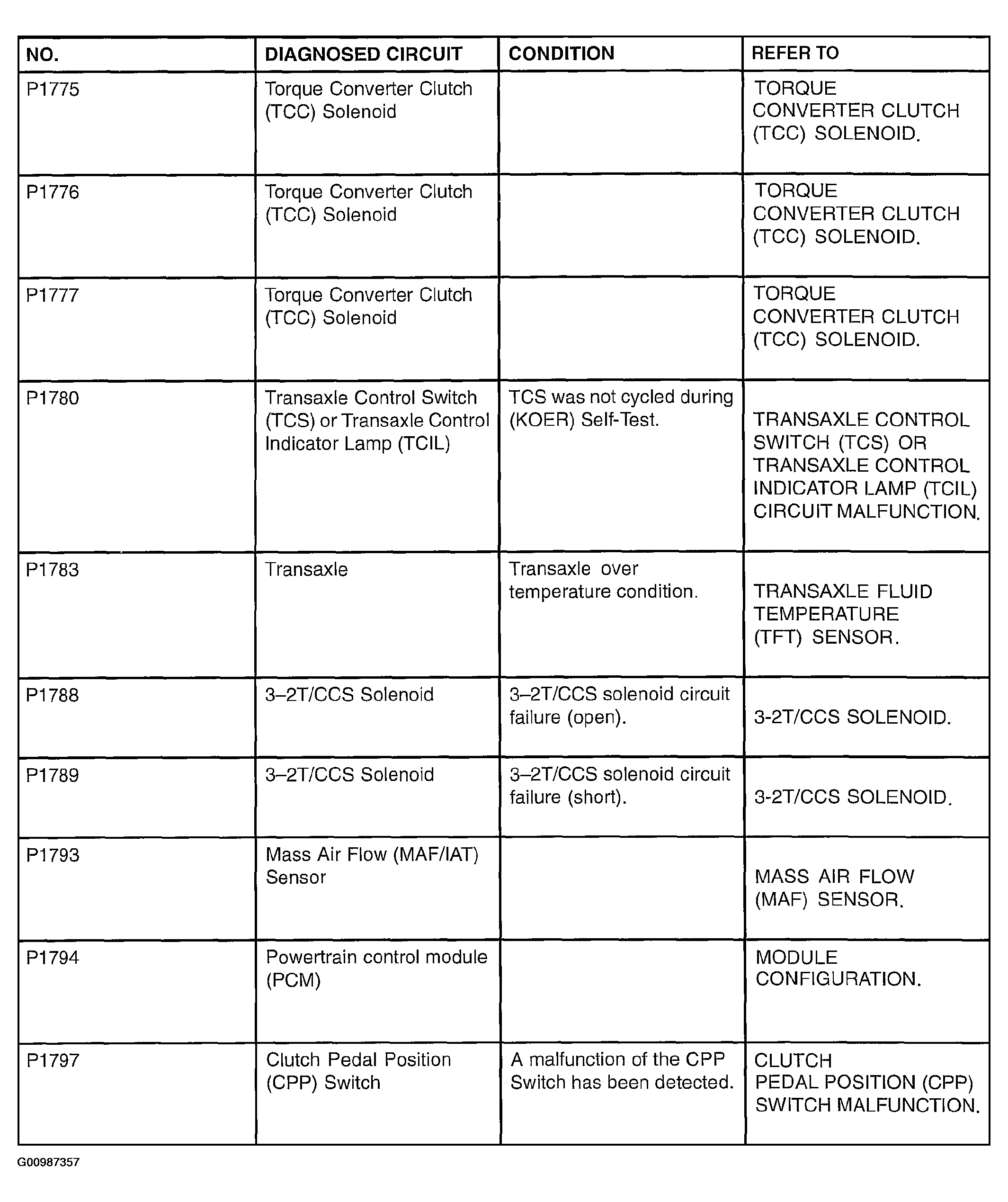

Fig 41: Diagnostic Trouble Code Numbers Table (P1775-P1797)

G00987357

Courtesy of MAZDA MOTORS CORP.

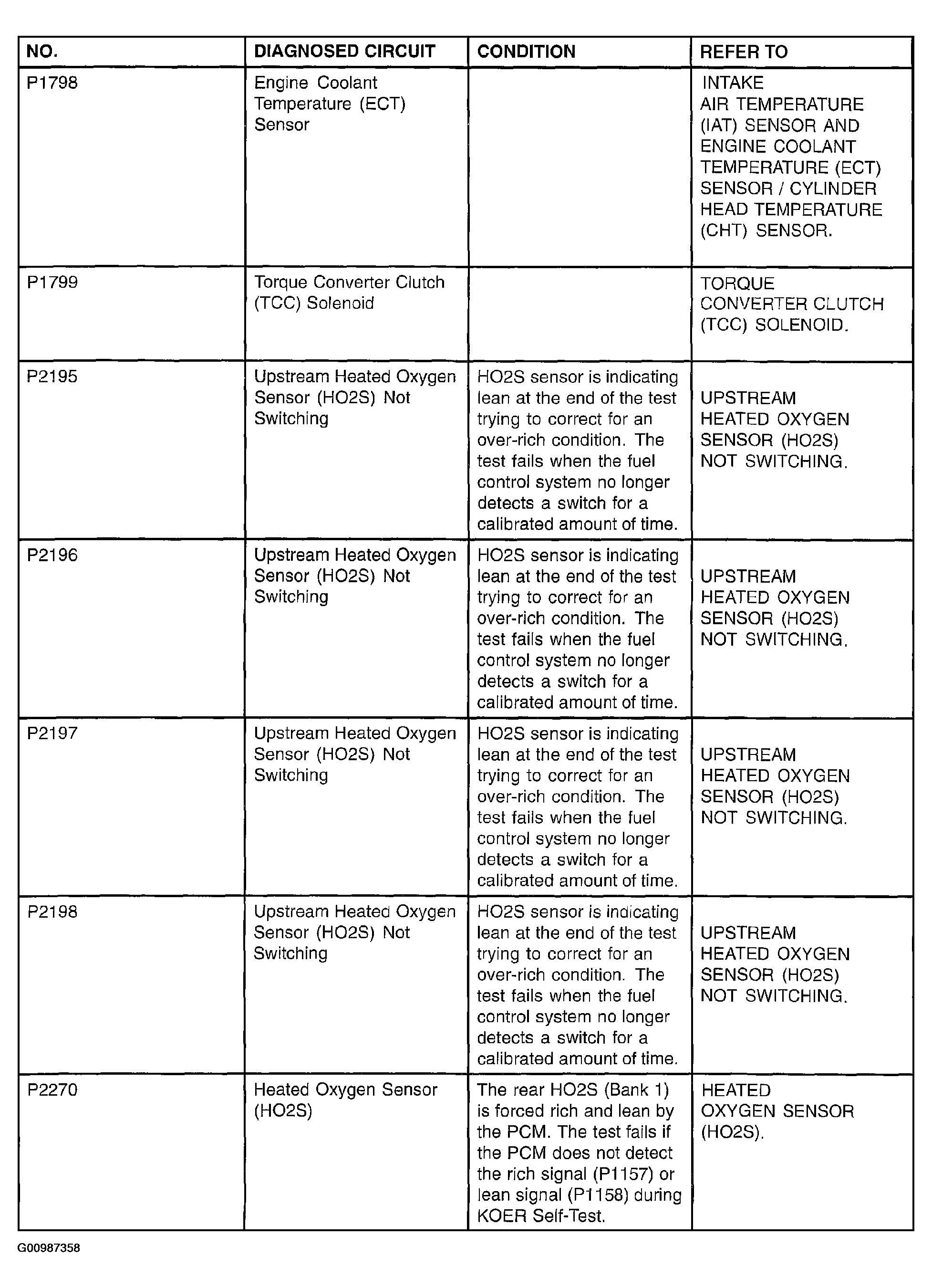

Fig 42: Diagnostic Trouble Code Numbers Table (P1798-P2270)

G00987358

Courtesy of MAZDA MOTORS CORP.

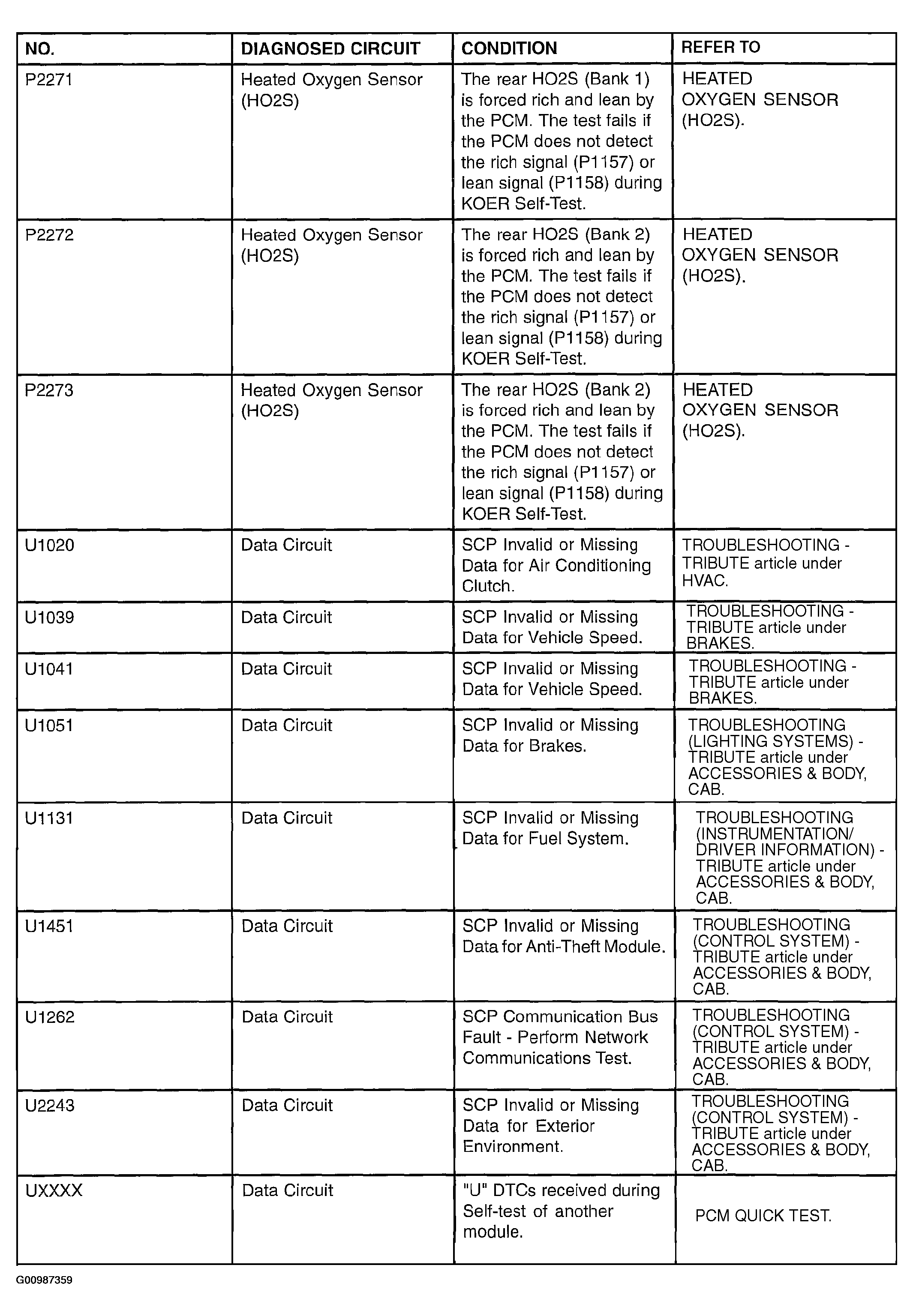

Fig 43: Diagnostic Trouble Code Numbers Table (P2271-UXXXX)

G00987359

Courtesy of MAZDA MOTORS CORP.
