Fuel Pump Always On

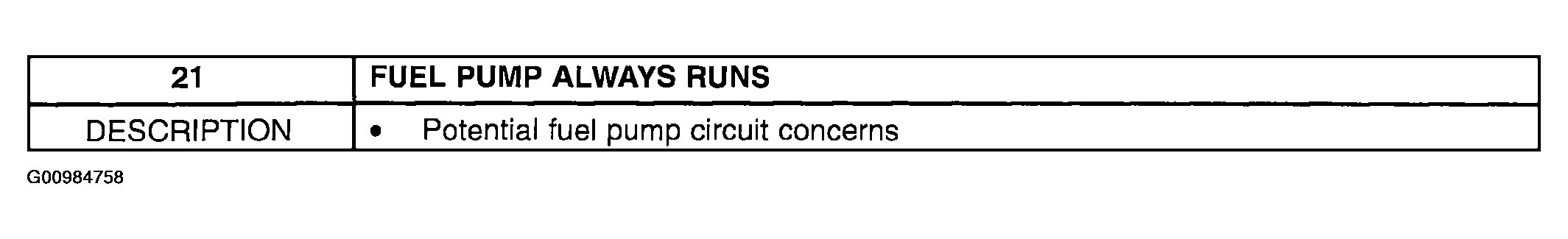

Fig 1: Chart 21 Fuel Pump Always ON: Description
Courtesy of MAZDA MOTORS CORP.

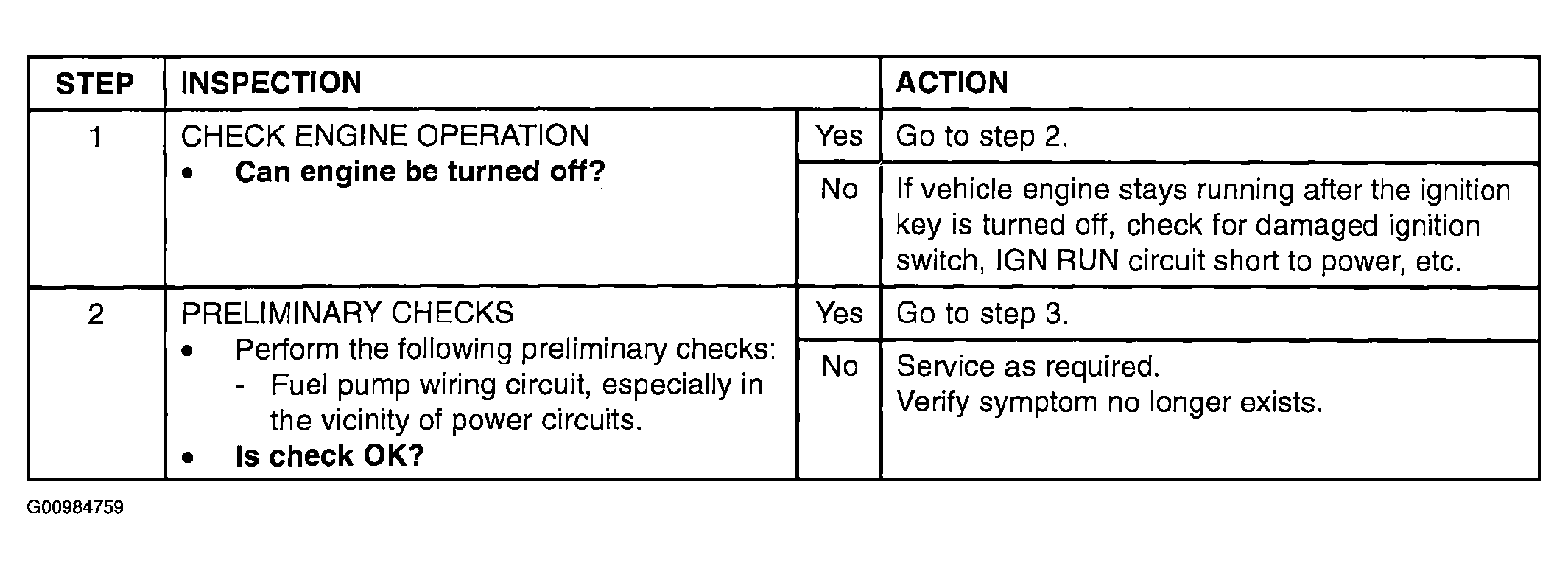

Fig 2: Chart 21 Fuel Pump Always ON: Inspection (Steps 1-2)
Courtesy of MAZDA MOTORS CORP.

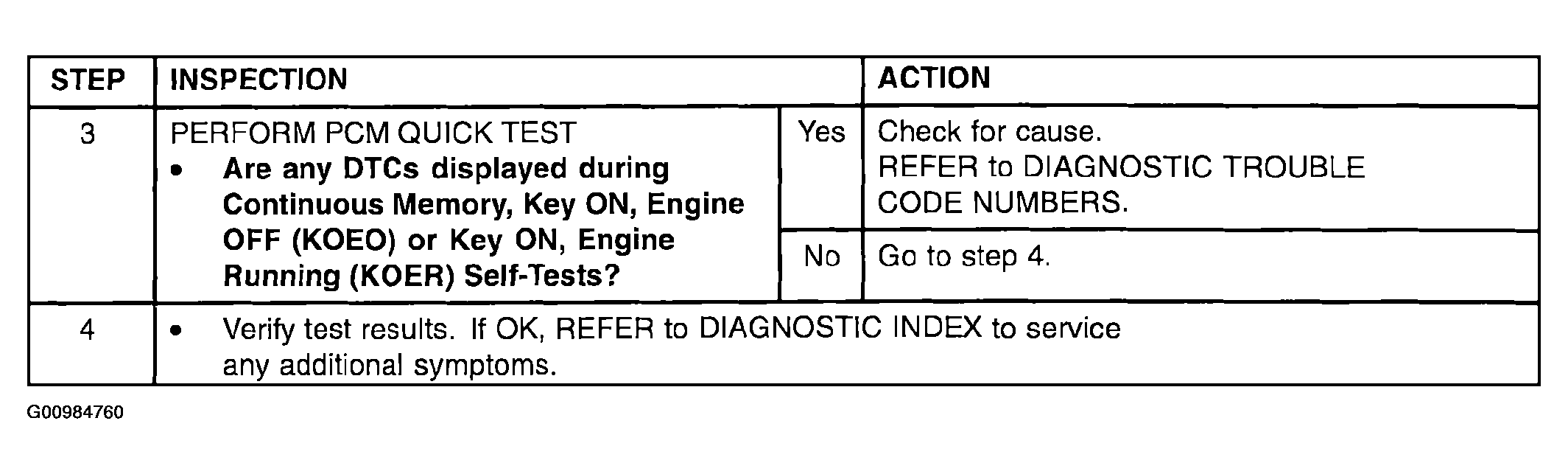

Fig 3: Chart 21 Fuel Pump Always ON: Inspection (Steps 3-4)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
