Pinpoint Test 1: No Module/Network Communication - SCP Link

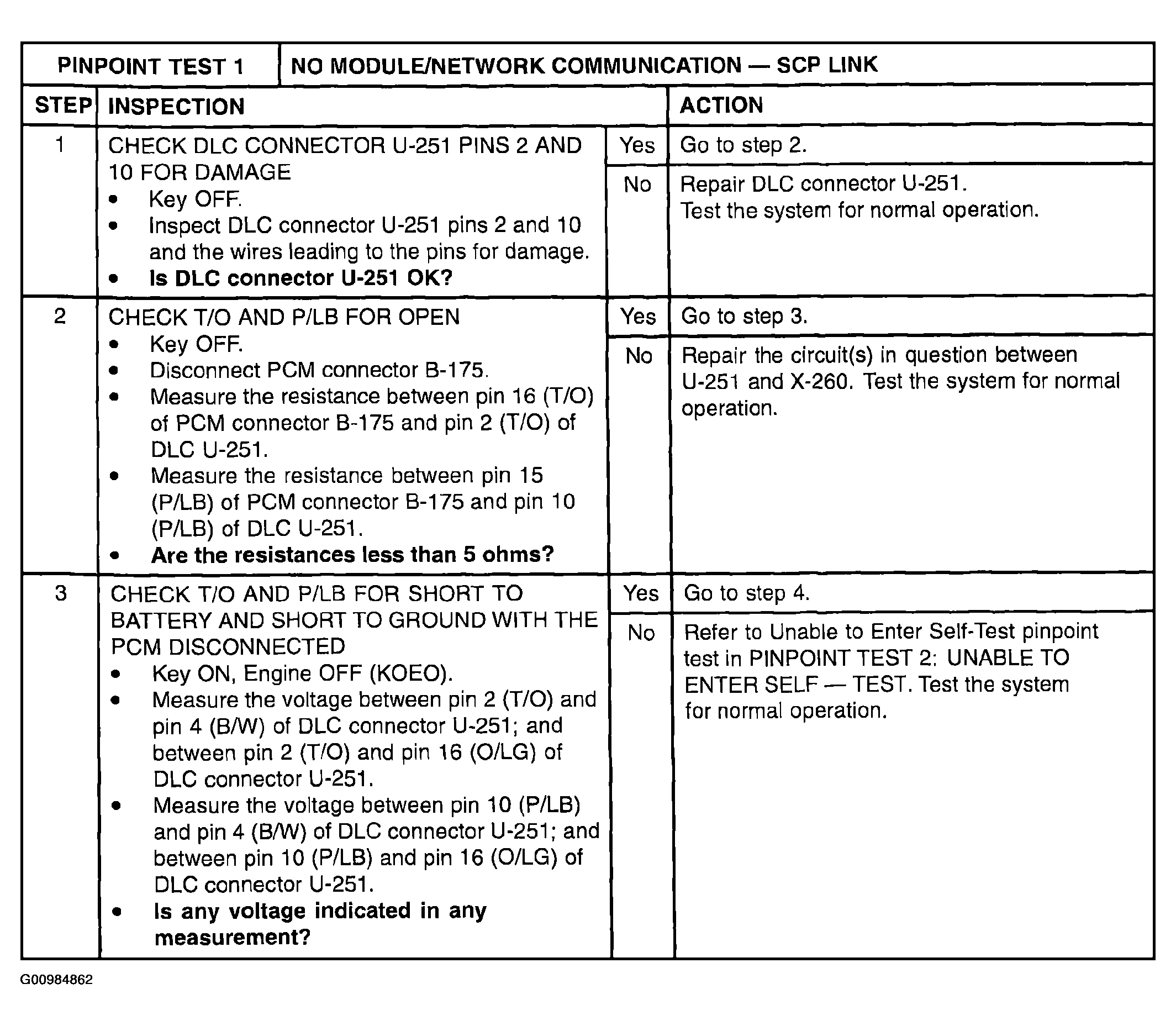

Fig 1: Pinpoint Test 1: No Module/Network Communication - SCP Link: Inspection (Steps 1-3)

Courtesy of MAZDA MOTORS CORP.

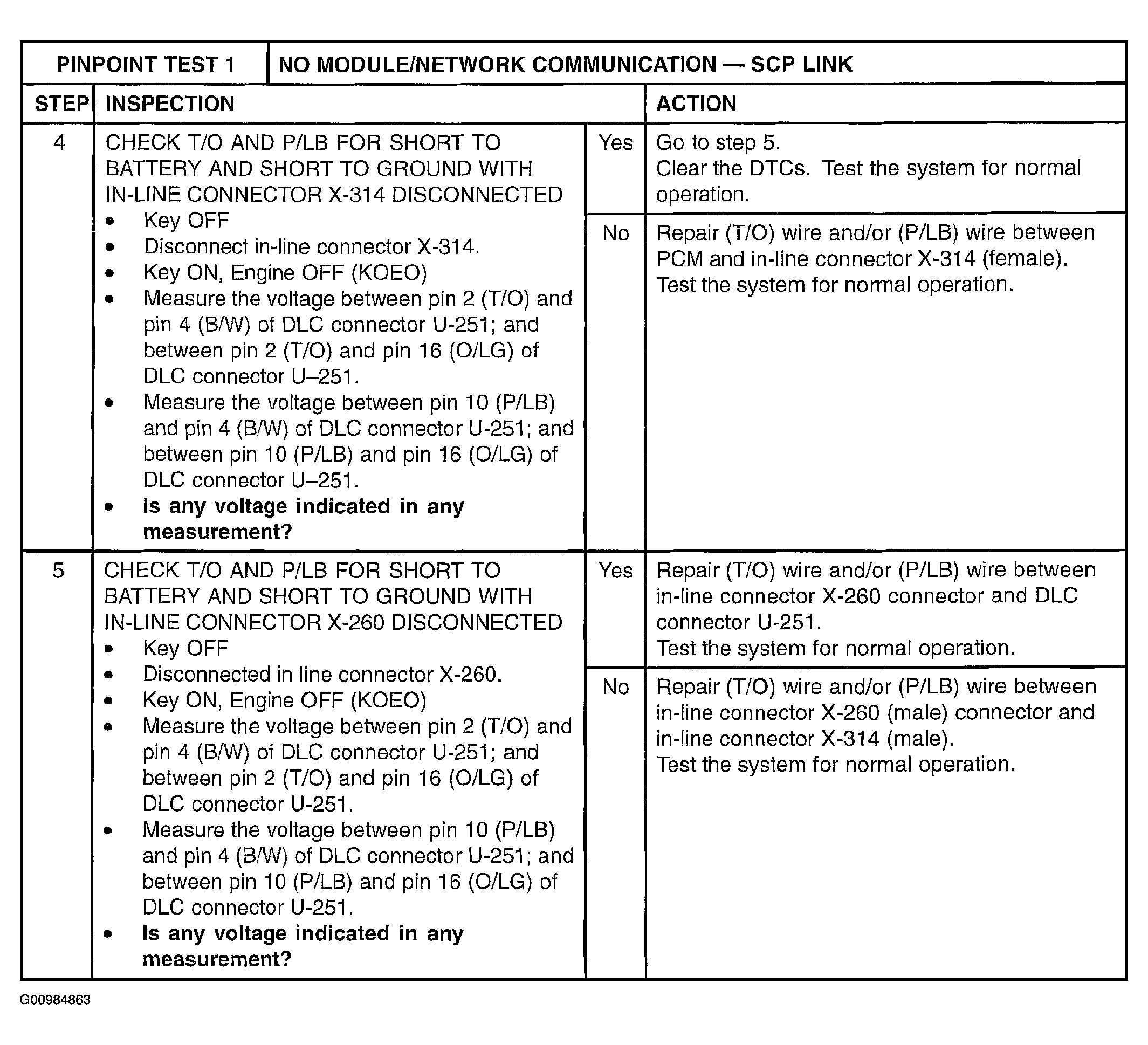

Fig 2: Pinpoint Test 1: No Module/Network Communication - SCP Link: Inspection (Steps 4-5)

Courtesy of MAZDA MOTORS CORP.
