Lack/Loss Of Power

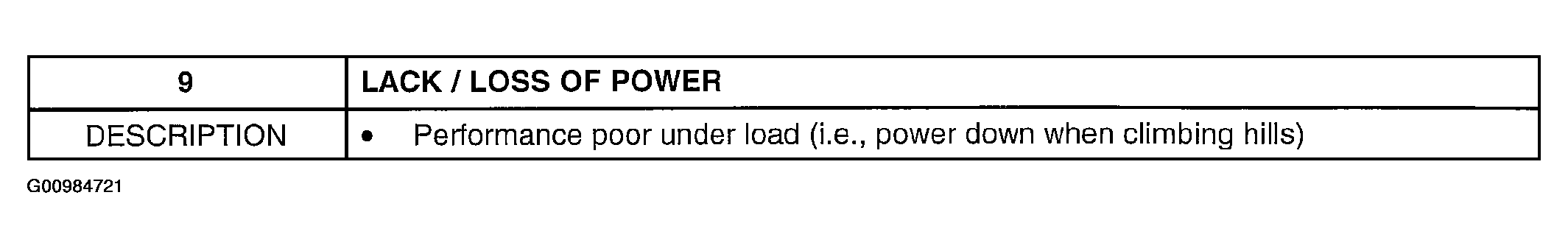

Fig 1: Chart 9 Lack/Loss Of Power: Description

Courtesy of MAZDA MOTORS CORP.

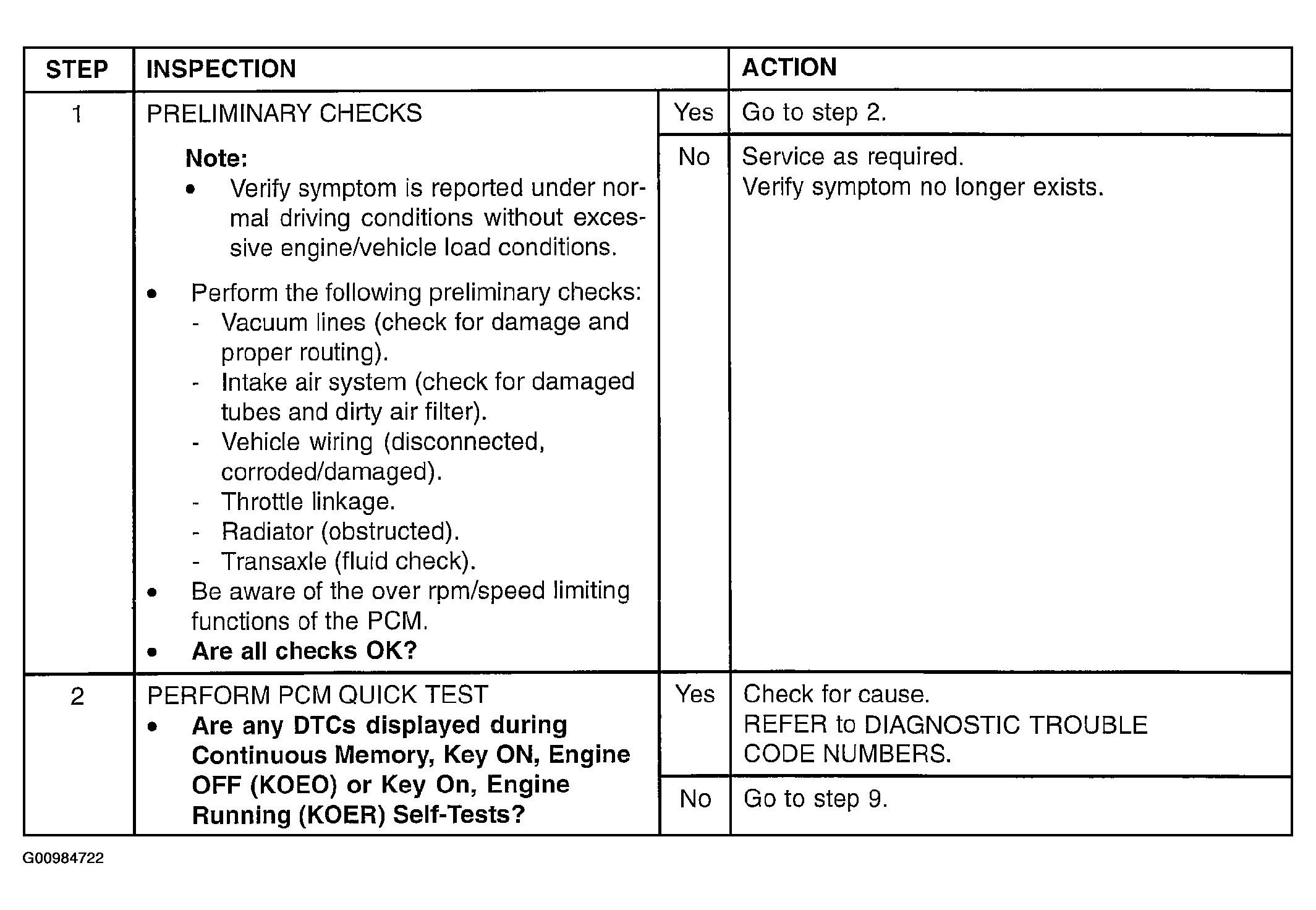

Fig 2: Chart 9 Lack/Loss Of Power: Inspection (Steps 1-2)

Courtesy of MAZDA MOTORS CORP.

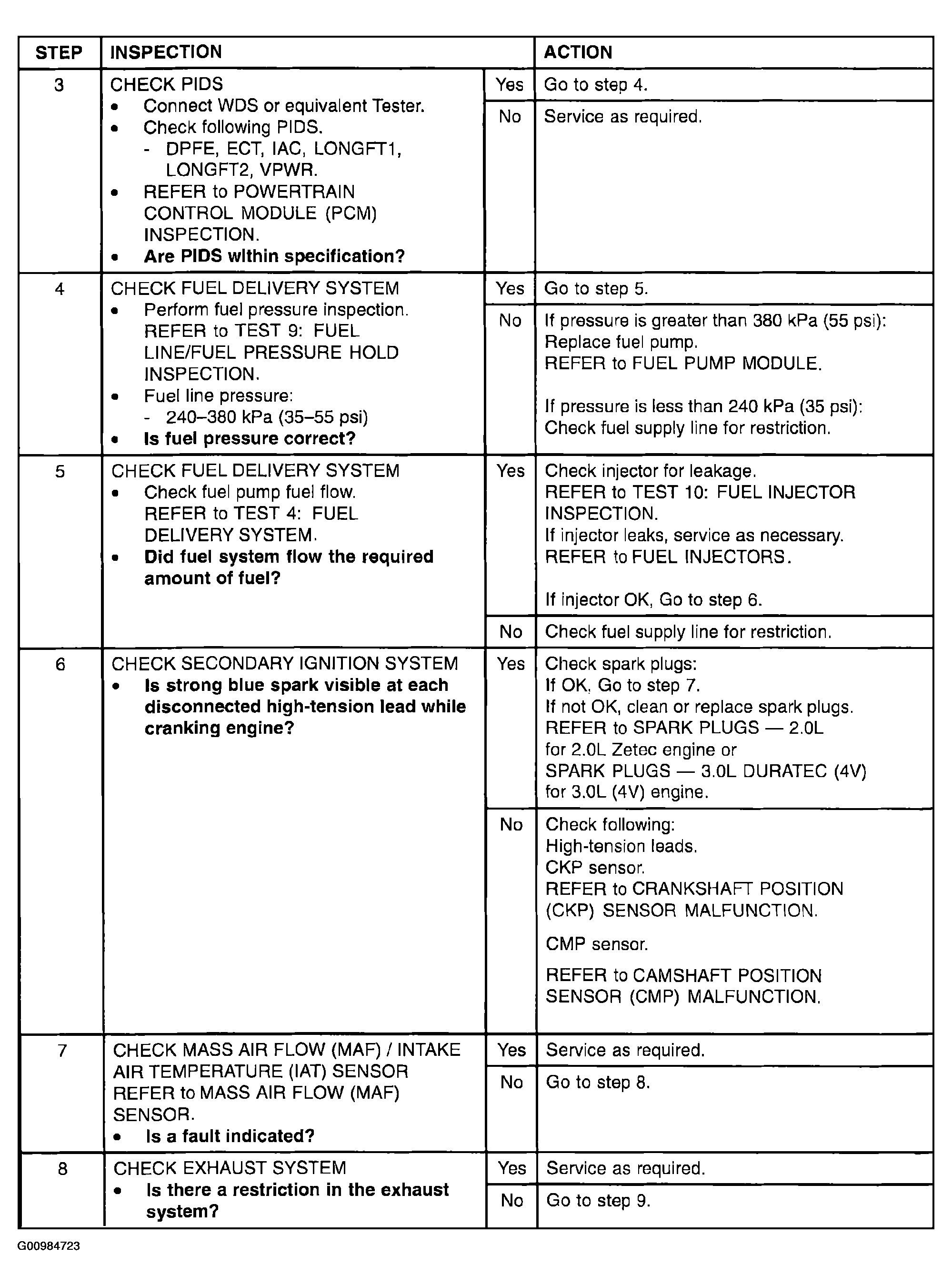

Fig 3: Chart 9 Lack/Loss Of Power: Inspection (Steps 3-8)

Courtesy of MAZDA MOTORS CORP.

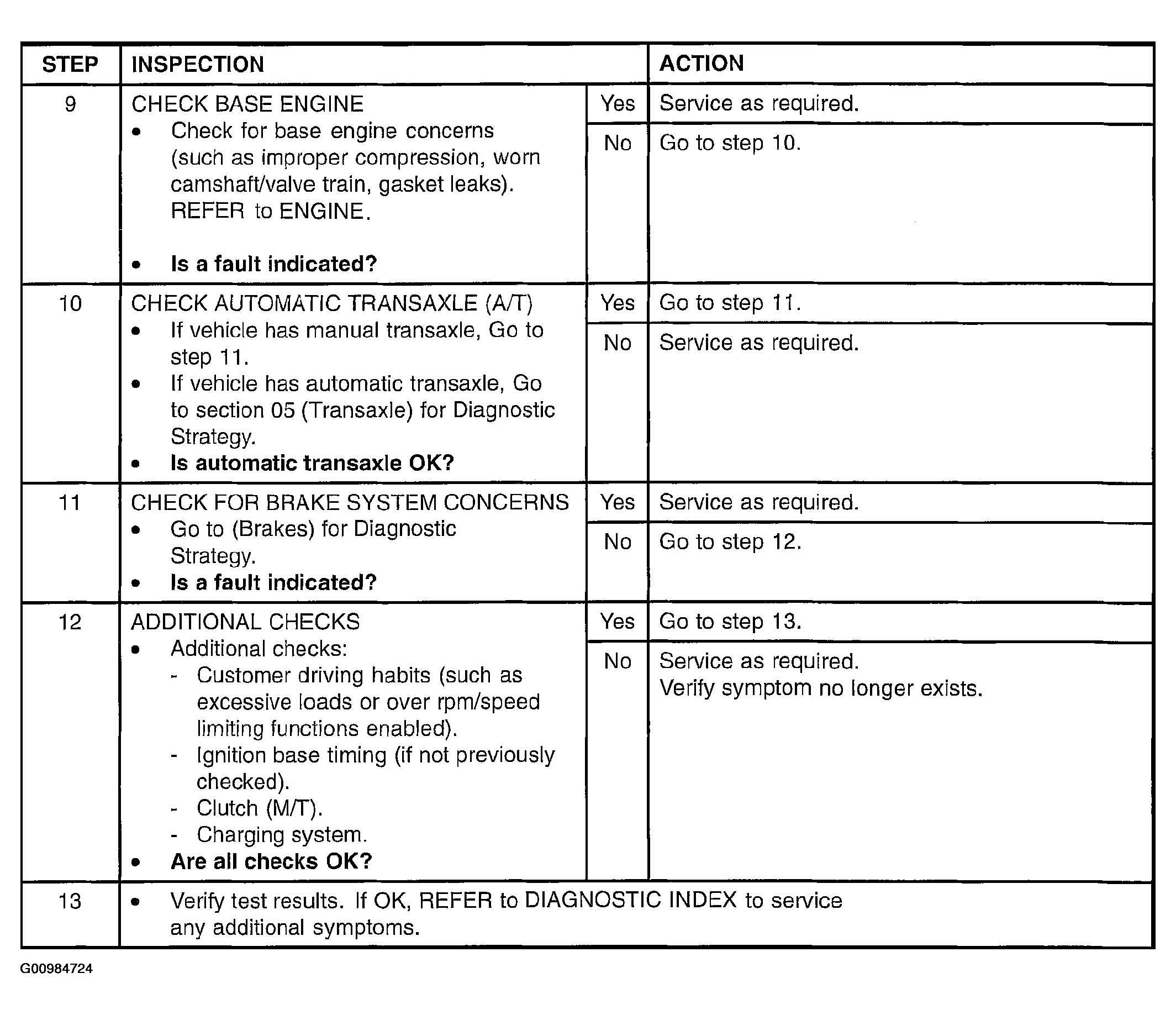

Fig 4: Chart 9 Lack/Loss Of Power: Inspection (Steps 9-13)

Courtesy of MAZDA MOTORS CORP.
