Poor Fuel Economy

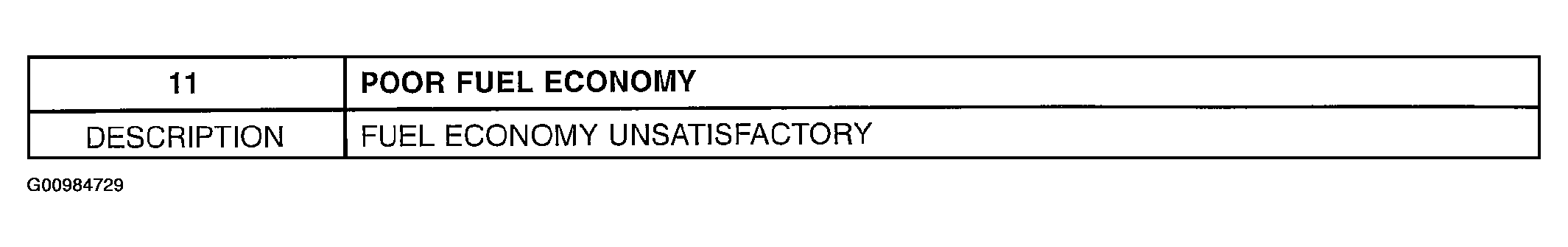

Fig 1: Chart 11 Poor Fuel Economy: Description

Courtesy of MAZDA MOTORS CORP.

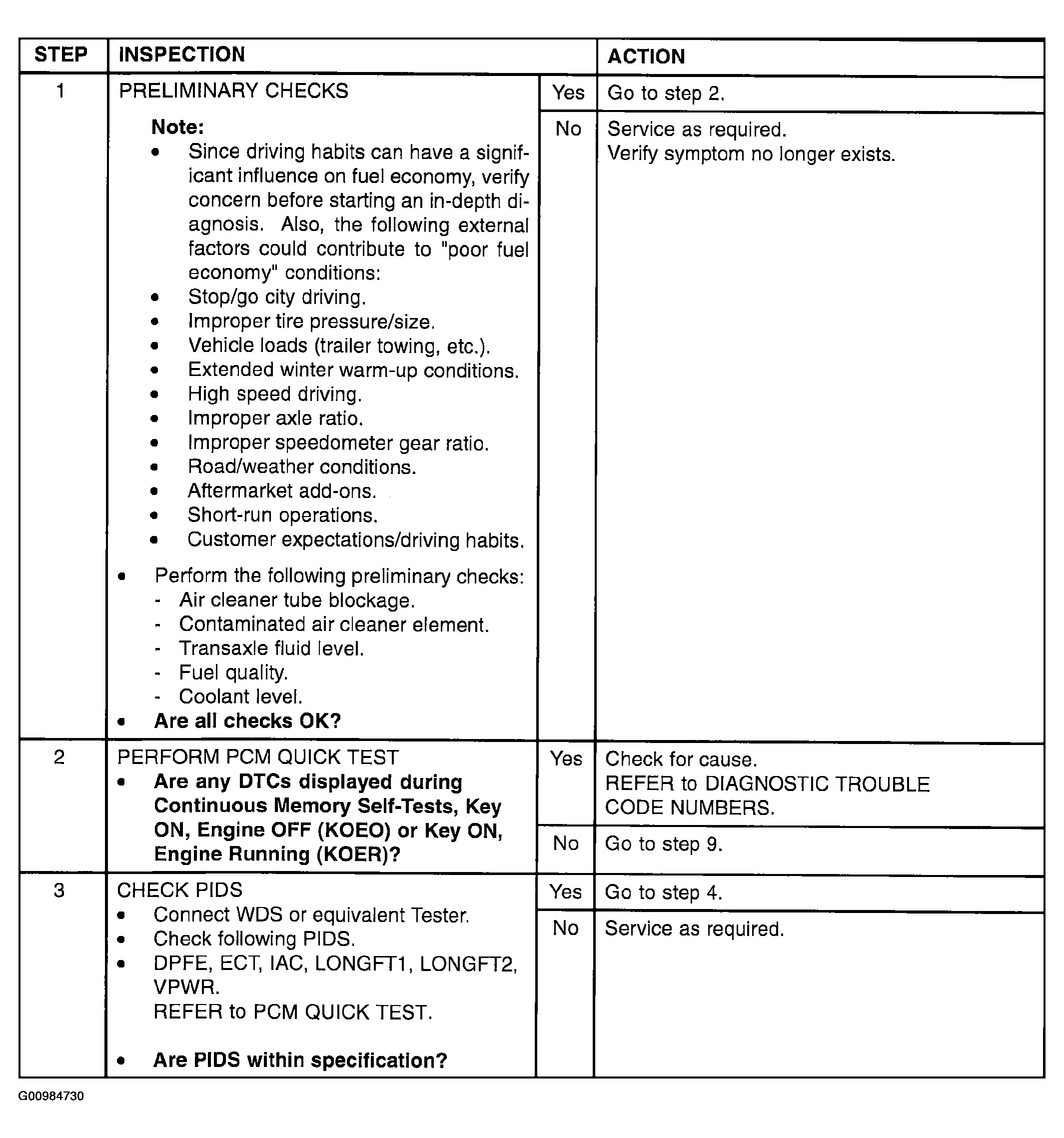

Fig 2: Chart 11 Poor Fuel Economy: Inspection (Steps 1-3)

Courtesy of MAZDA MOTORS CORP.

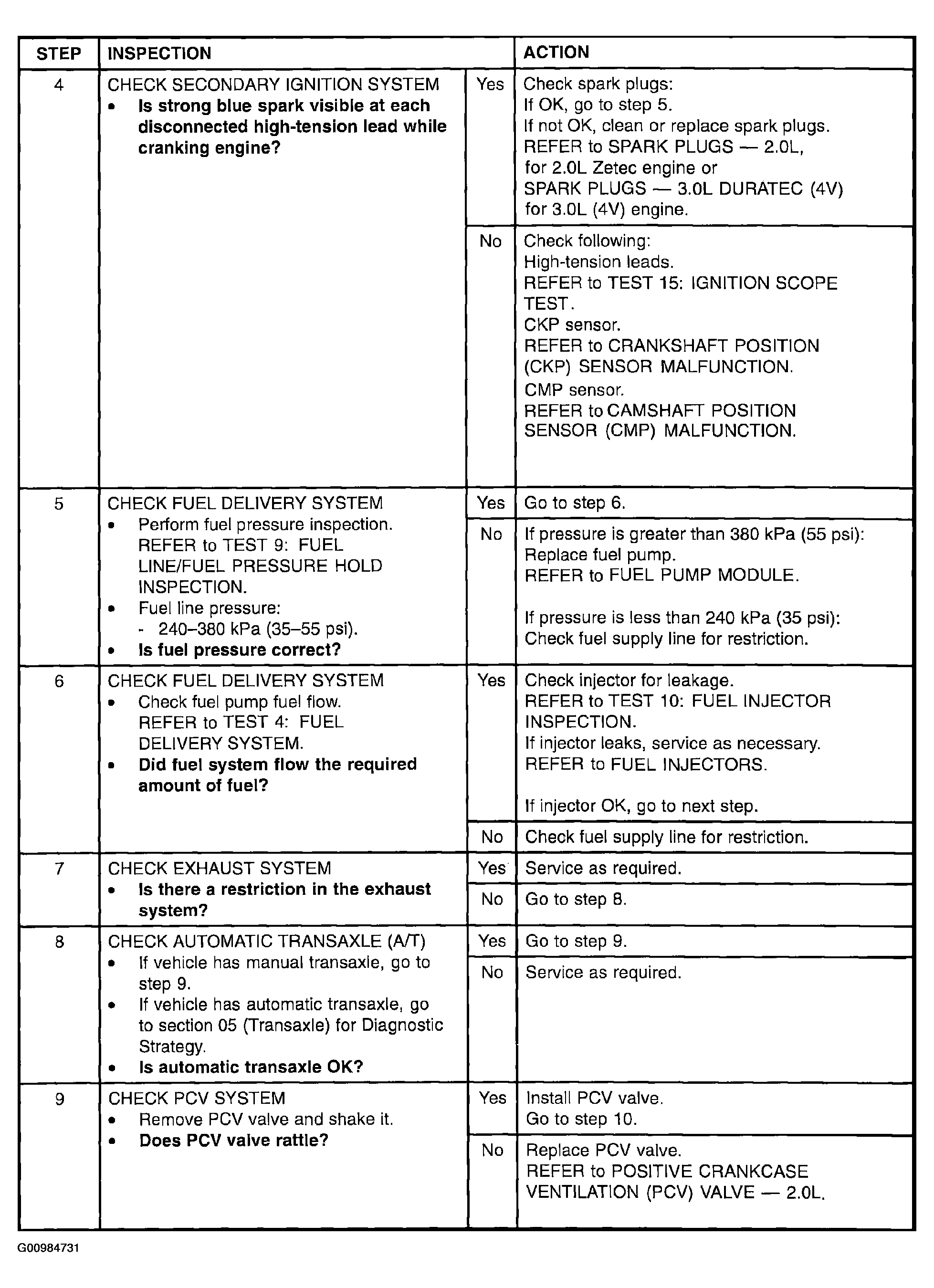

Fig 3: Chart 11 Poor Fuel Economy: Inspection (Steps 4-9)

Courtesy of MAZDA MOTORS CORP.

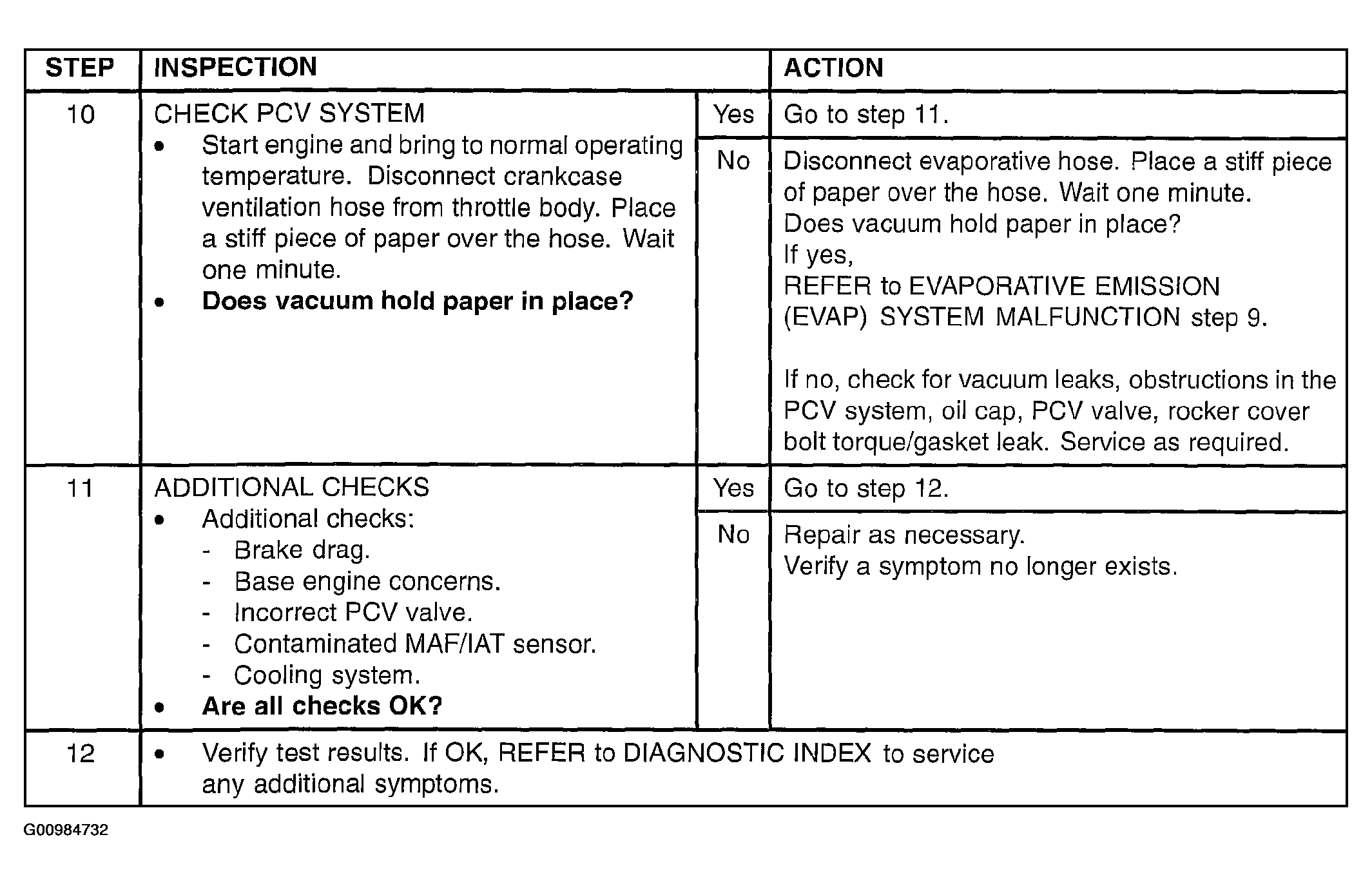

Fig 4: Chart 11 Poor Fuel Economy: Inspection (Steps 10-12)

Courtesy of MAZDA MOTORS CORP.
