Pinpoint Test 14: Battery Condition Test

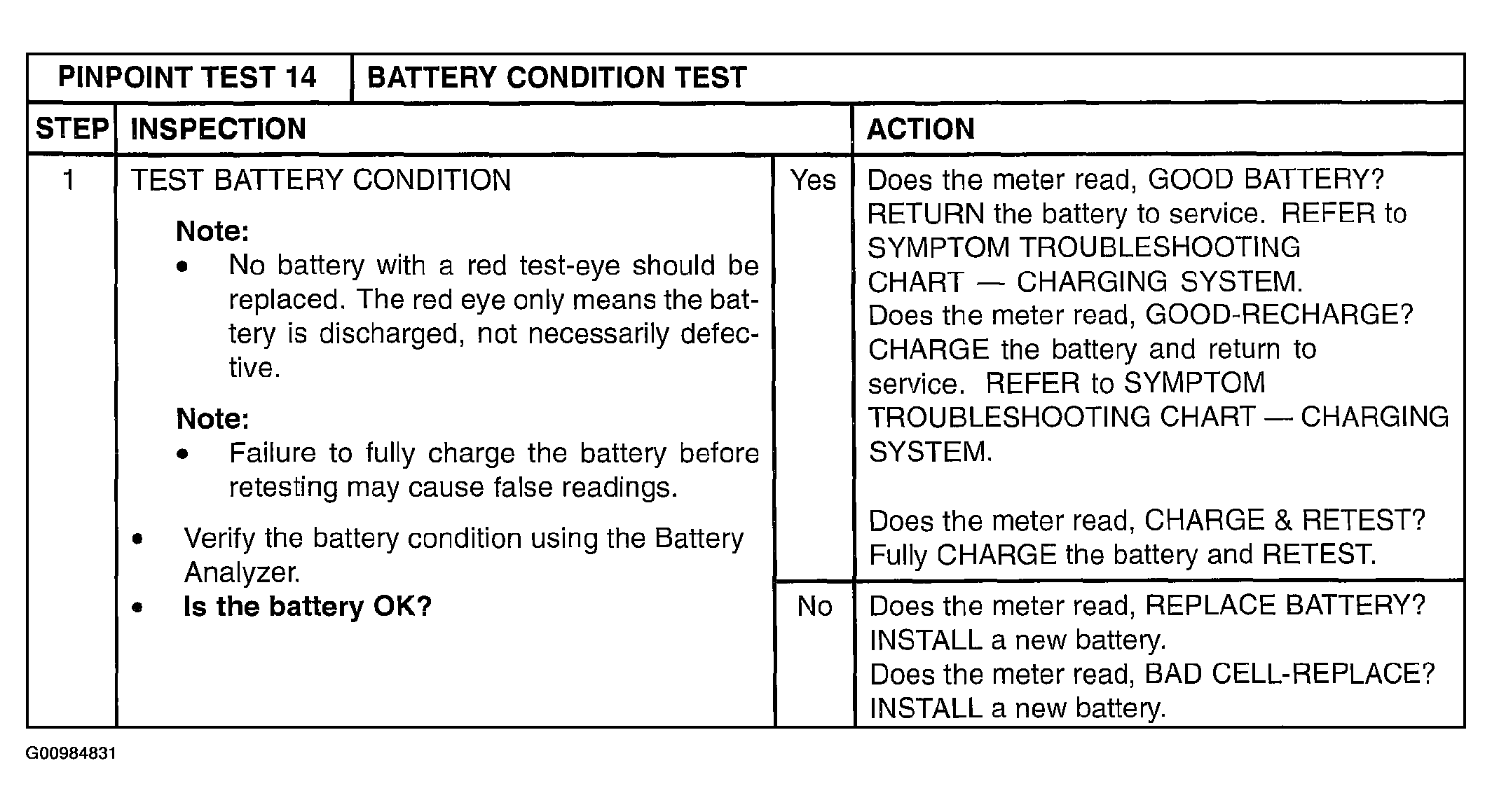

Fig 1: Pinpoint Test 14: Battery Condition Test: Inspection
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
