Symptom Troubleshooting Chart - Engine

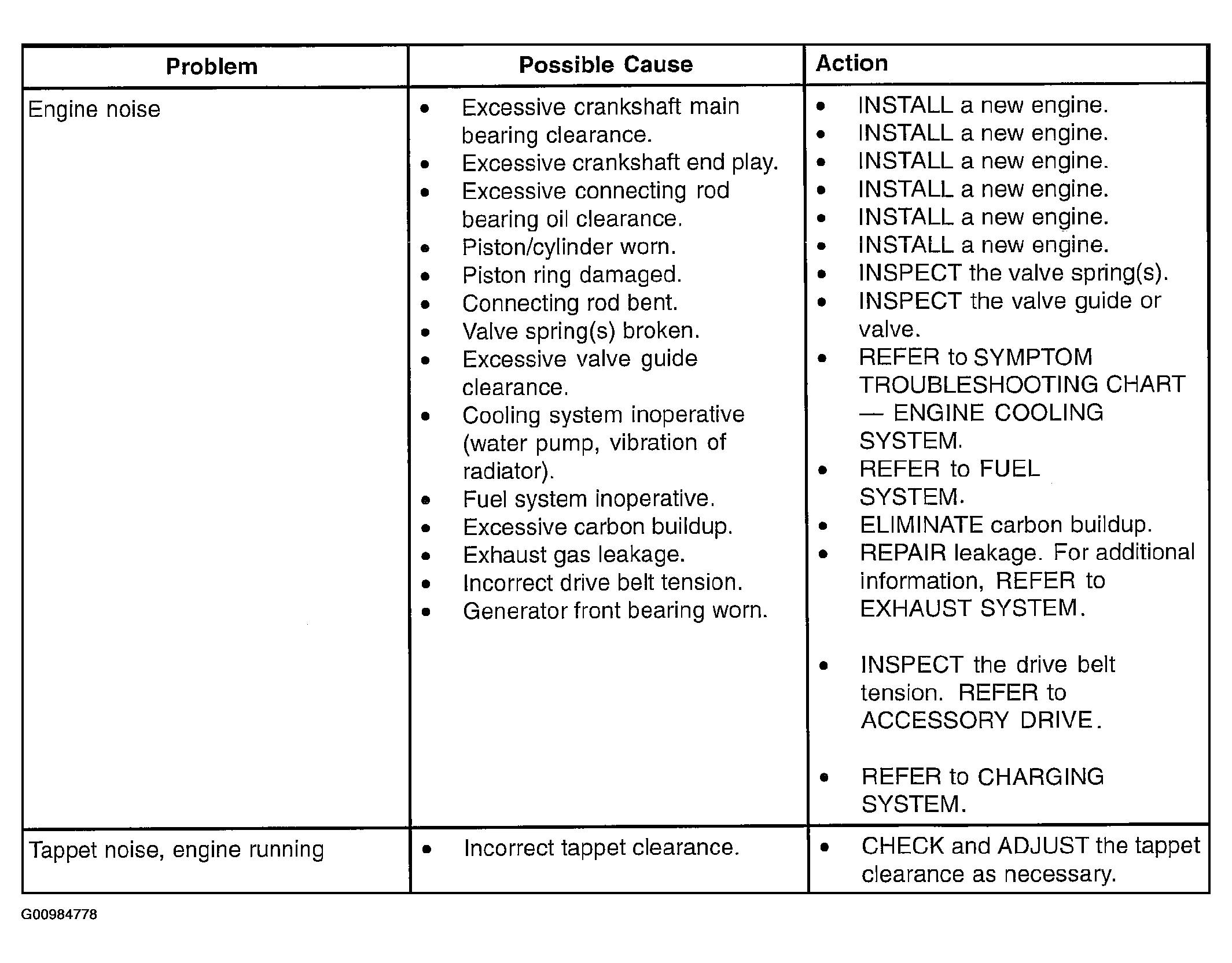

Fig 1: Symptom Troubleshooting Chart - Engine (1 Of 3)
Courtesy of MAZDA MOTORS CORP.

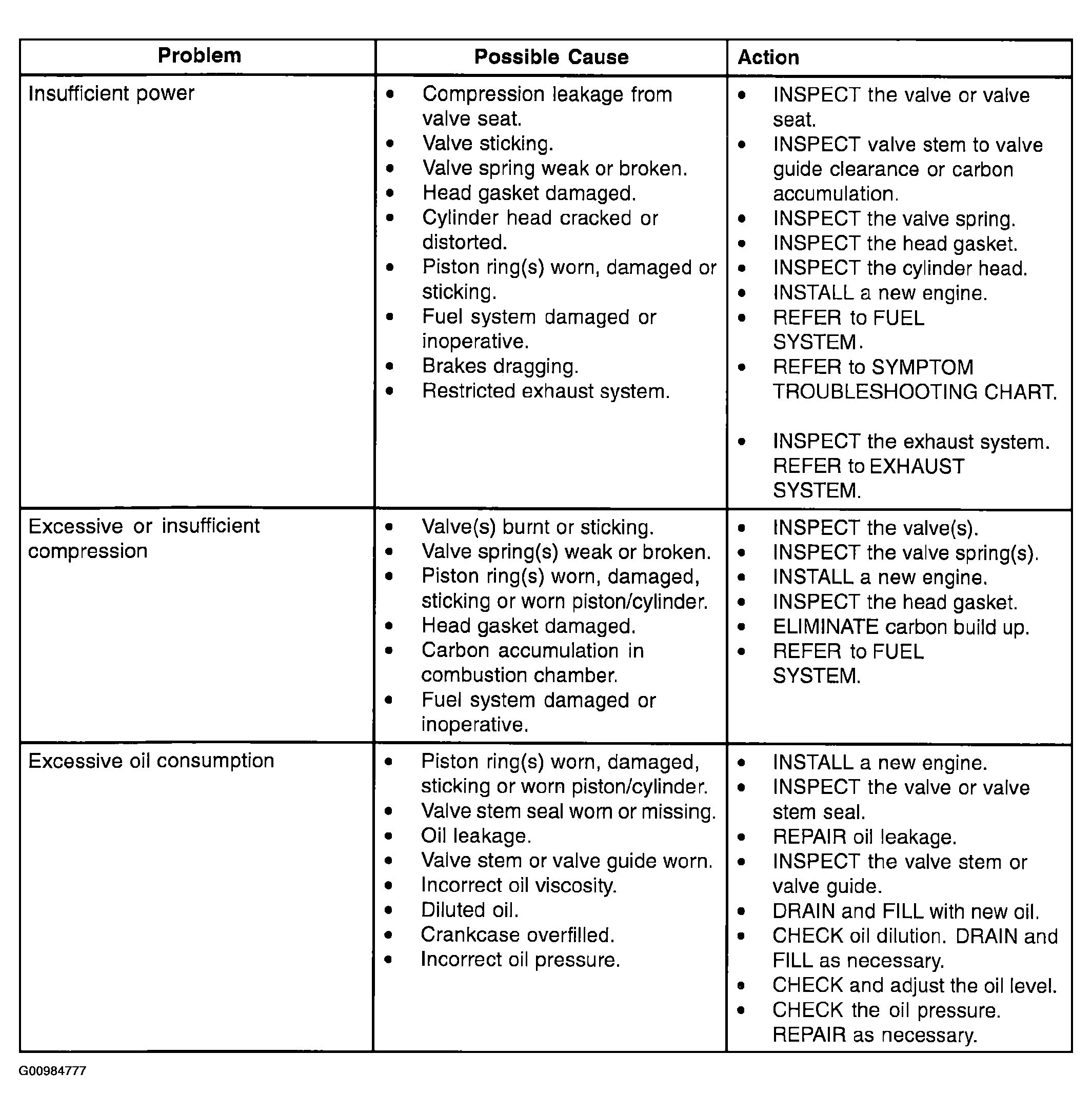

Fig 2: Symptom Troubleshooting Chart - Engine (2 Of 3)
Courtesy of MAZDA MOTORS CORP.

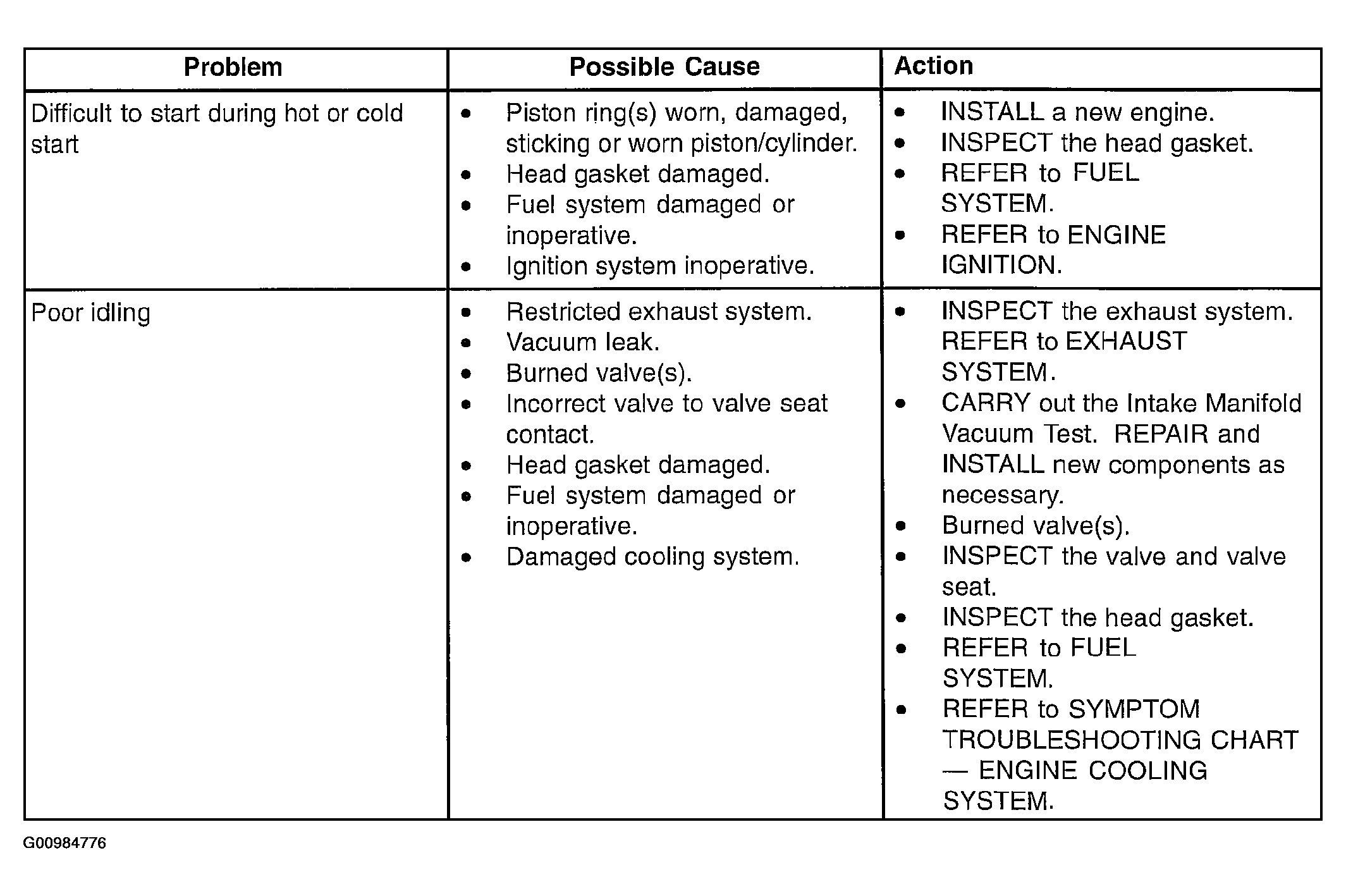

Fig 3: Symptom Troubleshooting Chart - Engine (3 Of 3)
Courtesy of MAZDA MOTORS CORP.
