Test 15: Ignition Scope Test: 3.0L

IGNITION SCOPE TEST

Firing Order	Ignition Coil
1	1
4	4
2	2
5	5
3	3
6	6

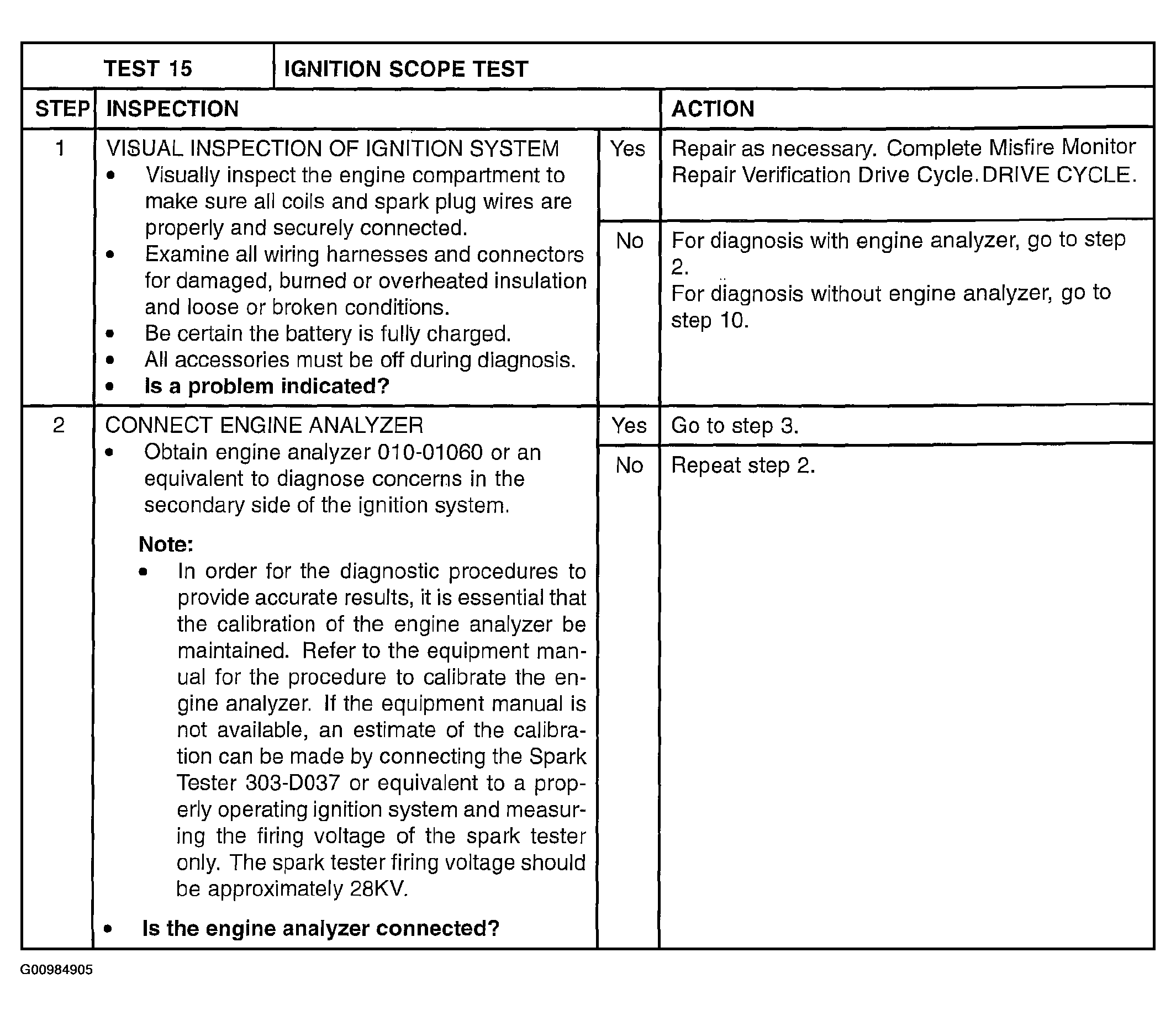

Fig 1: Test 15: Ignition Scope Test: Inspection (Steps 1-2)

G00984905

Courtesy of MAZDA MOTORS CORP.

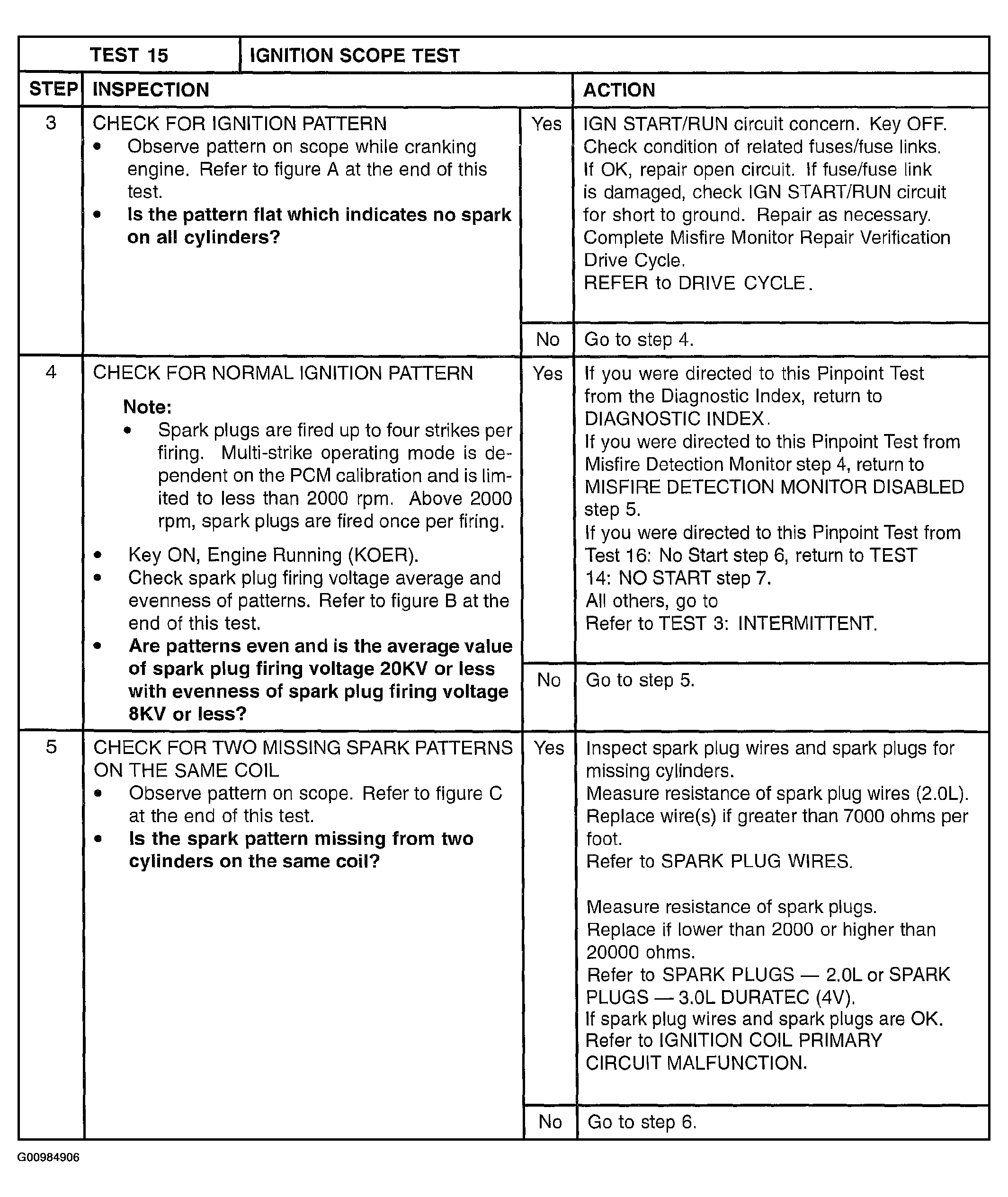

Fig 2: Test 15: Ignition Scope Test: Inspection (Steps 3-5)

G00984906

Courtesy of MAZDA MOTORS CORP.

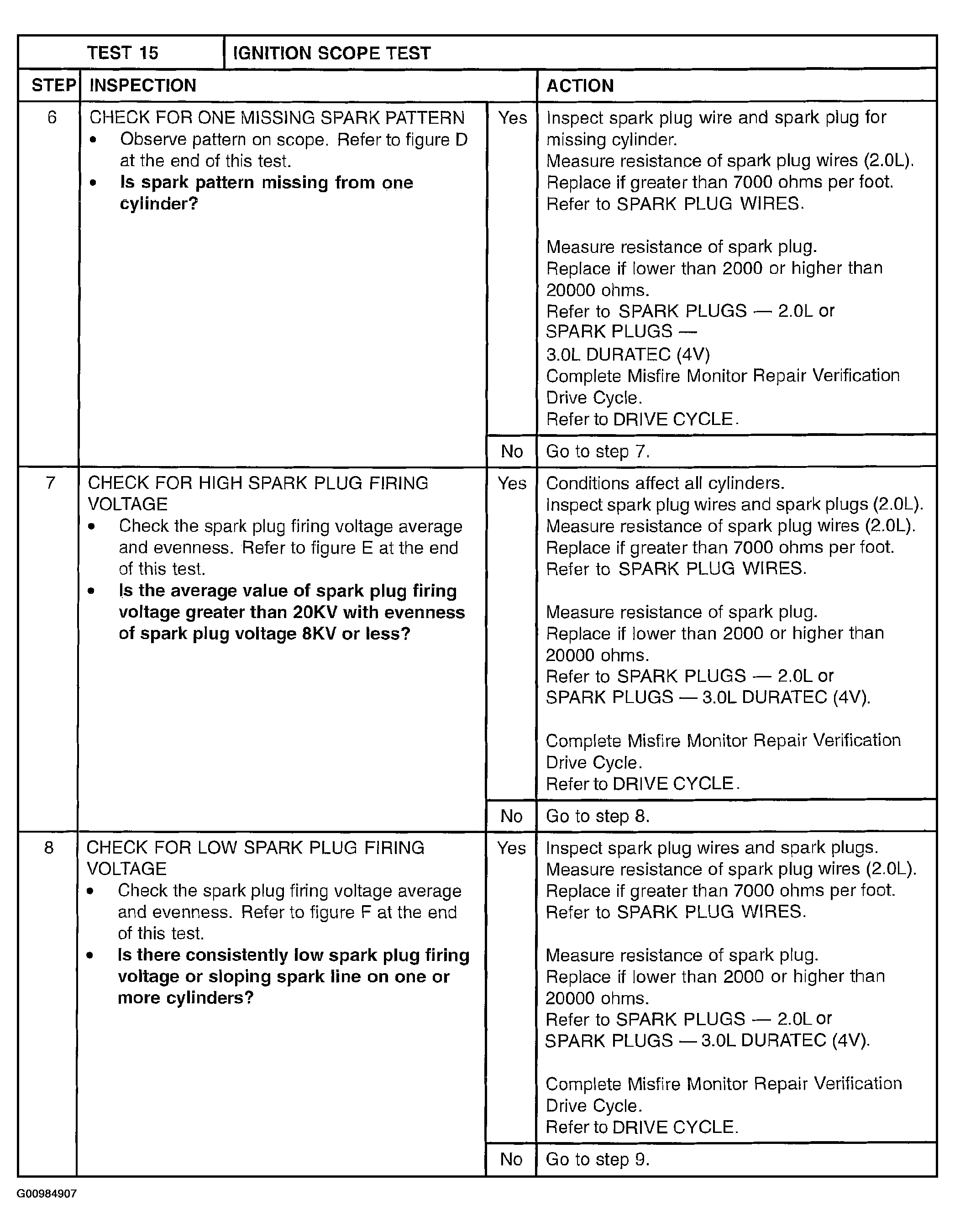

Fig 3: Test 15: Ignition Scope Test: Inspection (Steps 6-8)

G00984907

Courtesy of MAZDA MOTORS CORP.

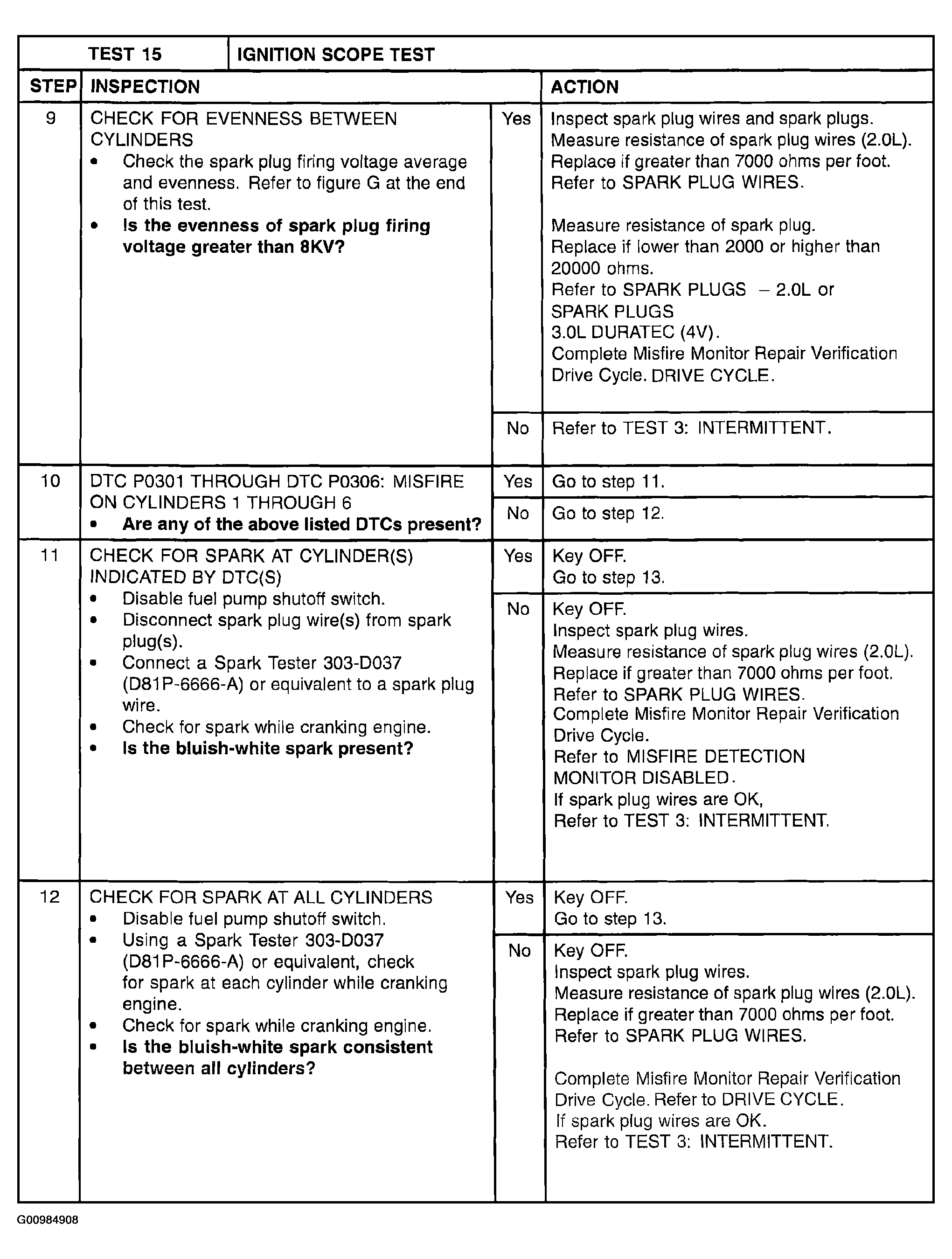

Fig 4: Test 15: Ignition Scope Test: Inspection (Steps 9-12)

G00984908

Courtesy of MAZDA MOTORS CORP.

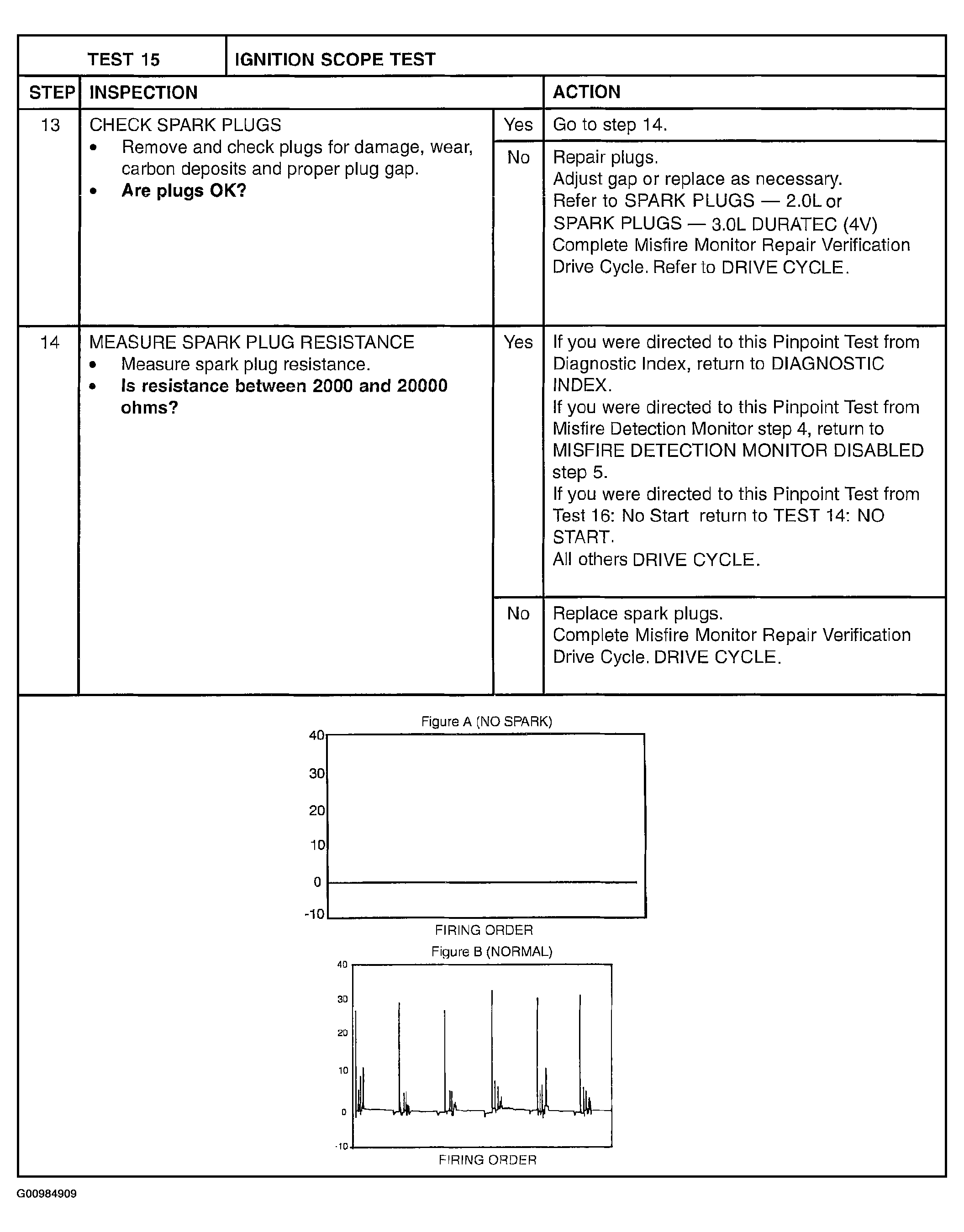

Fig 5: Test 15: Ignition Scope Test: Inspection (Steps 13-15)

G00984909

Courtesy of MAZDA MOTORS CORP.

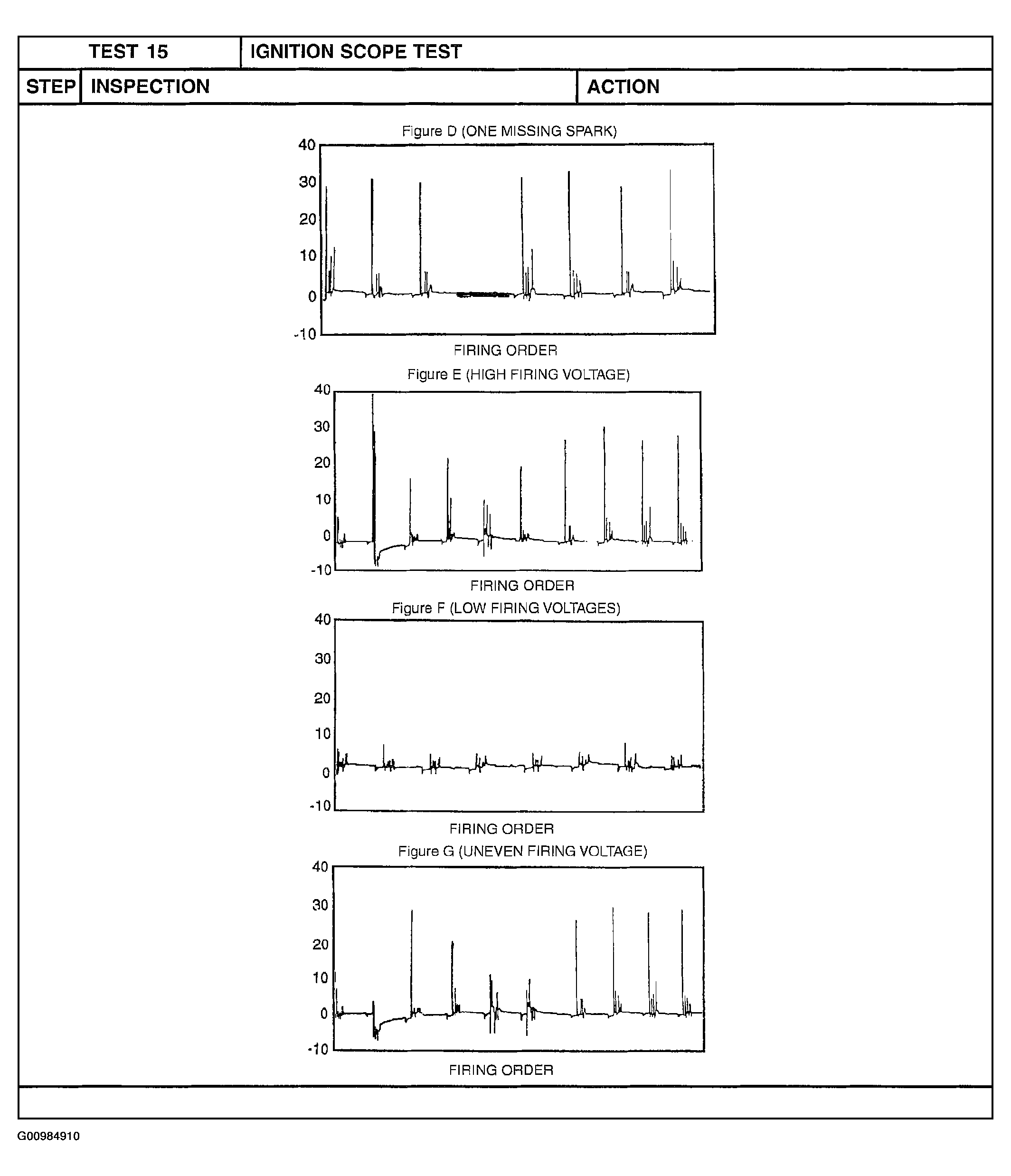

Fig 6: Test 15: Ignition Scope Test: Inspection (Step 15 Cont.)

G00984910

Courtesy of MAZDA MOTORS CORP.
