Test 15: Ignition Scope Test: Notes

CAUTION:

Fouled plugs or a damaged ignition may cause high catalyst temperatures. Check components next to the catalyst and muffler for heat damage.

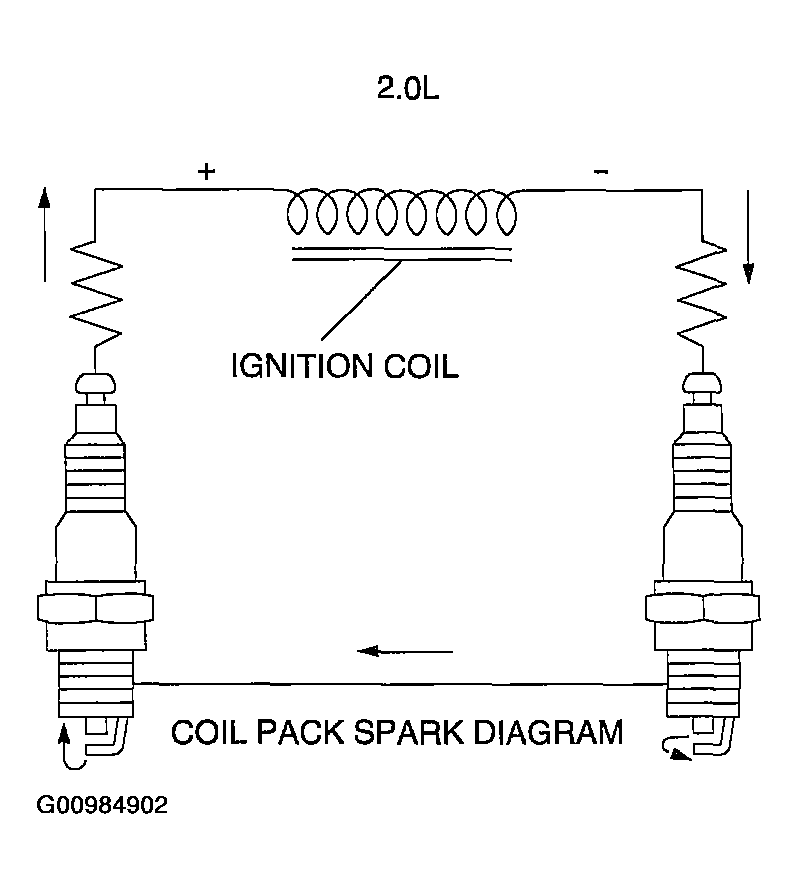

Fig 1: Coil Pack Spark Diagram (2.0L)

Courtesy of MAZDA MOTORS CORP.

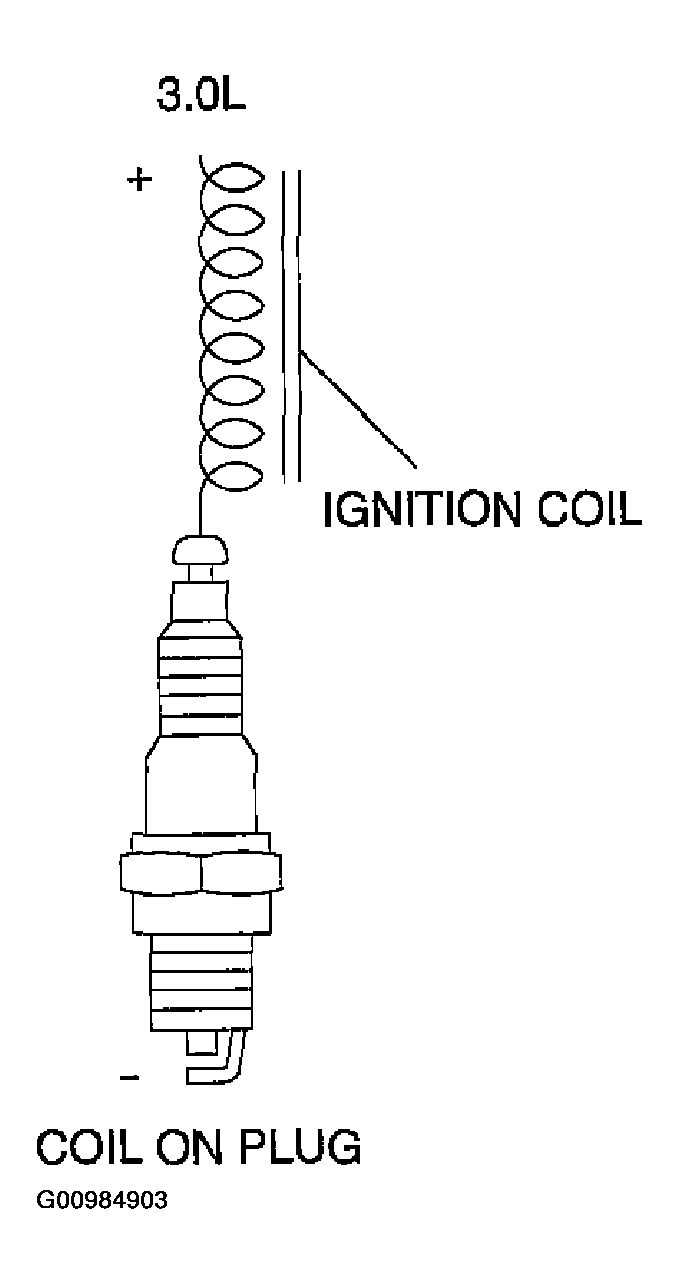

Fig 2: Coil On Plug Diagram (3.0L)

Courtesy of MAZDA MOTORS CORP.
